xpMA_v5

The XP Moving Average is a versatile technical analysis tool designed to help traders identify trends and potential entry or exit points in the financial markets. Rather than being limited to a single calculation method, this script acts as a multi-functional framework that can generate several different types of moving averages depending on your preferences.

Core Functionality

The primary role of this script is to calculate a specific "base" moving average from the market price. It provides users with a wide variety of mathematical models to choose from, including:

  • Standard Models: Simple (SMA), Exponential (EMA), Smoothed (SMMA), and Linear Weighted (LWMA).
  • Advanced Smoothing Models: Double Exponential (DEMA), Triple Exponential (TEMA), Hull Moving Average (HMA), and Jurik Moving Average (JMA).
  • Specialized Indicators: T3 Moving Average, DECEMA, and the SALT indicator.

Trend Detection Logic

Beyond just drawing a line on your chart, the script performs an active analysis of price momentum. It compares the current moving average value against a calculated "short-term" average of itself (based on a user-defined step period). This comparison creates two distinct visual signals:

  • Upward Momentum: When the current price trend moves above its own short-term average, the script identifies potential bullish movement.
  • Downward Momentum: When the current price trend falls below its short-term average, it identifies potential bearish movement.

Visual and Alert System

To make these signals actionable for the user, the script includes several automated notification features:

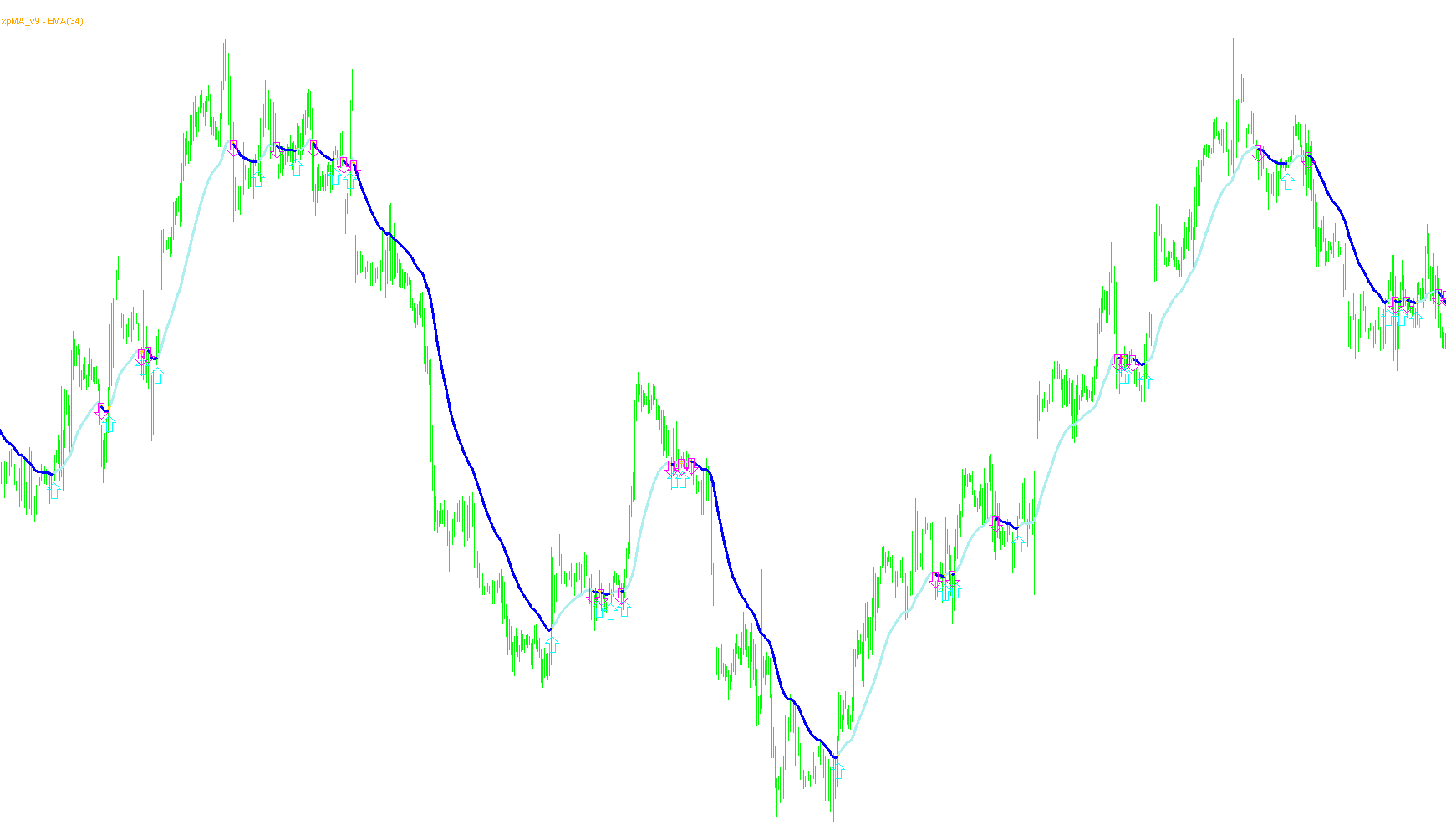

  • Visual Cues: The script automatically places arrows on the chart to highlight the exact moment a trend shift occurs. These are color-coded (Aqua for upward signals and Magenta for downward signals) to ensure they are easily distinguishable.
  • Dynamic Spacing: The script includes "shift" logic that adjusts the placement of these arrows based on the timeframe you are viewing, ensuring the symbols remain readable whether you are looking at 1-minute charts or monthly charts.
  • Real-Time Notifications: You can enable sound alerts to notify you instantly when a signal appears. Additionally, there is an optional email alert system that can send a notification directly to your inbox whenever a trend change is detected.

User Customization

The logic is designed to be highly adaptable. Users can modify the calculation period (how far back the average looks), the specific type of moving average used for the base calculation, and which price data (Open, High, Low, Close, etc.) the script should prioritize. This allows the tool to be tailored to different trading styles, from scalping fast movements to identifying long-term macro trends.

Indicators Used
Moving average indicatorMoving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt sends emails
15 Views
1 Downloads
0 Favorites
xpMA_v5
//Version: 9
//Updated: December 22, 2006
//+------------------------------------------------------------------+
//|                       XP Moving Average                          |
//|                                                         xpMA.mq4 |
//|                                         Developed by Coders Guru |
//|                                            http://www.xpworx.com |
//+------------------------------------------------------------------+
// This file is distributed fore free at www.ultimaforex.com

#property link      "http://www.xpworx.com"


#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Red
#property indicator_color2 Magenta
#property indicator_color3 Aqua

#define MODE_DEMA    4
#define MODE_TEMA    5
#define MODE_T3MA    6
#define MODE_JMA     7
#define MODE_HMA     8
#define MODE_DECEMA  9
#define MODE_SALT    10

/* Moving average types constants:
------------------------------------
MODE_SMA       0     Simple moving average,
MODE_EMA       1     Exponential moving average,
MODE_SMMA      2     Smoothed moving average,
MODE_LWMA      3     Linear weighted moving average.
MODE_DEMA      4     Double Exponential Moving Average.
MODE_TEMA      5     Triple Exponential Moving Average.
MODE_T3MA      6     T3 Moving Average.
MODE_JMA       7     Jurik Moving Average.
MODE_HMA       8     Hull Moving Average.
MODE_DECEMA    9     DECEMA Moving Average.
MODE_SALT      10    SALT Indicator.

------------------------------------*/

/* Applied price constants:
-------------------------------
PRICE_CLOSE    0     Close price.
PRICE_OPEN     1     Open price.
PRICE_HIGH     2     High price.
PRICE_LOW      3     Low price.
PRICE_MEDIAN   4     Median price, (high+low)/2.
PRICE_TYPICAL  5     Typical price, (high+low+close)/3.
PRICE_WEIGHTED 6     Weighted close price, (high+low+close+close)/4.
--------------------------------- */


extern   int      TimeFrame               = 0;
extern   int      MA_Period               = 34;
extern   int      MA_Type                 = MODE_EMA;
extern   int      MA_Applied              = PRICE_CLOSE;
extern   double   T3MA_VolumeFactor       = 0.8;
extern   double   JMA_Phase               = 0;
extern   int      Step_Period             = 4;

extern   bool     DebugMode               = false;

bool     Alert_On                = true;
bool     Arrows_On               = true;
int      UpArrowCode             = 241;
int      DownArrowCode           = 242;
color    UpArrowColor            = Aqua;
color    DownArrowColor          = Magenta;
int      UpArrowSize             = 3;
int      DownArrowSize           = 3;
bool     Email_Alert             = false;
string   pro  = "xpMA_v9";
string   ver  = "";


double UpBuffer[];
double DownBuffer[];
double Buffer3[];
double buffer[];
double tempbuffer[];
double matriple[];
double signal[];

int    nShift;

int init()
{
   DeleteStamp();
   ver = GenVer();
   DeleteAllObjects();
   IndicatorBuffers(7);

   SetIndexStyle(2,DRAW_LINE,STYLE_DOT,3);
   SetIndexBuffer(2,UpBuffer);
   SetIndexStyle(1,DRAW_LINE,STYLE_DOT,3);
   SetIndexBuffer(1,DownBuffer);
   SetIndexStyle(0,DRAW_LINE,STYLE_DOT,3);
   SetIndexBuffer(0,Buffer3);

   SetIndexBuffer(3,signal);
   SetIndexBuffer(4,buffer);
   SetIndexBuffer(5,tempbuffer);
   SetIndexBuffer(6,matriple);

   SetIndexLabel(0,"XP Moving Average");
   SetIndexLabel(1,"DownBuffer");
   SetIndexLabel(2,"UpBuffer");
   SetIndexLabel(3,"Signal");

    switch(Period())
      {
        case     1: nShift = 5;   break;
        case     5: nShift = 7;   break;
        case    15: nShift = 10;   break;
        case    30: nShift = 15;  break;
        case    60: nShift = 20;  break;
        case   240: nShift = 30;  break;
        case  1440: nShift = 80;  break;
        case 10080: nShift = 150; break;
        case 43200: nShift = 250; break;
      }

   return(0);
}

int deinit()
{
   DeleteStamp();
   DeleteAllObjects();
   return(0);
}



void start()
{

   StampVersion(pro,ver,5,20);

   int limit;
   int i = 0;

   int counted_bars=IndicatorCounted();
   if(counted_bars<0) return(-1);
   if(counted_bars>0) counted_bars--;
   limit=Bars-counted_bars;

   switch (MA_Type)
   {
      case 0:
      case 1:
      case 2:
      case 3:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MA_Type,MA_Applied,i);
                  }
            }
            break;

      case 4:
            {
                  for(i=0; i<limit; i++)
                  {
                     tempbuffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MODE_EMA,MA_Applied,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     matriple[i] = iMAOnArray(tempbuffer,0,MA_Period,0,MODE_EMA,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMAOnArray(matriple,0,MA_Period,0,MODE_EMA,i);
                  }
            }
            break;

      case 5:
            {
                  for(i=0; i<limit; i++)
                  {
                     tempbuffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MODE_EMA,MA_Applied,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMAOnArray(tempbuffer,0,MA_Period,0,MODE_EMA,i);
                  }
            }
            break;

      case 6:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"T3MA",MA_Period,T3MA_VolumeFactor,0,i);
                  }
            }
            break;
      case 7:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"JMA",MA_Period,JMA_Phase,0,i);
                  }
            }
            break;

      case 8:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"HMA",MA_Period,0,i);
                  }
            }
            break;

      case 9:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"DECEMA_v1",MA_Period,MA_Applied,0,i);
                  }
            }
            break;

      case 10:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"SATL",0,i);
                  }
            }
            break;

   }

   for(int shift=0; shift<limit; shift++)
   {
       UpBuffer[shift] = buffer[shift];
       DownBuffer[shift] = buffer[shift];
       Buffer3[shift] = buffer[shift];
   }

   /*for(shift=0; shift<limit; shift++)
   {
      if (buffer[shift]<buffer[shift+1])
      {
         UpBuffer[shift] = EMPTY_VALUE;
      }
      else if (buffer[shift]>buffer[shift+1] )
      {
         DownBuffer[shift] = EMPTY_VALUE;
      }
     else
      {
         UpBuffer[shift] = CLR_NONE;
         DownBuffer[shift] = CLR_NONE;
      }
   }*/

   for(shift=0; shift<limit; shift++)
   {
      double dMA = 0;
      for(int k = shift+1; k <= shift+Step_Period; k++){
         dMA += buffer[k];
      }
      dMA = dMA / Step_Period;

      if (buffer[shift] < dMA)
      {
         UpBuffer[shift] = EMPTY_VALUE;
      }
      else if (buffer[shift]>dMA)
      {
         DownBuffer[shift] = EMPTY_VALUE;
      }
      else
      {
         UpBuffer[shift] = EMPTY_VALUE;
         DownBuffer[shift] = EMPTY_VALUE;
      }
   }
   for(shift=0; shift<limit; shift++)
   {
         signal[shift]=0;
         if(UpBuffer[shift+1] == EMPTY_VALUE &&  UpBuffer[shift] != EMPTY_VALUE && Buffer3[shift+1] != UpBuffer[shift] )
            {
               if(Arrows_On && shift !=0) DrawObject(1,shift, buffer[shift] - nShift*Point);
               if(Arrows_On && shift ==0) DrawOnce(1,shift, buffer[shift] - nShift*Point,1);
               signal[shift] = 1;
            }

         if(DownBuffer[shift+1] == EMPTY_VALUE &&  DownBuffer[shift] != EMPTY_VALUE && Buffer3[shift+1] != DownBuffer[shift])
           {
               if(Arrows_On && shift !=0) DrawObject(2,shift, buffer[shift] + nShift*Point);
               if(Arrows_On && shift ==0) DrawOnce(2,shift, buffer[shift] + nShift*Point,2);
               signal[shift] = -1;
           }
   }

   if(Alert_On)
   {
      if(UpBuffer[1] == EMPTY_VALUE &&  UpBuffer[0] != EMPTY_VALUE && Buffer3[1] != UpBuffer[0])
         AlertOnce(Symbol()+ ":" + PeriodToText() + "  -  Up Signal",1);
      if(DownBuffer[1] == EMPTY_VALUE &&  DownBuffer[0] != EMPTY_VALUE && Buffer3[1] != DownBuffer[0])
         AlertOnce(Symbol()+ ":" + PeriodToText() + "  -  Down Signal",2);
   }

   if(Email_Alert)
   {
      if(UpBuffer[1] == EMPTY_VALUE &&  UpBuffer[0] != EMPTY_VALUE && Buffer3[1] != UpBuffer[0])
         SendMailOnce("xpMA Signal",Symbol()+ ":" + PeriodToText() + "  -  Up Signal",1);
      if(DownBuffer[1] == EMPTY_VALUE &&  DownBuffer[0] != EMPTY_VALUE && Buffer3[1] != DownBuffer[0])
         SendMailOnce("xpMA Signal",Symbol()+ ":" + PeriodToText() + "  -  Down Signal",2);
   }


   if(DebugMode)
   {
      TakeScreenShot(40);
   }

   return(0);
}

bool DrawOnce(int direction, int bar , double price, int ref)
{
   static int LastDraw_1 = 0;
   static int LastDraw_2 = 0;
   static int LastDraw_3 = 0;
   static int LastDraw_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastDraw_1 == 0 || LastDraw_1 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastDraw_2 == 0 || LastDraw_2 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastDraw_3 == 0 || LastDraw_3 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastDraw_4 == 0 || LastDraw_4 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_4 = Bars;
            return (1);
         }
      break;
   }
}

void DrawObject(int direction, int bar , double price)
{

   static int count = 0;
   count++;
   string Obj = "";
   if (direction==1) //up arrow
   {
      Obj = "xpMA_up_" + DoubleToStr(count,0);
      ObjectCreate(Obj,OBJ_ARROW,0,Time[bar],price);
      ObjectSet(Obj,OBJPROP_COLOR,UpArrowColor);
      ObjectSet(Obj,OBJPROP_ARROWCODE,UpArrowCode);
      ObjectSet(Obj,OBJPROP_WIDTH,DownArrowSize);
   }
   if (direction==2) //down arrow
   {
      Obj = "xpMA_down_" + DoubleToStr(count,0);
      ObjectCreate(Obj,OBJ_ARROW,0,Time[bar],price);
      ObjectSet(Obj,OBJPROP_COLOR,DownArrowColor);
      ObjectSet(Obj,OBJPROP_ARROWCODE,DownArrowCode);
      ObjectSet(Obj,OBJPROP_WIDTH,DownArrowSize);
   }
   ObjectsRedraw();
}

void DeleteAllObjects()
{
   int objs = ObjectsTotal();
   string name;
   for(int cnt=ObjectsTotal()-1;cnt>=0;cnt--)
   {
      name=ObjectName(cnt);
      if (StringFind(name,"xpMA",0)>-1) ObjectDelete(name);
      ObjectsRedraw();
   }
}

bool AlertOnce(string alert_msg, int ref)
{
   static int LastAlert_1 = 0;
   static int LastAlert_2 = 0;
   static int LastAlert_3 = 0;
   static int LastAlert_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastAlert_1 == 0 || LastAlert_1 < Bars )
         {
            Alert(alert_msg);
            LastAlert_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastAlert_2 == 0 || LastAlert_2 < Bars )
         {
            Alert(alert_msg);
            LastAlert_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastAlert_3 == 0 || LastAlert_3 < Bars )
         {
            Alert(alert_msg);
            LastAlert_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastAlert_4 == 0 || LastAlert_4 < Bars )
         {
            Alert(alert_msg);
            LastAlert_4 = Bars;
            return (1);
         }
      break;
   }
}

bool SendMailOnce(string subject, string mail_msg, int ref)
{
   static int LastMail_1 = 0;
   static int LastMail_2 = 0;
   static int LastMail_3 = 0;
   static int LastMail_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastMail_1 == 0 || LastMail_1 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastMail_2 == 0 || LastMail_2 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastMail_3 == 0 || LastMail_3 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastMail_4 == 0 || LastMail_4 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_4 = Bars;
            return (1);
         }
      break;
   }
}

void TakeScreenShot(int exit_on = -1)
{
   int count = 1;

   if(!GlobalVariableCheck("ssc"))
   {
    GlobalVariableSet("ssc",1);
    count = 1;
   }
   else
   {
      count = GlobalVariableGet("ssc") + 1;
      GlobalVariableSet("ssc",count);
   }

   if ( exit_on > 0 && count > exit_on ) return(0);

   string filename = "xpMA\\" + "xpMA_" + Symbol() +  "_" + DoubleToStr(count,0) + ".jpg";
   ScreenShot(filename,320,480);
}
string PeriodToText()
{
   switch (Period())
   {
      case 1:
            return("M1");
            break;
      case 5:
            return("M5");
            break;
      case 15:
            return("M15");
            break;
      case 30:
            return("M30");
            break;
      case 60:
            return("H1");
            break;
      case 240:
            return("H4");
            break;
      case 1440:
            return("D1");
            break;
      case 10080:
            return("W1");
            break;
      case 43200:
            return("MN1");
            break;
   }
}

void StampVersion(string pro , string ver , int x , int y)
{
   string Obj="Stamp_" + pro;
   int objs = ObjectsTotal();
   string name;

   for(int cnt=0;cnt<ObjectsTotal();cnt++)
   {
      name=ObjectName(cnt);
      if (StringFind(name,Obj,0)>-1)
      {
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();
      }
      else
      {
         ObjectCreate(Obj,OBJ_LABEL,0,0,0);
         ObjectSetText(Obj,pro + " - " + ver,8,"arial",Orange);
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();
      }
   }
   if (ObjectsTotal() == 0)
   {
         ObjectCreate(Obj,OBJ_LABEL,0,0,0);
         ObjectSetText(Obj,pro + " - " + ver,8,"arial",Orange);
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();

   }

   return(0);
}
void DeleteStamp()
{
   int objs = ObjectsTotal();
   string name;
   for(int cnt=ObjectsTotal()-1;cnt>=0;cnt--)
   {
      name=ObjectName(cnt);
      if (StringFind(name,"Stamp",0)>-1) ObjectDelete(name);
      ObjectsRedraw();
   }
}

string GenVer()
{
   string t1;
   if(MA_Type==0) t1="SMA";
   if(MA_Type==1) t1="EMA";
   if(MA_Type==2) t1="SMMA";
   if(MA_Type==3) t1="LWMA";
   if(MA_Type==4) t1="DEMA";
   if(MA_Type==5) t1="TEMA";
   if(MA_Type==6) t1="T3MA";
   if(MA_Type==7) t1="JMA";
   if(MA_Type==8) t1="HMA";
   if(MA_Type==9) t1="DECEMA";
   if(MA_Type==10) t1="SALT";

   return (t1+"("+MA_Period+")");
}

Dependencies

JMA

A sophisticated adaptive trend-following indicator that utilizes non-linear filtering, logarithmic scaling, and dynamic phase adjustments to minimize lag while preserving signal integrity.

JMA

T3MA

This indicator calculates a high-order smoothed moving average by recursively applying exponential averages and weighting them with a customizable volume factor to reduce noise while preserving price trends.

T3MA

HMA

This indicator applies a dual-weighted linear moving average formula coupled with a square root period smoothing to minimize price lag while maintaining high sensitivity to momentum shifts.

HMA

DECEMA_v1

The indicator calculates a high-order polynomial smoothing of an Exponential Moving Average to reduce noise and identify trend momentum.

Similar scripts

xpMA_mod

This indicator identifies trend reversals by comparing price action against a customizable array of advanced moving averages, triggering visual signals when the current value crosses a localized mean threshold.

xpMA_001

This indicator identifies momentum shifts by comparing dynamic moving average values against a localized mean to generate visual directional signals and alerts.

Gem-xpMA

This indicator synthesizes diverse moving average algorithms to identify trend reversals by comparing current price action against a dynamic short-term localized mean.

xpMA_With_Email_Alert

This indicator evaluates price action against various advanced moving average types and utilizes a local mean comparison to trigger directional trend shifts via visual markers and alerts.

xpMA_002

This indicator synthesizes diverse moving average methodologies, including T3 and Jurik, to generate directional trend reversals via dynamic price comparison and automated visual signaling.

ATM_XpMA

This indicator synthesizes multiple advanced moving average types with a dynamic look-back filter to generate directional trade signals via arrow markers and alerts.

ATM_xpMAv10bVS_25LWMAmedian

This indicator identifies trend shifts by comparing a customizable moving average against a smoothed local mean to generate directional signals and price breach alerts.

ATM_maLPF

This indicator identifies momentum shifts by comparing a customizable moving average—ranging from SMA to Jurik and Hull—against its own localized average over a defined step period.

ATM_maHPF

This indicator synthesizes multiple advanced moving average types—including Hull, Jurik, and T3—with a cross-over logic that triggers visual signals based on price deviations from a step-calculated mean.

xpMA_tail

This indicator detects momentum shifts by comparing price action against a dynamic average of external source data, triggering visual signals and alerts when price breaches a calculated step-period threshold.

JoeChalhoub_BreakingZone

This indicator identifies significant price action pivot points by calculating volumetric velocity and mapping supply-demand zones that trigger visual signals upon bullish or bearish exhaustion.

Comments
