xpMA_mod

Download script
xpMA_mod

This script is a versatile technical analysis tool designed to identify price trends and generate visual signals on a trading chart. It serves as a sophisticated moving average system that allows users to choose from various mathematical models to smooth out price action and highlight momentum changes.

Core Functionality

The primary purpose of this script is to calculate a specific type of moving average based on user preferences. Unlike basic indicators that only show one type of calculation, this tool provides a wide menu of professional options, including:

  • Standard Averages: Simple, Exponential, Smoothed, and Linearly Weighted averages.
  • Advanced Smoothing: Complex algorithms like Double/Triple Exponential (DEMA/TEMA), Hull Moving Average (HMA), Jurik Moving Average (JMA), and more.
  • Custom Integration: It can also pull data from other specialized external indicators to provide a highly customized view of the market.

How the Logic Works

The script processes market data through several distinct layers to produce its final output:

  1. Data Selection: The user chooses which price point to track (e.g., the closing price, the highest price of a period, or a weighted average of various prices).
  2. Trend Calculation: Based on the selected moving average type and a specific "Period" (the look-back window), the script calculates the current trend line.
  3. Comparison Logic: The tool doesn't just plot a line; it compares the current price position against a secondary, short-term average. This helps filter out "noise" and ensures that signals are based on significant movements rather than minor fluctuations.
  4. Signal Generation: When the price breaks through specific thresholds defined by these averages, the script identifies a potential trend shift.

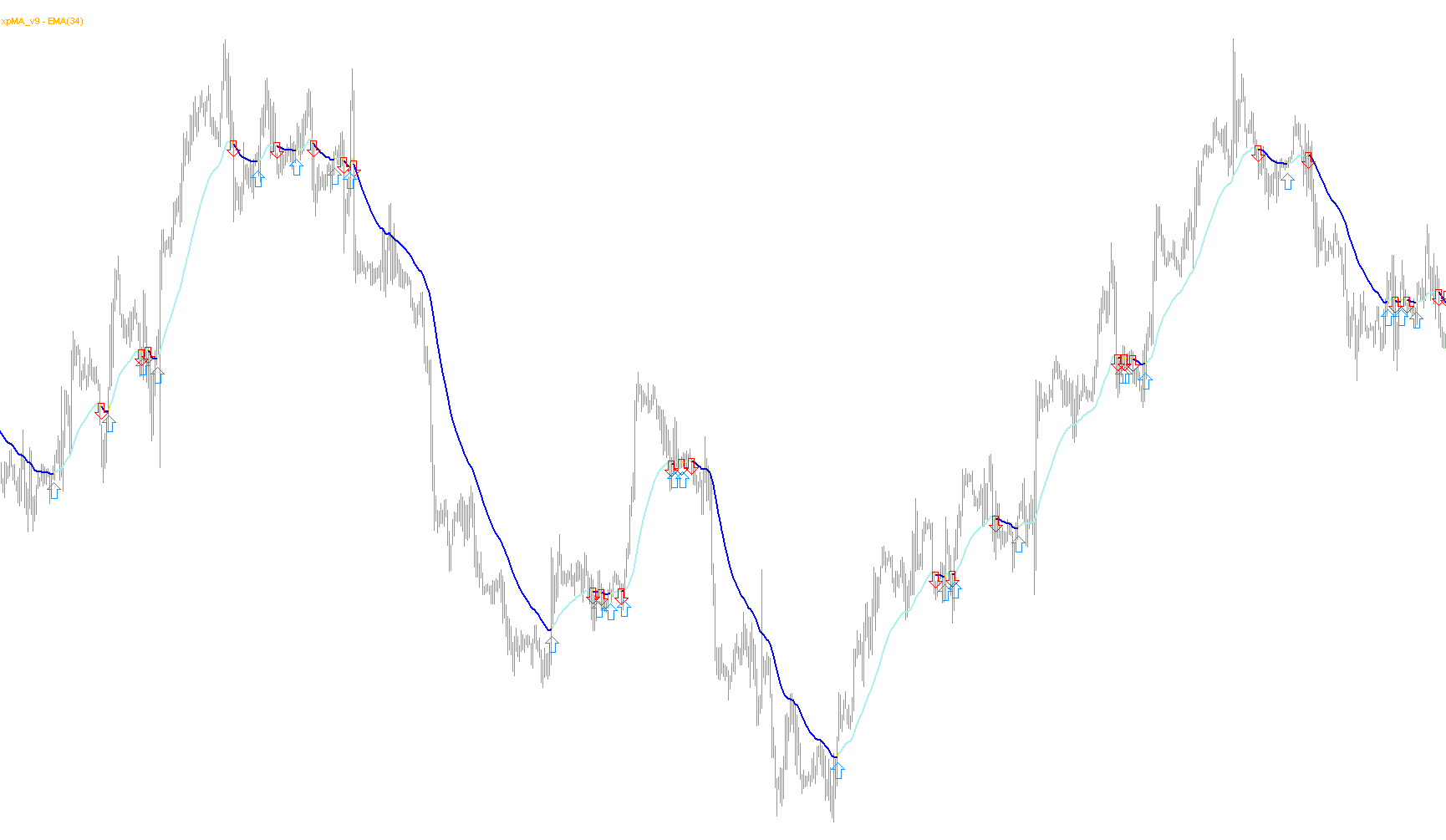

Visual and Interactive Features

To make this information actionable for a trader, the script provides several automated feedback mechanisms:

  • On-Chart Visuals: It automatically places directional arrows on the chart to indicate "Up" or "Down" signals based on the underlying math.
  • Dynamic Offsets: The script includes a smart shifting mechanism that adjusts the visual placement of signals based on the timeframe being viewed (e.g., different spacing for 1-minute charts versus daily charts) to ensure clarity.
  • Real-Time Notifications: Users can enable audible alerts or email notifications. These are triggered instantly when a new trend signal is detected, allowing traders to react even if they aren't looking directly at the screen.
  • Visual Documentation: Includes a "Debug Mode" that can automatically capture screenshots of the chart when specific conditions are met, providing a history of how signals appeared during live market hours.

In summary, this script acts as a customizable trend-detection engine that converts complex mathematical moving averages into clear, actionable visual cues and alerts for the user.

Indicators Used
Moving average indicatorMoving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt sends emails
10 Views
0 Downloads
0 Favorites
xpMA_mod
//Version: 9
//Updated: December 22, 2006
//+------------------------------------------------------------------+
//|                       XP Moving Average                          |
//|                                                         xpMA.mq4 |
//|                                         Developed by Coders Guru |
//|                                            http://www.xpworx.com |
//+------------------------------------------------------------------+

#property link      "http://www.xpworx.com"


#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Yellow
#property indicator_color2 Red
#property indicator_color3 LimeGreen


#define MODE_DEMA    4
#define MODE_TEMA    5
#define MODE_T3MA    6
#define MODE_JMA     7
#define MODE_HMA     8
#define MODE_DECEMA  9
#define MODE_SALT    10

/* Moving average types constants:
------------------------------------
MODE_SMA       0     Simple moving average,
MODE_EMA       1     Exponential moving average,
MODE_SMMA      2     Smoothed moving average,
MODE_LWMA      3     Linear weighted moving average.
MODE_DEMA      4     Double Exponential Moving Average.
MODE_TEMA      5     Triple Exponential Moving Average.
MODE_T3MA      6     T3 Moving Average.
MODE_JMA       7     Jurik Moving Average.
MODE_HMA       8     Hull Moving Average.
MODE_DECEMA    9     DECEMA Moving Average.
MODE_SALT      10    SALT Indicator.

------------------------------------*/

/* Applied price constants:
-------------------------------
PRICE_CLOSE    0     Close price.
PRICE_OPEN     1     Open price.
PRICE_HIGH     2     High price.
PRICE_LOW      3     Low price.
PRICE_MEDIAN   4     Median price, (high+low)/2.
PRICE_TYPICAL  5     Typical price, (high+low+close)/3.
PRICE_WEIGHTED 6     Weighted close price, (high+low+close+close)/4.
--------------------------------- */


extern   int      TimeFrame               = 0;
extern   int      MA_Period               = 34;
extern   int      MA_Type                 = MODE_EMA;
extern   int      MA_Applied              = PRICE_CLOSE;
extern   double   T3MA_VolumeFactor       = 0.8;
extern   double   JMA_Phase               = 0;
extern   int      Step_Period             = 4;


extern   bool     DebugMode               = false;

bool     Alert_On                = true;
bool     Arrows_On               = true;
int      UpArrowCode             = 241;
int      DownArrowCode           = 242;
color    UpArrowColor            = DodgerBlue;
color    DownArrowColor          = Red;
int      UpArrowSize             = 3;
int      DownArrowSize           = 3;
bool     Email_Alert             = false;
string   pro  = "xpMA_v9";
string   ver  = "";


double UpBuffer[];
double DownBuffer[];
double Buffer3[];
double buffer[];
double tempbuffer[];
double matriple[];
double signal[];

int    nShift;

int init()
{
   DeleteStamp();
   ver = GenVer();
   DeleteAllObjects();
   IndicatorBuffers(7);

   SetIndexStyle(2,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(2,UpBuffer);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(1,DownBuffer);
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(0,Buffer3);

   SetIndexBuffer(3,signal);
   SetIndexBuffer(4,buffer);
   SetIndexBuffer(5,tempbuffer);
   SetIndexBuffer(6,matriple);

   SetIndexLabel(0,"XP Moving Average");
   SetIndexLabel(1,"DownBuffer");
   SetIndexLabel(2,"UpBuffer");
   SetIndexLabel(3,"Signal");

    switch(Period())
      {
        case     1: nShift = 5;   break;
        case     5: nShift = 7;   break;
        case    15: nShift = 10;   break;
        case    30: nShift = 15;  break;
        case    60: nShift = 20;  break;
        case   240: nShift = 30;  break;
        case  1440: nShift = 80;  break;
        case 10080: nShift = 150; break;
        case 43200: nShift = 250; break;
      }

   return(0);
}

int deinit()
{
   DeleteStamp();
   DeleteAllObjects();
   return(0);
}



void start()
{

   StampVersion(pro,ver,5,20);

   int limit;
   int i = 0;

   int counted_bars=IndicatorCounted();
   if(counted_bars<0) return(-1);
   if(counted_bars>0) counted_bars--;
   limit=Bars-counted_bars;

   switch (MA_Type)
   {
      case 0:
      case 1:
      case 2:
      case 3:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MA_Type,MA_Applied,i);
                  }
            }
            break;

      case 4:
            {
                  for(i=0; i<limit; i++)
                  {
                     tempbuffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MODE_EMA,MA_Applied,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     matriple[i] = iMAOnArray(tempbuffer,0,MA_Period,0,MODE_EMA,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMAOnArray(matriple,0,MA_Period,0,MODE_EMA,i);
                  }
            }
            break;

      case 5:
            {
                  for(i=0; i<limit; i++)
                  {
                     tempbuffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MODE_EMA,MA_Applied,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMAOnArray(tempbuffer,0,MA_Period,0,MODE_EMA,i);
                  }
            }
            break;

      case 6:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"T3MA",MA_Period,T3MA_VolumeFactor,0,i);
                  }
            }
            break;
      case 7:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"JMA",MA_Period,JMA_Phase,0,i);
                  }
            }
            break;

      case 8:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"HMA",MA_Period,0,i);
                  }
            }
            break;

      case 9:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"DECEMA_v1",MA_Period,MA_Applied,0,i);
                  }
            }
            break;

      case 10:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"SATL",0,i);
                  }
            }
            break;

   }

   for(int shift=0; shift<limit; shift++)
   {
       UpBuffer[shift] = buffer[shift];
       DownBuffer[shift] = buffer[shift];
       Buffer3[shift] = buffer[shift];
   }

   /*for(shift=0; shift<limit; shift++)
   {
      if (buffer[shift]<buffer[shift+1])
      {
         UpBuffer[shift] = EMPTY_VALUE;
      }
      else if (buffer[shift]>buffer[shift+1] )
      {
         DownBuffer[shift] = EMPTY_VALUE;
      }
     else
      {
         UpBuffer[shift] = CLR_NONE;
         DownBuffer[shift] = CLR_NONE;
      }
   }*/

   for(shift=0; shift<limit; shift++)
   {
      double dMA = 0;
      for(int k = shift+1; k <= shift+Step_Period; k++){
         dMA += buffer[k];
      }
      dMA = dMA / Step_Period;

      if (buffer[shift] < dMA)
      {
         UpBuffer[shift] = EMPTY_VALUE;
      }
      else if (buffer[shift]>dMA)
      {
         DownBuffer[shift] = EMPTY_VALUE;
      }
      else
      {
         UpBuffer[shift] = EMPTY_VALUE;
         DownBuffer[shift] = EMPTY_VALUE;
      }
   }
   for(shift=0; shift<limit; shift++)
   {
         signal[shift]=0;
         if(UpBuffer[shift+1] == EMPTY_VALUE &&  UpBuffer[shift] != EMPTY_VALUE && Buffer3[shift+1] != UpBuffer[shift] )
            {
               if(Arrows_On && shift !=0) DrawObject(1,shift, buffer[shift] - nShift*Point);
               if(Arrows_On && shift ==0) DrawOnce(1,shift, buffer[shift] - nShift*Point,1);
               signal[shift] = 1;
            }

         if(DownBuffer[shift+1] == EMPTY_VALUE &&  DownBuffer[shift] != EMPTY_VALUE && Buffer3[shift+1] != DownBuffer[shift])
           {
               if(Arrows_On && shift !=0) DrawObject(2,shift, buffer[shift] + nShift*Point);
               if(Arrows_On && shift ==0) DrawOnce(2,shift, buffer[shift] + nShift*Point,2);
               signal[shift] = -1;
           }
   }

   if(Alert_On)
   {
      if(UpBuffer[1] == EMPTY_VALUE &&  UpBuffer[0] != EMPTY_VALUE && Buffer3[1] != UpBuffer[0])
         AlertOnce(Symbol()+ ":" + PeriodToText() + "  -  Up Signal",1);
      if(DownBuffer[1] == EMPTY_VALUE &&  DownBuffer[0] != EMPTY_VALUE && Buffer3[1] != DownBuffer[0])
         AlertOnce(Symbol()+ ":" + PeriodToText() + "  -  Down Signal",2);
   }

   if(Email_Alert)
   {
      if(UpBuffer[1] == EMPTY_VALUE &&  UpBuffer[0] != EMPTY_VALUE && Buffer3[1] != UpBuffer[0])
         SendMailOnce("xpMA Signal",Symbol()+ ":" + PeriodToText() + "  -  Up Signal",1);
      if(DownBuffer[1] == EMPTY_VALUE &&  DownBuffer[0] != EMPTY_VALUE && Buffer3[1] != DownBuffer[0])
         SendMailOnce("xpMA Signal",Symbol()+ ":" + PeriodToText() + "  -  Down Signal",2);
   }


   if(DebugMode)
   {
      TakeScreenShot(40);
   }

   return(0);
}

bool DrawOnce(int direction, int bar , double price, int ref)
{
   static int LastDraw_1 = 0;
   static int LastDraw_2 = 0;
   static int LastDraw_3 = 0;
   static int LastDraw_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastDraw_1 == 0 || LastDraw_1 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastDraw_2 == 0 || LastDraw_2 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastDraw_3 == 0 || LastDraw_3 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastDraw_4 == 0 || LastDraw_4 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_4 = Bars;
            return (1);
         }
      break;
   }
}

void DrawObject(int direction, int bar , double price)
{

   static int count = 0;
   count++;
   string Obj = "";
   if (direction==1) //up arrow
   {
      Obj = "xpMA_up_" + DoubleToStr(count,0);
      ObjectCreate(Obj,OBJ_ARROW,0,Time[bar],price);
      ObjectSet(Obj,OBJPROP_COLOR,UpArrowColor);
      ObjectSet(Obj,OBJPROP_ARROWCODE,UpArrowCode);
      ObjectSet(Obj,OBJPROP_WIDTH,DownArrowSize);
   }
   if (direction==2) //down arrow
   {
      Obj = "xpMA_down_" + DoubleToStr(count,0);
      ObjectCreate(Obj,OBJ_ARROW,0,Time[bar],price);
      ObjectSet(Obj,OBJPROP_COLOR,DownArrowColor);
      ObjectSet(Obj,OBJPROP_ARROWCODE,DownArrowCode);
      ObjectSet(Obj,OBJPROP_WIDTH,DownArrowSize);
   }
   ObjectsRedraw();
}

void DeleteAllObjects()
{
   int objs = ObjectsTotal();
   string name;
   for(int cnt=ObjectsTotal()-1;cnt>=0;cnt--)
   {
      name=ObjectName(cnt);
      if (StringFind(name,"xpMA",0)>-1) ObjectDelete(name);
      ObjectsRedraw();
   }
}

bool AlertOnce(string alert_msg, int ref)
{
   static int LastAlert_1 = 0;
   static int LastAlert_2 = 0;
   static int LastAlert_3 = 0;
   static int LastAlert_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastAlert_1 == 0 || LastAlert_1 < Bars )
         {
            Alert(alert_msg);
            LastAlert_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastAlert_2 == 0 || LastAlert_2 < Bars )
         {
            Alert(alert_msg);
            LastAlert_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastAlert_3 == 0 || LastAlert_3 < Bars )
         {
            Alert(alert_msg);
            LastAlert_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastAlert_4 == 0 || LastAlert_4 < Bars )
         {
            Alert(alert_msg);
            LastAlert_4 = Bars;
            return (1);
         }
      break;
   }
}

bool SendMailOnce(string subject, string mail_msg, int ref)
{
   static int LastMail_1 = 0;
   static int LastMail_2 = 0;
   static int LastMail_3 = 0;
   static int LastMail_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastMail_1 == 0 || LastMail_1 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastMail_2 == 0 || LastMail_2 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastMail_3 == 0 || LastMail_3 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastMail_4 == 0 || LastMail_4 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_4 = Bars;
            return (1);
         }
      break;
   }
}

void TakeScreenShot(int exit_on = -1)
{
   int count = 1;

   if(!GlobalVariableCheck("ssc"))
   {
    GlobalVariableSet("ssc",1);
    count = 1;
   }
   else
   {
      count = GlobalVariableGet("ssc") + 1;
      GlobalVariableSet("ssc",count);
   }

   if ( exit_on > 0 && count > exit_on ) return(0);

   string filename = "xpMA\\" + "xpMA_" + Symbol() +  "_" + DoubleToStr(count,0) + ".jpg";
   ScreenShot(filename,320,480);
}
string PeriodToText()
{
   switch (Period())
   {
      case 1:
            return("M1");
            break;
      case 5:
            return("M5");
            break;
      case 15:
            return("M15");
            break;
      case 30:
            return("M30");
            break;
      case 60:
            return("H1");
            break;
      case 240:
            return("H4");
            break;
      case 1440:
            return("D1");
            break;
      case 10080:
            return("W1");
            break;
      case 43200:
            return("MN1");
            break;
   }
}

void StampVersion(string pro , string ver , int x , int y)
{
   string Obj="Stamp_" + pro;
   int objs = ObjectsTotal();
   string name;

   for(int cnt=0;cnt<ObjectsTotal();cnt++)
   {
      name=ObjectName(cnt);
      if (StringFind(name,Obj,0)>-1)
      {
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();
      }
      else
      {
         ObjectCreate(Obj,OBJ_LABEL,0,0,0);
         ObjectSetText(Obj,pro + " - " + ver,8,"arial",Orange);
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();
      }
   }
   if (ObjectsTotal() == 0)
   {
         ObjectCreate(Obj,OBJ_LABEL,0,0,0);
         ObjectSetText(Obj,pro + " - " + ver,8,"arial",Orange);
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();

   }

   return(0);
}
void DeleteStamp()
{
   int objs = ObjectsTotal();
   string name;
   for(int cnt=ObjectsTotal()-1;cnt>=0;cnt--)
   {
      name=ObjectName(cnt);
      if (StringFind(name,"Stamp",0)>-1) ObjectDelete(name);
      ObjectsRedraw();
   }
}

string GenVer()
{
   string t1;
   if(MA_Type==0) t1="SMA";
   if(MA_Type==1) t1="EMA";
   if(MA_Type==2) t1="SMMA";
   if(MA_Type==3) t1="LWMA";
   if(MA_Type==4) t1="DEMA";
   if(MA_Type==5) t1="TEMA";
   if(MA_Type==6) t1="T3MA";
   if(MA_Type==7) t1="JMA";
   if(MA_Type==8) t1="HMA";
   if(MA_Type==9) t1="DECEMA";
   if(MA_Type==10) t1="SALT";

   return (t1+"("+MA_Period+")");
}

Dependencies

JMA

A sophisticated adaptive trend-following indicator that utilizes non-linear filtering, logarithmic scaling, and dynamic phase adjustments to minimize lag while preserving signal integrity.

JMA

T3MA

This indicator calculates a high-order smoothed moving average by recursively applying exponential averages and weighting them with a customizable volume factor to reduce noise while preserving price trends.

T3MA

HMA

This indicator applies a dual-weighted linear moving average formula coupled with a square root period smoothing to minimize price lag while maintaining high sensitivity to momentum shifts.

HMA

DECEMA_v1

The indicator calculates a high-order polynomial smoothing of an Exponential Moving Average to reduce noise and identify trend momentum.

Similar scripts

xpMA_001

This indicator identifies momentum shifts by comparing dynamic moving average values against a localized mean to generate visual directional signals and alerts.

xpMA_With_Email_Alert

This indicator evaluates price action against various advanced moving average types and utilizes a local mean comparison to trigger directional trend shifts via visual markers and alerts.

xpMA_002

This indicator synthesizes diverse moving average methodologies, including T3 and Jurik, to generate directional trend reversals via dynamic price comparison and automated visual signaling.

Gem-xpMA

This indicator synthesizes diverse moving average algorithms to identify trend reversals by comparing current price action against a dynamic short-term localized mean.

xpMA_v5

This indicator evaluates price action against various specialized moving average algorithms to generate visual reversal signals and trend shifts based on localized momentum deviations.

ATM_XpMA

This indicator synthesizes multiple advanced moving average types with a dynamic look-back filter to generate directional trade signals via arrow markers and alerts.

ATM_xpMAv10bVS_25LWMAmedian

This indicator identifies trend shifts by comparing a customizable moving average against a smoothed local mean to generate directional signals and price breach alerts.

ATM_maLPF

This indicator identifies momentum shifts by comparing a customizable moving average—ranging from SMA to Jurik and Hull—against its own localized average over a defined step period.

ATM_maHPF

This indicator synthesizes multiple advanced moving average types—including Hull, Jurik, and T3—with a cross-over logic that triggers visual signals based on price deviations from a step-calculated mean.

xpMA_tail

This indicator detects momentum shifts by comparing price action against a dynamic average of external source data, triggering visual signals and alerts when price breaches a calculated step-period threshold.

JoeChalhoub_BreakingZone

This indicator identifies significant price action pivot points by calculating volumetric velocity and mapping supply-demand zones that trigger visual signals upon bullish or bearish exhaustion.

Comments
