Gem-xpMA

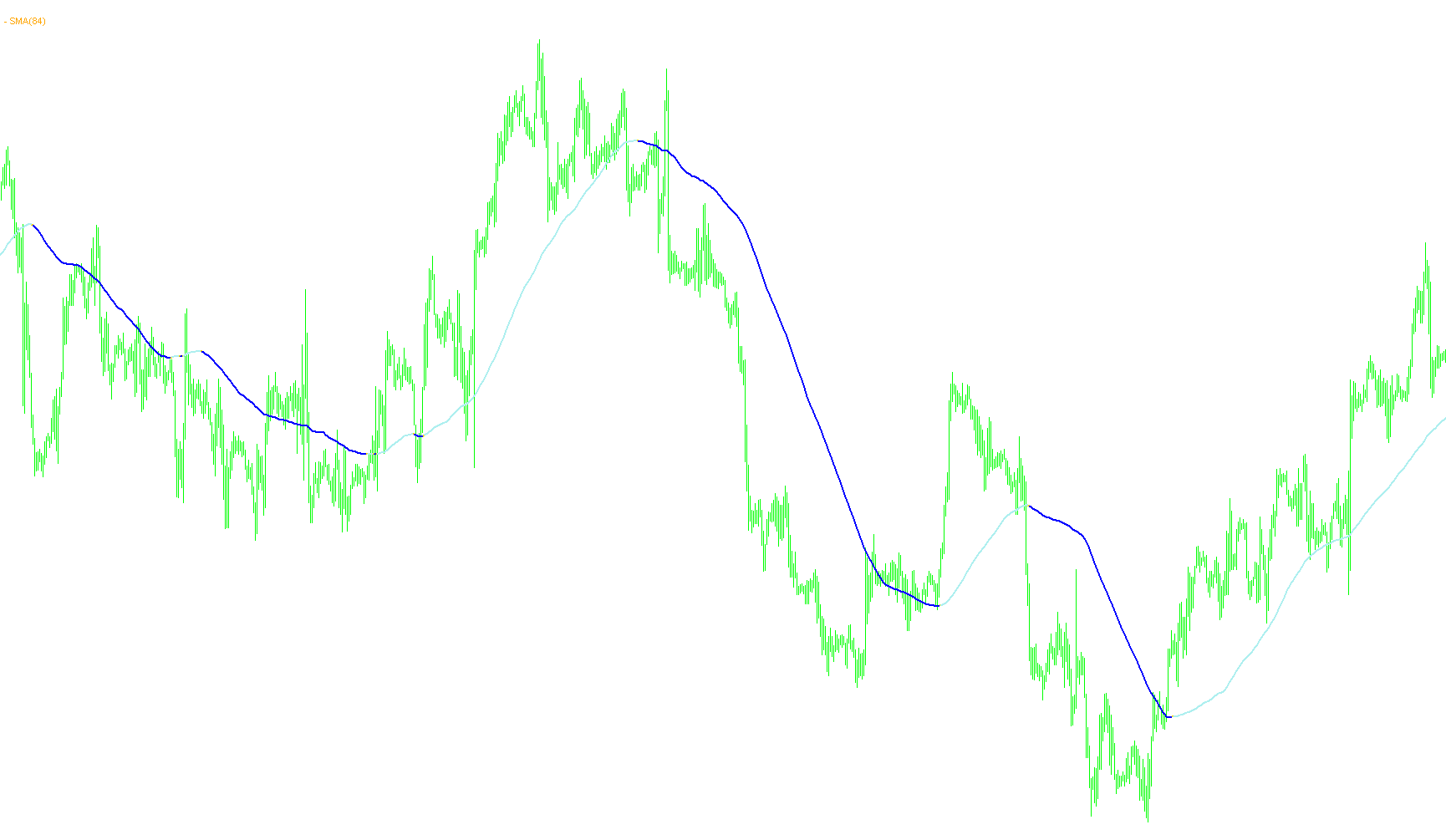

The XP Moving Average is a versatile and sophisticated technical analysis tool designed to track price trends while providing specific visual signals for potential market entries. It functions by calculating various types of moving averages—ranging from standard simple averages to more complex, modern formulas—and then applying an additional layer of logic to filter out "noise" and identify clear trend shifts.

Core Functionality

1. Versatile Moving Average Engine The script acts as a comprehensive hub for several different mathematical models used to smooth out price data. Depending on your settings, it can calculate:

  • Standard Models: Simple (SMA), Exponential (EMA), Smoothed (SMMA), and Linear Weighted (LWMA).
  • Advanced Models: Double Exponential (DEMA), Triple Exponential (TEMA), T3, Jurik (JMA), Hull (HMA), DECEMA, and SALT.

2. Dynamic Trend Filtering Unlike a basic moving average that simply follows the price, this script performs an extra check to ensure signals are reliable. It calculates a short-term average of the moving average itself over a specific "Step Period."

  • If the current moving average value is higher than this short-term average, it identifies an Upward trend.
  • If the current value is lower, it identifies a Downward trend.

3. Visual Signals and Alerts The script automatically translates these mathematical calculations into visual cues on your chart:

  • Arrows: It places Blue arrows for upward signals and Red arrows for downward signals directly on the chart.
  • Smart Placement: To ensure the arrows are clearly visible, the script includes a "Shift" logic that offsets the symbols based on the timeframe you are viewing (e.g., different offsets for 1-minute charts versus Daily charts).
  • Notifications: The tool can be configured to send real-time alerts directly to your trading platform or via email whenever a new signal is detected.

User Experience Features

  • Automated Clean-up: The script automatically manages its own workspace, deleting old stamps and objects to keep your chart clean.
  • Debug Mode: Includes a screen capture feature for troubleshooting, allowing you to see exactly what the indicator "saw" at a specific moment.
  • Timeframe Awareness: It recognizes different timeframes (from M1 to Monthly) and adjusts its internal calculations and visual offsets automatically to match the scale of your analysis.
Indicators Used
Moving average indicatorMoving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt sends emails
12 Views
0 Downloads
0 Favorites
Gem-xpMA
//Version: 9
//Updated: December 22, 2006
//+------------------------------------------------------------------+
//|                       XP Moving Average                          |
//|                                                         xpMA.mq4 |
//|                                         Developed by Coders Guru |
//|                                            http://www.xpworx.com |
//+------------------------------------------------------------------+

#property link      "http://www.xpworx.com"


#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Yellow
#property indicator_color2 Red
#property indicator_color3 Aqua
#define MODE_DEMA    4
#define MODE_TEMA    5
#define MODE_T3MA    6
#define MODE_JMA     7
#define MODE_HMA     8
#define MODE_DECEMA  9
#define MODE_SALT    10

/* Moving average types constants:
------------------------------------
MODE_SMA       0     Simple moving average,
MODE_EMA       1     Exponential moving average,
MODE_SMMA      2     Smoothed moving average,
MODE_LWMA      3     Linear weighted moving average.
MODE_DEMA      4     Double Exponential Moving Average.
MODE_TEMA      5     Triple Exponential Moving Average.
MODE_T3MA      6     T3 Moving Average.
MODE_JMA       7     Jurik Moving Average.
MODE_HMA       8     Hull Moving Average.
MODE_DECEMA    9     DECEMA Moving Average.
MODE_SALT      10    SALT Indicator.

------------------------------------*/

/* Applied price constants:
-------------------------------
PRICE_CLOSE    0     Close price.
PRICE_OPEN     1     Open price.
PRICE_HIGH     2     High price.
PRICE_LOW      3     Low price.
PRICE_MEDIAN   4     Median price, (high+low)/2.
PRICE_TYPICAL  5     Typical price, (high+low+close)/3.
PRICE_WEIGHTED 6     Weighted close price, (high+low+close+close)/4.
--------------------------------- */


extern   int      TimeFrame               = 0;
extern   int      MA_Period               = 84;
extern   int      MA_Type                 = MODE_SMA;
extern   int      MA_Applied              = PRICE_CLOSE;
extern   double   T3MA_VolumeFactor       = 0.8;
extern   double   JMA_Phase               = 0;
extern   int      Step_Period             = 4;

extern   bool     DebugMode               = false;

bool     Alert_On                = true;
bool     Arrows_On               = false;
int      UpArrowCode             = 241;
int      DownArrowCode           = 242;
color    UpArrowColor            = Blue;
color    DownArrowColor          = Red;
int      UpArrowSize             = 3;
int      DownArrowSize           = 3;
bool     Email_Alert             = false;
string   pro  = "";
string   ver  = "";


double UpBuffer[];
double DownBuffer[];
double Buffer3[];
double buffer[];
double tempbuffer[];
double matriple[];
double signal[];

int    nShift;

int init()
{
   DeleteStamp();
   ver = GenVer();
   DeleteAllObjects();
   IndicatorBuffers(7);

   SetIndexStyle(2,DRAW_LINE,STYLE_DOT,2);
   SetIndexBuffer(2,UpBuffer);
   SetIndexStyle(1,DRAW_LINE,STYLE_DOT,2);
   SetIndexBuffer(1,DownBuffer);
   SetIndexStyle(0,DRAW_LINE,STYLE_DOT,2);
   SetIndexBuffer(0,Buffer3);

   SetIndexBuffer(3,signal);
   SetIndexBuffer(4,buffer);
   SetIndexBuffer(5,tempbuffer);
   SetIndexBuffer(6,matriple);

   SetIndexLabel(0,"XP Moving Average");
   SetIndexLabel(1,"DownBuffer");
   SetIndexLabel(2,"UpBuffer");
   SetIndexLabel(3,"Signal");

    switch(Period())
      {
        case     1: nShift = 5;   break;
        case     5: nShift = 7;   break;
        case    15: nShift = 10;   break;
        case    30: nShift = 15;  break;
        case    60: nShift = 20;  break;
        case   240: nShift = 30;  break;
        case  1440: nShift = 80;  break;
        case 10080: nShift = 150; break;
        case 43200: nShift = 250; break;
      }

   return(0);
}

int deinit()
{
   DeleteStamp();
   DeleteAllObjects();
   return(0);
}



void start()
{

   StampVersion(pro,ver,5,20);

   int limit;
   int i = 0;

   int counted_bars=IndicatorCounted();
   if(counted_bars<0) return(-1);
   if(counted_bars>0) counted_bars--;
   limit=Bars-counted_bars;

   switch (MA_Type)
   {
      case 0:
      case 1:
      case 2:
      case 3:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MA_Type,MA_Applied,i);
                  }
            }
            break;

      case 4:
            {
                  for(i=0; i<limit; i++)
                  {
                     tempbuffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MODE_EMA,MA_Applied,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     matriple[i] = iMAOnArray(tempbuffer,0,MA_Period,0,MODE_EMA,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMAOnArray(matriple,0,MA_Period,0,MODE_EMA,i);
                  }
            }
            break;

      case 5:
            {
                  for(i=0; i<limit; i++)
                  {
                     tempbuffer[i] = iMA(NULL,TimeFrame,MA_Period,0,MODE_EMA,MA_Applied,i);
                  }
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iMAOnArray(tempbuffer,0,MA_Period,0,MODE_EMA,i);
                  }
            }
            break;

      case 6:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"T3MA",MA_Period,T3MA_VolumeFactor,0,i);
                  }
            }
            break;
      case 7:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"JMA",MA_Period,JMA_Phase,0,i);
                  }
            }
            break;

      case 8:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"HMA",MA_Period,0,i);
                  }
            }
            break;

      case 9:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"DECEMA_v1",MA_Period,MA_Applied,0,i);
                  }
            }
            break;

      case 10:
            {
                  for(i=0; i<limit; i++)
                  {
                     buffer[i] = iCustom(NULL,TimeFrame,"SATL",0,i);
                  }
            }
            break;

   }

   for(int shift=0; shift<limit; shift++)
   {
       UpBuffer[shift] = buffer[shift];
       DownBuffer[shift] = buffer[shift];
       Buffer3[shift] = buffer[shift];
   }

   /*for(shift=0; shift<limit; shift++)
   {
      if (buffer[shift]<buffer[shift+1])
      {
         UpBuffer[shift] = EMPTY_VALUE;
      }
      else if (buffer[shift]>buffer[shift+1] )
      {
         DownBuffer[shift] = EMPTY_VALUE;
      }
     else
      {
         UpBuffer[shift] = CLR_NONE;
         DownBuffer[shift] = CLR_NONE;
      }
   }*/

   for(shift=0; shift<limit; shift++)
   {
      double dMA = 0;
      for(int k = shift+1; k <= shift+Step_Period; k++){
         dMA += buffer[k];
      }
      dMA = dMA / Step_Period;

      if (buffer[shift] < dMA)
      {
         UpBuffer[shift] = EMPTY_VALUE;
      }
      else if (buffer[shift]>dMA)
      {
         DownBuffer[shift] = EMPTY_VALUE;
      }
      else
      {
         UpBuffer[shift] = EMPTY_VALUE;
         DownBuffer[shift] = EMPTY_VALUE;
      }
   }
   for(shift=0; shift<limit; shift++)
   {
         signal[shift]=0;
         if(UpBuffer[shift+1] == EMPTY_VALUE &&  UpBuffer[shift] != EMPTY_VALUE && Buffer3[shift+1] != UpBuffer[shift] )
            {
               if(Arrows_On && shift !=0) DrawObject(1,shift, buffer[shift] - nShift*Point);
               if(Arrows_On && shift ==0) DrawOnce(1,shift, buffer[shift] - nShift*Point,1);
               signal[shift] = 1;
            }

         if(DownBuffer[shift+1] == EMPTY_VALUE &&  DownBuffer[shift] != EMPTY_VALUE && Buffer3[shift+1] != DownBuffer[shift])
           {
               if(Arrows_On && shift !=0) DrawObject(2,shift, buffer[shift] + nShift*Point);
               if(Arrows_On && shift ==0) DrawOnce(2,shift, buffer[shift] + nShift*Point,2);
               signal[shift] = -1;
           }
   }

   if(Alert_On)
   {
      if(UpBuffer[1] == EMPTY_VALUE &&  UpBuffer[0] != EMPTY_VALUE && Buffer3[1] != UpBuffer[0])
         AlertOnce(Symbol()+ ":" + PeriodToText() + "  -  Up Signal",1);
      if(DownBuffer[1] == EMPTY_VALUE &&  DownBuffer[0] != EMPTY_VALUE && Buffer3[1] != DownBuffer[0])
         AlertOnce(Symbol()+ ":" + PeriodToText() + "  -  Down Signal",2);
   }

   if(Email_Alert)
   {
      if(UpBuffer[1] == EMPTY_VALUE &&  UpBuffer[0] != EMPTY_VALUE && Buffer3[1] != UpBuffer[0])
         SendMailOnce("xpMA Signal",Symbol()+ ":" + PeriodToText() + "  -  Up Signal",1);
      if(DownBuffer[1] == EMPTY_VALUE &&  DownBuffer[0] != EMPTY_VALUE && Buffer3[1] != DownBuffer[0])
         SendMailOnce("xpMA Signal",Symbol()+ ":" + PeriodToText() + "  -  Down Signal",2);
   }


   if(DebugMode)
   {
      TakeScreenShot(40);
   }

   return(0);
}

bool DrawOnce(int direction, int bar , double price, int ref)
{
   static int LastDraw_1 = 0;
   static int LastDraw_2 = 0;
   static int LastDraw_3 = 0;
   static int LastDraw_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastDraw_1 == 0 || LastDraw_1 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastDraw_2 == 0 || LastDraw_2 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastDraw_3 == 0 || LastDraw_3 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastDraw_4 == 0 || LastDraw_4 < Bars )
         {
            DrawObject(direction, bar , price);
            LastDraw_4 = Bars;
            return (1);
         }
      break;
   }
}

void DrawObject(int direction, int bar , double price)
{

   static int count = 0;
   count++;
   string Obj = "";
   if (direction==1) //up arrow
   {
      Obj = "xpMA_up_" + DoubleToStr(count,0);
      ObjectCreate(Obj,OBJ_ARROW,0,Time[bar],price);
      ObjectSet(Obj,OBJPROP_COLOR,UpArrowColor);
      ObjectSet(Obj,OBJPROP_ARROWCODE,UpArrowCode);
      ObjectSet(Obj,OBJPROP_WIDTH,DownArrowSize);
   }
   if (direction==2) //down arrow
   {
      Obj = "xpMA_down_" + DoubleToStr(count,0);
      ObjectCreate(Obj,OBJ_ARROW,0,Time[bar],price);
      ObjectSet(Obj,OBJPROP_COLOR,DownArrowColor);
      ObjectSet(Obj,OBJPROP_ARROWCODE,DownArrowCode);
      ObjectSet(Obj,OBJPROP_WIDTH,DownArrowSize);
   }
   ObjectsRedraw();
}

void DeleteAllObjects()
{
   int objs = ObjectsTotal();
   string name;
   for(int cnt=ObjectsTotal()-1;cnt>=0;cnt--)
   {
      name=ObjectName(cnt);
      if (StringFind(name,"xpMA",0)>-1) ObjectDelete(name);
      ObjectsRedraw();
   }
}

bool AlertOnce(string alert_msg, int ref)
{
   static int LastAlert_1 = 0;
   static int LastAlert_2 = 0;
   static int LastAlert_3 = 0;
   static int LastAlert_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastAlert_1 == 0 || LastAlert_1 < Bars )
         {
            Alert(alert_msg);
            LastAlert_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastAlert_2 == 0 || LastAlert_2 < Bars )
         {
            Alert(alert_msg);
            LastAlert_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastAlert_3 == 0 || LastAlert_3 < Bars )
         {
            Alert(alert_msg);
            LastAlert_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastAlert_4 == 0 || LastAlert_4 < Bars )
         {
            Alert(alert_msg);
            LastAlert_4 = Bars;
            return (1);
         }
      break;
   }
}

bool SendMailOnce(string subject, string mail_msg, int ref)
{
   static int LastMail_1 = 0;
   static int LastMail_2 = 0;
   static int LastMail_3 = 0;
   static int LastMail_4 = 0;

   switch(ref)
   {
      case 1:
         if( LastMail_1 == 0 || LastMail_1 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_1 = Bars;
            return (1);
         }
      break;
      case 2:
         if( LastMail_2 == 0 || LastMail_2 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_2 = Bars;
            return (1);
         }
      break;
      case 3:
         if( LastMail_3 == 0 || LastMail_3 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_3 = Bars;
            return (1);
         }
      break;
      case 4:
         if( LastMail_4 == 0 || LastMail_4 < Bars )
         {
            SendMail(subject,mail_msg);
            LastMail_4 = Bars;
            return (1);
         }
      break;
   }
}

void TakeScreenShot(int exit_on = -1)
{
   int count = 1;

   if(!GlobalVariableCheck("ssc"))
   {
    GlobalVariableSet("ssc",1);
    count = 1;
   }
   else
   {
      count = GlobalVariableGet("ssc") + 1;
      GlobalVariableSet("ssc",count);
   }

   if ( exit_on > 0 && count > exit_on ) return(0);

   string filename = "xpMA\\" + "xpMA_" + Symbol() +  "_" + DoubleToStr(count,0) + ".jpg";
   ScreenShot(filename,320,480);
}
string PeriodToText()
{
   switch (Period())
   {
      case 1:
            return("M1");
            break;
      case 5:
            return("M5");
            break;
      case 15:
            return("M15");
            break;
      case 30:
            return("M30");
            break;
      case 60:
            return("H1");
            break;
      case 240:
            return("H4");
            break;
      case 1440:
            return("D1");
            break;
      case 10080:
            return("W1");
            break;
      case 43200:
            return("MN1");
            break;
   }
}

void StampVersion(string pro , string ver , int x , int y)
{
   string Obj="Stamp_" + pro;
   int objs = ObjectsTotal();
   string name;

   for(int cnt=0;cnt<ObjectsTotal();cnt++)
   {
      name=ObjectName(cnt);
      if (StringFind(name,Obj,0)>-1)
      {
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();
      }
      else
      {
         ObjectCreate(Obj,OBJ_LABEL,0,0,0);
         ObjectSetText(Obj,pro + " - " + ver,8,"arial",Orange);
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();
      }
   }
   if (ObjectsTotal() == 0)
   {
         ObjectCreate(Obj,OBJ_LABEL,0,0,0);
         ObjectSetText(Obj,pro + " - " + ver,8,"arial",Orange);
         ObjectSet(Obj,OBJPROP_XDISTANCE,x);
         ObjectSet(Obj,OBJPROP_YDISTANCE,y);
         ObjectsRedraw();

   }

   return(0);
}
void DeleteStamp()
{
   int objs = ObjectsTotal();
   string name;
   for(int cnt=ObjectsTotal()-1;cnt>=0;cnt--)
   {
      name=ObjectName(cnt);
      if (StringFind(name,"Stamp",0)>-1) ObjectDelete(name);
      ObjectsRedraw();
   }
}

string GenVer()
{
   string t1;
   if(MA_Type==0) t1="SMA";
   if(MA_Type==1) t1="EMA";
   if(MA_Type==2) t1="SMMA";
   if(MA_Type==3) t1="LWMA";
   if(MA_Type==4) t1="DEMA";
   if(MA_Type==5) t1="TEMA";
   if(MA_Type==6) t1="T3MA";
   if(MA_Type==7) t1="JMA";
   if(MA_Type==8) t1="HMA";
   if(MA_Type==9) t1="DECEMA";
   if(MA_Type==10) t1="SALT";

   return (t1+"("+MA_Period+")");
}

Dependencies

JMA

A sophisticated adaptive trend-following indicator that utilizes non-linear filtering, logarithmic scaling, and dynamic phase adjustments to minimize lag while preserving signal integrity.

JMA

T3MA

This indicator calculates a high-order smoothed moving average by recursively applying exponential averages and weighting them with a customizable volume factor to reduce noise while preserving price trends.

T3MA

HMA

This indicator applies a dual-weighted linear moving average formula coupled with a square root period smoothing to minimize price lag while maintaining high sensitivity to momentum shifts.

HMA

DECEMA_v1

The indicator calculates a high-order polynomial smoothing of an Exponential Moving Average to reduce noise and identify trend momentum.

Similar scripts

xpMA_With_Email_Alert

This indicator evaluates price action against various advanced moving average types and utilizes a local mean comparison to trigger directional trend shifts via visual markers and alerts.

xpMA_002

This indicator synthesizes diverse moving average methodologies, including T3 and Jurik, to generate directional trend reversals via dynamic price comparison and automated visual signaling.

xpMA_001

This indicator identifies momentum shifts by comparing dynamic moving average values against a localized mean to generate visual directional signals and alerts.

xpMA_mod

This indicator identifies trend reversals by comparing price action against a customizable array of advanced moving averages, triggering visual signals when the current value crosses a localized mean threshold.

xpMA_v5

This indicator evaluates price action against various specialized moving average algorithms to generate visual reversal signals and trend shifts based on localized momentum deviations.

ATM_XpMA

This indicator synthesizes multiple advanced moving average types with a dynamic look-back filter to generate directional trade signals via arrow markers and alerts.

ATM_xpMAv10bVS_25LWMAmedian

This indicator identifies trend shifts by comparing a customizable moving average against a smoothed local mean to generate directional signals and price breach alerts.

ATM_maLPF

This indicator identifies momentum shifts by comparing a customizable moving average—ranging from SMA to Jurik and Hull—against its own localized average over a defined step period.

ATM_maHPF

This indicator synthesizes multiple advanced moving average types—including Hull, Jurik, and T3—with a cross-over logic that triggers visual signals based on price deviations from a step-calculated mean.

xpMA_tail

This indicator detects momentum shifts by comparing price action against a dynamic average of external source data, triggering visual signals and alerts when price breaches a calculated step-period threshold.

Comments
