Nina_StepMA_1_Custom3_001

Download script
Nina_StepMA_1_Custom3_001

This script is a technical analysis tool designed to identify trend momentum and potential reversal points by calculating volatility-based price "steps." Instead of simply following the price directly, it creates a smoothed, tiered visualization of market movement.

Core Logic Overview

The script operates by analyzing the relationship between historical price ranges and current market volatility. It works through three primary stages:

1. Volatility Measurement The tool first calculates a weighted average of the price range (the difference between highs and lows) over a specific period. By giving more weight to recent price action, it establishes a dynamic sense of how much the market is currently "swinging." This allows the indicator to adapt automatically: when the market is calm, the steps are small; when the market becomes volatile, the steps widen.

2. Trend Step Construction The logic creates three distinct levels (Min, Mid, and Max) based on the calculated volatility.

  • It monitors whether the current price is breaking above or below these dynamically adjusted boundaries.
  • It tracks the "memory" of these levels, ensuring that the trend lines only move when the price confirms a significant enough move to cross a new threshold.
  • This effectively filters out minor market noise, focusing only on movements that represent a meaningful change in direction.

3. Signal Generation (The Stochastic Calculation) To make the data easier to read, the script converts these complex "step" levels into a normalized oscillator format (similar to a Stochastic indicator).

  • It plots two main lines: a Minimum line and a Mid line.
  • By comparing where the current price sits relative to these steps, it produces a smooth visual representation of momentum.

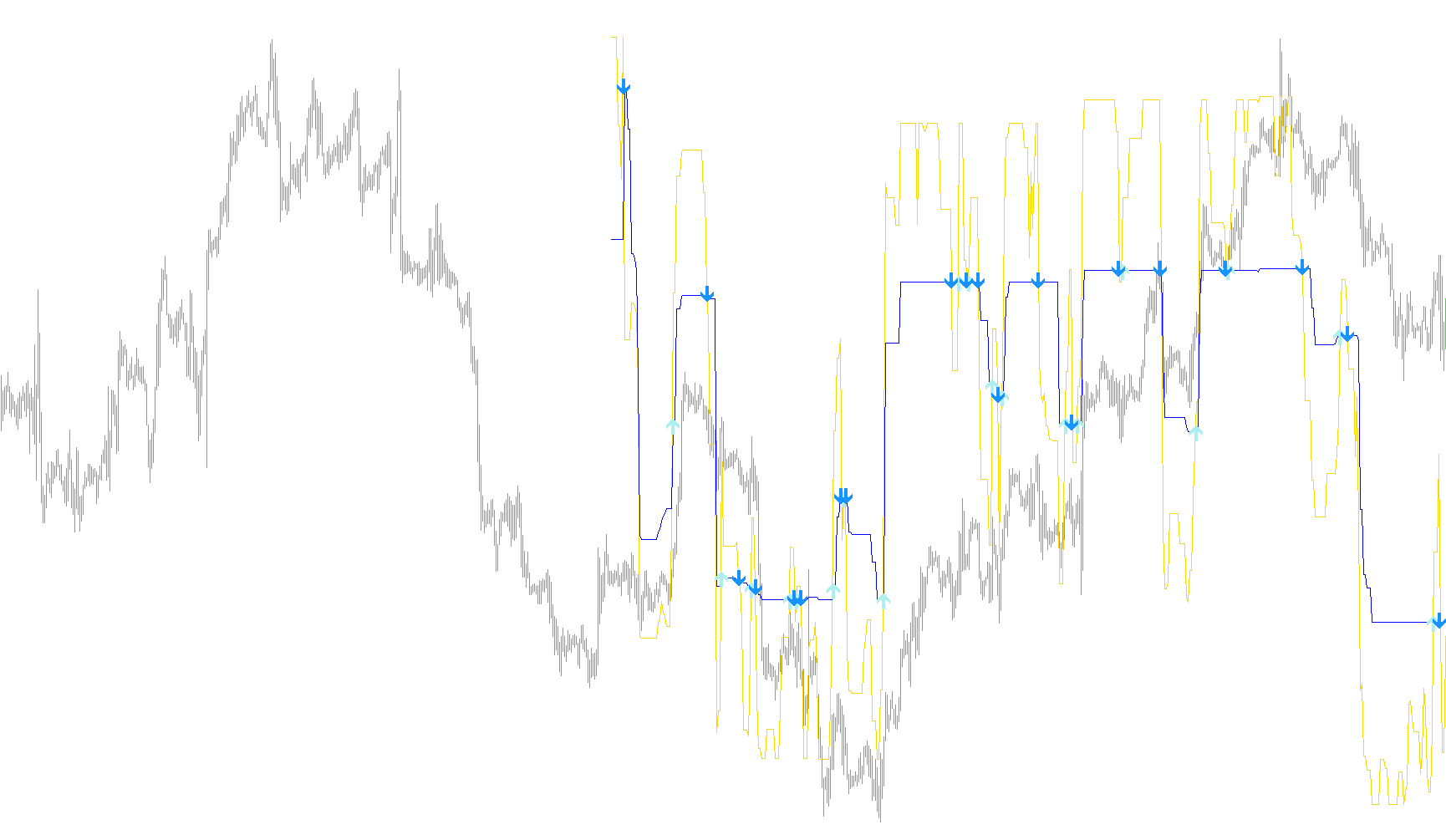

Visual Signals and Alerts

The primary purpose of this logic is to identify "crossovers" between these two internal lines:

  • Buy Signals: When the Minimum line crosses above the Mid line, the script identifies an upward shift in momentum and places a visual arrow on the chart.
  • Sell Signals: When the Minimum line crosses below the Mid line, it identifies a downward shift and places a corresponding visual arrow.
  • Alert System: The script includes a real-time notification system. When a crossover occurs (a shift from bullish to bearish or vice versa), the tool triggers an audible sound and a pop-up alert to notify the user of the trend change immediately.

Summary for the User

In essence, this tool acts as a "noise filter." It looks at how much the market is moving, creates invisible boundaries based on that movement, and then tells you when the price has shifted strongly enough to break through those boundaries. It transforms raw price action into a clear "Step" system to help identify where a trend might be changing direction.

Miscellaneous
Implements a curve of type %1It plays sound alerts
13 Views
0 Downloads
0 Favorites
Nina_StepMA_1_Custom3_001
//+------------------------------------------------------------------+
//|                                                Nina_StepMA_1.mq4 |
//+------------------------------------------------------------------+
#property indicator_separate_window

#property indicator_buffers 4
#property indicator_color1 Magenta
#property indicator_color2 Aqua
#property indicator_color3 Blue
#property indicator_color4 Red

#property indicator_minimum 0
#property indicator_maximum 1

//----input parameters
extern int PeriodWATR=7;
extern double Kwatr= 0.7;
extern int HighLow=0;
extern int CalculatedBars = 500;
extern bool alert_ON=true; // ON=true, OFF=false

//---- indicator buffers
double LineMinBuffer[];
double LineMidBuffer[];
double LineBuyBuffer[];
double LineSellBuffer[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
  string short_name;
  IndicatorBuffers(4);
//---- indicator line
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,1);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,1);
   SetIndexStyle(2,DRAW_ARROW,STYLE_SOLID,2);
   SetIndexStyle(3,DRAW_ARROW,STYLE_SOLID,2);

   SetIndexEmptyValue(2,0);
   SetIndexArrow(2,233);
   SetIndexEmptyValue(3,0);
   SetIndexArrow(3,234);

   SetIndexBuffer(0,LineMinBuffer);
   SetIndexBuffer(1,LineMidBuffer);
   SetIndexBuffer(2,LineBuyBuffer);
   SetIndexBuffer(3,LineSellBuffer);

   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
//---- name for DataWindow and indicator subwindow label
   short_name="StepMA_Stoch("+PeriodWATR+","+Kwatr+","+HighLow+")";
   IndicatorShortName(short_name);
//----
   SetIndexDrawBegin(0,PeriodWATR);
   SetIndexDrawBegin(1,PeriodWATR);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int      i,shift,TrendMin,TrendMax,TrendMid;
   double   SminMin0,SmaxMin0,SminMin1,SmaxMin1,SumRange,dK,WATR0,WATRmax,WATRmin,WATRmid;
   double   SminMax0,SmaxMax0,SminMax1,SmaxMax1,SminMid0,SmaxMid0,SminMid1,SmaxMid1;
   double   linemin,linemax,linemid,Stoch1,Stoch2,bsmin,bsmax;
   static bool turn_alarm = true;

   int StepSizeMin,StepSizeMax,StepSizeMid;
   double min,max,mid,h,l,c;
   int position_ind0=0, position_ind1=0;
   // position_ind0 = -1, below
   //               =  1, up

   ArrayInitialize(LineBuyBuffer,0);
   ArrayInitialize(LineSellBuffer,0);

   if(CalculatedBars>Bars || CalculatedBars == 0 ) CalculatedBars = Bars;

   for(shift=CalculatedBars-1;shift>=0;shift--){
	  SumRange=0;
	  for (i=PeriodWATR-1;i>=0;i--){
         dK = 1+1.0*(PeriodWATR-i)/PeriodWATR;
         SumRange+= dK*MathAbs(High[i+shift]-Low[i+shift]);
         }
	  WATR0 = SumRange/PeriodWATR;

	  WATRmax=MathMax(WATR0,WATRmax);
	  if (shift==CalculatedBars-1-PeriodWATR) WATRmin=WATR0;
	  WATRmin=MathMin(WATR0,WATRmin);

	  StepSizeMin=MathRound(Kwatr*WATRmin/Point);
	  StepSizeMax=MathRound(Kwatr*WATRmax/Point);
	  StepSizeMid=MathRound(Kwatr*0.5*(WATRmax+WATRmin)/Point);

     min = Kwatr*WATRmin;
     max = Kwatr*WATRmax;
     mid = Kwatr*0.5*(WATRmax+WATRmin);

	  //b = iBarShift(Symbol(),tPeriod,Time[shift]);
	  c = Close[shift];//iClose(Symbol(),tPeriod,b);
	  h = High[shift];//iHigh(Symbol(),tPeriod,b)
	  l = Low[shift];//iLow(Symbol(),tPeriod,b)

	  if (HighLow>0){
	    SmaxMin0=l+2*min;
	    SminMin0=h-2*min;

	    SmaxMax0=l+2*max;
	    SminMax0=h-2*max;

	    SmaxMid0=l+2*mid;
	    SminMid0=h-2*mid;

	    if(c>SmaxMin1) TrendMin=1;
	    if(c<SminMin1) TrendMin=-1;

	    if(c>SmaxMax1) TrendMax=1;
	    if(c<SminMax1) TrendMax=-1;

	    if(c>SmaxMid1) TrendMid=1;
	    if(c<SminMid1) TrendMid=-1;
	    }

	  if (HighLow == 0){
	    SmaxMin0=c+2*min;
	    SminMin0=c-2*min;

	    SmaxMax0=c+2*max;
	    SminMax0=c-2*max;

	    SmaxMid0=c+2*mid;
	    SminMid0=c-2*mid;

	    if(c>SmaxMin1) TrendMin=1;
	    if(c<SminMin1) TrendMin=-1;

	    if(c>SmaxMax1) TrendMax=1;
	    if(c<SminMax1) TrendMax=-1;

	    if(c>SmaxMid1) TrendMid=1;
	    if(c<SminMid1) TrendMid=-1;
	    }

	  if(TrendMin>0 && SminMin0<SminMin1) SminMin0=SminMin1;
	  if(TrendMin<0 && SmaxMin0>SmaxMin1) SmaxMin0=SmaxMin1;

	  if(TrendMax>0 && SminMax0<SminMax1) SminMax0=SminMax1;
	  if(TrendMax<0 && SmaxMax0>SmaxMax1) SmaxMax0=SmaxMax1;

	  if(TrendMid>0 && SminMid0<SminMid1) SminMid0=SminMid1;
	  if(TrendMid<0 && SmaxMid0>SmaxMid1) SmaxMid0=SmaxMid1;


	  if (TrendMin>0) linemin=SminMin0+min;
	  if (TrendMin<0) linemin=SmaxMin0-min;

	  if (TrendMax>0) linemax=SminMax0+max;
	  if (TrendMax<0) linemax=SmaxMax0-max;

	  if (TrendMid>0) linemid=SminMid0+mid;
	  if (TrendMid<0) linemid=SmaxMid0-mid;

	  bsmin=linemax-max;
	  bsmax=linemax+max;
	  Stoch1=(linemin-bsmin)/(bsmax-bsmin);
	  Stoch2=(linemid-bsmin)/(bsmax-bsmin);

	  LineMinBuffer[shift]=Stoch1;
	  LineMidBuffer[shift]=Stoch2;


	  SminMin1=SminMin0;
	  SmaxMin1=SmaxMin0;

	  SminMax1=SminMax0;
	  SmaxMax1=SmaxMax0;

	  SminMid1=SminMid0;
	  SmaxMid1=SmaxMid0;

	  // don't do anything for current bar since it is keeping changing.
	  if(shift != 0) {
   	  position_ind0 = position_ind1;
   	  if(LineMinBuffer[shift]>LineMidBuffer[shift]){
   	     position_ind1=1;
   	  }
   	  else {
   	     position_ind1=-1;
   	  }
	  // current bar is keeping on changing
	  // so don't put arrow on it
	  // that means we only set on signal for confirmed bar
	     if((position_ind0==-1) && (position_ind1==1)) {
	     // cross up
	        LineBuyBuffer[shift] = LineMidBuffer[shift];
	     }
	     if((position_ind0==1) && (position_ind1==-1)) {
	     // cross down
	        LineSellBuffer[shift] = LineMidBuffer[shift];
	     }
	   }
   }

	if(Volume[0]>1) return(0);
	// for the current crossing, make the sound
	// still have problem for this mechanism, leave it for later modification
	if(alert_ON) {
      if(position_ind0*position_ind1<0) {  // time for alarm
         Alert ("StepStoch crossed on ",Symbol(),"-",Period());
         PlaySound("timeout.wav");
         turn_alarm=false;
      }
   }

	return(0);
 }
//+------------------------------------------------------------------+
