N_StepMA_1_Email

Download script
N_StepMA_1_Email

The logic of this script is designed to analyze market trends and identify specific "breakout" or "crossover" moments where the price momentum shifts significantly. It achieves this by calculating the volatility of the market and creating a tiered system of trend lines.

Here is a breakdown of how the logic functions:

1. Volatility Assessment

The script begins by measuring the current market volatility. It looks at a specific number of past price bars to determine the range (the difference between highs and lows). By calculating this "volatility range," the tool can distinguish between a quiet, sideways market and a highly active, fast-moving market.

2. Multi-Tiered Trend Detection

Instead of looking for just one type of trend, the script creates three different "sensitivity levels" based on the volatility it measured:

  • Minimum Tier: For small, subtle price movements.
  • Maximum Tier: For large, aggressive price moves.
  • Mid Tier: A balanced middle ground between the two.

For each of these tiers, the script calculates "boundaries." If the price stays within certain bounds, it considers the trend stable; if the price pushes past these boundaries, it signals a change in direction.

3. Step-Based Smoothing

The core logic uses a "Step" mechanism. Rather than following every tiny fluctuation of the price (which can create "noise"), the indicator holds its level until the price moves far enough to cross into a new threshold. This creates a staircase-like visual representation of the trend, helping to filter out insignificant market movements.

4. Signal Generation (Crossovers)

The script tracks the relationship between the Minimum and Mid trend lines. The primary logic for entering or exiting a trade is based on when these two lines cross each other:

  • Buy Signal: Occurs when the Minimum trend line crosses above the Mid trend line, suggesting that momentum is accelerating upward.
  • Sell Signal: Occurs when the Minimum trend line crosses below the Mid trend line, suggesting that momentum is shifting downward.

5. Notifications and Alerts

The script is programmed to monitor these crossovers in real-time. When a confirmed crossover occurs (meaning the cross has happened on a completed price bar), it is designed to trigger two types of alerts:

  • Audio Alert: A specific sound file is played on your computer.
  • Email Notification: An automated email is sent to notify you of the trend shift.

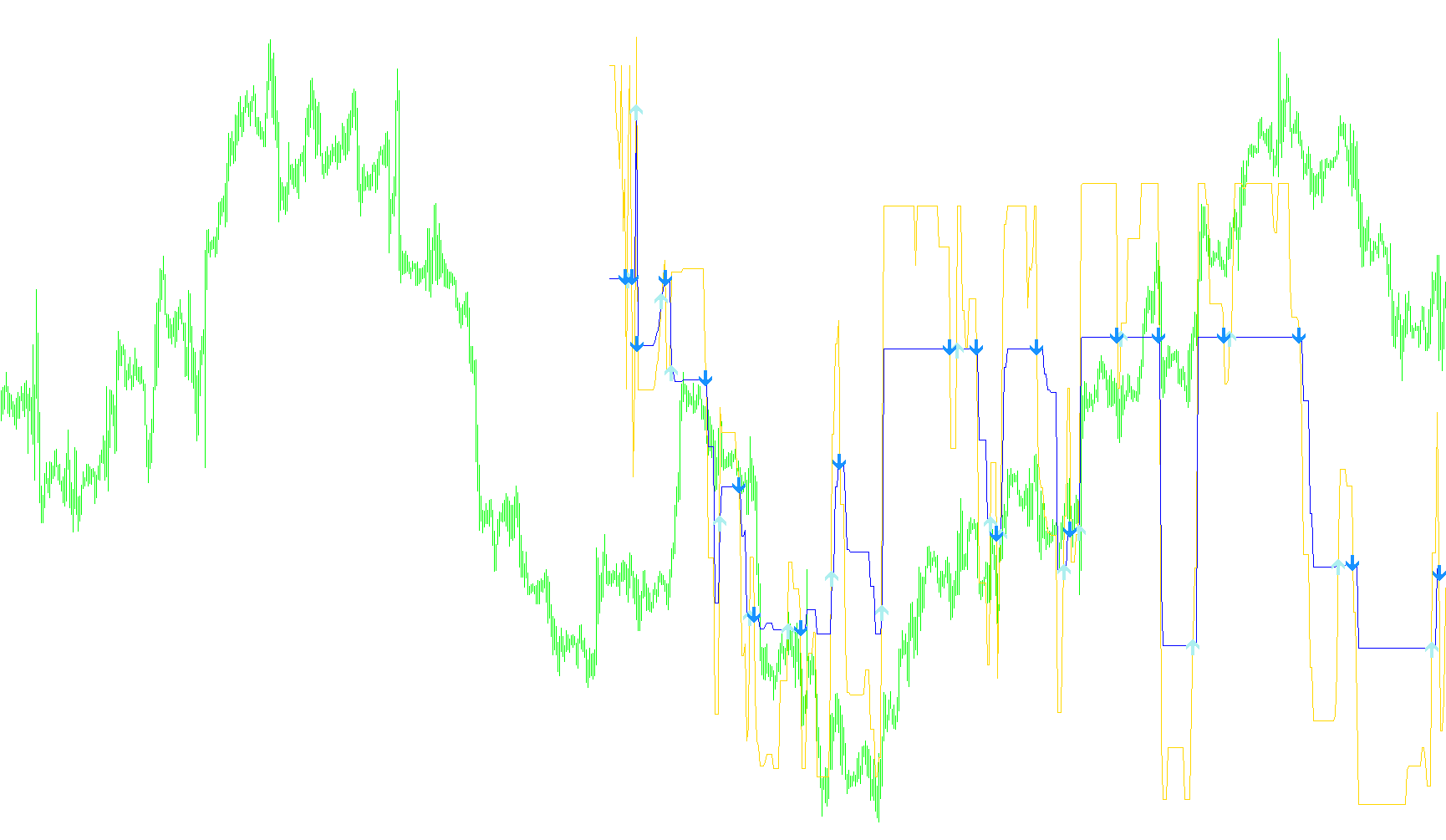

In summary, this tool simplifies complex market volatility into three distinct trend layers and uses the interaction between those layers to provide clear visual arrows and alerts when the market's momentum changes direction.

Miscellaneous
Implements a curve of type %1It sends emailsIt plays sound alerts
8 Views
0 Downloads
0 Favorites
N_StepMA_1_Email
//+------------------------------------------------------------------+
//|                                                Nina_StepMA_1.mq4 |
//+------------------------------------------------------------------+
#property indicator_separate_window

#property indicator_buffers 4
#property indicator_color1 Yellow
#property indicator_color2 Aqua
#property indicator_color3 Blue
#property indicator_color4 Red

#property indicator_minimum 0
#property indicator_maximum 1

//----input parameters
extern int PeriodWATR=14;
extern double Kwatr=0.75;
extern int HighLow=0;
extern int CalculatedBars = 500;
extern bool alert_ON=true; // ON=true, OFF=false

//---- indicator buffers
double LineMinBuffer[];
double LineMidBuffer[];
double LineBuyBuffer[];
double LineSellBuffer[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
  string short_name;
  IndicatorBuffers(4);
//---- indicator line
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,1);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,1);
   SetIndexStyle(2,DRAW_ARROW,STYLE_SOLID,2);
   SetIndexStyle(3,DRAW_ARROW,STYLE_SOLID,2);

   SetIndexEmptyValue(2,0);
   SetIndexArrow(2,233);
   SetIndexEmptyValue(3,0);
   SetIndexArrow(3,234);

   SetIndexBuffer(0,LineMinBuffer);
   SetIndexBuffer(1,LineMidBuffer);
   SetIndexBuffer(2,LineBuyBuffer);
   SetIndexBuffer(3,LineSellBuffer);

   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
//---- name for DataWindow and indicator subwindow label
   short_name="StepMA_Email("+PeriodWATR+","+Kwatr+","+HighLow+")";
   IndicatorShortName(short_name);
//----
   SetIndexDrawBegin(0,PeriodWATR);
   SetIndexDrawBegin(1,PeriodWATR);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int      i,shift,TrendMin,TrendMax,TrendMid;
   double   SminMin0,SmaxMin0,SminMin1,SmaxMin1,SumRange,dK,WATR0,WATRmax,WATRmin,WATRmid;
   double   SminMax0,SmaxMax0,SminMax1,SmaxMax1,SminMid0,SmaxMid0,SminMid1,SmaxMid1;
   double   linemin,linemax,linemid,Stoch1,Stoch2,bsmin,bsmax;
   static bool turn_alarm = true;

   int StepSizeMin,StepSizeMax,StepSizeMid;
   double min,max,mid,h,l,c;
   int position_ind0=0, position_ind1=0;
   // position_ind0 = -1, below
   //               =  1, up

   ArrayInitialize(LineBuyBuffer,0);
   ArrayInitialize(LineSellBuffer,0);

   if(CalculatedBars>Bars || CalculatedBars == 0 ) CalculatedBars = Bars;

   for(shift=CalculatedBars-1;shift>=0;shift--){
	  SumRange=0;
	  for (i=PeriodWATR-1;i>=0;i--){
         dK = 1+1.0*(PeriodWATR-i)/PeriodWATR;
         SumRange+= dK*MathAbs(High[i+shift]-Low[i+shift]);
         }
	  WATR0 = SumRange/PeriodWATR;

	  WATRmax=MathMax(WATR0,WATRmax);
	  if (shift==CalculatedBars-1-PeriodWATR) WATRmin=WATR0;
	  WATRmin=MathMin(WATR0,WATRmin);

	  StepSizeMin=MathRound(Kwatr*WATRmin/Point);
	  StepSizeMax=MathRound(Kwatr*WATRmax/Point);
	  StepSizeMid=MathRound(Kwatr*0.5*(WATRmax+WATRmin)/Point);

     min = Kwatr*WATRmin;
     max = Kwatr*WATRmax;
     mid = Kwatr*0.5*(WATRmax+WATRmin);

	  //b = iBarShift(Symbol(),tPeriod,Time[shift]);
	  c = Close[shift];//iClose(Symbol(),tPeriod,b);
	  h = High[shift];//iHigh(Symbol(),tPeriod,b)
	  l = Low[shift];//iLow(Symbol(),tPeriod,b)

	  if (HighLow>0){
	    SmaxMin0=l+2*min;
	    SminMin0=h-2*min;

	    SmaxMax0=l+2*max;
	    SminMax0=h-2*max;

	    SmaxMid0=l+2*mid;
	    SminMid0=h-2*mid;

	    if(c>SmaxMin1) TrendMin=1;
	    if(c<SminMin1) TrendMin=-1;

	    if(c>SmaxMax1) TrendMax=1;
	    if(c<SminMax1) TrendMax=-1;

	    if(c>SmaxMid1) TrendMid=1;
	    if(c<SminMid1) TrendMid=-1;
	    }

	  if (HighLow == 0){
	    SmaxMin0=c+2*min;
	    SminMin0=c-2*min;

	    SmaxMax0=c+2*max;
	    SminMax0=c-2*max;

	    SmaxMid0=c+2*mid;
	    SminMid0=c-2*mid;

	    if(c>SmaxMin1) TrendMin=1;
	    if(c<SminMin1) TrendMin=-1;

	    if(c>SmaxMax1) TrendMax=1;
	    if(c<SminMax1) TrendMax=-1;

	    if(c>SmaxMid1) TrendMid=1;
	    if(c<SminMid1) TrendMid=-1;
	    }

	  if(TrendMin>0 && SminMin0<SminMin1) SminMin0=SminMin1;
	  if(TrendMin<0 && SmaxMin0>SmaxMin1) SmaxMin0=SmaxMin1;

	  if(TrendMax>0 && SminMax0<SminMax1) SminMax0=SminMax1;
	  if(TrendMax<0 && SmaxMax0>SmaxMax1) SmaxMax0=SmaxMax1;

	  if(TrendMid>0 && SminMid0<SminMid1) SminMid0=SminMid1;
	  if(TrendMid<0 && SmaxMid0>SmaxMid1) SmaxMid0=SmaxMid1;


	  if (TrendMin>0) linemin=SminMin0+min;
	  if (TrendMin<0) linemin=SmaxMin0-min;

	  if (TrendMax>0) linemax=SminMax0+max;
	  if (TrendMax<0) linemax=SmaxMax0-max;

	  if (TrendMid>0) linemid=SminMid0+mid;
	  if (TrendMid<0) linemid=SmaxMid0-mid;

	  bsmin=linemax-max;
	  bsmax=linemax+max;
	  Stoch1=(linemin-bsmin)/(bsmax-bsmin);
	  Stoch2=(linemid-bsmin)/(bsmax-bsmin);

	  LineMinBuffer[shift]=Stoch1;
	  LineMidBuffer[shift]=Stoch2;


	  SminMin1=SminMin0;
	  SmaxMin1=SmaxMin0;

	  SminMax1=SminMax0;
	  SmaxMax1=SmaxMax0;

	  SminMid1=SminMid0;
	  SmaxMid1=SmaxMid0;

	  // don't do anything for current bar since it is keeping changing.
	  if(shift != 0) {
   	  position_ind0 = position_ind1;
   	  if(LineMinBuffer[shift]>LineMidBuffer[shift]){
   	     position_ind1=1;
   	  }
   	  else {
   	     position_ind1=-1;
   	  }
	  // current bar is keeping on changing
	  // so don't put arrow on it
	  // that means we only set on signal for confirmed bar
	     if((position_ind0==-1) && (position_ind1==1)) {
	     // cross up
	        LineBuyBuffer[shift] = LineMidBuffer[shift];
	     }
	     if((position_ind0==1) && (position_ind1==-1)) {
	     // cross down
	        LineSellBuffer[shift] = LineMidBuffer[shift];
	     }
	   }
   }

	if(Volume[0]>1) return(0);
	// for the current crossing, make the sound
	// still have problem for this mechanism, leave it for later modification
	if(alert_ON) {
      if(position_ind0*position_ind1<0) {  // time for alarm
        SendMail("StepMA "+Period()+"minutes sur ",Symbol());
         PlaySound("Alertalert.wav");
         turn_alarm=false;
      }
   }

	return(0);
 }
//+------------------------------------------------------------------+
