dzani9_MajorTrendSignal

Download script
Author: dzani9@yahoo.co.uk
dzani9_MajorTrendSignal

This tool is designed to identify and visualize significant market trends by analyzing price volatility and momentum. Instead of just looking at simple price movement, the logic calculates a "volatility range" to help distinguish between minor market noise and substantial trend shifts.

Core Logic Overview

1. Volatility Measurement (WATR) The script begins by measuring the relative range of price movements over a specific number of candles. It uses a weighted calculation, giving more importance to recent price action. This creates a dynamic baseline that adjusts automatically as the market becomes more or less active. Based on this data, the tool establishes three distinct "zones" or thresholds:

  • Minimum: Represents low-intensity volatility.
  • Maximum: Represents high-intensity volatility.
  • Midpoint: A balanced average of the current volatility.

2. Trend Tracking and Dynamic Boundaries The logic identifies the current market direction by checking where the closing price sits relative to these three zones. It continuously updates "boundaries" for each zone.

  • If the trend is moving upward, the boundaries adjust to accommodate growth.
  • If the trend is moving downward, the boundaries contract or shift accordingly. This ensures that the signals are not "tricked" by temporary spikes but are instead rooted in the sustained direction of the market.

3. Momentum Normalization To make the data easier to read on a single chart, the script converts these complex volatility zones into a normalized scale (similar to a momentum oscillator). It tracks two primary lines:

  • A line representing the Minimum Trend.
  • A line representing the Midpoint Trend.

By comparing these two lines against each other, the script can identify "crossovers"—moments where the short-term momentum shifts significantly enough to suggest a change in the major trend.

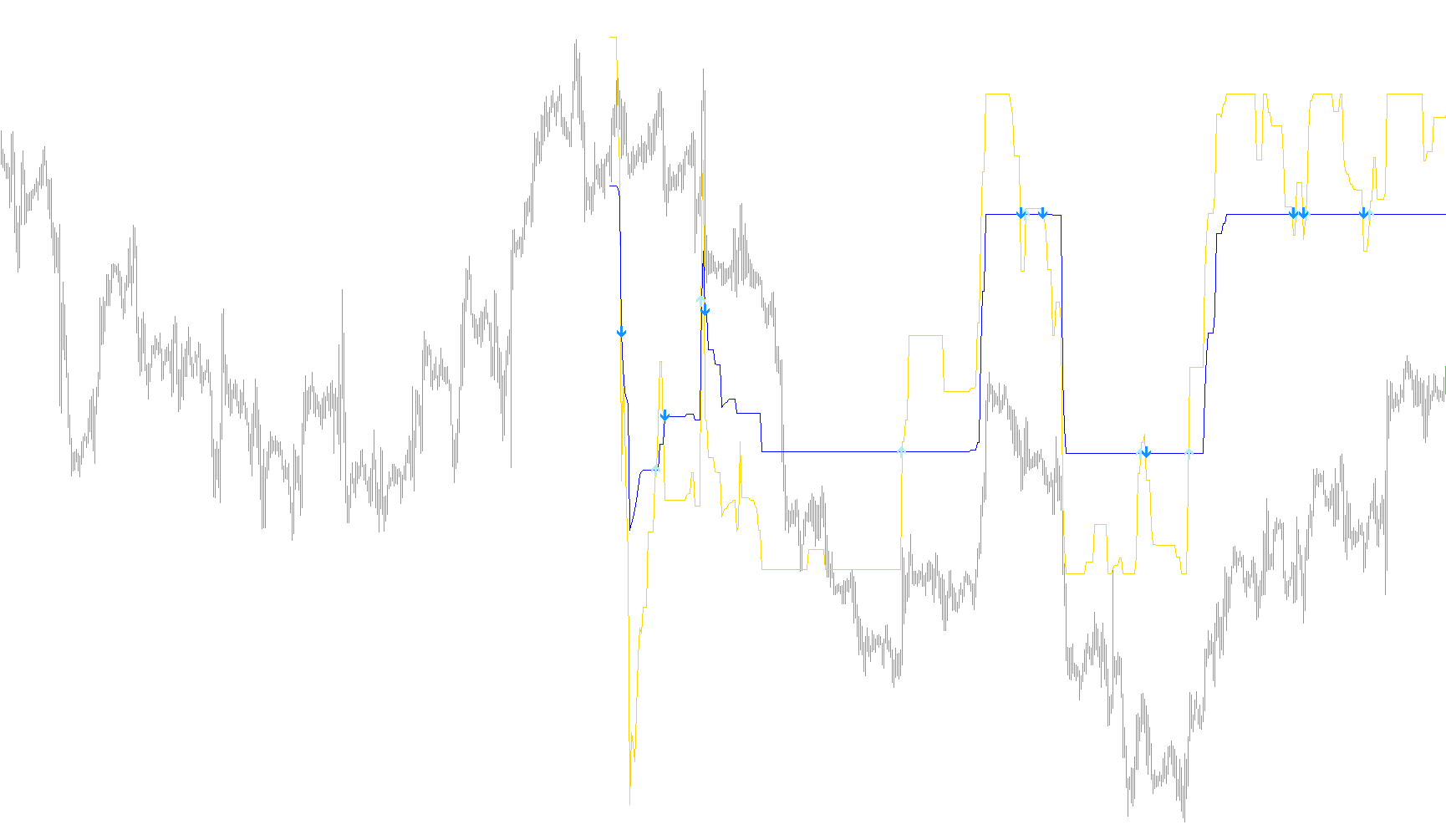

Visual Signals and Alerts

The tool translates these mathematical crossovers into clear visual cues for the user:

  • Buy Signals: When the Minimum Trend line crosses above the Midpoint Trend line, it indicates a shift toward upward momentum. The script places an upward-pointing arrow on the chart to highlight this confirmation.
  • Sell Signals: When the Minimum Trend line crosses below the Midpoint Trend line, it suggests downward pressure. The script places a downward-pointing arrow to signal this shift.
  • Audio Alerts: If enabled, the script will trigger a sound notification at the exact moment a crossover is confirmed on a finished candle, providing real-time feedback without requiring constant manual observation of the chart.

Summary for the User

Essentially, this script acts as a "filter" that ignores minor price fluctuations and only alerts you when the price movement reaches a level of significance that suggests a meaningful change in market direction. It provides a smoothed view of trend strength, allowing you to see where the market is heading with greater clarity than simple price action alone would provide.

Miscellaneous
Implements a curve of type %1It plays sound alerts
10 Views
0 Downloads
0 Favorites
dzani9_MajorTrendSignal
//+------------------------------------------------------------------+
//|                                      dzani9_MajorTrendSignal.mq4 |
//|                                               dzani9@yahoo.co.uk |
//|                                                                  |
//+------------------------------------------------------------------+
#property copyright "dzani9@yahoo.co.uk"
#property link      ""

#property indicator_separate_window

#property indicator_buffers 4
#property indicator_color1 Yellow
#property indicator_color2 Aqua
#property indicator_color3 Blue
#property indicator_color4 Red

#property indicator_minimum 0
#property indicator_maximum 1

//----input parameters
extern int PeriodWATR=10;
extern double Kwatr=1.0000;
extern int HighLow=0;
extern int CalculatedBars = 500;
extern bool alert_ON=true; // ON=true, OFF=false

//---- indicator buffers
double LineMinBuffer[];
double LineMidBuffer[];
double LineBuyBuffer[];
double LineSellBuffer[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
  string short_name;
  IndicatorBuffers(4);
//---- indicator line
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,1);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,1);
   SetIndexStyle(2,DRAW_ARROW,STYLE_SOLID,1);
   SetIndexStyle(3,DRAW_ARROW,STYLE_SOLID,1);

   SetIndexEmptyValue(2,0);
   SetIndexArrow(2,233);
   SetIndexEmptyValue(3,0);
   SetIndexArrow(3,234);

   SetIndexBuffer(0,LineMinBuffer);
   SetIndexBuffer(1,LineMidBuffer);
   SetIndexBuffer(2,LineBuyBuffer);
   SetIndexBuffer(3,LineSellBuffer);

   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
//---- name for DataWindow and indicator subwindow label
   short_name="dzani9_majorTrendSignal("+PeriodWATR+","+Kwatr+","+HighLow+")";
   IndicatorShortName(short_name);
//----
   SetIndexDrawBegin(0,PeriodWATR);
   SetIndexDrawBegin(1,PeriodWATR);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int      i,shift,TrendMin,TrendMax,TrendMid;
   double   SminMin0,SmaxMin0,SminMin1,SmaxMin1,SumRange,dK,WATR0,WATRmax,WATRmin,WATRmid;
   double   SminMax0,SmaxMax0,SminMax1,SmaxMax1,SminMid0,SmaxMid0,SminMid1,SmaxMid1;
   double   linemin,linemax,linemid,Stoch1,Stoch2,bsmin,bsmax;
   static bool turn_alarm = true;

   int StepSizeMin,StepSizeMax,StepSizeMid;
   double min,max,mid,h,l,c;
   int position_ind0=0, position_ind1=0;
   // position_ind0 = -1, below
   //               =  1, up

   ArrayInitialize(LineBuyBuffer,0);
   ArrayInitialize(LineSellBuffer,0);

   if(CalculatedBars>Bars || CalculatedBars == 0 ) CalculatedBars = Bars;

   for(shift=CalculatedBars-1;shift>=0;shift--){
	  SumRange=0;
	  for (i=PeriodWATR-1;i>=0;i--){
         dK = 1+1.0*(PeriodWATR-i)/PeriodWATR;
         SumRange+= dK*MathAbs(High[i+shift]-Low[i+shift]);
         }
	  WATR0 = SumRange/PeriodWATR;

	  WATRmax=MathMax(WATR0,WATRmax);
	  if (shift==CalculatedBars-1-PeriodWATR) WATRmin=WATR0;
	  WATRmin=MathMin(WATR0,WATRmin);

	  StepSizeMin=MathRound(Kwatr*WATRmin/Point);
	  StepSizeMax=MathRound(Kwatr*WATRmax/Point);
	  StepSizeMid=MathRound(Kwatr*0.5*(WATRmax+WATRmin)/Point);

     min = Kwatr*WATRmin;
     max = Kwatr*WATRmax;
     mid = Kwatr*0.5*(WATRmax+WATRmin);

	  //b = iBarShift(Symbol(),tPeriod,Time[shift]);
	  c = Close[shift];//iClose(Symbol(),tPeriod,b);
	  h = High[shift];//iHigh(Symbol(),tPeriod,b)
	  l = Low[shift];//iLow(Symbol(),tPeriod,b)

	  if (HighLow>0){
	    SmaxMin0=l+2*min;
	    SminMin0=h-2*min;

	    SmaxMax0=l+2*max;
	    SminMax0=h-2*max;

	    SmaxMid0=l+2*mid;
	    SminMid0=h-2*mid;

	    if(c>SmaxMin1) TrendMin=1;
	    if(c<SminMin1) TrendMin=-1;

	    if(c>SmaxMax1) TrendMax=1;
	    if(c<SminMax1) TrendMax=-1;

	    if(c>SmaxMid1) TrendMid=1;
	    if(c<SminMid1) TrendMid=-1;
	    }

	  if (HighLow == 0){
	    SmaxMin0=c+2*min;
	    SminMin0=c-2*min;

	    SmaxMax0=c+2*max;
	    SminMax0=c-2*max;

	    SmaxMid0=c+2*mid;
	    SminMid0=c-2*mid;

	    if(c>SmaxMin1) TrendMin=1;
	    if(c<SminMin1) TrendMin=-1;

	    if(c>SmaxMax1) TrendMax=1;
	    if(c<SminMax1) TrendMax=-1;

	    if(c>SmaxMid1) TrendMid=1;
	    if(c<SminMid1) TrendMid=-1;
	    }

	  if(TrendMin>0 && SminMin0<SminMin1) SminMin0=SminMin1;
	  if(TrendMin<0 && SmaxMin0>SmaxMin1) SmaxMin0=SmaxMin1;

	  if(TrendMax>0 && SminMax0<SminMax1) SminMax0=SminMax1;
	  if(TrendMax<0 && SmaxMax0>SmaxMax1) SmaxMax0=SmaxMax1;

	  if(TrendMid>0 && SminMid0<SminMid1) SminMid0=SminMid1;
	  if(TrendMid<0 && SmaxMid0>SmaxMid1) SmaxMid0=SmaxMid1;


	  if (TrendMin>0) linemin=SminMin0+min;
	  if (TrendMin<0) linemin=SmaxMin0-min;

	  if (TrendMax>0) linemax=SminMax0+max;
	  if (TrendMax<0) linemax=SmaxMax0-max;

	  if (TrendMid>0) linemid=SminMid0+mid;
	  if (TrendMid<0) linemid=SmaxMid0-mid;

	  bsmin=linemax-max;
	  bsmax=linemax+max;
	  Stoch1=(linemin-bsmin)/(bsmax-bsmin);
	  Stoch2=(linemid-bsmin)/(bsmax-bsmin);

	  LineMinBuffer[shift]=Stoch1;
	  LineMidBuffer[shift]=Stoch2;


	  SminMin1=SminMin0;
	  SmaxMin1=SmaxMin0;

	  SminMax1=SminMax0;
	  SmaxMax1=SmaxMax0;

	  SminMid1=SminMid0;
	  SmaxMid1=SmaxMid0;

	  // don't do anything for current bar since it is keeping changing keep going.
	  if(shift != 0) {
   	  position_ind0 = position_ind1;
   	  if(LineMinBuffer[shift]>LineMidBuffer[shift]){
   	     position_ind1=1;
   	  }
   	  else {
   	     position_ind1=-1;
   	  }
	  // current bar is keeping on changing
	  // so don't put arrow on it
	  // that means we only set on signal for confirmed bar
	     if((position_ind0==-1) && (position_ind1==1)) {
	     // cross up
	        LineBuyBuffer[shift] = LineMidBuffer[shift];
	     }
	     if((position_ind0==1) && (position_ind1==-1)) {
	     // cross down
	        LineSellBuffer[shift] = LineMidBuffer[shift];
	     }
	   }
   }

	if(Volume[0]>1) return(0);
	// for the current crossing, make the sound
	// still have problem for this mechanism, leave it for later modification
	if(alert_ON) {
      if(position_ind0*position_ind1<0) {  // time for alarm
         PlaySound("clock-alarm3.wav");
         turn_alarm=false;
      }
   }

	return(0);
 }
//+------------------------------------------------------------------+
