The Nina StepMA is a technical analysis tool designed to help traders identify market trends and potential entry or exit points by smoothing out price fluctuations. It operates by calculating volatility and "stepping" the trend lines rather than allowing them to move fluidly, which helps filter out minor market noise.

Core Logic and Mechanics

Volatility-Based Movement (The ATR Influence) The script begins by measuring market volatility over a specific period (defined by the PeriodWATR setting). It calculates a weighted average of price ranges (the distance between the highest and lowest prices). This creates a dynamic "step" size. Essentially, the indicator determines how much the price is moving; if the market is highly volatile, the steps are larger; if the market is calm, the steps are smaller.

Three-Tier Trend Tracking The logic evaluates the market trend across three different intensity levels:

  1. Minimum: A tight sensitivity level for capturing small shifts.
  2. Maximum: A wide sensitivity level for capturing major long-term trends.
  3. Mid: A balanced middle ground.

By calculating these three tiers, the indicator can differentiate between a minor price fluctuation and a significant trend reversal.

The "Step" Calculation Instead of following every price tick, the indicator establishes boundaries based on the current price and the calculated volatility steps. It determines whether the price is breaking out of its previous range. If the price moves beyond these calculated boundaries, the indicator "steps" to a new level. This results in a staircase-like visual effect where the trend only changes when a definitive move occurs.

Signal Generation (Buy and Sell Alerts) The script generates specific signals based on the relationship between the Minimum and Mid trend lines:

  • Buy Signal: Triggered when the Minimum trend line crosses above the Mid trend line (indicating upward momentum).
  • Sell Signal: Triggered when the Minimum trend line crosses below the Mid trend line (indicating downward momentum).

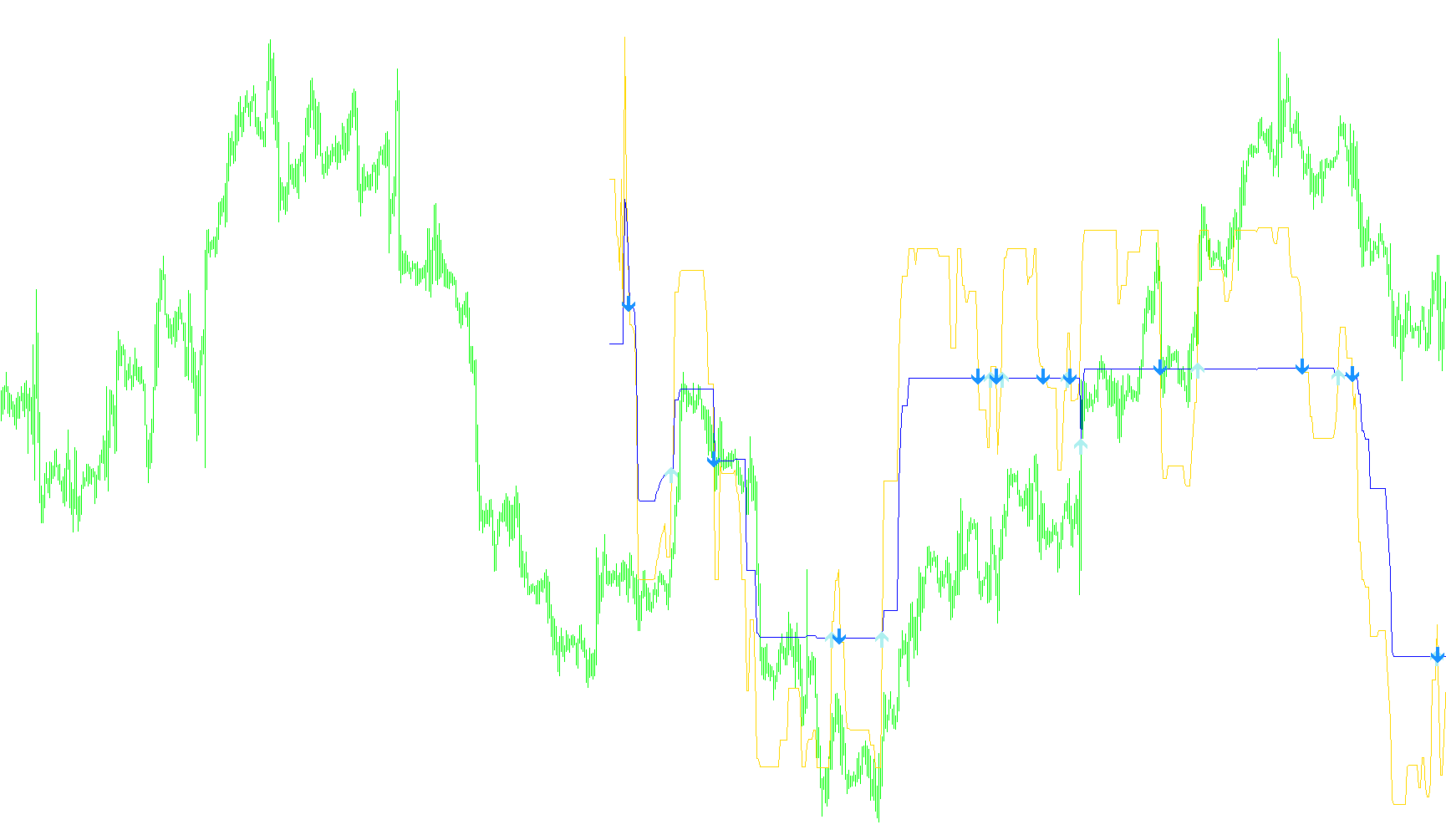

These signals are visualized on the chart as specific arrows, allowing traders to see exactly where a trend shift has been confirmed by the logic.

User Features and Controls

  • Trading Windows: The script includes a time-filtering feature. You can restrict the indicator to only provide alerts or signals during specific hours (e.g., during the London or New York sessions), which helps in avoiding low-volume periods.
  • Alert System: When a trend crossover occurs, the script is capable of triggering an audible sound and sending an email notification to the user, ensuring that traders don't have to watch the screen constantly.
  • Customization: Users can adjust the "Step" multiplier (Kwatr) to make the indicator more or less sensitive to price action, allowing it to be tailored to different types of assets (like volatile Forex pairs versus stable stocks).
Miscellaneous
Implements a curve of type %1It sends emailsIt plays sound alerts
11 Views
0 Downloads
0 Favorites
N_StepMA_1.2_Email
//+------------------------------------------------------------------+
//|                                                Nina_StepMA_1.mq4 |
//|                                                Modified by PT    |
//+------------------------------------------------------------------+
#property indicator_separate_window

#property indicator_buffers 4
#property indicator_color1 Yellow
#property indicator_color2 Aqua
#property indicator_color3 Lime
#property indicator_color4 Red

#property indicator_minimum 0
#property indicator_maximum 1

//----input parameters
extern int PeriodWATR=7;
extern double Kwatr=1.0000;
extern int HighLow=0;
extern int CalculatedBars = 500;

//-----Define Trading Hours
extern bool UseHourTrade = false;
extern int FromHourTrade = 8; // FXDD time
extern int ToHourTrade = 19; // FXDD time


extern bool alert_ON=true; // ON=true, OFF=false
extern string sond1 = "alert.wav";

//---- indicator buffers
double LineMinBuffer[];
double LineMidBuffer[];
double LineBuyBuffer[];
double LineSellBuffer[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
  string short_name;
  IndicatorBuffers(4);
//---- indicator line
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,1);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,1);
   SetIndexStyle(2,DRAW_ARROW,STYLE_SOLID,2);
   SetIndexStyle(3,DRAW_ARROW,STYLE_SOLID,2);

   SetIndexEmptyValue(2,0);
   SetIndexArrow(2,233);
   SetIndexEmptyValue(3,0);
   SetIndexArrow(3,234);

   SetIndexBuffer(0,LineMinBuffer);
   SetIndexBuffer(1,LineMidBuffer);
   SetIndexBuffer(2,LineBuyBuffer);
   SetIndexBuffer(3,LineSellBuffer);

   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
//---- name for DataWindow and indicator subwindow label
   short_name="StepMA_Email("+PeriodWATR+","+Kwatr+","+HighLow+")";
   IndicatorShortName(short_name);
//----
   SetIndexDrawBegin(0,PeriodWATR);
   SetIndexDrawBegin(1,PeriodWATR);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int      i,shift,TrendMin,TrendMax,TrendMid;
   double   SminMin0,SmaxMin0,SminMin1,SmaxMin1,SumRange,dK,WATR0,WATRmax,WATRmin,WATRmid;
   double   SminMax0,SmaxMax0,SminMax1,SmaxMax1,SminMid0,SmaxMid0,SminMid1,SmaxMid1;
   double   linemin,linemax,linemid,Stoch1,Stoch2,bsmin,bsmax;
   static bool turn_alarm = true;

   int StepSizeMin,StepSizeMax,StepSizeMid;
   double min,max,mid,h,l,c;
   int position_ind0=0, position_ind1=0;
   // position_ind0 = -1, below
   //               =  1, up

   ArrayInitialize(LineBuyBuffer,0);
   ArrayInitialize(LineSellBuffer,0);

   if(CalculatedBars>Bars || CalculatedBars == 0 ) CalculatedBars = Bars;

   for(shift=CalculatedBars-1;shift>=0;shift--){
	  SumRange=0;
	  for (i=PeriodWATR-1;i>=0;i--){
         dK = 1+1.0*(PeriodWATR-i)/PeriodWATR;
         SumRange+= dK*MathAbs(High[i+shift]-Low[i+shift]);
         }
	  WATR0 = SumRange/PeriodWATR;

	  WATRmax=MathMax(WATR0,WATRmax);
	  if (shift==CalculatedBars-1-PeriodWATR) WATRmin=WATR0;
	  WATRmin=MathMin(WATR0,WATRmin);

	  StepSizeMin=MathRound(Kwatr*WATRmin/Point);
	  StepSizeMax=MathRound(Kwatr*WATRmax/Point);
	  StepSizeMid=MathRound(Kwatr*0.5*(WATRmax+WATRmin)/Point);

     min = Kwatr*WATRmin;
     max = Kwatr*WATRmax;
     mid = Kwatr*0.5*(WATRmax+WATRmin);

	  //b = iBarShift(Symbol(),tPeriod,Time[shift]);
	  c = Close[shift];//iClose(Symbol(),tPeriod,b);
	  h = High[shift];//iHigh(Symbol(),tPeriod,b)
	  l = Low[shift];//iLow(Symbol(),tPeriod,b)

	  if (HighLow>0){
	    SmaxMin0=l+2*min;
	    SminMin0=h-2*min;

	    SmaxMax0=l+2*max;
	    SminMax0=h-2*max;

	    SmaxMid0=l+2*mid;
	    SminMid0=h-2*mid;

	    if(c>SmaxMin1) TrendMin=1;
	    if(c<SminMin1) TrendMin=-1;

	    if(c>SmaxMax1) TrendMax=1;
	    if(c<SminMax1) TrendMax=-1;

	    if(c>SmaxMid1) TrendMid=1;
	    if(c<SminMid1) TrendMid=-1;
	    }

	  if (HighLow == 0){
	    SmaxMin0=c+2*min;
	    SminMin0=c-2*min;

	    SmaxMax0=c+2*max;
	    SminMax0=c-2*max;

	    SmaxMid0=c+2*mid;
	    SminMid0=c-2*mid;

	    if(c>SmaxMin1) TrendMin=1;
	    if(c<SminMin1) TrendMin=-1;

	    if(c>SmaxMax1) TrendMax=1;
	    if(c<SminMax1) TrendMax=-1;

	    if(c>SmaxMid1) TrendMid=1;
	    if(c<SminMid1) TrendMid=-1;
	    }

	  if(TrendMin>0 && SminMin0<SminMin1) SminMin0=SminMin1;
	  if(TrendMin<0 && SmaxMin0>SmaxMin1) SmaxMin0=SmaxMin1;

	  if(TrendMax>0 && SminMax0<SminMax1) SminMax0=SminMax1;
	  if(TrendMax<0 && SmaxMax0>SmaxMax1) SmaxMax0=SmaxMax1;

	  if(TrendMid>0 && SminMid0<SminMid1) SminMid0=SminMid1;
	  if(TrendMid<0 && SmaxMid0>SmaxMid1) SmaxMid0=SmaxMid1;


	  if (TrendMin>0) linemin=SminMin0+min;
	  if (TrendMin<0) linemin=SmaxMin0-min;

	  if (TrendMax>0) linemax=SminMax0+max;
	  if (TrendMax<0) linemax=SmaxMax0-max;

	  if (TrendMid>0) linemid=SminMid0+mid;
	  if (TrendMid<0) linemid=SmaxMid0-mid;

	  bsmin=linemax-max;
	  bsmax=linemax+max;
	  Stoch1=(linemin-bsmin)/(bsmax-bsmin);
	  Stoch2=(linemid-bsmin)/(bsmax-bsmin);

	  LineMinBuffer[shift]=Stoch1;
	  LineMidBuffer[shift]=Stoch2;


	  SminMin1=SminMin0;
	  SmaxMin1=SmaxMin0;

	  SminMax1=SminMax0;
	  SmaxMax1=SmaxMax0;

	  SminMid1=SminMid0;
	  SmaxMid1=SmaxMid0;

	  // don't do anything for current bar since it is keeping changing.
	  if(shift != 0) {
   	  position_ind0 = position_ind1;
   	  if(LineMinBuffer[shift]>LineMidBuffer[shift]){
   	     position_ind1=1;
   	  }
   	  else {
   	     position_ind1=-1;
   	  }
	  // current bar is keeping on changing
	  // so don't put arrow on it
	  // that means we only set on signal for confirmed bar
	     if((position_ind0==-1) && (position_ind1==1)) {
	     // cross up
	        LineBuyBuffer[shift] = LineMidBuffer[shift];
	     }
	     if((position_ind0==1) && (position_ind1==-1)) {
	     // cross down
	        LineSellBuffer[shift] = LineMidBuffer[shift];
	     }
	   }
   }

	if(Volume[0]>1) return(0);
	// for the current crossing, make the sound
	// still have problem for this mechanism, leave it for later modification

  if (UseHourTrade){
         if (!(Hour()>=FromHourTrade && Hour()<=ToHourTrade)) {
           Comment("Time for trade has not come else!");
           return(0);
       }
   }


	if(alert_ON) {
      if(position_ind0*position_ind1<0) {  // time for alarm
        SendMail("StepMA "+Period()+"minutes sur ",Symbol());
         PlaySound(sond1);
         turn_alarm=false;
      }
   }

	return(0);
 }
//+------------------------------------------------------------------+
