TrendEnvelopes_v2_001
Download script
This tool is designed to help traders visualize and identify market trends by creating dynamic "envelopes" on a price chart. Rather than just looking at a single moving average, this script monitors the relationship between current prices and historical highs and lows to define the direction of the market.
Core Logic and Functionality
Trend Detection The script works by calculating two primary boundaries based on high and low prices over a user-defined period. It constantly compares the closing price of a candle against these boundaries:
- If the price closes above the previous high boundary, the script identifies an Upward Trend.
- If the price closes below the previous low boundary, the script identifies a Downward Trend.

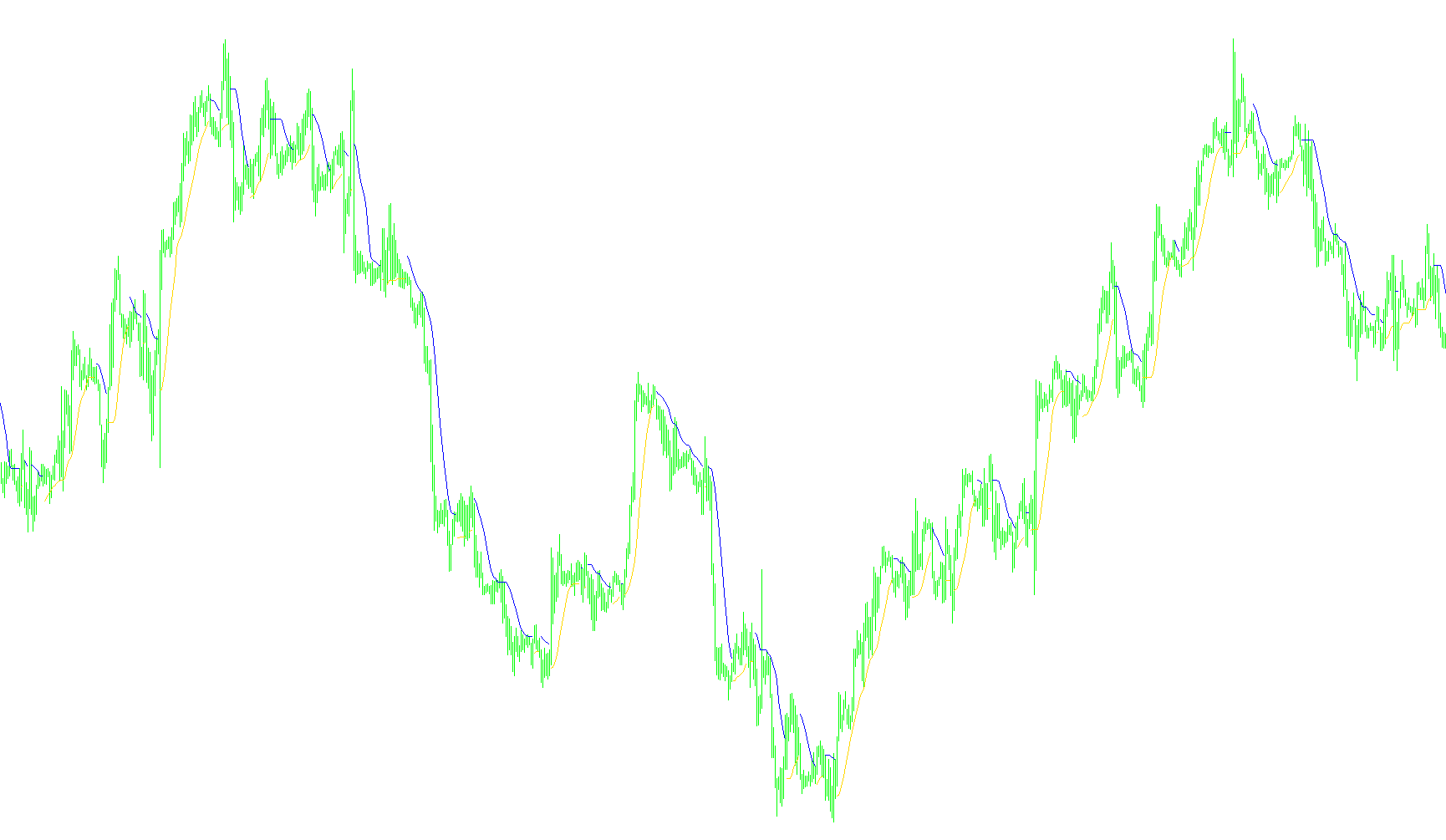

Dynamic Envelopes The "Envelopes" are the visual lines that appear on your chart. Their behavior changes depending on the detected trend:
- In an Uptrend: The script tracks the lowest point of the recent movement. This creates a trailing floor (the UpTrendEnv) that follows the price upward, helping traders see where support might be forming.
- In a Downtrend: The script tracks the highest point of the recent movement. This creates a trailing ceiling (the DnTrendEnv) that follows the price downward, highlighting potential resistance levels.
Signal and Alert System Beyond just drawing lines, the script provides proactive notifications for trend reversals:
- Visual Signals: When the trend switches (e.g., from down to up), the script can place specific markers or symbols on the chart at the moment the breach occurs.
- Audio/Visual Alerts: The tool includes a built-in notification system. If enabled, it will trigger a sound alert and a pop-up message on your screen the moment a trend reversal is confirmed (moving from a bearish state to a bullish state, or vice versa), provided there is active trading volume.
How it Helps the Trader
By using this logic, a trader can quickly distinguish between "noise" and a sustained move. Instead of guessing where a trend might end, the envelopes provide a visual "path" for the price to follow. When the price breaks through these envelopes in the opposite direction, it serves as a clear signal that the previous market structure has shifted, allowing for potentially faster reaction times to new price movements.
Indicators Used
Miscellaneous
8
Views
0
Downloads
0
Favorites
TrendEnvelopes_v2_001
//+------------------------------------------------------------------+
//| TrendEnvelopes_v2.mq4 |
//| Copyright © 2007, TrendLaboratory Ltd. |
//| http://finance.groups.yahoo.com/group/TrendLaboratory |
//| E-mail: igorad2003@yahoo.co.uk |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007, TrendLaboratory Ltd."
#property link "http://finance.groups.yahoo.com/group/TrendLaboratory"
//---- indicator settings
#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 LightBlue
#property indicator_color2 Orange
#property indicator_width1 2
#property indicator_width2 2
#property indicator_color3 LightBlue
#property indicator_color4 Orange
#property indicator_width3 1
#property indicator_width4 1
//---- indicator parameters
extern int MA_Period = 10;
extern int MA_Method = 0;
extern int UseSignal = 0;
extern int AlertMode = 0;
extern int WarningMode = 0;
//---- indicator buffers
double UpBuffer[];
double DnBuffer[];
double UpSignal[];
double DnSignal[];
double smax[];
double smin[];
double trend[];
//----
int ExtCountedBars=0;
bool UpTrendAlert=false, DownTrendAlert=false;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
int draw_begin;
string short_name;
//---- drawing settings
IndicatorBuffers(7);
SetIndexStyle(0,DRAW_LINE);
SetIndexStyle(1,DRAW_LINE);
SetIndexStyle(2,DRAW_ARROW);
SetIndexArrow(2,108);
SetIndexStyle(3,DRAW_ARROW);
SetIndexArrow(3,108);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
if(MA_Period<2) MA_Period=10;
draw_begin=MA_Period-1;
//---- indicator short name
IndicatorShortName("TrendEnvelopes("+MA_Period+")");
SetIndexLabel(0,"UpTrendEnv");
SetIndexLabel(1,"DnTrendEnv");
SetIndexLabel(2,"UpSignal");
SetIndexLabel(3,"DnSignal");
SetIndexDrawBegin(0,draw_begin);
SetIndexDrawBegin(1,draw_begin);
SetIndexDrawBegin(2,draw_begin);
SetIndexDrawBegin(3,draw_begin);
//---- indicator buffers mapping
SetIndexBuffer(0,UpBuffer);
SetIndexBuffer(1,DnBuffer);
SetIndexBuffer(2,UpSignal);
SetIndexBuffer(3,DnSignal);
SetIndexBuffer(4,smax);
SetIndexBuffer(5,smin);
SetIndexBuffer(6,trend);
//---- initialization done
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int limit;
if(Bars<=MA_Period) return(0);
ExtCountedBars=IndicatorCounted();
//---- check for possible errors
if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
if (ExtCountedBars>0) ExtCountedBars--;
limit=Bars-ExtCountedBars;
//---- EnvelopesM counted in the buffers
for(int i=limit; i>=0; i--)
{
smax[i] = iMA(NULL,0,MA_Period,0,MA_Method,PRICE_HIGH,i);
smin[i] = iMA(NULL,0,MA_Period,0,MA_Method,PRICE_LOW,i);
trend[i]=trend[i+1];
if (Close[i]>smax[i+1]) trend[i]=1;
if (Close[i]<smin[i+1]) trend[i]=-1;
if(trend[i]>0)
{
if (smin[i]<smin[i+1]) smin[i]=smin[i+1];
UpBuffer[i]=smin[i];
if (UseSignal>0)
{
if (trend[i+1]<0)
{
UpSignal[i] = smin[i];
if (WarningMode>0 && i==0) PlaySound("alert2.wav");
}
else UpSignal[i] = EMPTY_VALUE;
}
DnBuffer[i]=EMPTY_VALUE;
DnSignal[i]=EMPTY_VALUE;
}
else
{
if(smax[i]>smax[i+1]) smax[i]=smax[i+1];
DnBuffer[i]=smax[i];
if (UseSignal>0)
{
if (trend[i+1]>0)
{
DnSignal[i] = smax[i];
if (WarningMode>0 && i==0) PlaySound("alert2.wav");
}
else DnSignal[i] = EMPTY_VALUE;
}
UpBuffer[i]=EMPTY_VALUE;
UpSignal[i]=EMPTY_VALUE;
}
}
//----------
string Message;
if ( trend[2]<0 && trend[1]>0 && Volume[0]>1 && !UpTrendAlert)
{
Message = " "+Symbol()+" M"+Period()+": Signal for BUY";
if ( AlertMode>0 ) Alert (Message);
UpTrendAlert=true; DownTrendAlert=false;
}
if ( trend[2]>0 && trend[1]<0 && Volume[0]>1 && !DownTrendAlert)
{
Message = " "+Symbol()+" M"+Period()+": Signal for SELL";
if ( AlertMode>0 ) Alert (Message);
DownTrendAlert=true; UpTrendAlert=false;
}
//---- done
return(0);
}
//+------------------------------------------------------------------+
