VoltyChannel_Stop_v2.1M_v1

Download script
Author: Copyright � 2007, TrendLaboratory
VoltyChannel_Stop_v2.1M_v1

This tool is designed to help traders identify market trends and specific entry points by analyzing price volatility. It functions by creating a dynamic "channel" around the current market price, reacting to how much the price fluctuates over a specific period.

Core Mechanics

The logic operates on three primary pillars:

1. Volatility Tracking Instead of just looking at where the price is, the script looks at how much it is moving. It uses a volatility indicator (ATR) to measure the range of recent price swings. This ensures that the support and resistance levels generated by the tool expand during "wild" market moves and contract during calmer periods.

2. Trend Identification The script determines whether the market is in an uptrend or a downtrend based on price "breakouts." It establishes boundaries (a ceiling and a floor) based on a combination of moving averages and volatility.

  • If the price pushes above the upper boundary, the tool registers an upward trend.
  • If the price drops below the lower boundary, it registers a downward trend.

3. Dynamic Support and Resistance (Trailing Stops) Once a trend is established, the tool calculates specific levels that act as "stops."

  • In an Uptrend: It identifies a floor (support) level. If this floor starts to drop significantly, the tool locks onto the highest previous point to ensure the support line only moves in your favor, never backward.
  • In a Downtrend: It identifies a ceiling (resistance) level. Similarly, if this ceiling rises, the tool tracks the lowest previous point to maintain a trailing effect.

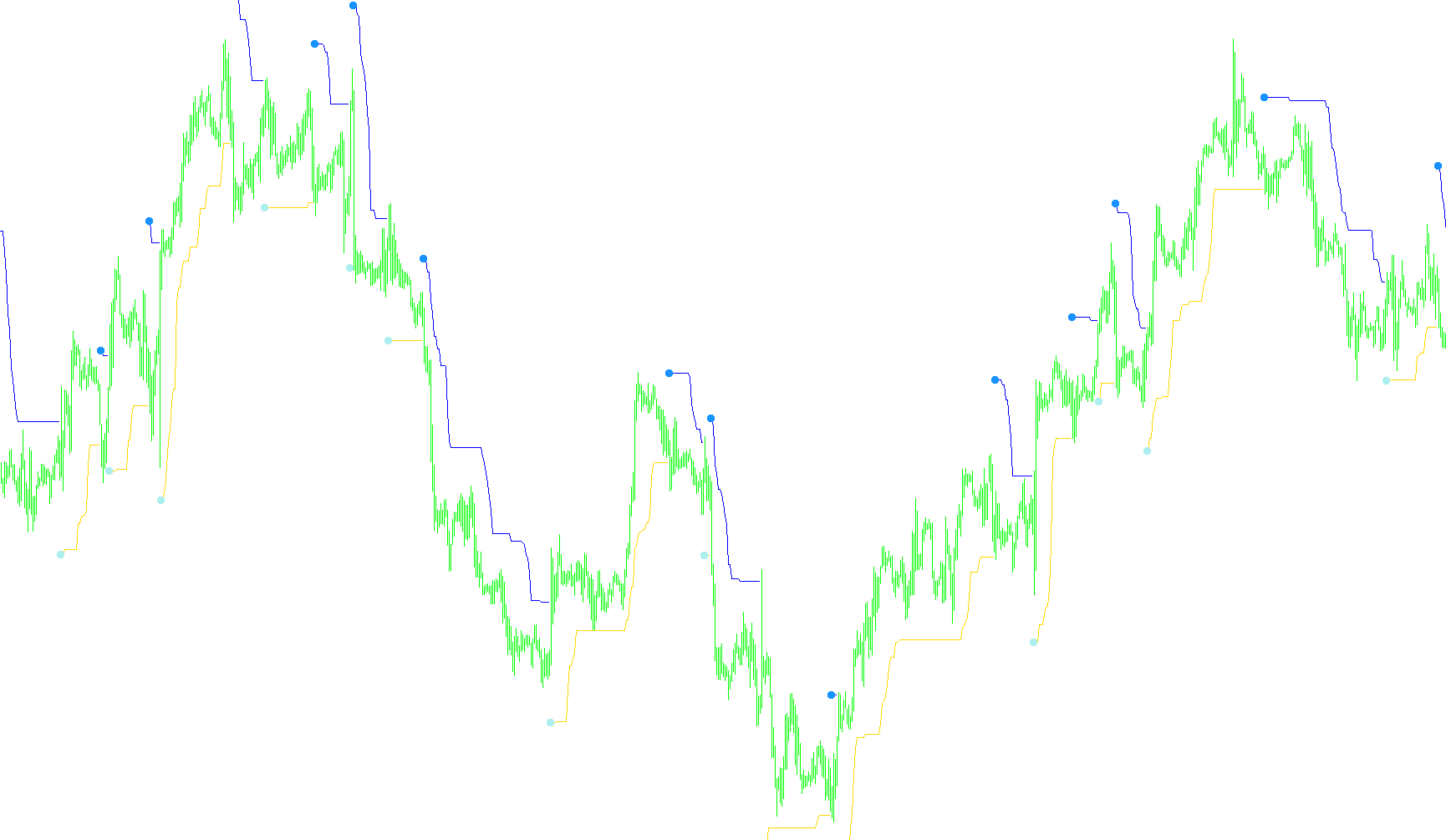

Visual Signals and Alerts

The script translates this complex math into three clear visual components on your chart:

  • Trend Lines: These show the current "floor" or "ceiling," helping you visualize where the trend might end.
  • Signal Points: When the trend officially flips (e.g., from Bearish to Bullish), the script places a specific mark on the chart to highlight the exact moment of the transition.
  • Notifications: The tool includes an alert system that can send a pop-up message when a trend reversal occurs, provided there is sufficient trading volume to confirm the move.

Summary for the User

Essentially, this script acts as a smart trailing stop. It filters out "market noise" by using volatility to set its boundaries, and it provides you with a visual roadmap of the current trend. It signals a "Buy" when the price breaks upward through high-volatility resistance and a "Sell" when it breaks downward through high-volatility support.

Indicators Used
Moving average indicatorIndicator of the average true range
Miscellaneous
Implements a curve of type %1
16 Views
0 Downloads
0 Favorites
VoltyChannel_Stop_v2.1M_v1
//+------------------------------------------------------------------+
//|                                       VoltyChannel_Stop_v2.1.mq4 |
//|                                Copyright © 2007, TrendLaboratory |
//|            http://finance.groups.yahoo.com/group/TrendLaboratory |
//|                                   E-mail: igorad2003@yahoo.co.uk |
//+------------------------------------------------------------------+
//2008fxtsd mod
#property copyright "Copyright © 2007, TrendLaboratory"
#property link      "http://finance.groups.yahoo.com/group/TrendLaboratory"
//----
#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Blue
#property indicator_color2 Red
#property indicator_color3 Blue
#property indicator_color4 Red
#property indicator_width1 1
#property indicator_width2 1
#property indicator_width3 1
#property indicator_width4 1
//---- input parameters
extern int     MA_Price   =0; //Applied Price: 0-C,1-O,2-H,3-L,4-Median,5-Typical,6-Weighted
extern int     MA_Length  =1; //MA's Period
extern int     MA_Mode    =0; //MA's Method:0-SMA,1-EMA,2-SMMA,3-LWMA
extern int     ATR_Length =10;//ATR's Period
extern double  Kv         =4; //Volatility's Factor or Multiplier
extern double  MoneyRisk  =1; //Offset Factor
extern bool    usePrice_HiLoBreak    =true;
extern bool    useMA_HiLoEnvelope    =false;
extern int     AlertMode  =0; //0-alert off,1-on
extern int     VisualMode =0; //0-lines,1-dots
extern string Applied_Price_ ="0-C,1-O,2-H,3-L,4-Median(H+L)/2,5-Typical(H+L+C)/3,6-Weighted(H+L+C+C)/4";
extern string MAmethod_mode_ ="0-SMA,1-EMA,2-SMMA,3-LWMA";
extern string Visual_Mode___ ="0-lines,1-dots ";
//---- indicator buffers
double UpBuffer[];
double DnBuffer[];
double UpSignal[];
double DnSignal[];
double smin[];
double smax[];
double trend[];
bool   UpTrendAlert=false, DownTrendAlert=false;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
  int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(7);
   SetIndexBuffer(0,UpBuffer);
   SetIndexBuffer(1,DnBuffer);
   SetIndexBuffer(2,UpSignal);
   SetIndexBuffer(3,DnSignal);
   SetIndexBuffer(4,smin);
   SetIndexBuffer(5,smax);
   SetIndexBuffer(6,trend);
//----
   if(VisualMode==0)
     {
      SetIndexStyle(0,DRAW_LINE);
      SetIndexStyle(1,DRAW_LINE);
     }
   else
     {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(0,159);
      SetIndexArrow(1,159);
     }
//----
   SetIndexStyle(2,DRAW_ARROW);
   SetIndexStyle(3,DRAW_ARROW);
   SetIndexArrow(2,108);
   SetIndexArrow(3,108);
//---- name for DataWindow and indicator subwindow label
   short_name="VoltyChannel_Stop("+MA_Length+","+ATR_Length+","+DoubleToStr(Kv,3)+")";
   IndicatorShortName(short_name);
   SetIndexLabel(0,"UpTrend");
   SetIndexLabel(1,"DnTrend");
   SetIndexLabel(2,"UpSignal");
   SetIndexLabel(3,"DnSignal");
//----
   SetIndexDrawBegin(0,MA_Length+ATR_Length);
   SetIndexDrawBegin(1,MA_Length+ATR_Length);
   SetIndexDrawBegin(2,MA_Length+ATR_Length);
   SetIndexDrawBegin(3,MA_Length+ATR_Length);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| VoltyChannel_Stop_2                                              |
//+------------------------------------------------------------------+
int start()
  {
   int shift,limit, counted_bars=IndicatorCounted();
//----
   if(counted_bars > 0) limit=Bars-counted_bars;
   if(counted_bars < 0) return(0);
   if(counted_bars ==0) limit=Bars-MA_Length-1;
   for(shift=limit;shift>=0;shift--)
     {
      if(useMA_HiLoEnvelope)
        {
         double bprice=iMA(NULL,0,MA_Length,0,MA_Mode,2,shift);
         double sprice=iMA(NULL,0,MA_Length,0,MA_Mode,3,shift);
        }
      else
        {
         bprice=iMA(NULL,0,MA_Length,0,MA_Mode,MA_Price,shift);
         sprice=iMA(NULL,0,MA_Length,0,MA_Mode,MA_Price,shift);
        }
      smax[shift]=bprice + Kv*iATR(NULL,0,ATR_Length,shift);
      smin[shift]=sprice - Kv*iATR(NULL,0,ATR_Length,shift);
      trend[shift]=trend[shift+1];
      if(usePrice_HiLoBreak)
        {
         if(High[shift] > smax[shift+1])trend[shift]= 1;
         if(Low[shift]  < smin[shift+1])trend[shift]=-1;
        }
      else
        {
         if(bprice > smax[shift+1])trend[shift]= 1;
         if(sprice < smin[shift+1])trend[shift]=-1;
        }
      if(trend[shift] >0)
        {
         if(smin[shift] < smin[shift+1]) smin[shift]=smin[shift+1];
         UpBuffer[shift]=smin[shift] - (MoneyRisk - 1)*iATR(NULL,0,ATR_Length,shift);
         if(UpBuffer[shift] < UpBuffer[shift+1] && UpBuffer[shift+1]!=EMPTY_VALUE) UpBuffer[shift]=UpBuffer[shift+1];
         if(trend[shift+1]!=trend[shift]) UpSignal[shift]=UpBuffer[shift];
         else UpSignal[shift]=EMPTY_VALUE;
         DnBuffer[shift]=EMPTY_VALUE;
         DnSignal[shift]=EMPTY_VALUE;
        }
      else
         if(trend[shift] <0)
           {
            if(smax[shift]>smax[shift+1]) smax[shift]=smax[shift+1];
            DnBuffer[shift]=smax[shift] + (MoneyRisk - 1)*iATR(NULL,0,ATR_Length,shift);
            if(DnBuffer[shift] > DnBuffer[shift+1]) DnBuffer[shift]=DnBuffer[shift+1];
            if(trend[shift+1]!=trend[shift]) DnSignal[shift]=DnBuffer[shift];
            else DnSignal[shift]=EMPTY_VALUE;
            UpBuffer[shift]=EMPTY_VALUE;
            UpSignal[shift]=EMPTY_VALUE;
           }
     }
//----
   string Message;
   if(trend[2]<0 && trend[1]>0 && Volume[0]>1 && !UpTrendAlert)
     {
      Message=" "+Symbol()+" M"+Period()+": VCS Signal for BUY";
      if(AlertMode>0)Alert (Message);
      UpTrendAlert=true; DownTrendAlert=false;
     }
   if(trend[2]>0 && trend[1]<0 && Volume[0]>1 && !DownTrendAlert)
     {
      Message=" "+Symbol()+" M"+Period()+": VCS Signal for SELL";
      if(AlertMode>0)Alert (Message);
      DownTrendAlert=true; UpTrendAlert=false;
     }
//----
   return(0);
  }
//+------------------------------------------------------------------+
