Author: Modification of T3 MACO. Thanks to Perky_z and Mojos Program
T3 CCI_v2

This indicator is designed to provide a smoother, more refined view of market momentum compared to standard technical analysis tools. It achieves this by blending two sophisticated mathematical concepts: the CCI (Commodity Channel Index) and the T3 Moving Average logic.

Core Components of the Logic

1. The Momentum Foundation (CCI) At its base, the tool uses the Commodity Channel Index. This is a standard market metric that measures how far the current price is deviating from its average price over a specific period. In simple terms, it helps identify whether an asset is "overbought" or "oversold."

2. The Smoothing Layer (T3 Logic) Standard indicators often suffer from "noise"—small, jagged price fluctuations that can create false signals for traders. This script applies a specialized filtering technique known as the T3 logic. Unlike basic moving averages that might lag behind the price, the T3 calculation is designed to be exceptionally smooth while remaining very responsive to actual price trends.

3. The Multi-Stage Refinement The script doesn't just apply a single filter; it processes the data through a multi-stage smoothing sequence (represented by the internal calculations). It takes the raw momentum data and passes it through several layers of weighting. Each layer progressively "cleans" the data, removing market jitter while attempting to preserve the core direction of the movement.

How it Works in Practice

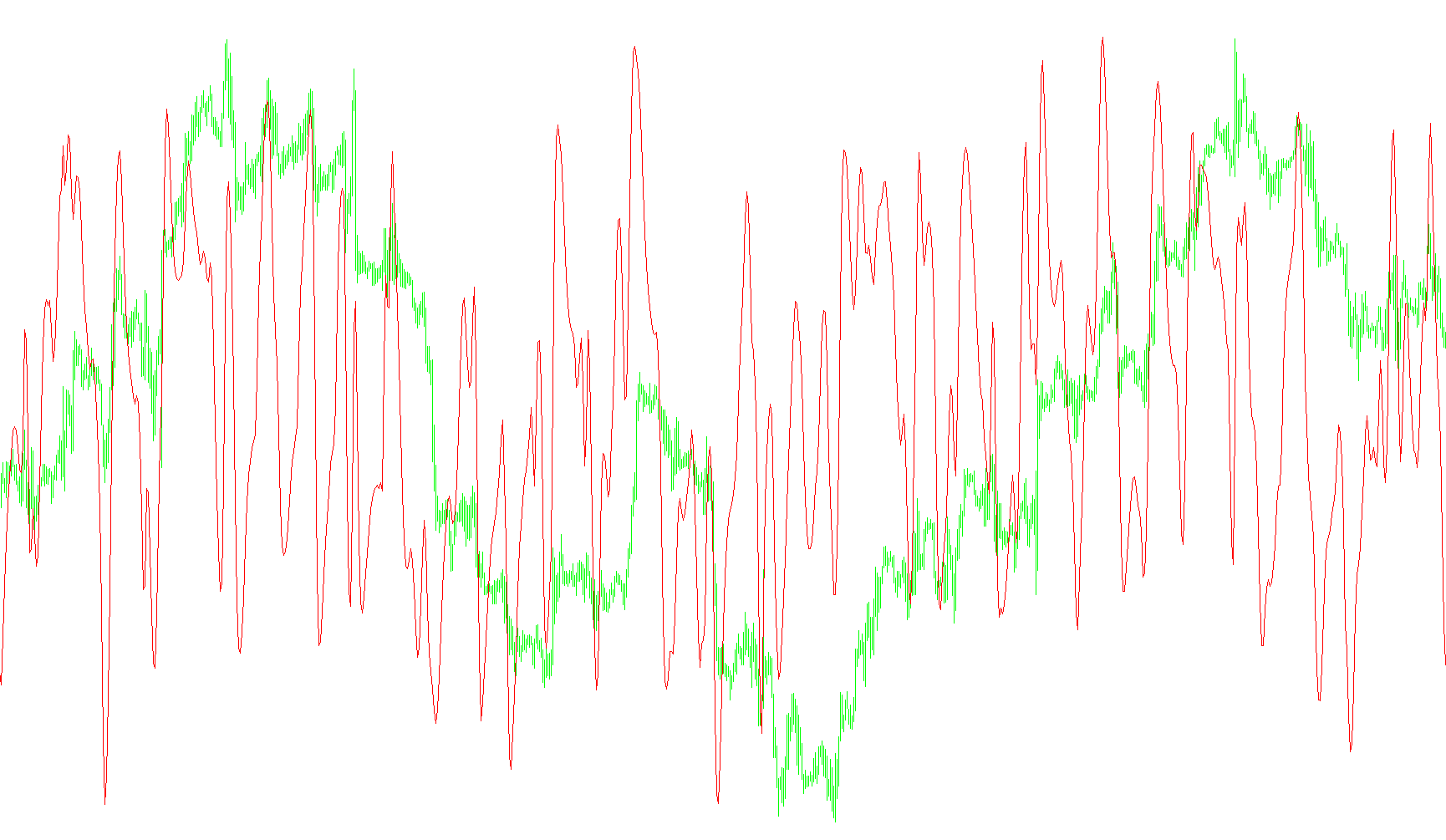

When you view this on a chart, instead of seeing a volatile line that reacts wildly to every small tick, you see a refined curve.

  • Stability: The high level of smoothing ensures that the line stays steady unless there is a significant move in price.
  • Trend Identification: Because it combines momentum with advanced smoothing, the resulting line helps traders visualize the "flow" of the market more clearly.
  • Reduced Lag: By using specific mathematical coefficients (the "weighting" variables), the script tries to balance the trade-off between a smooth line and a fast response, aiming to give you a clearer picture of where the price momentum is heading without the typical delays found in simpler tools.

In summary, this tool acts as a "high-definition" filter for market momentum, stripping away the distractions of minor price fluctuations to reveal the underlying trend.

Indicators Used
Commodity channel index
Miscellaneous
Implements a curve of type %1
11 Views
0 Downloads
0 Favorites
T3 CCI_v2
//+------------------------------------------------------------------+
//|                                                      T3 CCI.mq4  |
//|                                                       adoleh2000 |
//| http://groups.yahoo.com/group/MetaTrader_Experts_and_Indicators/ |
//+------------------------------------------------------------------+
#property copyright "Modification of T3 MACO.  Thanks to Perky_z and Mojos Program"
#property link      "http://groups.yahoo.com/group/MetaTrader_Experts_and_Indicators/"
//----
#property indicator_separate_window
#property indicator_buffers 1
#property indicator_color1 Red
//----
extern int CCI_Period=15;
extern int T3_Period=5;
extern double b=0.7;
//----
double MapBuffer[];
double e1,e2,e3,e4,e5,e6;
double c1,c2,c3,c4;
double n,w1,w2,b2,b3;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators setting
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,1,Red);
   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
   IndicatorShortName("T3_ CCI "+CCI_Period);
   SetIndexBuffer(0,MapBuffer);
//---- variable reset
   e1=0; e2=0; e3=0; e4=0; e5=0; e6=0;
   c1=0; c2=0; c3=0; c4=0;
   n=0;
   w1=0; w2=0;
   b2=0; b3=0;
   //
   b2=b*b;
   b3=b2*b;
   c1=-b3;
   c2=(3*(b2+b3));
   c3=-3*(2*b2+b+b3);
   c4=(1+3*b+b3+3*b2);
   n=T3_Period;
   //
   if (n<1) n=1;
   n=1 + 0.5*(n-1);
   w1=2/(n + 1);
   w2=1 - w1;
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int limit=Bars;
//---- indicator calculation
   for(int i=limit; i>=0; i--)
     {
      e1=w1*(iCCI(NULL,0,CCI_Period,PRICE_MEDIAN,i)) + w2*e1;
      e2=w1*e1 + w2*e2;
      e3=w1*e2 + w2*e3;
      e4=w1*e3 + w2*e4;
      e5=w1*e4 + w2*e5;
      e6=w1*e5 + w2*e6;
      //
      MapBuffer[i]=c1*e6 + c2*e5 + c3*e4 + c4*e3;
     }
//----
   return(0);
  }
//+------------------------------------------------------------------+
