Author: SilverTrend rewritten by CrazyChart
SilverTrend_SignalWith Alert

This tool is designed to identify and visualize market trend reversals on your trading chart by monitoring price action over a specific look-back period. Instead of simply following every minor price wiggle, the logic focuses on identifying significant shifts in momentum to help traders distinguish between active trends and potential turning points.

How the Logic Works

1. Establishing Market Context The script begins by analyzing a defined window of recent candles (the "look-back" period). It calculates two key pieces of information for every point in time:

  • Average Volatility: It measures the typical size of price movements (the distance between highs and lows) to understand how much the market is currently "breathing."
  • Price Boundaries: It identifies the highest and lowest prices reached within that specific timeframe.

2. Identifying the "Breakout" Zone Rather than looking for a simple crossover, the script creates a dynamic "buffer zone" based on your risk settings. By taking the difference between the highest and lowest prices in the period, it calculates a threshold. If the price closes outside of these calculated boundaries, it signals that the market has moved with enough strength to potentially change direction.

3. Trend Detection & Signal Generation The logic tracks the "state" of the trend (Up or Down). A signal is only triggered when the trend state actually flips:

  • Buy Signals: When the price closes significantly above the upper boundary, the script recognizes a shift to an upward trend and places a visual marker.
  • Sell Signals: When the price closes significantly below the lower boundary, it recognizes a shift to a downward trend and places a corresponding marker.

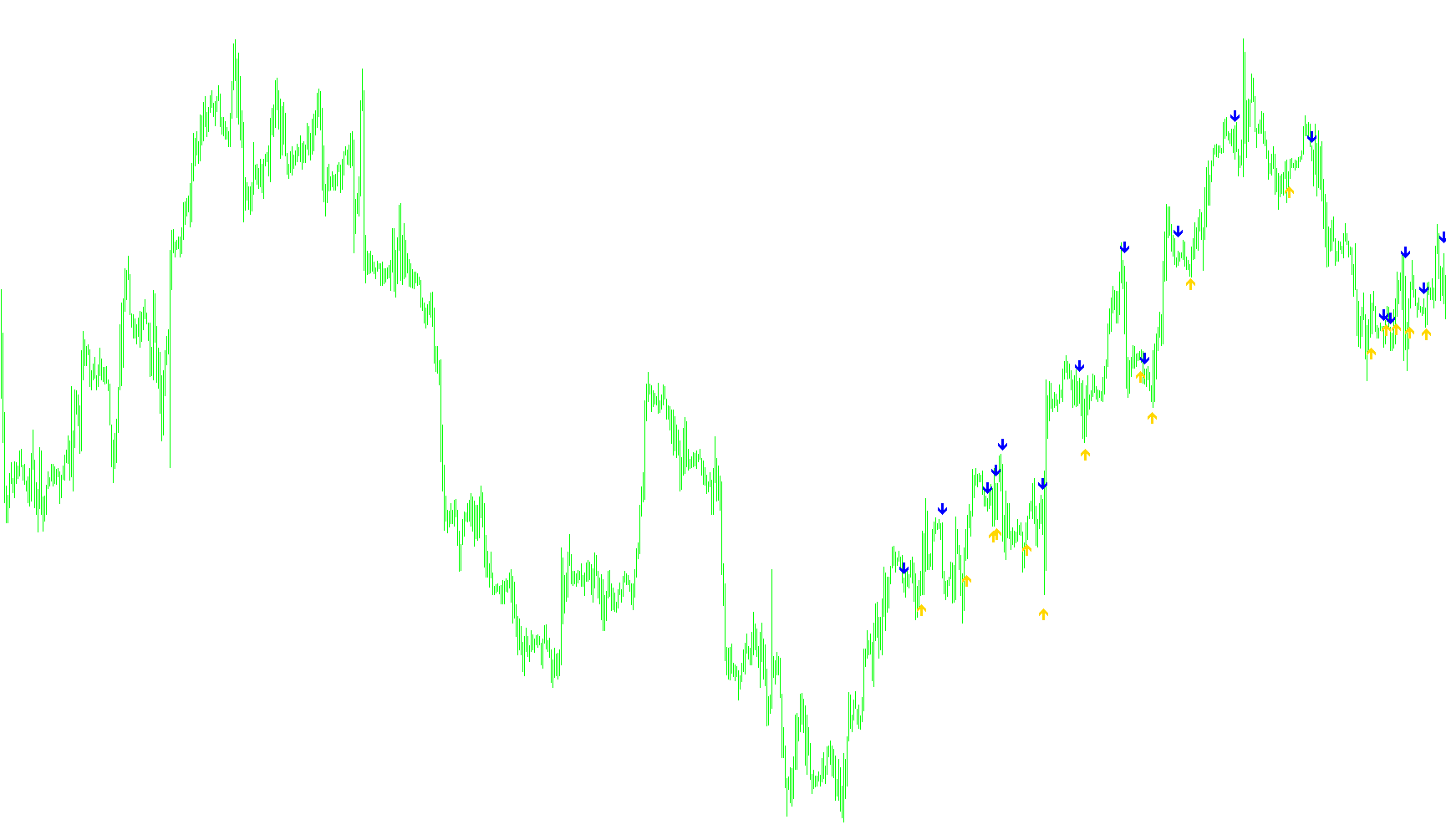

4. Visual and Alert Feedback To keep the chart clean and useful for the user, the script:

  • Places specific visual arrows on the chart at the exact moment a trend shift is confirmed.
  • Calculates the position of these markers based on the average volatility of the market (so the arrows appear at a consistent distance from the price candles).
  • Includes a notification system that can provide real-time alerts when these shifts occur, ensuring you don't have to watch the screen constantly to catch a move.

Summary for the Trader

In plain terms, this script ignores "noise" by requiring the price to break out of a specific range before it confirms a trend change. It tells you when the market has shifted from one direction to another with enough momentum to be noteworthy, providing clear visual cues on your chart to help you time your entries and exits.

Miscellaneous
Implements a curve of type %1
13 Views
0 Downloads
0 Favorites
SilverTrend_SignalWith Alert
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//| SilverTrend_Signal.mq4
//| Ramdass - Conversion only
//+------------------------------------------------------------------+
#property copyright "SilverTrend  rewritten by CrazyChart"
#property link      "http://viac.ru/"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Aqua
#property indicator_color2 Violet

//---- input parameters
extern int RISK=3;
extern int CountBars=350;
extern int NumberofAlerts=2;
int SSP=9;
int counter=0;
//---- buffers
double val1[];
double val2[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(2);
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,233);
   SetIndexStyle(1,DRAW_ARROW);
   SetIndexArrow(1,234);
   SetIndexBuffer(0,val1);
   SetIndexBuffer(1,val2);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| SilverTrend_Signal                                               |
//+------------------------------------------------------------------+
int start()
  {
   if (CountBars>=Bars) CountBars=Bars;
   SetIndexDrawBegin(0,Bars-CountBars+SSP);
   SetIndexDrawBegin(1,Bars-CountBars+SSP);
   int i,shift,counted_bars=IndicatorCounted();
   int i1,i2,K;
   double Range,AvgRange,smin,smax,SsMax,SsMin,price;
   bool uptrend,old;
//----

   if(Bars<=SSP+1) return(0);
//---- initial zero
   if(counted_bars<SSP+1)
   {
      for(i=1;i<=SSP;i++) val1[CountBars-i]=0.0;
      for(i=1;i<=SSP;i++) val2[CountBars-i]=0.0;
   }
//----

K=33-RISK;
for (shift = CountBars-SSP; shift>=0; shift--)
{

	Range=0;
	AvgRange=0;
	for (i1=shift; i1<=shift+SSP; i1++)
		{AvgRange=AvgRange+MathAbs(High[i1]-Low[i1]);
		}
	Range=AvgRange/(SSP+1);

SsMax=High[shift]; SsMin=Low[shift];
   for (i2=shift;i2<=shift+SSP-1;i2++)
        {
         price=High[i2];
         if(SsMax<price) SsMax=price;
         price=Low[i2];
         if(SsMin>=price)  SsMin=price;
        }

smin = SsMin+(SsMax-SsMin)*K/100;
smax = SsMax-(SsMax-SsMin)*K/100;
	val1[shift]=0;
	val2[shift]=0;
	if (Close[shift]<smin)
		{
		uptrend = false;
		}
	if (Close[shift]>smax)
		{
		uptrend = true;
		}
   if (uptrend!=old && uptrend==true)
   {
   val1[shift]=Low[shift]-Range*0.5;
   counter=0;
   if (shift==0 && counter<=NumberofAlerts)
   {
   //Alert("Silver Trend ",Period()," ",Symbol()," BUY");
   counter=counter+1;
   }
   }
   if (uptrend!=old && uptrend==false)
   {
   counter=0;
   val2[shift]=High[shift]+Range*0.5;
   if (shift==0 && counter<=NumberofAlerts)
   {
   //Alert("Silver Trend ",Period()," ",Symbol()," SELL");
   counter=counter+1;

   }
   }
   Comment(shift);
   old=uptrend;

}
   return(0);
  }
//+------------------------------------------------------------------+
