RSI_Strike(AM)

Author: Andrey Matvievskiy
RSI_Strike(AM)

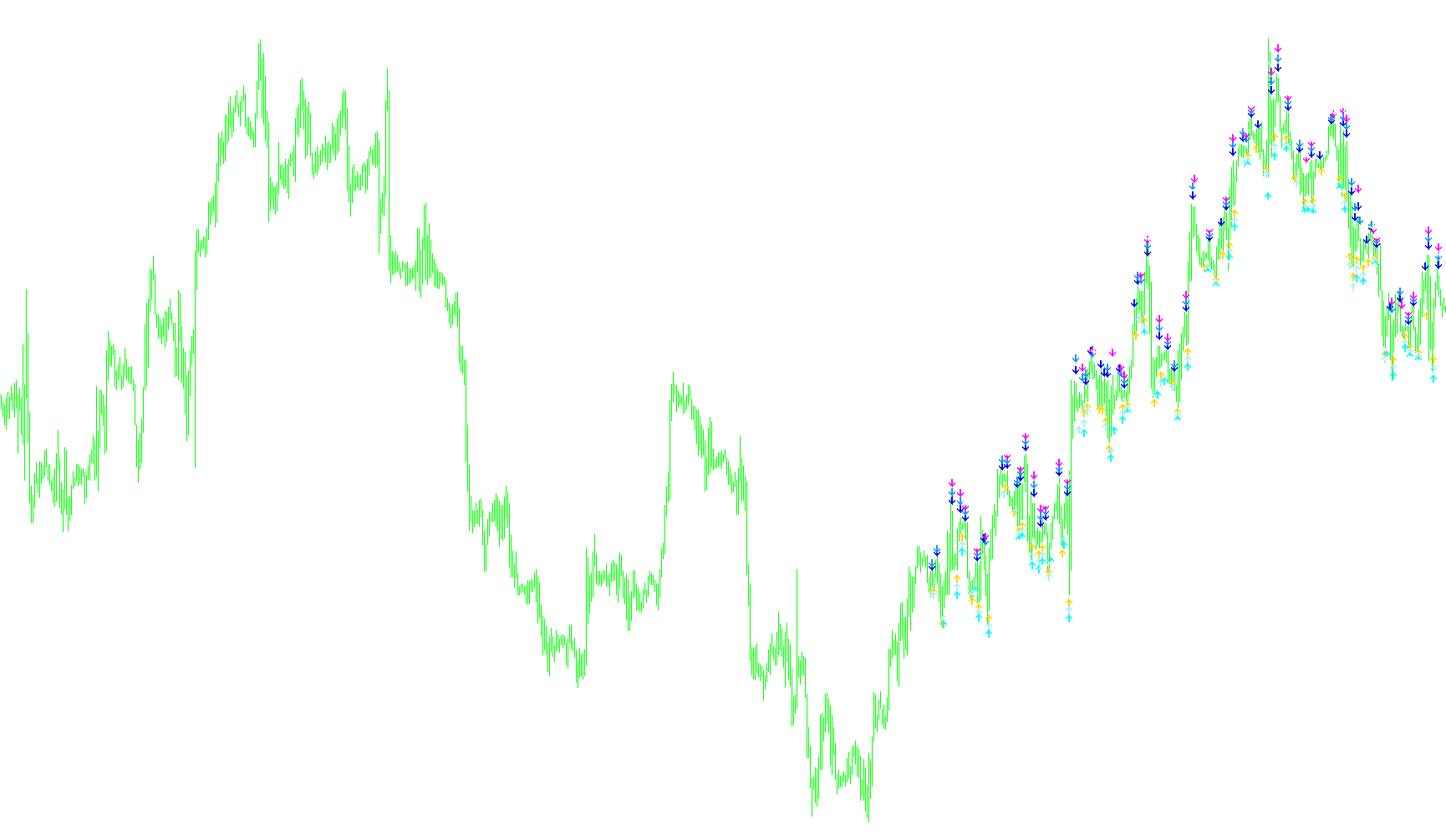

This script is a custom technical analysis tool designed for the MetaTrader 4 platform. Its primary purpose is to identify potential momentum shifts in the market by tracking multiple Relative Strength Index (RSI) calculations simultaneously and signaling these movements with visual arrows on the price chart.

Core Logic Overview

The indicator functions by monitoring four distinct pairs of RSI settings. Instead of looking at just one RSI value, it compares two different RSI periods against each other to identify "crossovers." A crossover occurs when the faster-moving momentum line moves from below to above (or vice versa) a slower-moving momentum line.

How It Works

  1. Dynamic Range Calculation: Before determining any signals, the script calculates the "Range" of the market. It looks at the difference between the highs and lows of the previous 10 candles to establish an average volatility. This ensures that the visual signals (the arrows) are spaced appropriately based on how much the price is actually moving.
  2. Multi-Layered Momentum Tracking: The script runs four separate comparisons:
    • Pair 1: Compares very short-term momentum.
    • Pair 2: Compares slightly longer-term momentum.
    • Pair 3: Compares medium-term momentum.
    • Pair 4: Compares the longest-term momentum in the set.
  3. Signal Generation: For each of these four pairs, the script checks for a "Cross Up" or a "Cross Down."
    • Bullish Signal (Cross Up): If the faster RSI moves above the slower RSI, the script places an upward-pointing arrow below the price candle.
    • Bearish Signal (Cross Down): If the faster RSI moves below the slower RSI, the script places a downward-pointing arrow above the price candle.
  4. Visual Scaling: To prevent the signals from overlapping or cluttering the chart, the script uses different offsets for each pair. As you move from the first pair to the fourth, the arrows are placed progressively further away from the price candles (increasing the distance from 20% to 80% of the calculated average range).

Summary for the User

In simple terms, this tool acts as a multi-layered "momentum filter." By watching four different speed levels of market momentum at once, it attempts to highlight areas where the trend might be shifting. It provides a visual map of these shifts on your chart, using different colors and positions to help you distinguish between immediate, short-term fluctuations and broader, more significant trend changes.

Indicators Used
Relative strength index
Miscellaneous
Implements a curve of type %1
11 Views
0 Downloads
0 Favorites
RSI_Strike(AM)
//+------------------------------------------------------------------+
//|                                               RSI_Strike(AM).mq4 |
//|                                               Andrey Matvievskiy |
//|                                                                  |
//+------------------------------------------------------------------+
#property copyright "Andrey Matvievskiy"
#property link      ""
//----
#property indicator_chart_window
#property indicator_buffers 8
#property indicator_color1 Aqua
#property indicator_color2 Aqua
#property indicator_color3 Silver
#property indicator_color4 Silver
#property indicator_color5 Orange
#property indicator_color6 Orange
#property indicator_color7 Red
#property indicator_color8 Red

//----
double CrossUp1[];
double CrossDown1[];
double CrossUp2[];
double CrossDown2[];
double CrossUp3[];
double CrossDown3[];
double CrossUp4[];
double CrossDown4[];


extern int RSI_Period1=2;
extern int RSI_Period2=4;
extern int RSI_Price1=0;
extern int RSI_Price2=0;

extern int RSI_Period3=3;
extern int RSI_Period4=6;
extern int RSI_Price3=0;
extern int RSI_Price4=0;

extern int RSI_Period5=4;
extern int RSI_Period6=8;
extern int RSI_Price5=0;
extern int RSI_Price6=0;

extern int RSI_Period7=5;
extern int RSI_Period8=10;
extern int RSI_Price7=0;
extern int RSI_Price8=0;


extern int CountedBars = 300;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0, DRAW_ARROW,0,0);
   SetIndexArrow(0, 233);
   SetIndexBuffer(0, CrossUp1);
   SetIndexStyle(1, DRAW_ARROW,0,0);
   SetIndexArrow(1, 234);
   SetIndexBuffer(1, CrossDown1);

   SetIndexStyle(2, DRAW_ARROW,0,0);
   SetIndexArrow(2, 233);
   SetIndexBuffer(2, CrossUp2);
   SetIndexStyle(3, DRAW_ARROW,0,0);
   SetIndexArrow(3, 234);
   SetIndexBuffer(3, CrossDown2);

   SetIndexStyle(4, DRAW_ARROW,0,0);
   SetIndexArrow(4, 233);
   SetIndexBuffer(4, CrossUp3);
   SetIndexStyle(5, DRAW_ARROW,0,0);
   SetIndexArrow(5, 234);
   SetIndexBuffer(5, CrossDown3);

   SetIndexStyle(6, DRAW_ARROW,0,0);
   SetIndexArrow(6, 233);
   SetIndexBuffer(6, CrossUp4);
   SetIndexStyle(7, DRAW_ARROW,0,0);
   SetIndexArrow(7, 234);
   SetIndexBuffer(7, CrossDown4);

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
  int start()
  {
   int limit, i, counter;
   double Range, AvgRange;
   int counted_bars=IndicatorCounted();
//---- check for possible errors
   if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;
//----
   limit=CountedBars;
//----
     for(i=1; i<=limit; i++)
     {
      counter=i;
      Range=0;
      AvgRange=0;
        for(counter=i ;counter<=i+9;counter++)
        {
         AvgRange=AvgRange+MathAbs(High[counter]-Low[counter]);
        }
      Range=AvgRange/10;
//----

      double A_1 = iRSI(NULL, 0, RSI_Period1, RSI_Price1, i);
      double A_2 = iRSI(NULL, 0, RSI_Period1, RSI_Price1, i+1);

      double B_1 = iRSI(NULL, 0, RSI_Period2, RSI_Price2, i);
      double B_2 = iRSI(NULL, 0, RSI_Period2, RSI_Price2, i+1);


      double C_1 = iRSI(NULL, 0, RSI_Period3, RSI_Price3, i);
      double C_2 = iRSI(NULL, 0, RSI_Period3, RSI_Price3, i+1);

      double D_1 = iRSI(NULL, 0, RSI_Period4, RSI_Price4, i);
      double D_2 = iRSI(NULL, 0, RSI_Period4, RSI_Price4, i+1);


      double E_1 = iRSI(NULL, 0, RSI_Period5, RSI_Price5, i);
      double E_2 = iRSI(NULL, 0, RSI_Period5, RSI_Price5, i+1);

      double F_1 = iRSI(NULL, 0, RSI_Period6, RSI_Price6, i);
      double F_2 = iRSI(NULL, 0, RSI_Period6, RSI_Price6, i+1);


      double G_1 = iRSI(NULL, 0, RSI_Period7, RSI_Price7, i);
      double G_2 = iRSI(NULL, 0, RSI_Period7, RSI_Price7, i+1);

      double K_1 = iRSI(NULL, 0, RSI_Period8, RSI_Price8, i);
      double K_2 = iRSI(NULL, 0, RSI_Period8, RSI_Price8, i+1);


//----
       if ((A_1 > B_1) &&(A_2 < B_2))
        {
         CrossUp1[i]=Low[i] - Range*0.2;
        }
        else  if ((A_1 < B_1) &&(A_2 > B_2))
        {
         CrossDown1[i]=High[i] + Range*0.2;
        }

        if ((C_1 > D_1) &&(C_2 < D_2))
        {
         CrossUp2[i]=Low[i] - Range*0.4;
        }
        else  if ((C_1 < D_1) &&(C_2 > D_2))
        {
         CrossDown2[i]=High[i] + Range*0.4;
        }


        if ((E_1 > F_1) &&(E_2 < F_2))
        {
         CrossUp3[i]=Low[i] - Range*0.6;
        }
        else  if ((E_1 < F_1) &&(E_2 > F_2))
        {
         CrossDown3[i]=High[i] + Range*0.6;
        }



        if ((G_1 > K_1) &&(G_2 < K_2))
        {
         CrossUp4[i]=Low[i] - Range*0.8;
        }
        else  if ((G_1 < K_1) &&(G_2 > K_2))
        {
         CrossDown4[i]=High[i] + Range*0.8;
        }

             }
   return(0);
  }
//+------------------------------------------------------------------+
