ROC_Smoothed
Download script
This tool is designed to measure and visualize the momentum of a financial instrument by calculating the "Rate of Change" (the speed at which a price is moving) while applying sophisticated smoothing techniques to reduce market noise.
Core Logic Overview
At its heart, the script determines how much an asset's price has changed over a specific period. However, rather than looking at raw, jagged price movements—which can often be misleading due to sudden spikes—it processes the data through various mathematical filters to provide a clearer picture of the underlying trend.
Key Components of the Calculation
The script operates using three distinct layers of logic:
1. The Rate of Change (ROC) Engine The primary objective is to find the difference between the current smoothed price and a past smoothed price. By subtracting a previous value from the current one, the tool reveals whether the market is accelerating, decelerating, or moving sideways.
2. Customizable Smoothing Methods To ensure the data is readable and professional, the script offers several different "Moving Average" types to smooth out the price fluctuations. Depending on your preference, it can calculate the trend using:
- Simple & Exponential Averages: Standard methods for balancing current and past data.
- Linear & Smoothed Moving Averages: Methods that weight data differently to prioritize specific trends.
- Non-Lagging Moving Average: A specialized calculation designed to identify trends more quickly by minimizing the "delay" often found in standard indicators.
3. Price Source Flexibility The logic allows for different types of "price inputs." Instead of just looking at the final closing price of a candle, you can configure the script to look at:
- The opening price.
- The highest and lowest points reached during a period.
- Calculated averages (such as the "Typical" or "Weighted" price).
Final Output Processing
Once the smoothed prices are calculated for both the present and the past, the script performs the final calculation:
- Absolute Difference: It calculates the raw difference between the two points and normalizes it to make it easy to read on a chart.
- Percentage Growth: Optionally, it can convert this difference into a percentage, allowing you to see the relative growth of an asset regardless of its total price value.

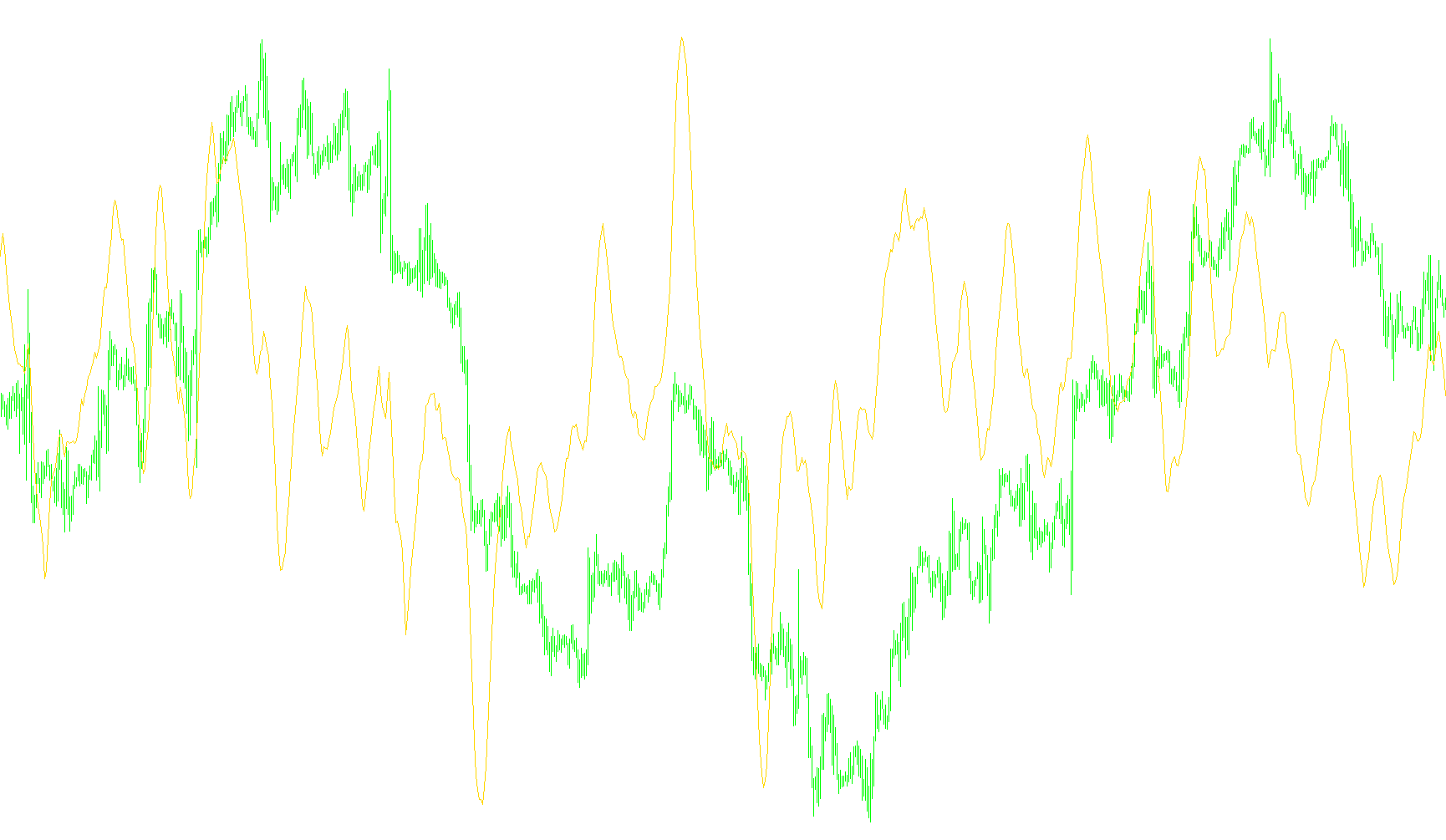

By combining these elements, the tool provides a refined visual representation of market velocity, helping to distinguish between temporary "noise" and significant directional shifts in price.
//+------------------------------------------------------------------+
//| ROC_Smoothed.mq4 |
//| Copyright © 2006, Robert Hill |
//| |
//| Modified ROC to use EMA |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, Robert Hill"
//---- indicator settings
#property indicator_separate_window
#property indicator_buffers 1
#property indicator_color1 Red
//---- indicator parameters
extern string strROC = "ROC Period for lookback";
extern int RPeriod = 10;
extern string sep0 = "----------------------------------";
extern string strMA = "MA input parameters";
extern int MAPeriod=14;
extern string sep1 = "----------------------------------";
extern string strType = "Moving Average Types" ;
extern string str0 = "0 = SMA, 1 = EMA, 2 = SMMA";
extern string str1 = "3 = LWMA, 4 = LSMA, 5 = NLMA";
extern int MAType = 1;
extern string sep2 = "----------------------------------";
extern string strAP = "Applied Price Types";
extern string str2 = "0=close, 1=open, 2=high";
extern string str3 = "3=low, 4=median(high+low)/2";
extern string str4 = " 5=typical(high+low+close)/3";
extern string str5 = "6=weighted(high+low+close+close)/4";
extern int MAAppliedPrice = 0;
extern string sep3 = "----------------------------------";
extern string str6 = "NonLagMA Deviation";
extern double Deviation = 0;
extern bool UsePercent = false;
//---- indicator buffers
double RateOfChange[];
//---- variables
int MAMode;
string strMAType;
// Variables for NonLag
int Phase;
double Len;
double Cycle = 4;
double pi = 3.1415926535;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- drawing settings
SetIndexStyle(0,DRAW_LINE);
SetIndexDrawBegin(0,RPeriod);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS)+1);
//---- indicator buffers mapping
if(!SetIndexBuffer(0,RateOfChange))
Print("cannot set indicator buffers!");
switch (MAType)
{
case 1: strMAType="EMA"; MAMode=MODE_EMA; break;
case 2: strMAType="SMMA"; MAMode=MODE_SMMA; break;
case 3: strMAType="LWMA"; MAMode=MODE_LWMA; break;
case 4: strMAType="LSMA"; break;
case 5: strMAType="NLMA";break;
default: strMAType="SMA"; MAMode=MODE_SMA; break;
}
IndicatorShortName( "ROC (" + RPeriod + ")_Smoothed_" + strMAType+ " (" +MAPeriod + ") ");
//---- name for DataWindow and indicator subwindow label
SetIndexLabel(0,"ROC_Smoothed");
// Variables for NonLag
Phase = MAPeriod-1;
Len = MAPeriod*Cycle + Phase;
//---- initialization done
return(0);
}
//+------------------------------------------------------------------+
//| LSMA with PriceMode |
//| PrMode 0=close, 1=open, 2=high, 3=low, 4=median(high+low)/2, |
//| 5=typical(high+low+close)/3, 6=weighted(high+low+close+close)/4 |
//+------------------------------------------------------------------+
double LSMA(int Rperiod, int prMode, int shift)
{
int i;
double sum, pr;
int length;
double lengthvar;
double tmp;
double wt;
length = Rperiod;
sum = 0;
for(i = length; i >= 1 ; i--)
{
lengthvar = length + 1;
lengthvar /= 3;
tmp = 0;
switch (prMode)
{
case 0: pr = Close[length-i+shift];break;
case 1: pr = Open[length-i+shift];break;
case 2: pr = High[length-i+shift];break;
case 3: pr = Low[length-i+shift];break;
case 4: pr = (High[length-i+shift] + Low[length-i+shift])/2;break;
case 5: pr = (High[length-i+shift] + Low[length-i+shift] + Close[length-i+shift])/3;break;
case 6: pr = (High[length-i+shift] + Low[length-i+shift] + Close[length-i+shift] + Close[length-i+shift])/4;break;
}
tmp = ( i - lengthvar)*pr;
sum+=tmp;
}
wt = MathFloor(sum*6/(length*(length+1))/Point)*Point;
return(wt);
}
double NonLag(int RPeriod, int myLen, double myPhase, int myShift)
{
int i;
double alfa, beta, t, Sum, Weight,g;
double myPrice;
double Coeff = 3*pi;
Weight=0; Sum=0; t=0;
for (i=0;i<=myLen-1;i++)
{
g = 1.0/(Coeff*t+1);
if (t <= 0.5 ) g = 1;
beta = MathCos(pi*t);
alfa = g * beta;
myPrice = iMA(NULL,0,1,0,MODE_SMA,MAAppliedPrice,myShift+i);
Sum += alfa*myPrice;
Weight += alfa;
if ( t < 1 ) t += 1.0/(myPhase-1);
else if ( t < myLen-1 ) t += (2*Cycle-1)/(Cycle*RPeriod-1);
}
if (Weight > 0) Weight = (1.0+Deviation/100)*Sum/Weight;
Weight = MathFloor(Weight/Point)*Point;
return (Weight);
}
//+------------------------------------------------------------------+
//| Rate of Change Smoothed |
//+------------------------------------------------------------------+
int start()
{
int limit;
double ROC, MA_Cur, MA_Prev;
int counted_bars=IndicatorCounted();
//---- check for possible errors
if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars;
//---- ROC calculation
for(int i=0; i<limit; i++)
{
if (MAType == 4)
{
MA_Cur = LSMA(MAPeriod, MAAppliedPrice,i);
MA_Prev = LSMA(MAPeriod, MAAppliedPrice,i+RPeriod);
}
else if (MAType == 5)
{
MA_Cur = NonLag(MAPeriod, Len, Phase, i);
MA_Prev = NonLag(MAPeriod, Len, Phase, i+RPeriod);
}
else
{
MA_Cur = iMA(NULL,0,MAPeriod,0,MAMode, MAAppliedPrice,i);
MA_Prev = iMA(NULL,0,MAPeriod,0,MAMode, MAAppliedPrice,i+RPeriod);
}
ROC=MA_Cur-MA_Prev;
if (UsePercent)
{
RateOfChange[i] = 100 * ROC / MA_Prev;
}
else
{
RateOfChange[i] = NormalizeDouble(ROC/Point,1);
}
}
//---- done
return(0);
}
