HiLo_Activator_Profi
Download script
This script is a specialized technical analysis tool designed for the MetaTrader 4 platform. Its primary purpose is to identify significant price action shifts by monitoring high and low price extremes across different timeframes.
Core Logic Overview
The indicator functions by analyzing "pockets" of historical data to establish upper and lower price boundaries. It doesn't just look at the most recent price; instead, it scans previous price movements to calculate average highs and averages lows based on a user-defined range.
The logic can be broken down into three main stages:
1. Timeframe Awareness
The script is highly adaptive. It contains specific instructions for various timeframes, including M5, M15, M30, H1, H4, D1, W1, and even larger intervals. Depending on which timeframe you are viewing, the script changes how it "looks back" at history:
- Short timeframes (like M5): It looks for changes between different hours.
- Medium/Long timeframes (like H1 or H4): It looks for changes between specific hours of the day or days of the week.
- Weekly/Daily timeframes: It monitors transitions between months or full days.
2. Boundary Calculation and Filtering
Once the script identifies these significant timeframe boundaries, it performs the following:
- Extremes Identification: It finds the highest highs and lowest lows within a specific window of historical bars.
- Averaging: It takes those extremes and calculates an average to create two "levels": an upper boundary and a lower boundary.
- Price Interaction: It compares the closing price of the market against these calculated averages. If the price closes above the upper boundary, it marks a potential upward trend; if it closes below the lower boundary, it identifies a potential downward trend.

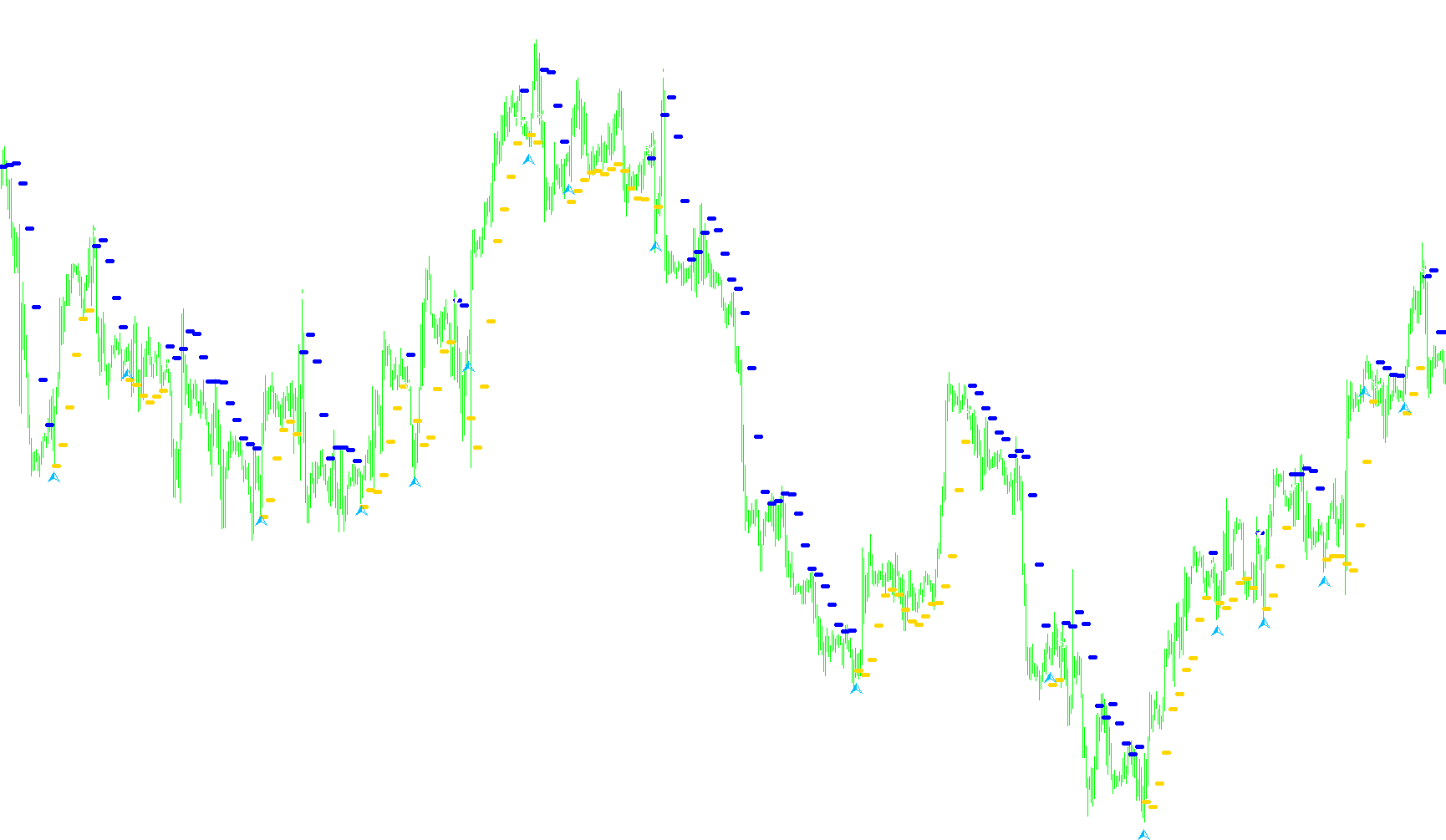

3. Visual Signals and Alerts
The final output of the logic is the generation of visual markers (arrows) on your chart:
- Buy Signals: When the script detects a confirmed shift toward the lower boundary (indicating a "buy" opportunity), it places a DeepSkyBlue arrow below the price candle.
- Sell Signals: When the script detects a confirmed shift toward the upper boundary (indicating a "sell" opportunity), it places a Black arrow above the price candle.
- Notifications: In real-time, if the script identifies these signals on the most recent candle, it will trigger an automated alert pop-up to notify the user immediately.
Summary for the User
In simple terms, this tool acts as a "trend activator." It filters out minor market noise by looking at larger historical boundaries. When the market price finally breaks through these calculated averages, the script interprets that move as a significant shift in momentum and alerts you with an arrow on your screen.
Miscellaneous
10
Views
0
Downloads
0
Favorites
HiLo_Activator_Profi
//+------------------------------------------------------------------+
//| HiLo_Activator_Profi.mq4 |
//| Copyright © 2005, |
//| rvm_fam@fromru.com |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005"
#property link "rvm_fam@fromru.com"
//----
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 DeepSkyBlue
#property indicator_color2 Black
//---- input parameters
extern int Range=3;
//---- buffers
double Up[];
double Dn[];
double ur1[];
double ur2[];
double h1[];
double l1[];
//-----
int cb;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
IndicatorBuffers(6);
SetIndexStyle(0,DRAW_ARROW);
SetIndexStyle(1,DRAW_ARROW);
SetIndexArrow(0,159);
SetIndexArrow(1,159);
SetIndexBuffer(0,Up);
SetIndexBuffer(1,Dn);
SetIndexEmptyValue(0,0.0);
SetIndexEmptyValue(1,0.0);
SetIndexLabel(0,"HL_Act_Up");
SetIndexLabel(1,"HL_Act_Dn");
SetIndexBuffer(2,ur1);
SetIndexBuffer(3,ur2);
SetIndexBuffer(4,h1);
SetIndexBuffer(5,l1);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
//------ îáúÿâëåíèå ëîêàëüíûõ ïåðåìåííûõ
int counted_bars=IndicatorCounted();
int NumBars=1000, n=0, Nbar=0, k=0, hh=0, ll=0, mm=0;
double MaH=0.0, MaL=0.0;
//-----
if(Bars<Range*12-10) return(0);
if(counted_bars>=Bars-1)
{
NumBars=0;
}
else
{
NumBars=MathMax(Bars-1-counted_bars-(Range*12-10),Range*12-10);
}
//
for( cb=NumBars; cb>=0; cb--)
{
Nbar=-1;
k=1;
mm=0;
Dn[cb]=0.0;
Up[cb]=0.0;
ur1[cb]=0.0;
ur2[cb]=0.0;
h1[cb]=0.0;
l1[cb]=0.0;
//-----------------------------------------------------------------------------
if(Period()==5)//åñëè ãðàôèê - Ì5
{
//Print("Òåêóùàÿ ñâå÷êà "+cb+" äàòà "+TimeToStr(Time[cb]) );
//Print("---- Dn[cb]= "+Dn[cb]+" Up[cb]= "+Up[cb] );
if(TimeHour(Time[cb+1])!=TimeHour(Time[cb]) )
{
//Print("---- Nbar= "+Nbar+" k= "+k+" mm= "+mm );
n=cb-15;
//Print("---- n= "+n );
while( n<=cb+Range*12+5 )
{
if(n<0 )
{
Nbar=0;
n=1;
//Print("---- n= "+n+" Nbar= "+Nbar );
}
if(TimeHour(Time[n+1])!=TimeHour(Time[n]) )
{
if(Nbar==-1 )
{
Nbar=n;
mm=n;
n++;
//Print("---- n= "+n+" Nbar= "+Nbar+" mm= "+mm );
continue;
}
else
{
h1[k]=High[Highest(NULL,0,MODE_HIGH,(n-Nbar),n)];
l1[k]=Low[Lowest(NULL,0,MODE_LOW,(n-Nbar),n)];
//Print("---- k= "+k+" Nbar= "+Nbar+" n= "+n+" h1["+k+"]= "+h1[k]+" l1["+k+"]= "+l1[k]+" "+(Low[Lowest(NULL,0,MODE_LOW,(n-Nbar),n)])+" "+(High[Lowest(NULL,0,MODE_HIGH,(n-Nbar),n)]) );
k++;
Nbar=n;
}
}
n++;
}
MaH=0;
MaL=0;
for( n=1;n<=Range;n++)
{
MaH=MaH+h1[n];
MaL=MaL+l1[n];
}
MaH=MaH/Range;
MaL=MaL/Range;
ur1[cb]=MaH;
ur2[cb]=MaL;
//Print("---- MaH= "+MaH+" MaL= "+MaL+" ur1["+cb+"]= "+ur1[cb]+" ur2["+cb+"]= "+ur2[cb] );
if(Close[mm+1]>=MaH )
{
ll=1;
hh=0;
//Print("---- Close["+(mm+1)+"]"+Close[mm+1]+">="+"MaH"+MaH+" ="+(Close[mm+1]>=MaH) );
}
if(Close[mm+1]<=MaL )
{
hh=1;
ll=0;
//Print("---- Close["+(mm+1)+"]"+Close[mm+1]+"<="+"MaL"+MaL+" ="+(Close[mm+1]<=MaL) );
}
//Print("---- ll= "+ll+" hh= "+hh );
}
if(ur1[cb]==0.0 )
{
ur1[cb]=ur1[cb+1];
ur2[cb]=ur2[cb+1];
//Print("---- ur1["+cb+"]= "+ur1[cb]+" ur2["+cb+"]= "+ur2[cb] );
}
if(ll==1 )
{
Up[cb]=ur2[cb];
//Print("---- Dn["+cb+"]= "+Dn[cb]+" Up["+cb+"]= "+Up[cb] );
//Print("---- 1 Up["+cb+"]= "+Up[cb]+" ur2[cb]="+ur2[cb] );
}
else
{
if(hh==1 )
{
Dn[cb]=ur1[cb];
//Print("---- Dn["+cb+"]= "+Dn[cb]+" Up["+cb+"]= "+Up[cb] );
//Print("---- 2 Up["+cb+"]= "+Up[cb] );
}
else
{
Dn[cb]=Dn[cb+1];
Up[cb]=Up[cb+1];
}
}
}
else {
//-----------------------------------------------------------------------------
if(Period()==15)//åñëè ãðàôèê - Ì15
{
if(TimeHour(Time[cb+1])!=TimeHour(Time[cb]))//åñëè íàñòóïèë íîâûé ÷àñ
{
n=cb-5;
while( n<=cb+Range*4+2 )
{
if(n<0 )
{
Nbar=0;
n=1;
}
if(TimeHour(Time[n+1])!=TimeHour(Time[n]))//åñëè âðåìÿ ì15 íå ñîâïàäàåò ñ í1
{
if(Nbar==-1)//åñëè ðàññ÷èòûâàåòñÿ ïåðâàÿ èòåðàöèÿ
{
Nbar=n;
mm=n;
n++;
continue;
}
else
{
h1[k]=High[Highest(NULL,0,MODE_HIGH,(n-Nbar),n)];
l1[k]=Low[Lowest(NULL,0,MODE_LOW,(n-Nbar),n)];
k++;
Nbar=n;
}
}
n++;
}
MaH=0;
MaL=0;
for( n=1;n<=Range;n++ )
{
MaH=MaH+h1[n];
MaL=MaL+l1[n];
}
MaH=MaH/Range;
MaL=MaL/Range;
ur1[cb]=MaH;
ur2[cb]=MaL;
if(Close[mm+1]>=MaH )
{
ll=1;
hh=0;
}
if(Close[mm+1]<=MaL )
{
hh=1;
ll=0;
}
}
if(ur1[cb]==0.0 )
{
ur1[cb]=ur1[cb+1];
ur2[cb]=ur2[cb+1];
}
if(ll==1 )
{
Up[cb]=ur2[cb];
}
else
{
if(hh==1 )
{
Dn[cb]=ur1[cb];
}
}
}
else {
//-----------------------------------------------------------------------------
if(Period()==30)//åñëè ãðàôèê - Ì30
{
if((TimeMinute(Time[cb])==0 && (TimeHour(Time[cb])==0 || TimeHour(Time[cb])==4 || TimeHour(Time[cb])==8 ||
TimeHour(Time[cb])==12 || TimeHour(Time[cb])==16 || TimeHour(Time[cb])==20)) )
{
n=cb-10;
while( n<=cb+Range*8+5 )
{
if(n<0 )
{
Nbar=0;
n=1;
}
if((TimeMinute(Time[n])==0 && (TimeHour(Time[n])==0 || TimeHour(Time[n])==4 || TimeHour(Time[n])==8 |
TimeHour(Time[n])==12 || TimeHour(Time[n])==16 || TimeHour(Time[n])==20)) )
{
if(Nbar==-1 )
{
Nbar=n;
mm=n;
n++;
continue;
}
else
{
h1[k]=High[Highest(NULL,0,MODE_HIGH,(n-Nbar),n)];
l1[k]=Low[Lowest(NULL,0,MODE_LOW,(n-Nbar),n)];
k++;
Nbar=n;
}
}
n++;
}
MaH=0;
MaL=0;
for( n=1;n<=Range;n++ )
{
MaH=MaH+h1[n];
MaL=MaL+l1[n];
}
MaH=MaH/Range;
MaL=MaL/Range;
ur1[cb]=MaH;
ur2[cb]=MaL;
if(Close[mm+1]>=MaH )
{
ll=1;
hh=0;
}
if(Close[mm+1]<=MaL )
{
hh=1;
ll=0;
}
}
if(ur1[cb]==0 )
{
ur1[cb]=ur1[cb+1];
ur2[cb]=ur2[cb+1];
}
if(ll==1 )
{
Up[cb]=ur2[cb];
}
else
{
if(hh==1 )
{
Dn[cb]=ur1[cb];
}
}
}
else
{
//-----------------------------------------------------------------------------
if(Period()==60)//åñëè ãðàôèê - H1
{
if((TimeMinute(Time[cb])==0 && (TimeHour(Time[cb])==0 || TimeHour(Time[cb])==4 || TimeHour(Time[cb])==8 ||
TimeHour(Time[cb])==12 || TimeHour(Time[cb])==16 || TimeHour(Time[cb])==20)) )
{
n=cb-6;
while( n<=cb+Range*4+3 )
{
if(n<0 )
{
Nbar=0;
n=1;
}
if((TimeMinute(Time[n])==0 && (TimeHour(Time[n])==0 || TimeHour(Time[n])==4 || TimeHour(Time[n])==8 |
TimeHour(Time[n])==12 || TimeHour(Time[n])==16 || TimeHour(Time[n])==20)))
{
if(Nbar==-1 )
{
Nbar=n;
mm=n;
n++;
continue;
}
else
{
h1[k]=High[Highest(NULL,0,MODE_HIGH,(n-Nbar),n)];
l1[k]=Low[Lowest(NULL,0,MODE_LOW,(n-Nbar),n)];
k++;
Nbar=n;
}
}
n++;
}
MaH=0;
MaL=0;
for( n=1;n<=Range;n++ )
{
MaH=MaH+h1[n];
MaL=MaL+l1[n];
}
MaH=MaH/Range;
MaL=MaL/Range;
ur1[cb]=MaH;
ur2[cb]=MaL;
if(Close[mm+1]>=MaH )
{
ll=1;
hh=0;
}
if(Close[mm+1]<=MaL )
{
hh=1;
ll=0;
}
}
if(ur1[cb]==0 )
{
ur1[cb]=ur1[cb+1];
ur2[cb]=ur2[cb+1];
}
if(ll==1 )
{
Up[cb]=ur2[cb];
}
else
{
if(hh==1 )
{
Dn[cb]=ur1[cb];
}
}
}
else
{
//-----------------------------------------------------------------------------
if(Period()==240)//åñëè ãðàôèê - H4
{
if(TimeDay(Time[cb+1])!=TimeDay(Time[cb]) )
{
n=cb-8;
while( n<=cb+Range*8+4 )
{
if(n<0 )
{
Nbar=0;
n=1;
}
if(TimeDay(Time[n+1])!=TimeDay(Time[n]) )
{
if(Nbar==-1 )
{
Nbar=n;
mm=n;
n++;
continue;
}
else
{
h1[k]=High[Highest(NULL,0,MODE_HIGH,(n-Nbar),n)];
l1[k]=Low[Lowest(NULL,0,MODE_LOW,(n-Nbar),n)];
k++;
Nbar=n;
}
}
n++;
}
MaH=0;
MaL=0;
for( n=1;n<=Range;n++ )
{
MaH=MaH+h1[n];
MaL=MaL+l1[n];
}
MaH=MaH/Range;
MaL=MaL/Range;
ur1[cb]=MaH;
ur2[cb]=MaL;
if(Close[mm+1]>=MaH )
{
ll=1;
hh=0;
}
if(Close[mm+1]<=MaL )
{
hh=1;
ll=0;
}
}
if(ur1[cb]==0 )
{
ur1[cb]=ur1[cb+1];
ur2[cb]=ur2[cb+1];
}
if(ll==1 )
{
Up[cb]=ur2[cb];
}
else
{
if(hh==1 )
{
Dn[cb]=ur1[cb];
}
}
}
else
{
//-----------------------------------------------------------------------------
if(Period()==1440)//åñëè ãðàôèê - D1
{
if(TimeDayOfWeek(Time[cb+1])==5 && TimeDayOfWeek(Time[cb])==1 )
{
n=cb-6;
while( n<=cb+Range*5+3 )
{
if(n<0 )
{
Nbar=0;
n=1;
}
if(TimeDayOfWeek(Time[n+1])==6 || TimeDayOfWeek(Time[n])==2 )
{
if(Nbar==-1 )
{
Nbar=n;
mm=n;
n++;
continue;
}
else
{
h1[k]=High[Highest(NULL,0,MODE_HIGH,(n-Nbar),n)];
l1[k]=Low[Lowest(NULL,0,MODE_LOW,(n-Nbar),n)];
k++;
Nbar=n;
}
}
n++;
}
MaH=0;
MaL=0;
for( n=1;n<=Range;n++ )
{
MaH=MaH+h1[n];
MaL=MaL+l1[n];
}
MaH=MaH/Range;
MaL=MaL/Range;
ur1[cb]=MaH;
ur2[cb]=MaL;
if(Close[mm+1]>=MaH )
{
ll=1;
hh=0;
}
if(Close[mm+1]<=MaL )
{
hh=1;
ll=0;
}
}
if(ur1[cb]==0 )
{
ur1[cb]=ur1[cb+1];
ur2[cb]=ur2[cb+1];
}
if(ll==1 )
{
Up[cb]=ur2[cb];
}
else
{
if(hh==1 )
{
Dn[cb]=ur1[cb];
}
}
}
else
{
//-----------------------------------------------------------------------------
if(Period()== 10080)//åñëè ãðàôèê - W1
{
if(TimeMonth(Time[cb+1])!=TimeMonth(Time[cb]) )
{
n=cb-8;
while( n<=cb+Range*8+4 )
{
if(n<0 )
{
Nbar=0;
n=1;
}
if(TimeMonth(Time[n+1])!=TimeMonth(Time[n]) )
{
if(Nbar==-1 )
{
Nbar=n;
mm=n;
n++;
continue;
}
else
{
h1[k]=High[Highest(NULL,0,MODE_HIGH,(n-Nbar),n)];
l1[k]=Low[Lowest(NULL,0,MODE_LOW,(n-Nbar),n)];
k++;
Nbar=n;
}
}
n++;
}
MaH=0;
MaL=0;
for( n=1;n<=Range;n++ )
{
MaH=MaH+h1[n];
MaL=MaL+l1[n];
}
MaH=MaH/Range;
MaL=MaL/Range;
ur1[cb]=MaH;
ur2[cb]=MaL;
if(Close[mm+1]>=MaH )
{
ll=1;
hh=0;
}
if(Close[mm+1]<=MaL )
{
hh=1;
ll=0;
}
}
if(ur1[cb]==0 )
{
ur1[cb]=ur1[cb+1];
ur2[cb]=ur2[cb+1];
}
if(ll==1 )
{
Up[cb]=ur2[cb];
}
else
{
if(hh==1 )
{
Dn[cb]=ur1[cb];
}
}
}
}
}
}
}
}
}
//-----------------------------------------------------------------------------
if (Dn[cb+1]==0.0 && Dn[cb]!=0.0)
{
if(cb==0) Alert("Òðè ðàçà äçèíü!!! :) Ïîðà ïðîäàâàòü.");
SetSymbol("sell_sig",cb,0,Time[cb],High[cb]+15*Point,Black,2,218);
}
if (Up[cb+1]==0.0 && Up[cb]!=0.0)
{
if(cb==0) Alert("Òðè ðàçà äçèíü!!! :) Ïîðà ïîêóïàòü.");
SetSymbol("buy_sig",cb,0,Time[cb],Low[cb]-15*Point,DeepSkyBlue,2,217);
}
}
//-----
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void SetSymbol(string txt,int cb,int win,datetime stime, double sprice,int scol,int swidth,int scode)
{
//----
if(ObjectFind(txt+" "+cb)==-1)
{
ObjectCreate(txt+" "+cb,OBJ_ARROW,win,stime,sprice);
ObjectSet(txt+" "+cb,OBJPROP_COLOR,scol);
ObjectSet(txt+" "+cb,OBJPROP_WIDTH,swidth);
ObjectSet(txt+" "+cb,OBJPROP_ARROWCODE,scode);
}
else
{
ObjectMove(txt+" "+cb,0,stime,sprice);
}
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
int cb;
for(cb=Bars-1-Range;cb>=0;cb--)
{
if(ObjectFind("buy_sig "+cb)!=-1 )
{
ObjectDelete("buy_sig "+cb);
}
else
{
if(ObjectFind("sell_sig "+cb)!=-1)
{
ObjectDelete("sell_sig "+cb);
}
}
}
//----
return(0);
}
//+------------------------------------------------------------------+
