FractalZigZagNoRepaint
Download scriptThis script is designed for MetaTrader 4 to identify specific price structure points on a trading chart by combining two well-known technical analysis concepts: Fractals and the ZigZag indicator. Its primary purpose is to highlight significant "peaks" and "troughs" while ensuring that the signals remain stable and do not disappear or move as new price data comes in (a common issue known as "repainting").
Core Logic Overview
The script functions by cross-referencing two different types of market data to confirm a signal. Instead of relying on a single indicator, it looks for points where the geometric patterns of a Fractal align perfectly with the structural turns of a ZigZag.
Key Components of the Analysis:
-
Fractal Detection: The script scans the price highs and lows to identify "Fractals." A Fractal is formed when a central candle's high (or low) is higher (or lower) than the candles immediately surrounding it. The logic specifically looks at a 5-candle formation to determine if a peak or trough has occurred.
-
ZigZag Filtering: While Fractals identify local highs and lows, they can often occur too frequently to be useful on their own. To solve this, the script filters these Fractal points against the "ZigZag" indicator. The ZigZag identifies the major structural turns of the market. The script only validates a signal if a detected Fractal matches the specific high or low point currently established by the ZigZag.
-
Anti-Repainting Mechanism: One of the main features of this script is its reliability. By checking for signals on confirmed price movements and using specific "shifts" (offsets), it ensures that once an arrow appears on your chart, it stays there. It prevents the indicator from moving its markers forward as the market fluctuates, which provides a much more reliable historical record for backtesting and live trading.
-

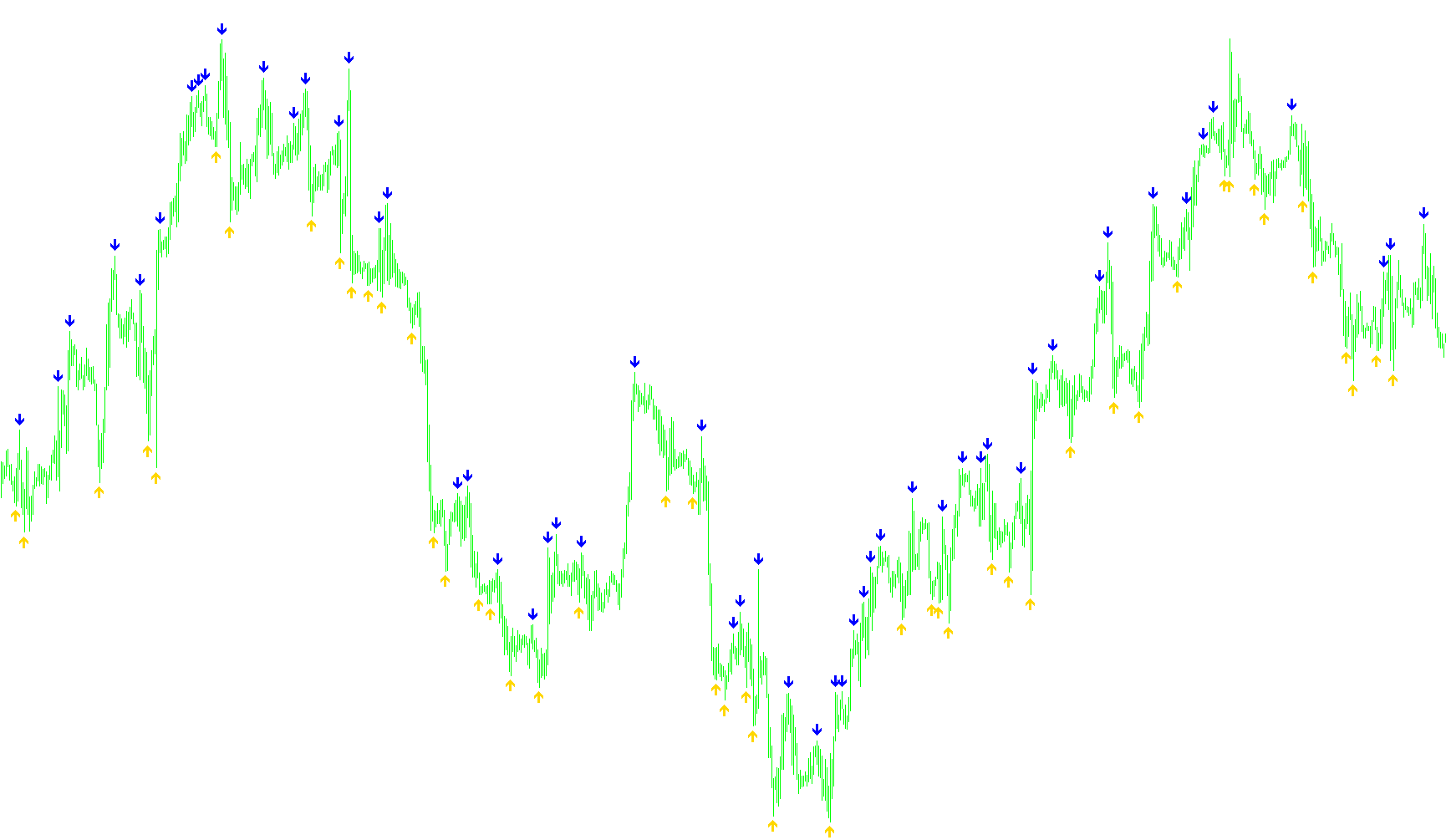

Visual Execution: When both conditions are met—a Fractal is detected and it aligns with a ZigZag structural point—the script places visual markers (arrows) on the chart:
- Support Signals: Identified when a lower Fractal matches a ZigZag low.
- Resistance Signals: Identified when an upper Fractal matches a ZigZag high.
User Customization Parameters
The logic includes several adjustable settings to tune how the script "sees" the market:
- Calculate On Bar Close: When enabled, this ensures the script waits for a candle to finish completely before confirming signals, further increasing reliability.
- ZigZag Depth and Deviation: These allow you to control the sensitivity of the structural turns. Higher values will result in fewer, more significant signals; lower values will identify smaller price fluctuations.
//+------------------------------------------------------------------+
//| FractalZigZagNoRepaint.mq4
//| Copyright © Pointzero-indicator.com
//| Shows ZigZag signals without repainting, ever.
//+------------------------------------------------------------------+
#property copyright "Copyright © Arturo Lopez Perez"
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Blue
#property indicator_color2 Red
#define IName "Fractal ZigZag No-Repaint"
#define ZZBack 1
//-------------------------------
// Input parameters
//-------------------------------
extern bool CalculateOnBarClose = true;
extern int ZZDepth = 12;
extern int ZZDev = 5;
//-------------------------------
// Buffers
//-------------------------------
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//-------------------------------
// Internal variables
//-------------------------------
// Fractals value -mine-
double fr_resistance = 0;
double fr_support = EMPTY_VALUE;
bool fr_resistance_change = EMPTY_VALUE;
bool fr_support_change = EMPTY_VALUE;
// zzvalues
double zzhigh = 0;
double zzlow = 0;
// Offset in chart
int nShift;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
// Arrows
SetIndexStyle(0, DRAW_ARROW, STYLE_DOT, 1);
SetIndexArrow(0, 233);
SetIndexBuffer(0, ExtMapBuffer1);
SetIndexStyle(1, DRAW_ARROW, STYLE_DOT, 1);
SetIndexArrow(1, 234);
SetIndexBuffer(1, ExtMapBuffer2);
// Data window
IndicatorShortName("Fractal Zig Zag No Repaint");
SetIndexLabel(0, "Fractal Up");
SetIndexLabel(1, "Fractal Down");
// Copyright
Comment("Copyright © http://www.pointzero-indicator.com");
// Chart offset calculation
switch(Period())
{
case 1: nShift = 1; break;
case 5: nShift = 3; break;
case 15: nShift = 5; break;
case 30: nShift = 10; break;
case 60: nShift = 15; break;
case 240: nShift = 20; break;
case 1440: nShift = 80; break;
case 10080: nShift = 100; break;
case 43200: nShift = 200; break;
}
nShift = nShift * 2;
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
// Start, limit, etc..
int start = 0;
int limit;
int counted_bars = IndicatorCounted();
// nothing else to do?
if(counted_bars < 0)
return(-1);
// do not check repeated bars
limit = Bars - 1 - counted_bars;
// Check if ignore bar 0
if(CalculateOnBarClose == true) start = 1;
// Check the signal foreach bar from past to present
for(int i = limit; i >= start; i--)
{
// Zig Zag high
double zzhighn = iCustom(Symbol(), 0, "ZigZag", ZZDepth, ZZDev, ZZBack, 1, i);
if(zzhighn != 0) zzhigh = zzhighn;
// Zig Zag low
double zzlown = iCustom(Symbol(), 0, "ZigZag", ZZDepth, ZZDev, ZZBack, 2, i);
if(zzlown != 0) zzlow = zzlown;
// Last fractals
double resistance = upper_fractal(i);
double support = lower_fractal(i);
//--------------------------------------------------------
// Show signals
//--------------------------------------------------------
// Show signal if it is a fractal and matches last zigzag high value
if(fr_support_change == true && fr_support == zzlow)
{
// Show arrow on fractal and pricetag
ExtMapBuffer1[i+2] = fr_support - nShift*Point;
} else
// Show signal if it is a fractal and matches last zigzag low value
if(fr_resistance_change == true && fr_resistance == zzhigh)
{
// Show arrow on fractal and pricetag
ExtMapBuffer2[i+2] = fr_resistance + nShift*Point;
}
}
return(0);
}
//+------------------------------------------------------------------+
//| Custom code ahead
//+------------------------------------------------------------------+
/**
* Returns fractal resistance
* @param int shift
*/
double upper_fractal(int shift = 1)
{
double middle = iHigh(Symbol(), 0, shift + 2);
double v1 = iHigh(Symbol(), 0, shift);
double v2 = iHigh(Symbol(), 0, shift+1);
double v3 = iHigh(Symbol(), 0, shift + 3);
double v4 = iHigh(Symbol(), 0, shift + 4);
if(middle > v1 && middle > v2 && middle > v3 && middle > v4/* && v2 > v1 && v3 > v4*/)
{
fr_resistance = middle;
fr_resistance_change = true;
} else {
fr_resistance_change = false;
}
return(fr_resistance);
}
/**
* Returns fractal support and stores wether it has changed or not
* @param int shift
*/
double lower_fractal(int shift = 1)
{
double middle = iLow(Symbol(), 0, shift + 2);
double v1 = iLow(Symbol(), 0, shift);
double v2 = iLow(Symbol(), 0, shift+1);
double v3 = iLow(Symbol(), 0, shift + 3);
double v4 = iLow(Symbol(), 0, shift + 4);
if(middle < v1 && middle < v2 && middle < v3 && middle < v4/* && v2 < v1 && v3 < v4*/)
{
fr_support = middle;
fr_support_change = true;
} else {
fr_support_change = false;
}
return(fr_support);
}
//+------------------------------------------------------------------+
