DoubleZigZagNoRepaint
Download script
This script is designed to provide traders with a multi-layered visual analysis of market trends by tracking two different types of "ZigZag" price movements simultaneously. Unlike standard indicators that might change their past signals as new data arrives (repainting), this script is engineered to ensure that once a signal is confirmed, it remains fixed on the chart.
Core Functionality
The logic operates by monitoring two distinct speed levels for market price swings:
- Fast ZigZag: Identifies smaller, more frequent price movements and fluctuations.
- Slow ZigZag: Filters out market "noise" to identify larger, more significant structural trends.
By overlaying these two perspectives, the tool allows you to see where short-term momentum aligns with long-term structure.
Signal Confirmation Logic
To ensure high reliability and prevent "false positives," the script uses a two-step verification process before placing any visual signal on your chart:
- Fractal Detection: The system constantly scans for specific "fractals"—these are structural pivot points where the price reaches a local peak (resistance) or valley (support) relative to the surrounding bars.
- ZigZag Alignment: A signal is only triggered if a confirmed fractal perfectly aligns with the peak or valley of one of the ZigZag tracks.
- A Buy Signal appears when a confirmed support fractal matches a "low" point in the ZigZag path.
- A Sell Signal appears when a confirmed resistance fractal matches a "high" point in the ZigZag path.

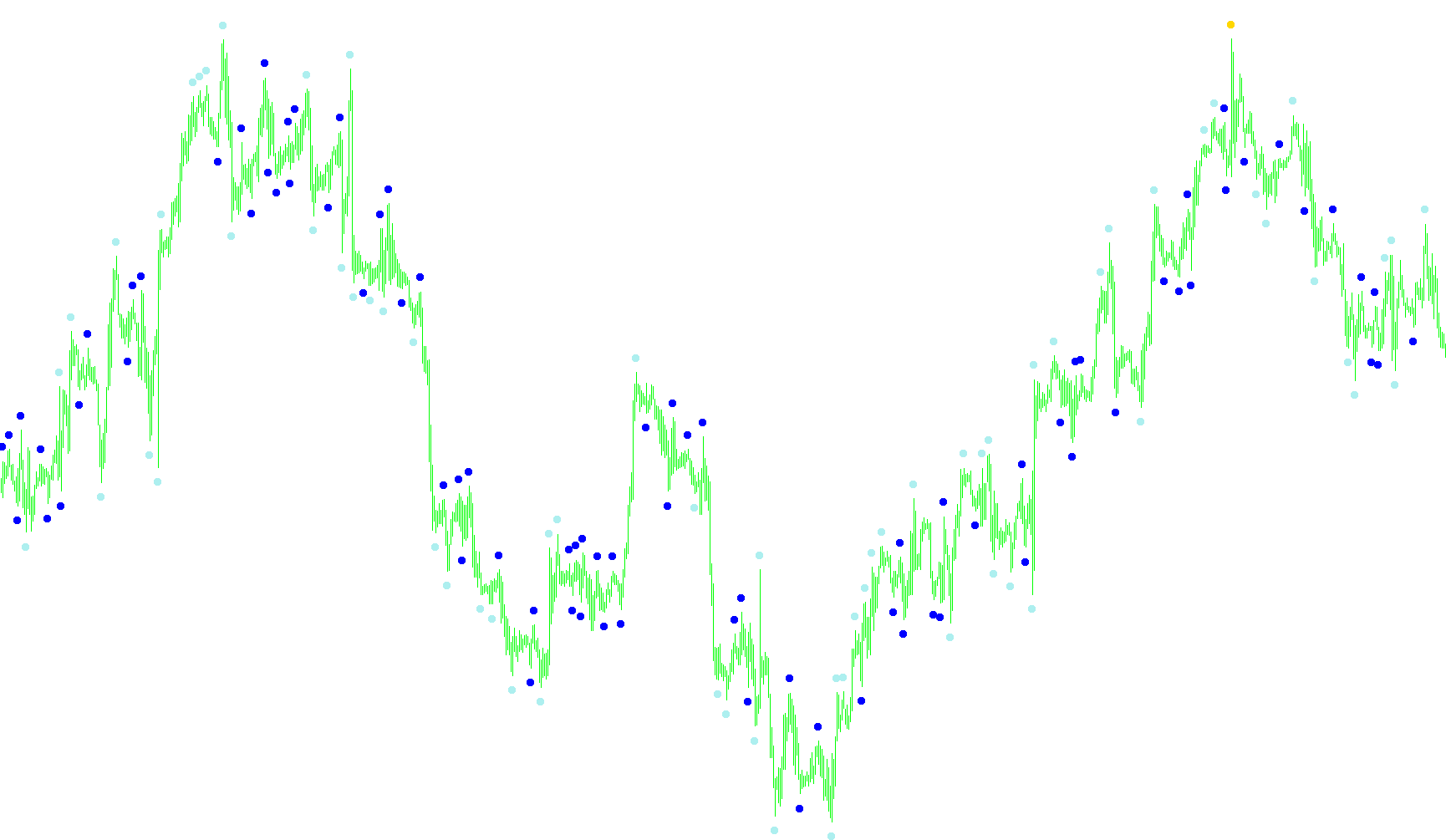

Visual Output and Organization
The script organizes its signals into three distinct categories to help with visual clarity:
- Individual Tracks: You can view signals specifically for the "Fast" movements or the "Slow" movements independently. This is useful for traders who prefer to focus on a specific trading style (e.g., scalping vs. swing trading).
- Combined Agreement: The script features a third visual layer that only appears when both the Fast and Slow ZigZags agree on a signal at the same time. This acts as a high-confluence marker, highlighting moments where short-term and long-term price actions are moving in the same direction.
Key Technical Features for Traders
- No Repainting: The logic is designed to wait for confirmation before drawing signals, ensuring that the history shown on your chart remains accurate and doesn't disappear or move.
- Dynamic Offsets: The script automatically adjusts its visual spacing based on the timeframe you are using (e.g., it places markers differently on a 1-minute chart versus a 4-hour chart) to ensure the data is always readable and clearly separated from the current price action.
- Customizable Speed: Users can manually adjust the sensitivity of the "Fast" and "Slow" tracks to suit their specific trading strategy.
Price Data Components
Miscellaneous
4
Views
0
Downloads
0
Favorites
DoubleZigZagNoRepaint
//+------------------------------------------------------------------+
//| DoubleZigZagNoRepaint.mq4
//| Copyright © Pointzero-indicator.com
//| --
//| Tracks two zigzags over time without repainting any past signal.
//| Signals are painted only if they match a confirmed 5bar fractal.
//| Customizations at flaab.mrlinux[at]gmail.com
//+------------------------------------------------------------------+
#property copyright "Copyright © Arturo Lopez Perez"
#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 Red // Slow zigzag
#property indicator_color2 Blue // Fast zigzag
#property indicator_color3 DarkOrange // Both zigzags
#define IName "DoubleZigZagTrack"
#define ZZBack 1 // Just 1bar past-repaint
#define ZZDev 5 // ZigZag deviation
//-------------------------------
// Input parameters
//-------------------------------
extern bool CalculateOnBarClose = true;
extern int ZigZagFast = 6;
extern int ZigZagSlow = 24;
//-------------------------------
// Buffers
//-------------------------------
double ExtMapBuffer1[]; // Slow ZigZag
double ExtMapBuffer2[]; // Fast ZigZag
double ExtMapBuffer3[]; // Botg ZigZags
//-------------------------------
// Internal variables
//-------------------------------
// Fractals value -mine-
double fr_resistance = 0;
double fr_support = EMPTY_VALUE;
bool fr_resistance_change = EMPTY_VALUE;
bool fr_support_change = EMPTY_VALUE;
// ZigZag stores values
double zz_slow_high = 0;
double zz_slow_low = 0;
double zz_fast_high = 0;
double zz_fast_low = 0;
// Offset in chart
int nShift;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
// ZigZag signals
SetIndexStyle(0, DRAW_ARROW, STYLE_DOT, 1);
SetIndexArrow(0, 108);
SetIndexBuffer(0, ExtMapBuffer1);
SetIndexStyle(1, DRAW_ARROW, STYLE_DOT, 1);
SetIndexArrow(1, 108);
SetIndexBuffer(1, ExtMapBuffer2);
SetIndexStyle(2, DRAW_ARROW, STYLE_DOT, 1);
SetIndexArrow(2, 108);
SetIndexBuffer(2, ExtMapBuffer3);
// Data window
IndicatorShortName("Double ZigZag No-repaint");
SetIndexLabel(0, "Slow ZigZag");
SetIndexLabel(1, "Fast ZigZag");
SetIndexLabel(2, "Both ZigZags");
// Copyright
Comment("Copyright © http://www.pointzero-indicator.com");
// Chart offset calculation
switch(Period())
{
case 1: nShift = 1; break;
case 5: nShift = 3; break;
case 15: nShift = 5; break;
case 30: nShift = 10; break;
case 60: nShift = 15; break;
case 240: nShift = 20; break;
case 1440: nShift = 80; break;
case 10080: nShift = 100; break;
case 43200: nShift = 200; break;
}
nShift = nShift * 3;
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
// Start, limit, etc..
int start = 0;
int limit;
int counted_bars = IndicatorCounted();
// nothing else to do?
if(counted_bars < 0)
return(-1);
// do not check repeated bars
limit = Bars - 1 - counted_bars;
// Check if ignore bar 0
if(CalculateOnBarClose == true) start = 1;
// Check the signal foreach bar from past to present
for(int i = limit; i >= start; i--)
{
// Last fractals
double resistance = upper_fractal(i);
double support = lower_fractal(i);
// Stores if there is a signal and the type
int SlowSignal = EMPTY_VALUE;
int FastSignal = EMPTY_VALUE;
//--------------------------------------------------------
// Slow ZigZag
//--------------------------------------------------------
// If set up
if(ZigZagSlow > 0)
{
// Slow zigzag values
double zz_slow_high_t = iCustom(Symbol(), 0, "ZigZag", ZigZagSlow, ZZDev, ZZBack, 1, i);
if(zz_slow_high_t != 0) zz_slow_high = zz_slow_high_t;
// Zig Zag low
double zz_slow_low_t = iCustom(Symbol(), 0, "ZigZag", ZigZagSlow, ZZDev, ZZBack, 2, i);
if(zz_slow_low_t != 0) zz_slow_low = zz_slow_low_t;
// Show signal if it is a fractal and matches last zigzag high value
if(fr_support_change == true && fr_support == zz_slow_low)
{
// There is signal
SlowSignal = OP_BUY;
} else
// Show signal if it is a fractal and matches last zigzag low value
if(fr_resistance_change == true && fr_resistance == zz_slow_high)
{
// Store signal
SlowSignal = OP_SELL;
}
}
//--------------------------------------------------------
// Fast ZigZag
//--------------------------------------------------------
// If set up
if(ZigZagFast > 0)
{
// Slow zigzag values
double zz_fast_high_t = iCustom(Symbol(), 0, "ZigZag", ZigZagFast, ZZDev, ZZBack, 1, i);
if(zz_fast_high_t != 0) zz_fast_high = zz_fast_high_t;
// Zig Zag low
double zz_fast_low_t = iCustom(Symbol(), 0, "ZigZag", ZigZagFast, ZZDev, ZZBack, 2, i);
if(zz_fast_low_t != 0) zz_fast_low = zz_fast_low_t;
// Show signal if it is a fractal and matches last zigzag high value
if(fr_support_change == true && fr_support == zz_fast_low)
{
// There is signal
FastSignal = OP_BUY;
} else
// Show signal if it is a fractal and matches last zigzag low value
if(fr_resistance_change == true && fr_resistance == zz_fast_high)
{
// There is signal
FastSignal = OP_SELL;
}
}
//--------------------------------------------------------
// Paint signals
// --
// If we have two active zigzags -slow and fast- the slow
// signals will always match with the fast signals. However,
// we do paint them separately in case an user whats to show
// only one zigzag track.
//--------------------------------------------------------
// Do both zigzag agree on the signal?
if(SlowSignal == FastSignal && SlowSignal != EMPTY_VALUE)
{
if(SlowSignal == OP_BUY)
{
ExtMapBuffer3[i+2] = fr_support - nShift*Point;
} else {
ExtMapBuffer3[i+2] = fr_resistance + nShift*Point;
}
// Is in only a slow zigzag signal?
} else if(SlowSignal != EMPTY_VALUE) {
if(SlowSignal == OP_BUY)
{
ExtMapBuffer1[i+2] = fr_support - nShift*Point;
} else {
ExtMapBuffer1[i+2] = fr_resistance + nShift*Point;
}
// Is only a fast zigzag signal?
} else if(FastSignal != EMPTY_VALUE) {
if(FastSignal == OP_BUY)
{
ExtMapBuffer2[i+2] = fr_support - nShift*Point;
} else {
ExtMapBuffer2[i+2] = fr_resistance + nShift*Point;
}
}
}
return(0);
}
//+------------------------------------------------------------------+
//| Custom code ahead
//+------------------------------------------------------------------+
/**
* Returns fractal resistance
* @param int shift
* @param int bk
*/
double upper_fractal(int shift = 1)
{
double middle = iHigh(Symbol(), 0, shift + 2);
double v1 = iHigh(Symbol(), 0, shift);
double v2 = iHigh(Symbol(), 0, shift+1);
double v3 = iHigh(Symbol(), 0, shift + 3);
double v4 = iHigh(Symbol(), 0, shift + 4);
if(middle > v1 &&
middle > v2 &&
middle > v3 &&
middle > v4
//&& v2 > v1 && v3 > v4 // Uncomment me for perfect fractals
)
{
fr_resistance = middle;
fr_resistance_change = true;
} else {
fr_resistance_change = false;
}
return(fr_resistance);
}
/**
* Returns fractal support and stores wether it has changed or not
* @param int shift
*/
double lower_fractal(int shift = 1)
{
double middle = iLow(Symbol(), 0, shift + 2);
double v1 = iLow(Symbol(), 0, shift);
double v2 = iLow(Symbol(), 0, shift+1);
double v3 = iLow(Symbol(), 0, shift + 3);
double v4 = iLow(Symbol(), 0, shift + 4);
if(middle < v1 &&
middle < v2 &&
middle < v3 &&
middle < v4
//&& v2 < v1 && v3 < v4 //Uncomment me for perfect fractals
)
{
fr_support = middle;
fr_support_change = true;
} else {
fr_support_change = false;
}
return(fr_support);
}
//+------------------------------------------------------------------+
