3MA_Cross_w_Alert_v2GS1
Download scriptThis script is a technical analysis tool designed for the MetaTrader platform to help traders identify potential trend shifts by monitoring three different Moving Averages (MA) simultaneously. Instead of relying on just one indicator, it looks for a specific "confluence" or agreement between three lines to confirm market direction.
Core Functionality
The tool tracks three distinct types of Moving Averages: Fast, Medium, and Slow. By comparing these three, the script attempts to filter out market noise and identify high-probability turning points where the short-term momentum aligns with the medium-term trend.
How the Logic Works
The script identifies trading signals based on the following "Crossing" logic:
1. Upward Trend Signals (Buy/Long) A signal is triggered if the faster moving averages move above the slowest moving average. Specifically, it looks for two scenarios:
- Scenario A: The Fast MA crosses above the Slow MA, while the Medium MA is already trading higher than the Slow MA.
- Scenario B: The Medium MA crosses above the Slow MA, while the Fast MA is already trading higher than the Slow MA. Essentially, it requires at least two of the three averages to be positioned above the slowest one to confirm an upward move.
2. Downward Trend Signals (Sell/Short) Conversely, a downward signal is triggered if the faster moving averages drop below the slowest moving average. It looks for:
- Scenario A: The Fast MA crosses below the Slow MA, while the Medium MA is already trading lower than the Slow MA.
- Scenario B: The Medium MA crosses below the Slow MA, while the Fast MA is already trading lower than the Slow MA.
Visual and Audible Alerts
To ensure traders don't miss these moments, the script provides several feedback mechanisms:

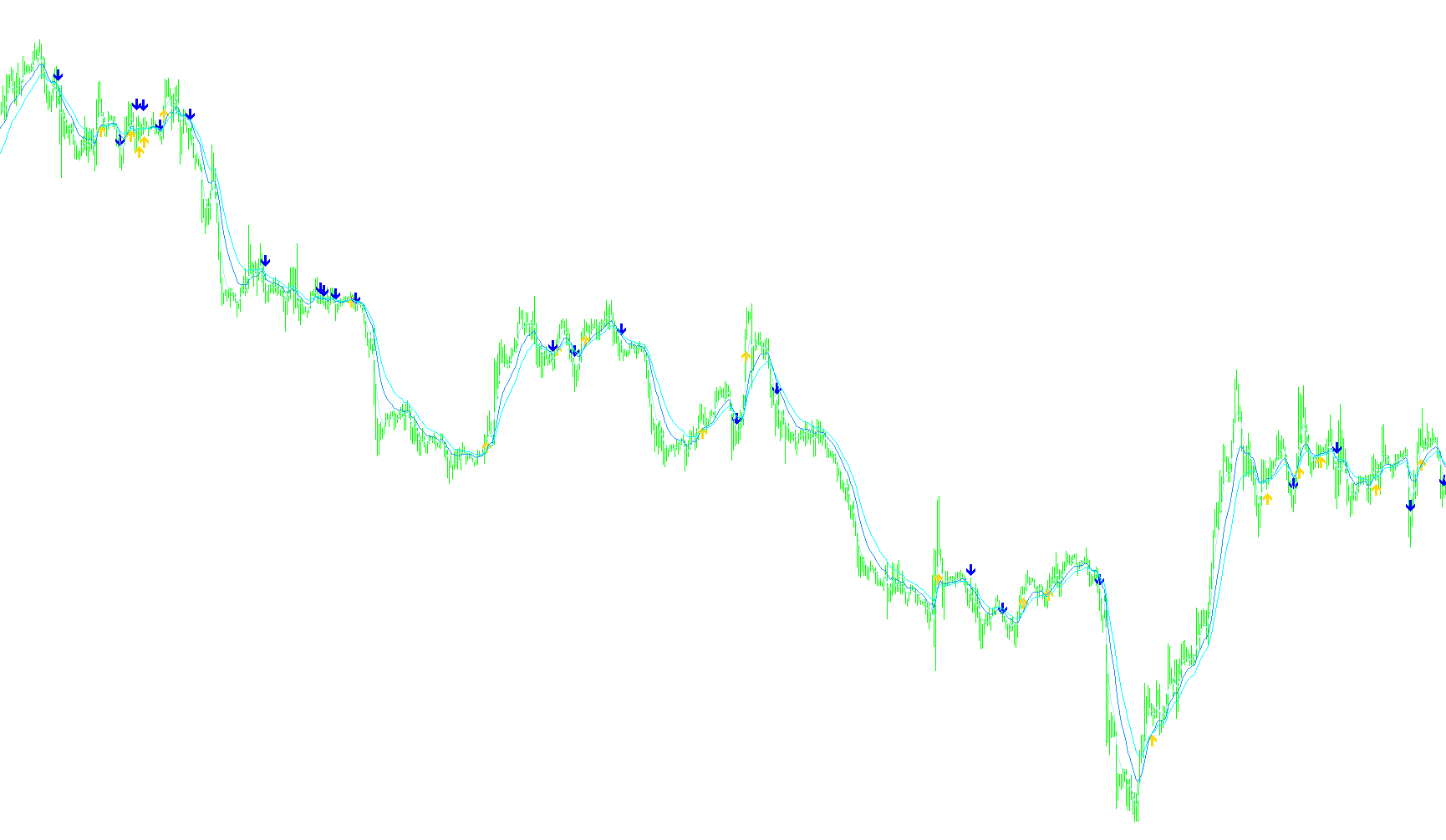

- On-Chart Arrows: It places visual markers (arrows) on the chart at the exact price point where a cross is confirmed.
- Dynamic Lines: It draws the three Moving Averages directly on your chart so you can see the trends in real-time.
- Audio/Pop-up Alerts: If enabled, the script will trigger a sound alert and a notification window when a crossover occurs on the most recent completed price bar.
Key Technical Behaviors
- Price Consistency: The logic calculates values based on "Close" prices to ensure that the signals are based on completed market data rather than fluctuating "live" prices that might disappear (repainting).
- Dynamic Spacing: The arrows are placed at a specific distance from the high or low of the candle (based on recent volatility) to ensure they are clearly visible and do not overlap with the price bars.
- Time-Stamping: The script includes logic to ensure it only alerts you once per trend change, preventing your computer from triggering multiple alarms for the same movement.
// This is Not Tested , Use At Your Own Risk !
//+--------------------------------------------------------------------------+
//| 3 MA Cross w_Alert v2.mq4 |
//| Copyright © 2005, Jason Robinson (jnrtrading) |
//| http://www.jnrtading.co.uk |
//| 3 ma conversion and Alert , David Honeywell , transport.david@gmail.com |
//| http://finance.groups.yahoo.com/group/MetaTrader_Experts_and_Indicators/ |
//+--------------------------------------------------------------------------+
/*
+-------------------------------------------------------------------------------+
| Allows you to enter 3 ma periods and it will then show you and alert you at |
| which point the 2 faster ma's "OPEN" are both above or below the Slowest ma . |
+-------------------------------------------------------------------------------+
*/
// mod. 2008fxtsd eachMAShift taken off; 1GeneralShift 4 all MAs &Sigs; signals after bar close only// ki
#property copyright "Copyright © 2005, Jason Robinson (jnrtrading)"
#property link "http://www.jnrtrading.co.uk"
#property indicator_chart_window
#property indicator_buffers 5
#property indicator_color1 Aquamarine
#property indicator_color2 Magenta
#property indicator_color3 Yellow
#property indicator_color4 Red
#property indicator_color5 RoyalBlue
#property indicator_width1 1
#property indicator_width2 1
extern int FasterMA = 5;
int FasterShift = 0;
//extern int FasterShift = 0;
extern int FasterMode = 1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern int MediumMA = 13;
int MediumShift = 0;
//extern int MediumShift = -3;
extern int MediumMode = 1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern int SlowerMA = 21;
int SlowerShift = 0;
//extern int SlowerShift = -1;
extern int SlowerMode = 1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern int GeneralShift = 0;
extern bool SignalShift = false;
extern bool SoundON = true;
extern bool Drawlines =true;
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double CrossUp[];
double CrossDown[];
double prevtime;
double Range, AvgRange;
double fasterMAnow, fasterMAprevious, fasterMAafter;
double mediumMAnow, mediumMAprevious, mediumMAafter;
double slowerMAnow, slowerMAprevious, slowerMAafter;
double alertTag;
double control=2147483647;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexStyle(0, DRAW_ARROW, STYLE_SOLID);
SetIndexArrow(0, 233);//221
SetIndexBuffer(0, CrossUp);
SetIndexStyle(1, DRAW_ARROW, STYLE_SOLID);
SetIndexArrow(1, 234);//222
SetIndexBuffer(1, CrossDown);
if (SignalShift)
{
SetIndexShift(0,GeneralShift);
SetIndexShift(1,GeneralShift);
}
else
{
SetIndexShift(0,0);
SetIndexShift(1,0);
}
//---- indicators
SetIndexStyle(2,DRAW_LINE);
SetIndexBuffer(2,ExtMapBuffer1);
SetIndexShift(2,GeneralShift);
SetIndexStyle(3,DRAW_LINE);
SetIndexBuffer(3,ExtMapBuffer2);
SetIndexShift(3,GeneralShift);
SetIndexStyle(4,DRAW_LINE);
SetIndexBuffer(4,ExtMapBuffer3);
SetIndexShift(4,GeneralShift);
SetIndexLabel(0,"3MA("+FasterMA+","+MediumMA+","+SlowerMA+")xUp");
SetIndexLabel(1,"3MA("+FasterMA+","+MediumMA+","+SlowerMA+")xDn");
SetIndexLabel(2,"3MAxFast("+FasterMA+","+MediumMA+","+SlowerMA+")");
SetIndexLabel(3,"3MAxMid("+FasterMA+","+MediumMA+","+SlowerMA+")");
SetIndexLabel(4,"3MAxSlow("+FasterMA+","+MediumMA+","+SlowerMA+")");
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int limit, i, counter;
int counted_bars=IndicatorCounted();
//---- check for possible errors
if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars;
for(i = 0; i <= limit; i++)
{
counter=i;
Range=0;
AvgRange=0;
for (counter=i ;counter<=i+9;counter++)
{
AvgRange=AvgRange+MathAbs(High[counter]-Low[counter]);
}
Range=AvgRange/10;
fasterMAnow = iMA(NULL, 0, FasterMA, FasterShift, FasterMode, PRICE_CLOSE, i+1);
fasterMAprevious = iMA(NULL, 0, FasterMA, FasterShift, FasterMode, PRICE_CLOSE, i+2);
fasterMAafter = iMA(NULL, 0, FasterMA, FasterShift, FasterMode, PRICE_OPEN, i);
mediumMAnow = iMA(NULL, 0, MediumMA, MediumShift, MediumMode, PRICE_CLOSE, i+1);
mediumMAprevious = iMA(NULL, 0, MediumMA, MediumShift, MediumMode, PRICE_CLOSE, i+2);
mediumMAafter = iMA(NULL, 0, MediumMA, MediumShift, MediumMode, PRICE_OPEN, i);
slowerMAnow = iMA(NULL, 0, SlowerMA, SlowerShift, SlowerMode, PRICE_CLOSE, i+1);
slowerMAprevious = iMA(NULL, 0, SlowerMA, SlowerShift, SlowerMode, PRICE_CLOSE, i+2);
slowerMAafter = iMA(NULL, 0, SlowerMA, SlowerShift, SlowerMode, PRICE_OPEN, i);
if ((fasterMAnow > slowerMAnow &&
fasterMAprevious <= slowerMAprevious &&
fasterMAafter > fasterMAprevious &&
mediumMAnow > slowerMAnow ) // fast x slow up; med>slow
||
(fasterMAnow > slowerMAnow &&
mediumMAnow > slowerMAnow &&
mediumMAprevious <= slowerMAprevious &&
mediumMAafter > mediumMAprevious )) // med x sl up; fast >slow
{
CrossUp[i] = Low[i] - Range*0.5;
}
if ((fasterMAnow < slowerMAnow &&
fasterMAprevious >= slowerMAprevious &&
fasterMAafter < fasterMAprevious &&
mediumMAnow < slowerMAnow ) // fast x slow dn; mid<slow
||
(fasterMAnow < slowerMAnow &&
mediumMAnow < slowerMAnow &&
mediumMAprevious >= slowerMAprevious &&
mediumMAafter < mediumMAprevious )) // mid x slow dn; fast<slow
{
CrossDown[i] = High[i] + Range*0.5;
}
if (SoundON==true && i==1 && CrossUp[i] > CrossDown[i] && alertTag!=Time[0])
{
Alert("3MACross2GS going Down on ",Symbol()," M",Period()," @ ",Bid);
alertTag = Time[0];
}
if (SoundON==true && i==1 && CrossUp[i] < CrossDown[i] && alertTag!=Time[0])
{
Alert("3MACross2GS going Up on ",Symbol()," M",Period()," @ ",Bid);
alertTag = Time[0];
}
//Comment(" CrossUp[0] ",CrossUp[0]," , CrossDown[0] ",CrossDown[0]," , prevtime ",prevtime);
//Comment("");
if (Drawlines)
{
ExtMapBuffer1[i]= iMA(NULL,0,FasterMA,0,FasterMode,PRICE_CLOSE,i);
ExtMapBuffer2[i]= iMA(NULL,0,MediumMA,0,MediumMode,PRICE_CLOSE,i);
ExtMapBuffer3[i]= iMA(NULL,0,SlowerMA,0,SlowerMode,PRICE_CLOSE,i);
}
}
return(0);
}
