wajdyss_Stochastic_indicator_v1

Download script
Author: Copyright 2008 Wajdyss
wajdyss_Stochastic_indicator_v1

This indicator is designed to provide visual and audible signals for traders by identifying specific momentum shifts in the market. It combines technical analysis with a time-based security feature, making it a systematic tool for spotting potential entry and exit points.

Core Analytical Logic

The script functions by monitoring two primary layers of technical data:

1. Stochastic Momentum Crossings The core of the logic relies on "Stochastic" oscillators—tools that measure whether an asset is overbought or oversold by comparing recent price movements to a specific range. The indicator tracks two lines within this oscillator (a Fast line and a Slow line).

  • Buy Signals: When the Fast line crosses upward over the Slow line, the script identifies a potential upward momentum shift.
  • Sell Signals: When the Fast line crosses downward under the Slow line, the script identifies a potential downward momentum shift.

2. Historical Signal Verification Unlike basic indicators that only look at the current moment, this script performs a deep-history analysis. It scans back over a large number of previous candles (defined by the "days" parameter) to calculate:

  • The frequency of bullish versus bearish signals.
  • The success rate of these signals compared to the actual price action that followed them. This historical data is processed internally to help determine the reliability of the current market trend.

Visual and Audible Alerts

To ensure traders do not miss critical movements, the script includes an active notification system:

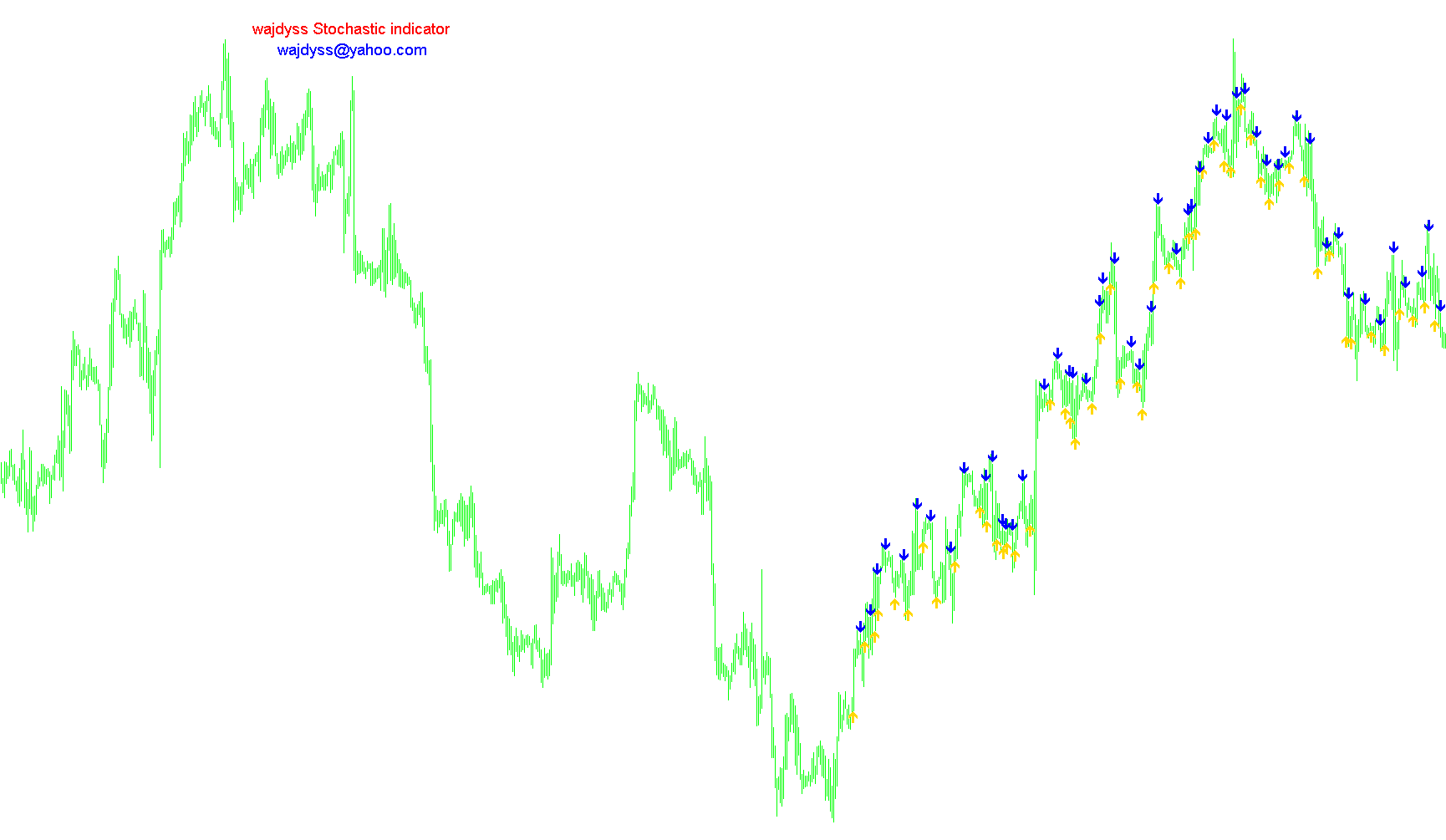

  • On-Chart Markers: It places specific visual symbols (arrows) on the price chart at the exact moments where a bullish or bearish cross occurs.
  • Audio/Popup Notifications: When a significant crossover happens, the script triggers a sound file and displays a text alert on the screen, providing the current price for the trade.

Accessibility and Security Features

The script includes several user-friendly interface elements:

  • Expiration Logic: The tool features a built-in "validity" system. It checks the current date against a pre-set expiration date. If the date has passed, the indicator will display an expiration notice and disable its trading signals.
  • Information Labels: Upon loading, the script automatically generates labels on your chart to show the developer's information and provide status updates regarding the indicator's validity.
  • Customizable Parameters: Users can adjust how the data is calculated (such as choosing between "Simple" or "Exponential" smoothing) and choose which price data (High/Low vs. Close/Close) the logic should prioritize.
Price Data Components
Series array that contains open prices of each barSeries array that contains close prices for each bar
Indicators Used
Stochastic oscillator
Miscellaneous
Implements a curve of type %1It plays sound alerts
16 Views
0 Downloads
0 Favorites
wajdyss_Stochastic_indicator_v1
//+------------------------------------------------------------------+
//|                                             wajdyss_MA_indicator |
//|                                           Copyright 2007 Wajdyss |
//|                                                wajdyss@yahoo.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2008 Wajdyss"
#property link      "wajdyss@yahoo.com"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 LawnGreen
#property indicator_color2 Red
#property indicator_width1  2
#property indicator_width2  2

int days=350;
int candle=350;
extern int KPeriod = 5;
extern int Slowing  = 3;
extern int DPeriod  = 3;
extern string Pric_Field_Note = "0=Low/High , 1=Close/Close";
extern int Price_Field = 0;
extern string MA_Method_Note = "0 = Simple , 1 = Exponential , 2 = Smoothed , 3 = Linear ";
extern int MA_Method  = 0;
extern bool alert = true;
extern string file="alert.wav";
extern int TextSize=14;
extern color TextColor1=Black;
extern color TextColor2=Red;
extern color TextColor3=Blue;
extern color TextColor4=Black;
 color TextColor5=Chartreuse;
bool manual=true;
int w=0,ww=0;
double CrossUp[];
double CrossDown[];
int eyear=9999;
int emonth=9;
int eday=9;
bool al1=false;
bool al2=false;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0, DRAW_ARROW, EMPTY);
   SetIndexArrow(0, 233);
   SetIndexBuffer(0, CrossUp);
   SetIndexStyle(1, DRAW_ARROW, EMPTY);
   SetIndexArrow(1, 234);
   SetIndexBuffer(1, CrossDown);
//----

   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
  Comment("");
 ObjectDelete("a label");
 ObjectDelete("b label");
 ObjectDelete("c label");
 ObjectDelete("d label");
 ObjectDelete("e label");


   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
  //a
          if(ObjectFind("a label") != 0)
   {
      ObjectCreate("a label", OBJ_LABEL, 0,0,0);
      ObjectSetText("a label","ÈÓã Çááå ÇáÑÍãä ÇáÑÍíã" , TextSize, "Arial", TextColor1);
      ObjectSet("a label", OBJPROP_XDISTANCE,350);
     ObjectSet("a label", OBJPROP_YDISTANCE,0);
   }


   //b
      if(ObjectFind("b label") != 0)
   {
      ObjectCreate("b label", OBJ_LABEL, 0,0,0);
      ObjectSetText("b label","wajdyss Stochastic indicator"  , TextSize, "Arial", TextColor2);
      ObjectSet("b label", OBJPROP_XDISTANCE,305);
     ObjectSet("b label", OBJPROP_YDISTANCE,25);
   }


   // c


      if(ObjectFind("c label") != 0)
   {
      ObjectCreate("c label", OBJ_LABEL, 0,0,0);
      ObjectSetText("c label","wajdyss@yahoo.com"  , TextSize, "Arial", TextColor3);
      ObjectSet("c label", OBJPROP_XDISTANCE,335);
     ObjectSet("c label", OBJPROP_YDISTANCE,50);
   }


    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }

      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","http://forum.m-e-c.biz",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,338);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }


   int  same , notsame, samef, notsamef, samer, notsamer, samecandle, notsamecandle ;
   double  GSignalUP=0 , SignalUP=0 , GSignalDOWN=0, SignalDOWN=0 , AllSignal=0 , BSignalUP=0
    , BSignalDOWN=0 ,a=High[0]+50*Point ;

   double samep,notsamep,all,GSignals,GSignalsP, GSignalUPP,GSignalDOWNP,fastMAnow,fastMAprevious,slowMAnow,slowMAprevious;
   string sameforecast,notsameforecast, wajdyssforecast , status ;


//   if (manual ==true) status="manual"; else status="auto";
 {samecandle=w; notsamecandle=ww;}
   all=days;
   samep=(samer/all);
   notsamep=(notsamer/all);

   samecandle=w;
   notsamecandle=ww;
   if (iClose(Symbol(),NULL,samecandle)>iOpen(Symbol(),NULL,samecandle)) sameforecast="up trend"; else sameforecast="down trend";
   if (iClose(Symbol(),NULL,notsamecandle)<iOpen(Symbol(),NULL,notsamecandle)) notsameforecast="up trend"; else notsameforecast="down trend";
   if (sameforecast==notsameforecast) wajdyssforecast=sameforecast;
   else wajdyssforecast="no trading today";

   for (int i=days;i>=1;i--)
   {
      fastMAnow=iStochastic(NULL, 0, KPeriod, DPeriod, Slowing,MA_Method, Price_Field, MODE_MAIN, i);
      fastMAprevious=iStochastic(NULL, 0, KPeriod, DPeriod, Slowing,MA_Method, Price_Field, MODE_MAIN, i+1);
      slowMAnow=iStochastic(NULL, 0, KPeriod, DPeriod, Slowing,MA_Method, Price_Field, MODE_SIGNAL, i);
      slowMAprevious=iStochastic(NULL, 0, KPeriod, DPeriod, Slowing,MA_Method, Price_Field, MODE_SIGNAL, i+1);

   if (fastMAnow > slowMAnow && !(fastMAprevious > slowMAprevious))

   {
    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator well expire after ( " + eday+"-"+emonth+"-"+eyear+" )",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,265);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }

   CrossUp[i] = Low[i]-20*Point;
   AllSignal++;
   SignalUP++;
   if (iClose(Symbol(),NULL,i-1)>iOpen(Symbol(),NULL,i-1))
   GSignalUP++;
   else BSignalUP++;
   }


   if (fastMAnow < slowMAnow && !(fastMAprevious < slowMAprevious))

   {
    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }

      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator well expire after ( " + eday+"-"+emonth+"-"+eyear+" )",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,265);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }


    CrossDown[i] = High[i]+20*Point;
      AllSignal++;
      SignalDOWN++;
   if (iClose(Symbol(),NULL,i-1)<iOpen(Symbol(),NULL,i-1))
    GSignalDOWN++;
   else BSignalDOWN++;
   }
}

GSignals=GSignalUP+GSignalDOWN;
GSignalsP=GSignals/AllSignal;
GSignalUPP=(GSignalUP/SignalUP);
GSignalDOWNP=(GSignalDOWN/SignalDOWN);



   int www=GSignalsP*100 ;
   //e
      fastMAnow=iStochastic(NULL, 0, KPeriod, DPeriod, Slowing,MA_Method, Price_Field, MODE_MAIN, 1);
      fastMAprevious=iStochastic(NULL, 0, KPeriod, DPeriod, Slowing,MA_Method, Price_Field, MODE_MAIN, 2);
      slowMAnow=iStochastic(NULL, 0, KPeriod, DPeriod, Slowing,MA_Method, Price_Field, MODE_SIGNAL, 1);
      slowMAprevious=iStochastic(NULL, 0, KPeriod, DPeriod, Slowing,MA_Method, Price_Field, MODE_SIGNAL, 2);

  if (fastMAnow > slowMAnow && !(fastMAprevious > slowMAprevious) && alert==true) {al1=false; if (al2==false) { Alert ("Close Sell Orders And Buy AT ",Close[1]); PlaySound(file); al2=true;}}

  if (fastMAnow < slowMAnow && !(fastMAprevious < slowMAprevious) && alert==true) {al2=false; if (al1==false) { Alert ("Close Buy Orders And Sell AT ",Close[1]); PlaySound(file); al1=true;}}


   return(0);
  }
