StepMA_v7_002

Download script
Author: Copyright � 2006, TrendLaboratory
StepMA_v7_002

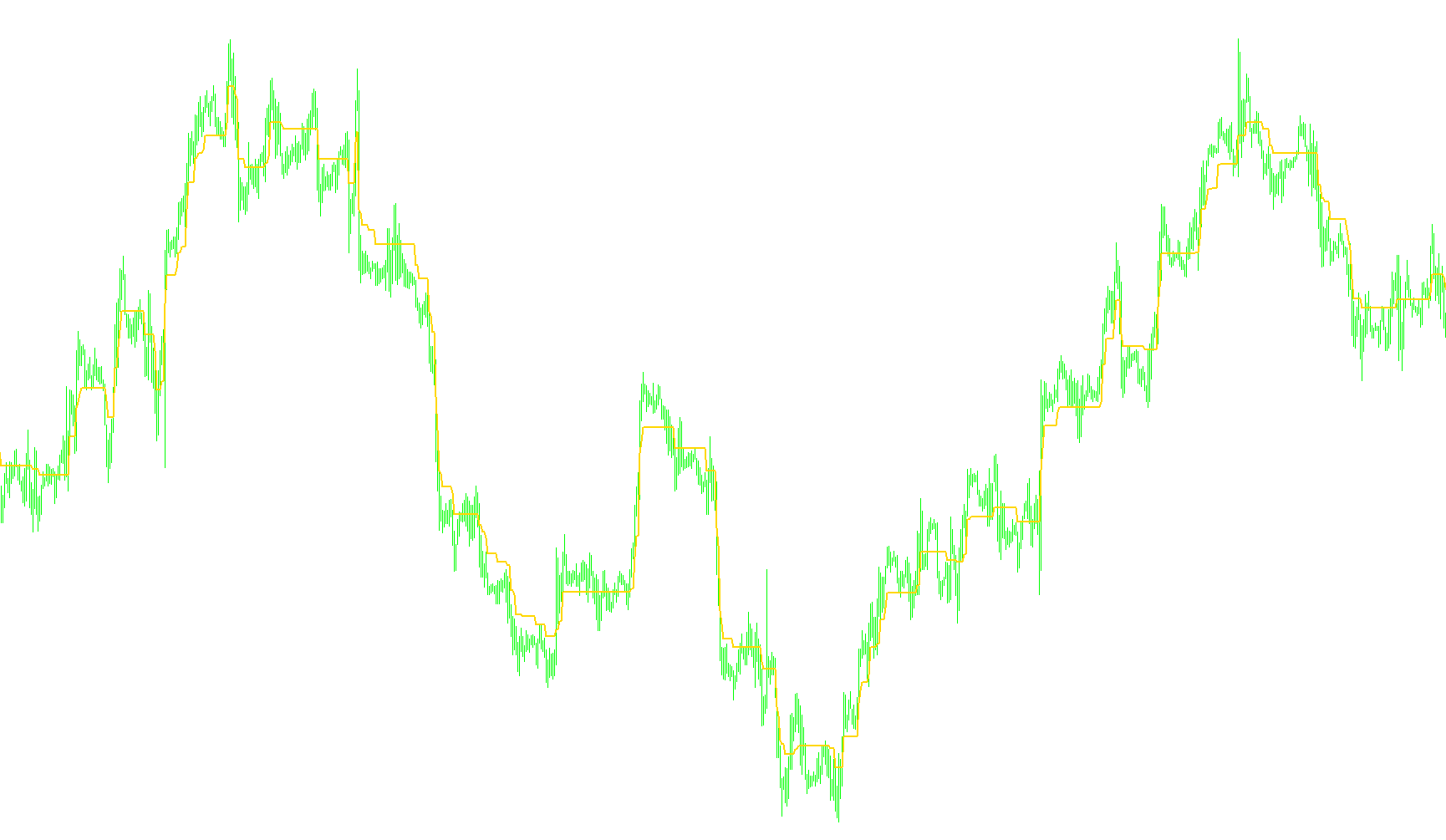

The StepMA is a technical analysis tool designed to help traders identify market trends by creating a "stepped" moving average. Unlike standard moving averages that produce smooth, curving lines that can sometimes lag behind rapid price movements, the StepMA moves in distinct, horizontal increments. This allows it to act as a clearer visual boundary for price action.

Core Logic and Functionality

The script operates based on three primary logical components: Price Boundary Detection, Dynamic Step Calculation, and Trend Identification.

1. Dynamic Step Calculation

To ensure the indicator adapts to different market conditions (such as high volatility versus low volatility), the script calculates a "Step Size."

  • Automatic Mode: If left at the default setting, the script analyzes historical price ranges to determine the average movement of the asset. It then establishes a step height that is proportional to this volatility.
  • Manual Mode: Users can also input a fixed size, allowing for a constant, predetermined jump in the line's height regardless of market activity.

2. Trend Identification (The "Step" Movement)

The indicator tracks whether the market is currently in an upward or downward state by monitoring specific price triggers:

  • Price Thresholds: The script establishes "ceiling" and "floor" boundaries based on the current step size. It can be configured to look at the actual High/Low prices of a candle (for higher sensitivity) or the Closing prices (for a more stable trend).
  • Directional Shifts: If the market price closes above the upper boundary, the trend is switched to "Up." If it closes below the lower boundary, the trend switches to "Down."

3. Visual Representation and Dynamics

Once a trend is established, the StepMA line follows that direction:

  • In an Uptrend: The indicator seeks to move upward. It "holds" its horizontal position until it reaches a point where it can create a new higher step.
  • In a Downtrend: The indicator seeks to move downward, holding its horizontal level until it can drop to a lower step.
  • Visual Modes: The script offers different ways to display these trends on your chart. It can show a single continuous line, or it can split into separate "Up" and "Down" signals (often accompanied by arrows) to clearly highlight when the trend has flipped from one direction to the other.

Summary for the Trader

In simple terms, this tool filters out the "noise" of small price fluctuations. It only reacts when the market makes a significant enough move to break through a pre-defined threshold. By doing so, it provides a cleaner visual representation of the prevailing trend, helping you identify whether the market is currently pushing higher or lower without the distraction of constant minor weaving.

Miscellaneous
Implements a curve of type %1
11 Views
0 Downloads
0 Favorites
StepMA_v7_002
//+------------------------------------------------------------------+
//|                                                    StepMA_v7.mq4 |
//|                                Copyright © 2006, TrendLaboratory |
//|            http://finance.groups.yahoo.com/group/TrendLaboratory |
//|                                   E-mail: igorad2003@yahoo.co.uk |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, TrendLaboratory"
#property link      "http://finance.groups.yahoo.com/group/TrendLaboratory"

#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 Aqua
#property indicator_color2 Blue
#property indicator_color3 Red

//---- input parameters
extern int     Length      = 10;      // Volty Length
extern double  Kv          = 1.0;     // Sensivity Factor
extern int     StepSize    = 0;       // Constant Step Size (if need)
extern int     MA_Mode     = 0;       // Volty MA Mode : 0-SMA, 1-LWMA
extern int     Advance     = 0;       // Offset
extern double  Percentage  = 0;       // Percentage of Up/Down Moving
extern bool    HighLow     = false;   // High/Low Mode Switch (more sensitive)
extern int     ColorMode   = 0;       // Color Mode Switch
extern int     BarsNumber  = 0;

//---- indicator buffers
double LineBuffer[];
double UpBuffer[];
double DnBuffer[];
double smin[];
double smax[];
double trend[];

double StepMA=0, ATR0=0,ATRmax=-100000,ATRmin=1000000;
int limit;

//---- StepSize Calculation

   double StepSizeCalc ( int Len, double Km, int Size, int k)
   {

   double result;
   if( Size==0 )
   {
        double AvgRange=0;
	     for (int i=Len-1;i>=0;i--)
	     {
            if(MA_Mode==0) double alfa= 1.0; else alfa= 1.0+1.0*(Len-i)/Len;
            AvgRange+= alfa*(High[k+i]-Low[k+i]);
        }
	     ATR0 = AvgRange/Len;

	if (ATR0>ATRmax) ATRmax=ATR0;
	if (ATR0<ATRmin) ATRmin=ATR0;

	result=MathRound(0.5*Km*(ATRmax+ATRmin)/Point);
	}
	else
	result=Km*StepSize;

   return(result);
   }

//---- StepMA Calculation

   double StepMACalc (bool HL, double Size, int k)
   {
   int counted_bars=IndicatorCounted();
   double result;

   if (HL)
	  {
	  smax[k]=Low[k]+2.0*Size*Point;
	  smin[k]=High[k]-2.0*Size*Point;
     }
	else
	  {
	  smax[k]=Close[k]+2.0*Size*Point;
	  smin[k]=Close[k]-2.0*Size*Point;
	  }
	  if (counted_bars==0){smax[limit+1]=smax[limit];smin[limit+1]=smin[limit];trend[limit+1]=0;}

	  trend[k]=trend[k+1];

	  if (Close[k]>smax[k+1]) trend[k]=1;

	  if (Close[k]<smin[k+1]) trend[k]=-1;

	  if(trend[k]>0)
	  {
	  if(smin[k]<smin[k+1]) smin[k]=smin[k+1];
	  result=smin[k]+Size*Point;
	  }
	  else
	  {
	  if(smax[k]>smax[k+1]) smax[k]=smax[k+1];
	  result=smax[k]-Size*Point;
	  }
     //Print (" k=",k," trend=",trend[k], " res=",result," Smax=", smax[k], " Smin=", smin[k]);


     return(result);
     }
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
  int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(6);

   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
   SetIndexStyle(1,DRAW_LINE);
   SetIndexStyle(2,DRAW_LINE);

   SetIndexArrow(1,159);
   SetIndexArrow(2,159);

   SetIndexBuffer(0,LineBuffer);
   SetIndexBuffer(1,UpBuffer);
   SetIndexBuffer(2,DnBuffer);

   SetIndexShift(0,Advance);
   SetIndexShift(1,Advance);
   SetIndexShift(2,Advance);

   SetIndexBuffer(3,smin);
   SetIndexBuffer(4,smax);
   SetIndexBuffer(5,trend);

//---- name for DataWindow and indicator subwindow label
   short_name="StepMA("+Length+","+Kv+","+StepSize+")";
   IndicatorShortName(short_name);
   SetIndexLabel(0,short_name);
   SetIndexLabel(1,"UpTrend");
   SetIndexLabel(2,"DownTrend");
//----
   SetIndexDrawBegin(0,Length);
   SetIndexDrawBegin(1,Length);
   SetIndexDrawBegin(2,Length);
//----
   return(0);
   }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| StepMA_v7                                                        |
//+------------------------------------------------------------------+
int start()
  {
   int shift, counted_bars=IndicatorCounted();

   if ( BarsNumber > 0 ) int Nbars=BarsNumber; else Nbars=Bars;
   if ( counted_bars > 0 )  limit=Nbars-counted_bars;
   if ( counted_bars < 0 )  return(0);
   if ( counted_bars ==0 )  limit=Nbars-Length-1;

	for(shift=limit;shift>=0;shift--)
   {

	int Step = StepSizeCalc( Length, Kv, StepSize, shift);

	Comment (" StepSize= ", Step);

	StepMA = StepMACalc ( HighLow, Step, shift)+Percentage/100.0*Step*Point;

	if ( ColorMode == 0) LineBuffer[shift]=StepMA;

	if ( ColorMode == 1)
	{
	if ( trend[shift]>0 ) {UpBuffer[shift]=StepMA-Step*Point;DnBuffer[shift]=EMPTY_VALUE;}
	else
	if ( trend[shift]<0 ) {DnBuffer[shift]=StepMA+Step*Point;UpBuffer[shift]=EMPTY_VALUE;}
	}
	else
	if ( ColorMode == 2)
	{
	if (trend[shift]>0)
	  {
	  UpBuffer[shift]=StepMA;
	  if ( trend[shift+1] < 0 ) UpBuffer[shift+1] = DnBuffer[shift+1];
	  DnBuffer[shift]=EMPTY_VALUE;
	  }
	  if (trend[shift]<0)
	  {
	  DnBuffer[shift]=StepMA;
	  if ( trend[shift+1] > 0 ) DnBuffer[shift+1] = UpBuffer[shift+1];
	  UpBuffer[shift]=EMPTY_VALUE;
	  }
	}
	else
	{
	UpBuffer[shift]=EMPTY_VALUE; DnBuffer[shift]=EMPTY_VALUE;
	}

	}
	return(0);
 }
