Author: Copyright � 2006, TrendLaboratory
stepma

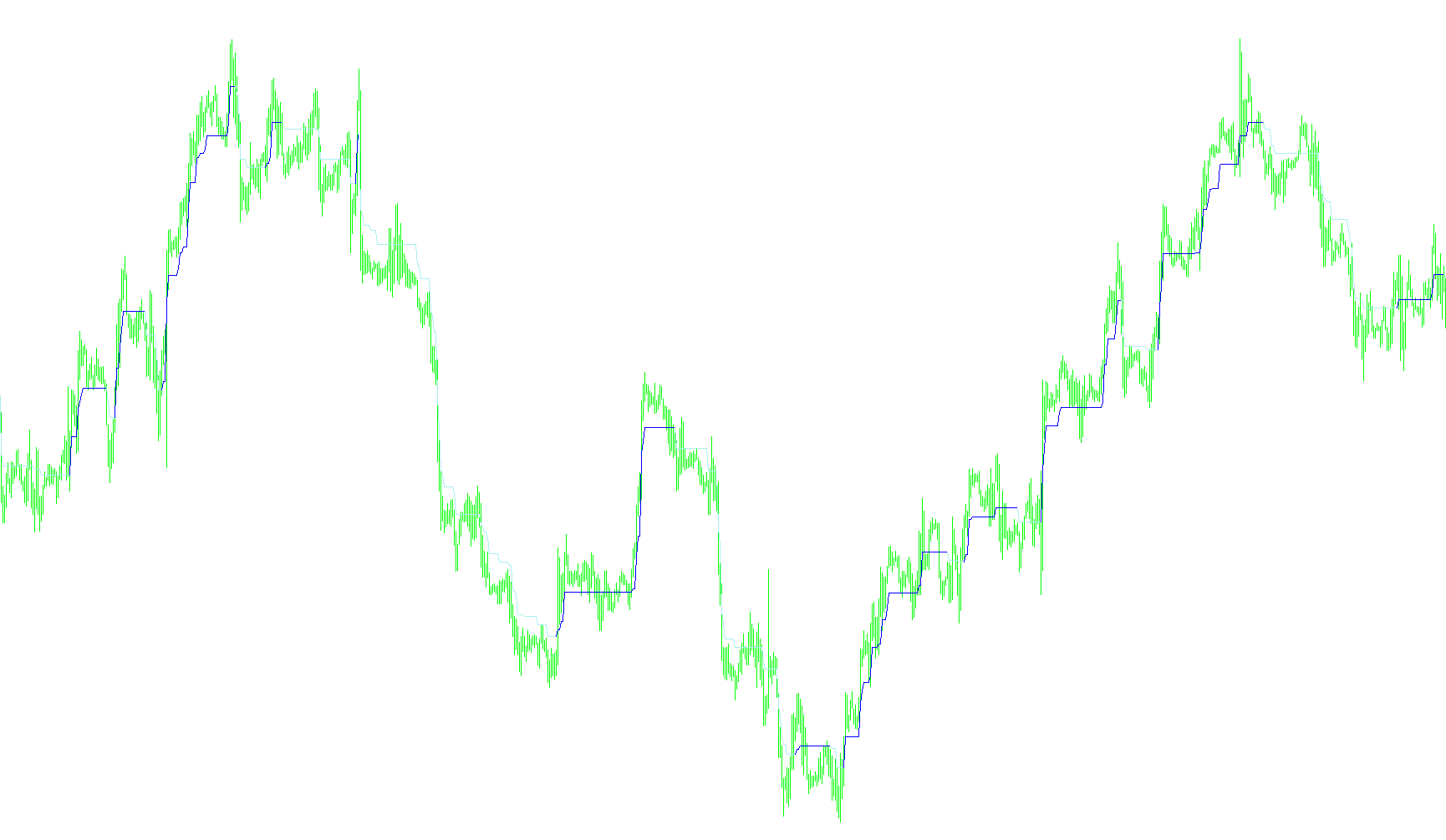

Technical Logic Overview: StepMA Indicator

The StepMA indicator is designed to track market trends by creating a "stepped" movement rather than a smooth, fluid line. Unlike standard moving averages that curve constantly to follow every price fluctuation, this logic identifies specific directional shifts and maintains a level position until a significant price move triggers a "step" in the opposite direction.

Core Logic Mechanisms

1. Dynamic Step Calculation The indicator first determines how large each "step" should be. It does this by analyzing historical market volatility (the range between high and low prices over a specific period).

  • If a fixed step size is not manually defined, the script automatically calculates a value based on the average price movement. This ensures that the steps are proportionate to the current market environment—larger for volatile markets and smaller for calmer ones.

2. Trend Detection & Boundary Logic The script establishes "boundaries" above and below the current price.

  • Price Reaction: It monitors whether the current price breaks through these boundaries.
  • Trend Confirmation: If the price closes above the upper boundary, the trend is confirmed as "Up." If it closes below the lower boundary, the trend shifts to "Down."
  • High/Low Sensitivity: Users can choose whether the indicator reacts to the actual closing price of a candle or the extreme high and low points, allowing for a choice between standard confirmation and higher sensitivity to price spikes.

3. The "Stepping" Behavior Once a trend is established (Up or Down), the indicator moves in fixed increments:

  • In an Up Trend: The line moves upward in constant steps. However, it features a "memory" mechanic: if a new lower boundary is created while moving up, the indicator retains the higher level to ensure the trend remains visually cohesive.
  • In a Down Trend: The line moves downward in constant steps, similarly retaining the lower levels to maintain the integrity of the descending staircase.

4. Visual Representation and Coloring The logic includes a multi-mode visual system to help traders distinguish between market directions:

  • Single Line Mode: Displays a continuous line representing the stepped average.
  • Dual Color Mode: Dynamically switches colors (e.g., Aqua/Lime for Up, Red for Down) based on the current trend.
  • Trend Transition Logic: In specific visual modes, the script can highlight "crossover" points where the trend flips, making it easier to identify potential reversal areas at a glance.

Summary for the User

Essentially, this tool filters out market "noise." Instead of showing you every tiny wiggle in the price, it builds a staircase that only moves when the price action is strong enough to break past a calculated threshold. This allows traders to see the primary structure of the trend more clearly without being distracted by minor fluctuations.

Miscellaneous
Implements a curve of type %1
16 Views
0 Downloads
0 Favorites
stepma
//+------------------------------------------------------------------+
//|                                                  StepMA_v7.1.mq4 |
//|                                Copyright © 2006, TrendLaboratory |
//|            http://finance.groups.yahoo.com/group/TrendLaboratory |
//|                                   E-mail: igorad2003@yahoo.co.uk |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, TrendLaboratory"
#property link      "http://finance.groups.yahoo.com/group/TrendLaboratory"

#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 Aqua
#property indicator_color2 Lime
#property indicator_color3 Red

//---- input parameters
extern int     Length      = 10;      // Volty Length
extern double  Kv          = 1.0;     // Sensivity Factor
extern int     StepSize    = 0;       // Constant Step Size (if need)
extern int     MA_Mode     = 0;       // Volty MA Mode : 0-SMA, 1-LWMA
extern int     Advance     = 0;       // Offset
extern double  Percentage  = 0;       // Percentage of Up/Down Moving
extern bool    HighLow     = false;   // High/Low Mode Switch (more sensitive)
extern int     ColorMode   = 2;       // Color Mode Switch
extern int     BarsNumber  = 0;

//---- indicator buffers
double LineBuffer[];
double UpBuffer[];
double DnBuffer[];
double smin[];
double smax[];
double trend[];

double StepMA=0, ATR0=0,ATRmax=-100000,ATRmin=1000000;
int limit;

//---- StepSize Calculation

   double StepSizeCalc ( int Len, double Km, int Size, int k)
   {

   double result;
   if( Size==0 )
   {
        double AvgRange=0;
	     double Weight = 0;
	     for (int i=Len-1;i>=0;i--)
	     {
            if(MA_Mode==0) double alfa= 1.0; else alfa= 1.0*(Len-i)/Len;
            AvgRange+= alfa*(High[k+i]-Low[k+i]);
            Weight += alfa;
        }
	     ATR0 = AvgRange/Weight;

	if (ATR0>ATRmax) ATRmax=ATR0;
	if (ATR0<ATRmin) ATRmin=ATR0;

	result=MathRound(0.5*Km*(ATRmax+ATRmin)/Point);
	}
	else
	result=Km*StepSize;

   return(result);
   }

//---- StepMA Calculation

   double StepMACalc (bool HL, double Size, int k)
   {
   int counted_bars=IndicatorCounted();
   double result;

   if (HL)
	  {
	  smax[k]=Low[k]+2.0*Size*Point;
	  smin[k]=High[k]-2.0*Size*Point;
     }
	else
	  {
	  smax[k]=Close[k]+2.0*Size*Point;
	  smin[k]=Close[k]-2.0*Size*Point;
	  }
	  if (counted_bars==0){smax[limit+1]=smax[limit];smin[limit+1]=smin[limit];trend[limit+1]=0;}

	  trend[k]=trend[k+1];

	  if (Close[k]>smax[k+1]) trend[k]=1;

	  if (Close[k]<smin[k+1]) trend[k]=-1;

	  if(trend[k]>0)
	  {
	  if(smin[k]<smin[k+1]) smin[k]=smin[k+1];
	  result=smin[k]+Size*Point;
	  }
	  else
	  {
	  if(smax[k]>smax[k+1]) smax[k]=smax[k+1];
	  result=smax[k]-Size*Point;
	  }
     //Print (" k=",k," trend=",trend[k], " res=",result," Smax=", smax[k], " Smin=", smin[k]);


     return(result);
     }
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
  int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(6);

   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
   SetIndexStyle(1,DRAW_LINE);
   SetIndexStyle(2,DRAW_LINE);

   SetIndexArrow(1,159);
   SetIndexArrow(2,159);

   SetIndexBuffer(0,LineBuffer);
   SetIndexBuffer(1,UpBuffer);
   SetIndexBuffer(2,DnBuffer);

   SetIndexShift(0,Advance);
   SetIndexShift(1,Advance);
   SetIndexShift(2,Advance);

   SetIndexBuffer(3,smin);
   SetIndexBuffer(4,smax);
   SetIndexBuffer(5,trend);

//---- name for DataWindow and indicator subwindow label
   short_name="StepMA("+Length+","+Kv+","+StepSize+")";
   IndicatorShortName(short_name);
   SetIndexLabel(0,short_name);
   SetIndexLabel(1,"UpTrend");
   SetIndexLabel(2,"DownTrend");
//----
   SetIndexDrawBegin(0,Length);
   SetIndexDrawBegin(1,Length);
   SetIndexDrawBegin(2,Length);
//----
   return(0);
   }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| StepMA_v7.1                                                        |
//+------------------------------------------------------------------+
int start()
  {
   int shift, counted_bars=IndicatorCounted();

   if ( BarsNumber > 0 ) int Nbars=BarsNumber; else Nbars=Bars;
   if ( counted_bars > 0 )  limit=Bars-counted_bars;
   if ( counted_bars < 0 )  return(0);
   if ( counted_bars ==0 )  limit=Nbars-Length-1;

	for(shift=limit;shift>=0;shift--)
   {

	int Step = StepSizeCalc( Length, Kv, StepSize, shift);

	Comment (" StepSize= ", Step);

	StepMA = StepMACalc ( HighLow, Step, shift)+Percentage/100.0*Step*Point;

	if ( ColorMode == 0) LineBuffer[shift]=StepMA;

	if ( ColorMode == 1)
	{
	if ( trend[shift]>0 ) {UpBuffer[shift]=StepMA-Step*Point;DnBuffer[shift]=EMPTY_VALUE;}
	else
	if ( trend[shift]<0 ) {DnBuffer[shift]=StepMA+Step*Point;UpBuffer[shift]=EMPTY_VALUE;}
	}
	else
	if ( ColorMode == 2)
	{
	if (trend[shift]>0)
	  {
	  UpBuffer[shift]=StepMA;
	  if ( trend[shift+1] < 0 ) UpBuffer[shift+1] = DnBuffer[shift+1];
	  DnBuffer[shift]=EMPTY_VALUE;
	  }
	  if (trend[shift]<0)
	  {
	  DnBuffer[shift]=StepMA;
	  if ( trend[shift+1] > 0 ) DnBuffer[shift+1] = UpBuffer[shift+1];
	  UpBuffer[shift]=EMPTY_VALUE;
	  }
	}
	else
	{
	UpBuffer[shift]=EMPTY_VALUE; DnBuffer[shift]=EMPTY_VALUE;
	}

	}
	return(0);
 }
