Parabolic_v2
Download script

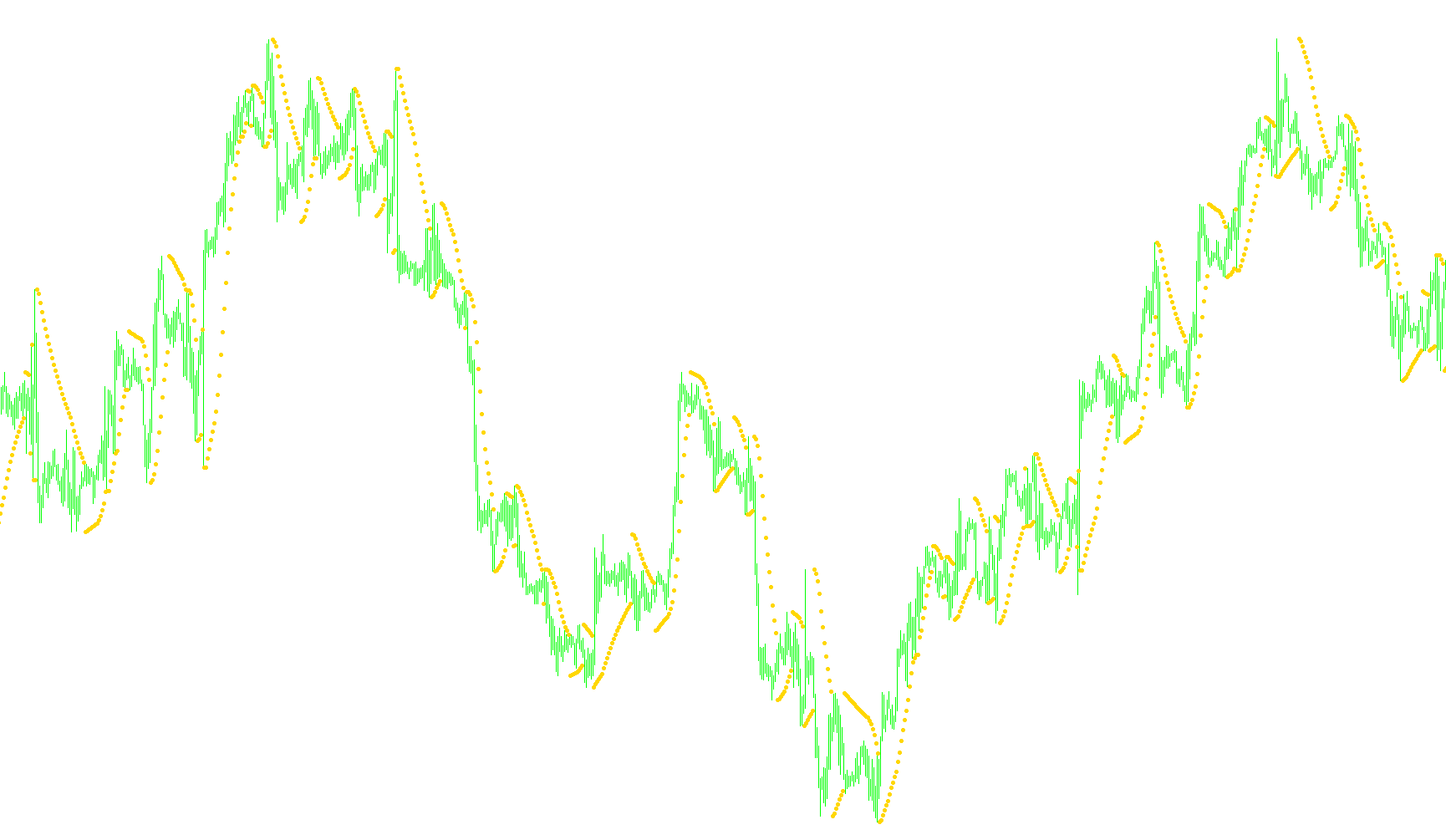

This script functions as a specialized technical analysis tool designed to identify potential trend reversals and momentum shifts on a trading chart. It provides visual cues that help traders understand whether the market is currently in an upward or downward phase and at what point that direction might be changing.
Core Operational Logic
The system operates by tracking the "momentum" of price movements over time. Rather than just looking at current prices, it maintains a memory of significant highs and lows to calculate a dynamic trailing value (the Parabolic SAR line).
1. Trend Identification The script constantly monitors the relationship between the current market price and its calculated trailing value. It distinguishes between two primary states:
- Long Direction: When the price is moving above the indicator, suggesting an upward trend.
- Short Direction: When the price is moving below the indicator, suggesting a downward trend.
2. Dynamic Acceleration
A key feature of this logic is its ability to "accelerate." As a trend continues consistently in one direction without hitting new extremes, the script adjusts its sensitivity (the Step and Maximum parameters). This allows the indicator to move closer to the price during strong trends, making it more responsive to sudden changes. Conversely, when a reversal occurs, the acceleration resets, allowing the tool to stabilize as it enters the new trend.
3. Reversal Detection and Signaling The logic is designed to trigger a "reversal" signal based on specific breach conditions:
- In an Uptrend: If the price drops below the established trailing value, the script recognizes a potential shift to a downtrend.
- In a Downtrend: If the price climbs above the established trailing value, it recognizes a potential shift to an uptrend.
When these breaches occur, the script captures the most recent significant high or low and places a visual marker on the chart. These markers serve as clear indicators for traders, highlighting the exact point where the trend logic shifted from one direction to another.
Summary for the User
Essentially, this tool acts as a smart trailing boundary. It follows the price closely during active moves, speeds up its reaction during strong trends to stay relevant, and automatically resets its calculations the moment the price "breaks" through that boundary. It provides a visual roadmap of market structure by marking the transition points between bullish and bearish movements.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| Parabolic.mq4 |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net/"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Lime
//---- input parameters
extern double Step=0.02;
extern double Maximum=0.2;
//---- buffers
double SarBuffer[];
//----
int save_lastreverse;
bool save_dirlong;
double save_start;
double save_last_high;
double save_last_low;
double save_ep;
double save_sar;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
IndicatorDigits(Digits);
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,159);
SetIndexBuffer(0,SarBuffer);
//----
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void SaveLastReverse(int last,int dir,double start,double low,double high,double ep,double sar)
{
save_lastreverse=last;
save_dirlong=dir;
save_start=start;
save_last_low=low;
save_last_high=high;
save_ep=ep;
save_sar=sar;
}
//+------------------------------------------------------------------+
//| Parabolic Sell And Reverse system |
//+------------------------------------------------------------------+
int start()
{
static bool first=true;
bool dirlong;
double start,last_high,last_low;
double ep,sar,price_low,price_high,price;
int i,counted_bars=IndicatorCounted();
//----
if(Bars<3) return(0);
//---- initial settings
i=Bars-2;
if(counted_bars==0 || first)
{
first=false;
dirlong=true;
start=Step;
last_high=-10000000.0;
last_low=10000000.0;
while(i>0)
{
save_lastreverse=i;
price_low=Low[i];
if(last_low>price_low) last_low=price_low;
price_high=High[i];
if(last_high<price_high) last_high=price_high;
if(price_high>High[i+1] && price_low>Low[i+1]) break;
if(price_high<High[i+1] && price_low<Low[i+1]) { dirlong=false; break; }
i--;
}
//---- initial zero
int k=i;
while(k<Bars)
{
SarBuffer[k]=0.0;
k++;
}
//---- check further
if(dirlong) { SarBuffer[i]=Low[i+1]; ep=High[i]; }
else { SarBuffer[i]=High[i+1]; ep=Low[i]; }
i--;
}
else
{
i=save_lastreverse+1;
start=save_start;
dirlong=save_dirlong;
last_high=save_last_high;
last_low=save_last_low;
ep=save_ep;
sar=save_sar;
}
//----
while(i>=0)
{
price_low=Low[i];
price_high=High[i];
//--- check for reverse
if(dirlong && price_low<SarBuffer[i+1])
{
SaveLastReverse(i,true,start,price_low,last_high,ep,sar);
start=Step; dirlong=false;
ep=price_low; last_low=price_low;
SarBuffer[i]=last_high;
i--;
continue;
}
if(!dirlong && price_high>SarBuffer[i+1])
{
SaveLastReverse(i,false,start,last_low,price_high,ep,sar);
start=Step; dirlong=true;
ep=price_high; last_high=price_high;
SarBuffer[i]=last_low;
i--;
continue;
}
//---
price=SarBuffer[i+1];
sar=price+start*(ep-price);
if(dirlong)
{
if(ep<price_high && (start+Step)<=Maximum) start+=Step;
if(price_high<High[i+1] && i==Bars-2) sar=SarBuffer[i+1];
price=Low[i+1];
if(sar>price) sar=price;
price=Low[i+2];
if(sar>price) sar=price;
if(sar>price_low)
{
SaveLastReverse(i,true,start,price_low,last_high,ep,sar);
start=Step; dirlong=false; ep=price_low;
last_low=price_low;
SarBuffer[i]=last_high;
i--;
continue;
}
if(ep<price_high) { last_high=price_high; ep=price_high; }
}
else
{
if(ep>price_low && (start+Step)<=Maximum) start+=Step;
if(price_low<Low[i+1] && i==Bars-2) sar=SarBuffer[i+1];
price=High[i+1];
if(sar<price) sar=price;
price=High[i+2];
if(sar<price) sar=price;
if(sar<price_high)
{
SaveLastReverse(i,false,start,last_low,price_high,ep,sar);
start=Step; dirlong=true; ep=price_high;
last_high=price_high;
SarBuffer[i]=last_low;
i--;
continue;
}
if(ep>price_low) { last_low=price_low; ep=price_low; }
}
SarBuffer[i]=sar;
i--;
}
// sar=SarBuffer[0];
// price=iSAR(NULL,0,Step,Maximum,0);
// if(sar!=price) Print("custom=",sar," SAR=",price," counted=",counted_bars);
// if(sar==price) Print("custom=",sar," SAR=",price," counted=",counted_bars);
//----
return(0);
}
//+------------------------------------------------------------------+
