Parabolic
Download script
This script is a specialized technical analysis tool designed to identify trend reversals in financial markets. It functions by calculating and plotting a dynamic "Parabolic" indicator, which serves as a visual guide to help traders understand the direction of current price movements and pinpoint where those movements might change.
Core Logic Overview
The primary goal of this script is to track the momentum of price action and project a trailing line that adapts based on recent highs and lows. Instead of following the price exactly, it maintains a specific distance from the peak or trough of a trend. This allows traders to see whether the market is currently in a bullish (upward) or bearish (downward) phase.
How the System Works
1. Trend Identification The script constantly monitors the history of price bars to determine the initial direction of a trend. It looks for specific patterns—specifically, when prices consistently break above previous highs or fall below previous lows—to decide whether the current movement is upward or downward.
2. Dynamic Acceleration (The "Parabolic" Effect) A key feature of this logic is its ability to accelerate. As a trend continues without hitting a reversal point, the script increases its sensitivity.
- In an upward trend, it tracks the highest points reached and calculates a trailing line that stays below the price.
- In a downward trend, it tracks the lowest points reached and calculates a trailing line that stays above the price. The "Step" and "Maximum" settings control how quickly this trailing line reacts to new data; the more aggressive the trend, the faster the indicator "curves" toward the current price.
3. Reversal Detection The script is designed to trigger a "Reverse" signal when the price crosses this calculated trailing line:
- Bullish to Bearish: If the price is moving up but then drops below the trailing line, the script recognizes a potential trend change to a sell state.
- Bearish to Bullish: If the price is moving down but then climbs above the trailing line, the script recognizes a potential trend change to a buy state.

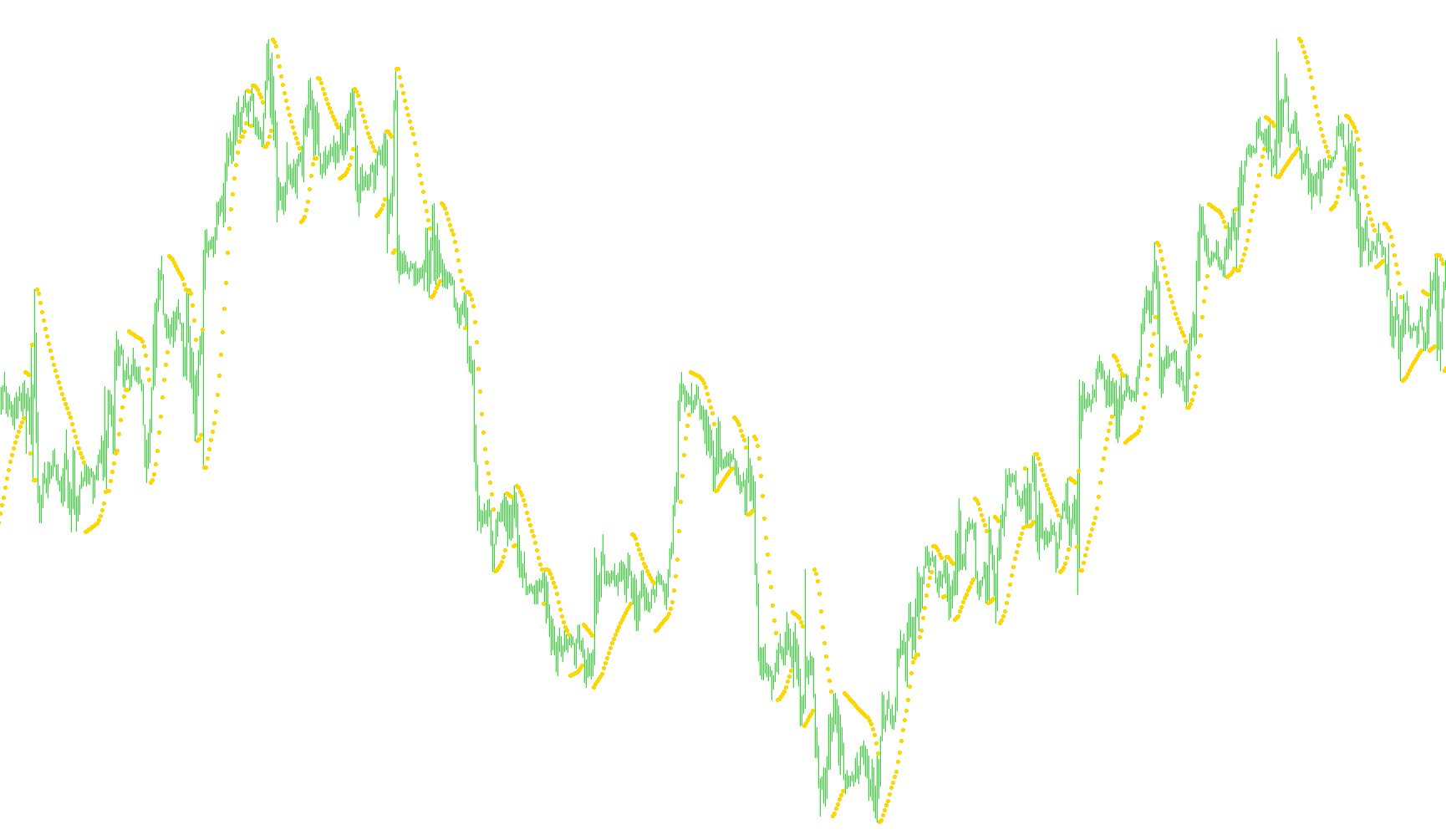

4. Visual Output Rather than just drawing a continuous line that might clutter the chart, this specific version marks these reversal points clearly. When a reversal is detected, it records the specific coordinates and places an arrow on the chart. This provides a clear, "at-a-glance" signal for traders to identify where the trend has officially shifted.
Summary for Users
Essentially, this tool automates the complex math of tracking market highs and lows to find the "breaking point" of a trend. It acts as a filter, helping you ignore minor price fluctuations while highlighting significant moments where the market momentum shifts from one direction to another.
//+------------------------------------------------------------------+
//| Parabolic.mq4 |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net/"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Lime
//---- input parameters
extern double Step=0.02;
extern double Maximum=0.2;
//---- buffers
double SarBuffer[];
//----
int save_lastreverse;
bool save_dirlong;
double save_start;
double save_last_high;
double save_last_low;
double save_ep;
double save_sar;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,159);
SetIndexBuffer(0,SarBuffer);
//----
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void SaveLastReverse(int last,int dir,double start,double low,double high,double ep,double sar)
{
save_lastreverse=last;
save_dirlong=dir;
save_start=start;
save_last_low=low;
save_last_high=high;
save_ep=ep;
save_sar=sar;
}
//+------------------------------------------------------------------+
//| Parabolic Sell And Reverse system |
//+------------------------------------------------------------------+
int start()
{
static bool first=true;
bool dirlong;
double start,last_high,last_low;
double ep,sar,price_low,price_high,price;
int i,counted_bars=IndicatorCounted();
//----
if(Bars<3) return(0);
//---- initial settings
i=Bars-2;
if(counted_bars==0 || first)
{
first=false;
dirlong=true;
start=Step;
last_high=-10000000.0;
last_low=10000000.0;
while(i>0)
{
save_lastreverse=i;
price_low=Low[i];
if(last_low>price_low) last_low=price_low;
price_high=High[i];
if(last_high<price_high) last_high=price_high;
if(price_high>High[i+1] && price_low>Low[i+1]) break;
if(price_high<High[i+1] && price_low<Low[i+1]) { dirlong=false; break; }
i--;
}
//---- initial zero
int k=i;
while(k<Bars)
{
SarBuffer[k]=0.0;
k++;
}
//---- check further
if(dirlong) { SarBuffer[i]=Low[i+1]; ep=High[i]; }
else { SarBuffer[i]=High[i+1]; ep=Low[i]; }
i--;
}
else
{
i=save_lastreverse;
start=save_start;
dirlong=save_dirlong;
last_high=save_last_high;
last_low=save_last_low;
ep=save_ep;
sar=save_sar;
}
//----
while(i>=0)
{
price_low=Low[i];
price_high=High[i];
//--- check for reverse
if(dirlong && price_low<SarBuffer[i+1])
{
SaveLastReverse(i,true,start,price_low,last_high,ep,sar);
start=Step; dirlong=false;
ep=price_low; last_low=price_low;
SarBuffer[i]=last_high;
i--;
continue;
}
if(!dirlong && price_high>SarBuffer[i+1])
{
SaveLastReverse(i,false,start,last_low,price_high,ep,sar);
start=Step; dirlong=true;
ep=price_high; last_high=price_high;
SarBuffer[i]=last_low;
i--;
continue;
}
//---
price=SarBuffer[i+1];
sar=price+start*(ep-price);
if(dirlong)
{
if(ep<price_high && (start+Step)<=Maximum) start+=Step;
if(price_high<High[i+1] && i==Bars-2) sar=SarBuffer[i+1];
price=Low[i+1];
if(sar>price) sar=price;
price=Low[i+2];
if(sar>price) sar=price;
if(sar>price_low)
{
SaveLastReverse(i,true,start,price_low,last_high,ep,sar);
start=Step; dirlong=false; ep=price_low;
last_low=price_low;
SarBuffer[i]=last_high;
i--;
continue;
}
if(ep<price_high) { last_high=price_high; ep=price_high; }
}
else
{
if(ep>price_low && (start+Step)<=Maximum) start+=Step;
if(price_low<Low[i+1] && i==Bars-2) sar=SarBuffer[i+1];
price=High[i+1];
if(sar<price) sar=price;
price=High[i+2];
if(sar<price) sar=price;
if(sar<price_high)
{
SaveLastReverse(i,false,start,last_low,price_high,ep,sar);
start=Step; dirlong=true; ep=price_high;
last_high=price_high;
SarBuffer[i]=last_low;
i--;
continue;
}
if(ep>price_low) { last_low=price_low; ep=price_low; }
}
SarBuffer[i]=sar;
i--;
}
// sar=SarBuffer[0];
// price=iSAR(NULL,0,Step,Maximum,0);
// if(sar!=price) Print("custom=",sar," SAR=",price," counted=",counted_bars);
// if(sar==price) Print("custom=",sar," SAR=",price," counted=",counted_bars);
//----
return(0);
}
//+------------------------------------------------------------------+
