Parabolic_v1
Download scriptThis script functions as a specialized technical analysis tool designed to identify momentum shifts and potential trend reversals in financial markets. It works by calculating a dynamic "Stop and Reverse" (SAR) value, which acts as a trailing benchmark that follows the price action.
Core Logic Overview
The primary objective of this logic is to determine whether the market is currently in an upward or downward trend and to provide a specific visual signal whenever that trend breaks. It achieves this through three main processes:
1. Trend Identification and Memory When the script first runs, it analyzes historical price data to establish a starting point. It determines whether the initial momentum was bullish (upward) or bearish (downward). By "remembering" the highest highs and lowest lows since the last trend change, the script can accurately measure how far the price has moved in its current direction.
2. Dynamic Calculation (The Acceleration Factor) The logic uses a unique acceleration mechanism. As the price moves favorably in the direction of the current trend, the calculation becomes more sensitive (it "speeds up"). This is controlled by two primary parameters:
- Step: The amount the calculation accelerates with each new move.
- Maximum: The limit at which the acceleration stops to prevent the signal from becoming too erratic.
The script constantly recalculates a value based on the distance between the current price and the extreme point (the highest high or lowest low) of the active trend.
3. Reversal Detection The system monitors every new price candle for two specific conditions:
- Trend Flip: If the price penetrates the calculated benchmark in the opposite direction, the script immediately recognizes a trend reversal. It then resets its acceleration markers and switches its focus to the new direction.
- Safety Buffer: The logic includes secondary checks to ensure that if the calculated value ever moves ahead of the actual market price (which could happen during extreme volatility), it is forced to "stick" to the price, ensuring the signal remains valid and grounded in current market reality.

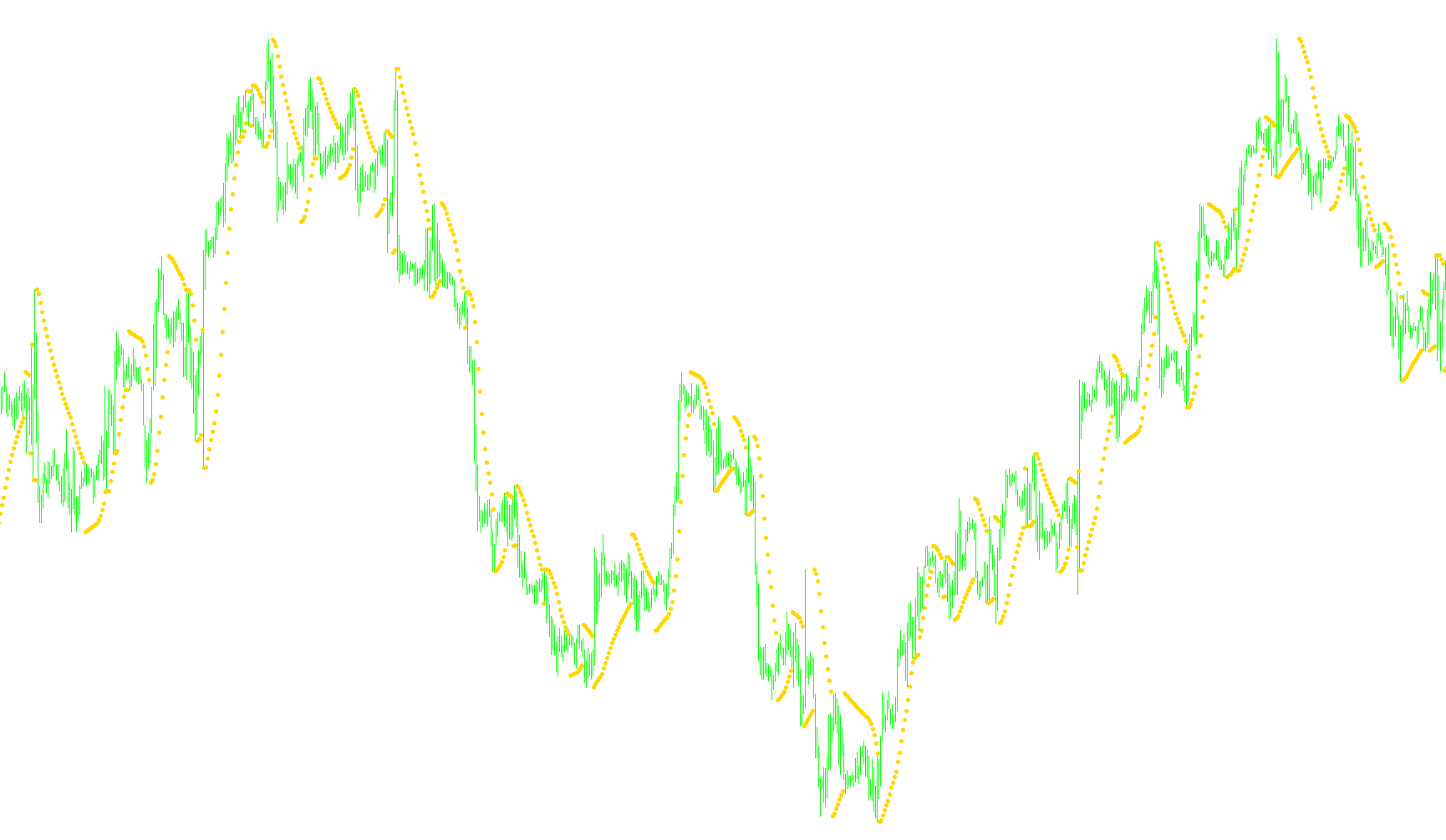

Visual Output
For the user, this logic translates into a series of visual markers on the chart. Instead of a continuous line, it focuses on the specific moments where the trend flips. When the script detects that the momentum has shifted from up to down (or vice versa), it places a signal at that exact point, helping traders identify potential entry or exit zones based on the change in market direction.
//+------------------------------------------------------------------+
//| Parabolic.mq4 |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net/"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Lime
//---- input parameters
extern double Step=0.02;
extern double Maximum=0.2;
//---- buffers
double SarBuffer[];
//----
int save_lastreverse;
bool save_dirlong;
double save_start;
double save_last_high;
double save_last_low;
double save_ep;
double save_sar;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
IndicatorDigits(Digits);
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,159);
SetIndexBuffer(0,SarBuffer);
//----
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void SaveLastReverse(int last,int dir,double start,double low,double high,double ep,double sar)
{
save_lastreverse=last;
save_dirlong=dir;
save_start=start;
save_last_low=low;
save_last_high=high;
save_ep=ep;
save_sar=sar;
}
//+------------------------------------------------------------------+
//| Parabolic Sell And Reverse system |
//+------------------------------------------------------------------+
int start()
{
static bool first=true;
bool dirlong;
double start,last_high,last_low;
double ep,sar,price_low,price_high,price;
int i,counted_bars=IndicatorCounted();
//----
if(Bars<3) return(0);
//---- initial settings
i=Bars-2;
if(counted_bars==0 || first)
{
first=false;
dirlong=true;
start=Step;
last_high=-10000000.0;
last_low=10000000.0;
while(i>0)
{
save_lastreverse=i;
price_low=Low[i];
if(last_low>price_low) last_low=price_low;
price_high=High[i];
if(last_high<price_high) last_high=price_high;
if(price_high>High[i+1] && price_low>Low[i+1]) break;
if(price_high<High[i+1] && price_low<Low[i+1]) { dirlong=false; break; }
i--;
}
//---- initial zero
int k=i;
while(k<Bars)
{
SarBuffer[k]=0.0;
k++;
}
//---- check further
if(dirlong) { SarBuffer[i]=Low[i+1]; ep=High[i]; }
else { SarBuffer[i]=High[i+1]; ep=Low[i]; }
i--;
}
else
{
i=save_lastreverse+1;
start=save_start;
dirlong=save_dirlong;
last_high=save_last_high;
last_low=save_last_low;
ep=save_ep;
sar=save_sar;
}
//----
while(i>=0)
{
price_low=Low[i];
price_high=High[i];
//--- check for reverse
if(dirlong && price_low<SarBuffer[i+1])
{
SaveLastReverse(i,true,start,price_low,last_high,ep,sar);
start=Step; dirlong=false;
ep=price_low; last_low=price_low;
SarBuffer[i]=last_high;
i--;
continue;
}
if(!dirlong && price_high>SarBuffer[i+1])
{
SaveLastReverse(i,false,start,last_low,price_high,ep,sar);
start=Step; dirlong=true;
ep=price_high; last_high=price_high;
SarBuffer[i]=last_low;
i--;
continue;
}
//---
price=SarBuffer[i+1];
sar=price+start*(ep-price);
if(dirlong)
{
if(ep<price_high && (start+Step)<=Maximum) start+=Step;
if(price_high<High[i+1] && i==Bars-2) sar=SarBuffer[i+1];
price=Low[i+1];
if(sar>price) sar=price;
price=Low[i+2];
if(sar>price) sar=price;
if(sar>price_low)
{
SaveLastReverse(i,true,start,price_low,last_high,ep,sar);
start=Step; dirlong=false; ep=price_low;
last_low=price_low;
SarBuffer[i]=last_high;
i--;
continue;
}
if(ep<price_high) { last_high=price_high; ep=price_high; }
}
else
{
if(ep>price_low && (start+Step)<=Maximum) start+=Step;
if(price_low<Low[i+1] && i==Bars-2) sar=SarBuffer[i+1];
price=High[i+1];
if(sar<price) sar=price;
price=High[i+2];
if(sar<price) sar=price;
if(sar<price_high)
{
SaveLastReverse(i,false,start,last_low,price_high,ep,sar);
start=Step; dirlong=true; ep=price_high;
last_high=price_high;
SarBuffer[i]=last_low;
i--;
continue;
}
if(ep>price_low) { last_low=price_low; ep=price_low; }
}
SarBuffer[i]=sar;
i--;
}
// sar=SarBuffer[0];
// price=iSAR(NULL,0,Step,Maximum,0);
// if(sar!=price) Print("custom=",sar," SAR=",price," counted=",counted_bars);
// if(sar==price) Print("custom=",sar," SAR=",price," counted=",counted_bars);
//----
return(0);
}
//+------------------------------------------------------------------+
