NeuroProba[1]
Download scriptThis script implements a custom Artificial Neural Network (ANN) designed to analyze financial market trends. Instead of using static formulas, it uses "learning" logic to attempt to predict market movements based on historical data provided by external technical indicators.
Core Logic Overview
1. Data Collection and Normalization The system begins by looking at a specific window of historical price data (the "training set"). It calculates the difference between the current closing price and the prices of the previous nine bars. To ensure that these values don't overwhelm the network with large numbers, the script "normalizes" them—essentially scaling them down so they all exist on a consistent mathematical scale.
2. The "Teacher" (Target Goals) The script identifies what it is trying to learn by using an external indicator called "Kaufman2."
- If the Kaufman indicator signals a specific upward movement, the "Teacher" tells the network the correct answer is 1.
- If it signals a downward movement, the "Teacher" tells the network the correct answer is -1.
3. The Neural Network Structure The script constructs a multi-layered neural network:
- Input Layer: Takes the nine normalized price differences.
- Hidden Layer: Processes these inputs through a set of internal "weights" (connections). These weights determine how much importance is given to each piece of price data.
- Output Layer: Produces a final value that represents the network's prediction.
4. The Learning Process (Backpropagation)
This is the most complex part of the script. It runs a loop (defined by the StudyNumber parameter) where the network "practices":
- It takes a piece of historical data and makes a guess.
- It compares that guess to the "Teacher's" answer.
- It calculates the Error (the difference between the guess and the truth).
- Using a mathematical method called "Gradient Descent," it goes backward through the network and slightly adjusts the internal weights to reduce the error for the next time it sees that data. It uses a "Sigmoid" function to keep these outputs within a smooth, manageable range.
5. Real-Time Execution Once the training is finished, the script switches to real-time mode. For every new bar that appears on the chart:
- It gathers the latest 9 price differences.
- It feeds them through the now-optimized "weights" calculated during the training phase.

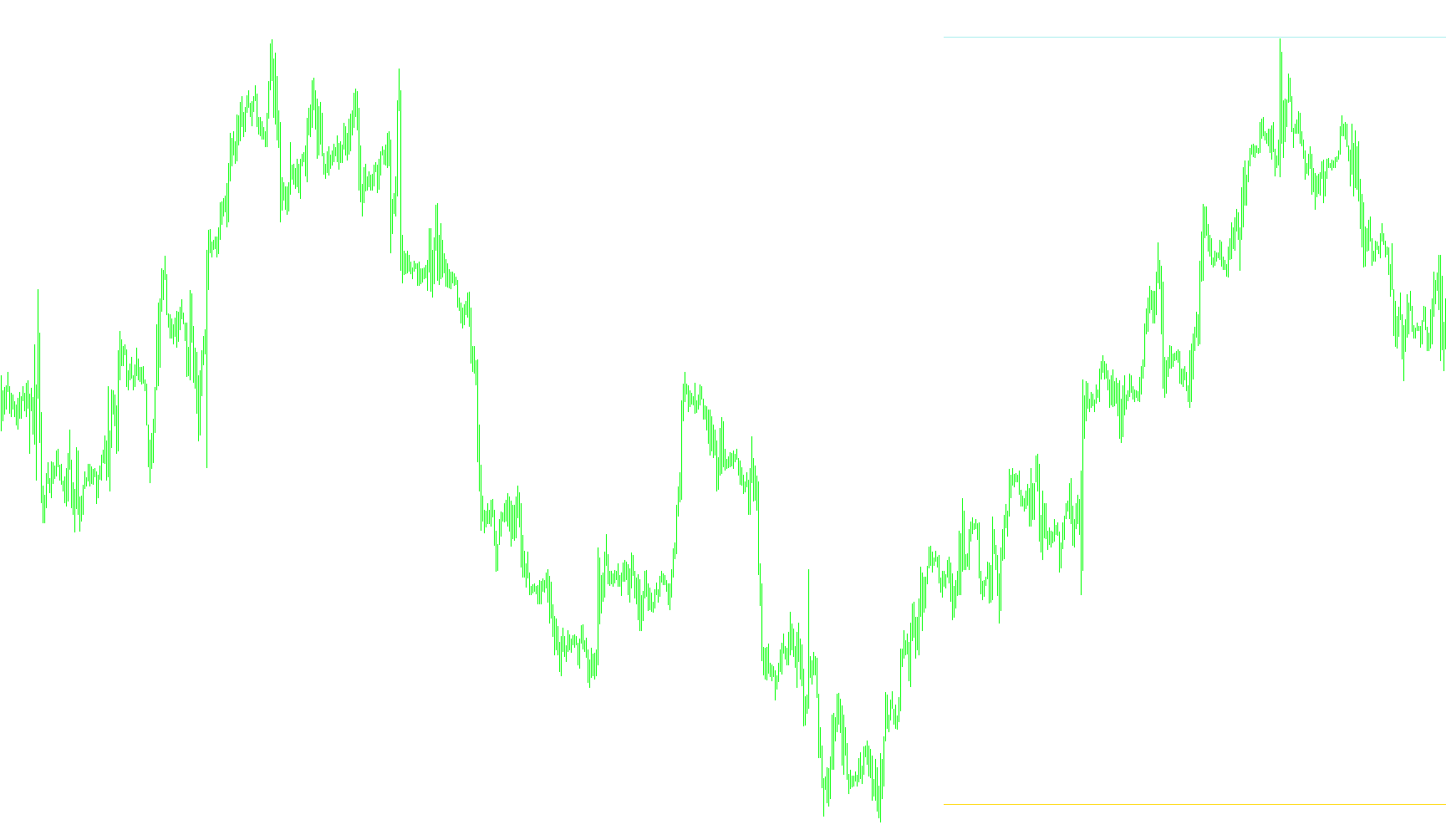

- It produces a final result (the Prediction) and displays it on the chart.
- Simultaneously, it calculates the live error to show how accurately the network is currently performing compared to the current market movement.
Summary for the User
In short, this script doesn't just follow a fixed rule. It looks at historical price changes, "studies" them against an existing indicator (Kaufman2) to see what happened in the past, adjusts its internal settings to minimize mistakes, and then uses that refined logic to predict current market trends.
//+------------------------------------------------------------------+
//| NeuroProba.mq4 |
//| Copyright © 2005, MetaQuotes Software Corp. |
//| http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net"
//----
#property indicator_separate_window
#property indicator_buffers 3
#property indicator_color1 Green
#property indicator_color2 Blue
#property indicator_color3 Red
//---- input parameters
extern int BeginBar=300; // íà÷àëüíûé áàð â îáó÷àþùåé âûáîðêå
extern int EndBar=201; // êîíå÷íûé áàð â îáó÷àþùåé âûáîðêå
extern int StudyNumber=100; // êîëè÷åñòâî îáó÷àþùèõ öèêëîâ
extern double Betta=0.5; // êðóòèçíà ñèãìîèäàëüíîé ôóíêöèè
extern double StudyCoeff=0.1; // êîýôôèöèåíò îáó÷åíèÿ
extern double MaxRandom=0.66;//2.0/MathSqrt(9);
//---- buffers
double NeuroExitBuffer[]; // âûõîäíûå çíà÷åíèÿ íåéðîñåòè
double TeacherBuffer[]; // ýòàëîííûå çíà÷åíèÿ íåéðîñåòè (îáó÷àþùèå ñèãíàëû)
double ErrorBuffer[]; // îòêëîíåíèÿ íà êàæäîì áàðå
//----
double deviation; // îòêëîíåíèå íà êàæäîì øàãå îáó÷åíèÿ
double GradientFirstLay[9][9];// äëÿ ðàñ÷åòà ãðàäèåíòà 1-ãî ñëîÿ
double GradientSecondLay[9]; // äëÿ ðàñ÷åòà ãðàäèåíòà 2-ãî ñëîÿ
double OutputFirstLay[9]; // ñóììà âûõîäà êàæäîãî íåéðîíà
double SecondSum;// ñóììà âûõîäíîãî ñëîÿ - àðãóìåíò ñèãìîèäàëüíîé ôóíêöèè
double FirstLayWeights[9][9]; // âåñà íåéðîíîâ ïåðâîãî (ñêðûòîãî ñëîÿ)
double OutputSecondWeights[9]; // âåñà âûõîäíîãî íåéðîíà
double InputNormalX[100][9]; // íîðìàëèçîâàííàÿ âûáîðêà âõîäíûõ ñèãíàëîâ
double InputX[9]; // òåêóùèé âõîäíîé âåêòîð (íåíîðìàëèçîâàííûé)
double Normà;// íîðìà òåêóùåãî âõîäíîãî âåêòîðà
double U_First[9];// çíà÷åíèÿ íà âûõîäå ñëîÿ ñêðûòûõ (âõîäíûõ) íåéðîíîâ
double U_Second;// çíà÷åíèå íà âûõîäå âûõîäíîãî íåéðîíà (àðãóìåíò ñèãìîèäàëüíîé ôóíêöèè)
double SigmaCurr;
double Differ;
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
double NormalRand(double MaxValue=1.0)
{
double answer;
answer=MathRand()/32767.0;
answer=MaxValue*answer;
return(answer);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
double Sigma(double argument)
{
double help;
help=(MathExp(argument)-MathExp(-argument))/(MathExp(argument)+MathExp(-argument));
return(help);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
double GetArgument()
{
int j;
double answer=0.0;
for(j=0;j<9;j++)
{
answer=answer+OutputSecondWeights[j]*OutputFirstLay[j];
}
return(answer);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void GetFirstLayOutput()
{
int j,t;
for(j=0;j<9;j++)
{
OutputFirstLay[j]=0.0;
for(t=0;t<9;t++)
{
OutputFirstLay[j]=OutputFirstLay[j]+FirstLayWeights[j,t]*InputX[t];
}
}
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void SetGradientWeights()
{
int j,t;
for(j=0;j<9;j++)
{
//GradientFirstLay[j,t]=0.0;
for(t=0;t<9;t++)
{
GradientFirstLay[j,t]=OutputSecondWeights[j]*InputX[t]*deviation*Differ;
//GradientFirstLay[j,t]=GradientFirstLay[j,t]+OutputSecondWeights[j]*InputX[t];
}
//GradientFirstLay[j,t]=GradientFirstLay[j,t]*deviation*Differ;
GradientSecondLay[j]=OutputFirstLay[j]*deviation*Differ;
}
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void ChangeWeigts()
{
int i,k;
for(i=0;i<9;i++)
{
for(k=0;k<9;k++)
{
FirstLayWeights[i,k]=FirstLayWeights[i,k]-StudyCoeff*GradientFirstLay[i,k];
}
OutputSecondWeights [i]=OutputSecondWeights [i]-StudyCoeff*GradientSecondLay[i];// èçìåíåíèå âåñîâ âûõîäíîãî íåéðîíà
}
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void PrintWeights()
{
int i,k;
for(i=0;i<9;i++)
{
for(k=0;k<9;k++)
{
// Print("W1["+i+","+k+"]=",FirstLayWeights[i,k]);
}
// Print("W2["+i+"]=",OutputSecondWeights[i]);
}
}
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,NeuroExitBuffer);
SetIndexStyle(1,DRAW_LINE);
SetIndexBuffer(1,TeacherBuffer);
SetIndexStyle(2,DRAW_LINE);
SetIndexBuffer(2,ErrorBuffer);
SetIndexLabel(0,"Answer");
SetIndexLabel(1,"Teacher");
SetIndexLabel(2,"Error");
ArrayInitialize(NeuroExitBuffer,0.0);
ArrayInitialize(TeacherBuffer,0.0);
ArrayInitialize(ErrorBuffer,0.0);
//----
int i,k,m,n,p; // m - èíäåêñ âåñîâ âûõîäíîãî íåéðîíà, p - ñ÷åò÷èê öèêëà îáó÷åíèÿ
for(i=BeginBar;i>=EndBar;i--)
{
Normà=0.0;
for(k=0;k<=8;k++)
{InputX[k]=Close[i]-Close[i+k+1];
Normà=Normà+InputX[k]*InputX[k];
}
Normà=MathSqrt(Normà);
for(k=0;k<=8;k++)
{
InputNormalX[BeginBar-i,k]=InputX[k]/Normà;
TeacherBuffer[BeginBar-i]=0.0;
if (iCustom(NULL,0,"Kaufman2",1,i)>0) TeacherBuffer[BeginBar-i]=1;
if (iCustom(NULL,0,"Kaufman2",2,i)>0) TeacherBuffer[BeginBar-i]=-1;
//TeacherBuffer[BeginBar-i]=iCustom(NULL,0,"KaufmanTrend",0,BeginBar);
}
}
MathSrand(LocalTime());
//----
for(i=0;i<9;i++)
{
for(k=0;k<9;k++)
{
FirstLayWeights[i,k]=NormalRand(MaxRandom);
// Print("FirstLayWeights["+i+","+k+"]=",FirstLayWeights[i,k]);
}
OutputSecondWeights[i]=NormalRand(MaxRandom);
}
PrintWeights();
// Print("Sigma=",Sigma(NormalRand()));
Print("initialization finished");//Èíèöèàëèçàöèÿ çàêîí÷åíà
//----
for(p=1;p<=StudyNumber;p++) // öèêë îáó÷åíèÿ - p-íîìåð îáó÷åíèÿ
{
for(n=0;n<100;n++) // ïðîõîä ïî âûáîðêå âõîäíûõ ñèãíàëîâ - n-íîìåð îáó÷àþùåãî ñèãíàëà
{
for(int z=0;z<9;z++) InputX[z]=InputNormalX[n,z]; // çàïîëíèì âõîäíîé âåêòîð èç ìàññèâà ïîäãîòîâëåííûõ íîðìàëèçîâàííûõ âåêòîðîâ
GetFirstLayOutput();
U_Second=GetArgument();
Print("p=",p," n=",n," U_Second=",U_Second);
PrintWeights();
SigmaCurr=Sigma(Betta*U_Second);
Differ=Betta*(1-SigmaCurr*SigmaCurr); // ïðîèçâîäíàÿ îò òàíãåíñà ãèïåðáîëè÷åñêîãî
deviation=TeacherBuffer[BeginBar-n]-SigmaCurr; //îøèáêà ïîëó÷åíà, òåïåðü íàäî ïîäêîððåêòèðîâàòü âåñà
SetGradientWeights();
ChangeWeigts();
}// ïðîõîä ïî âûáîðêå âõîäíûõ ñèãíàëîâ
}// öèêë îáó÷åíèÿ
//----
PrintWeights();
Comment("study finished");//Îáó÷åíèå çàêîí÷åíî
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int i,m;
int counted_bars=IndicatorCounted();
if (counted_bars<0) return(-1);
int limit;
//limit=Bars-10-counted_bars;
limit=300;
for(i=limit;i>=0;i--)
{
if (iCustom(NULL,0,"Kaufman2",1,i)>0) TeacherBuffer[i]=1;
if (iCustom(NULL,0,"Kaufman2",2,i)>0) TeacherBuffer[i]=-1;
Normà=0.0;
for(m=0;m<9;m++)
{
InputX[m]=Close[i]-Close[i+m+1];
Normà=Normà+InputX[m]*InputX[m];
}
Normà=MathSqrt(Normà);
Print("Normà=",Normà);
for(m=0;m<9;m++)
{
InputX[m]=InputX[m]/Normà;
}
GetFirstLayOutput();
U_Second=GetArgument();
Print("U_Second=",U_Second);
NeuroExitBuffer[i]=Sigma(Betta*U_Second);
//Print("NeuroExitBuffer["+i+"]=",NeuroExitBuffer[i]);
ErrorBuffer[i]=TeacherBuffer[i]-NeuroExitBuffer[i];
}
//---- TODO: add your code here
//----
return(0);
}
//+------------------------------------------------------------------+
