NeuroProba_v2

This script functions as a custom technical indicator that utilizes a Neural Network to predict market trends based on historical price data. Instead of using simple fixed formulas, it attempts to "learn" patterns by processing data through a multi-layered mathematical structure.

Core Logic Overview

The script operates in two distinct phases: the Training Phase (which happens when you first load the indicator) and the Execution Phase (which occurs as new price data arrives).

1. Data Preparation & Training

Before the indicator can give you any signals, it must go through a learning process:

  • Data Collection: The script looks back at a specific window of historical price bars (defined by your input settings). It calculates the difference between consecutive closing prices to create "input vectors."
  • Normalization: To ensure the math remains stable, the script "normalizes" this data. This means it scales the price movements so that large price swings don't overwhelm smaller ones, ensuring all data points are treated with equal relative importance.
  • The "Teacher": The script uses an external signal (a Kaufman indicator) as its teacher. It looks at where that indicator went in the past and tries to learn how to replicate those movements using its own internal logic.
  • Weight Adjustment: This is the "learning" part. The script creates a network of interconnected weights (neurons). It makes a guess, compares its guess to the "Teacher," calculates the error, and then automatically adjusts its internal weights to reduce that error. This cycle repeats hundreds of times until the network is "trained."

2. Execution & Prediction

Once training is complete, the script moves into real-time operation:

  • Input Processing: For every new candle on your chart, the script takes the most recent price changes and feeds them into the trained neural network.
  • Signal Generation: The network processes these inputs through its hidden layers and produces a final output value.

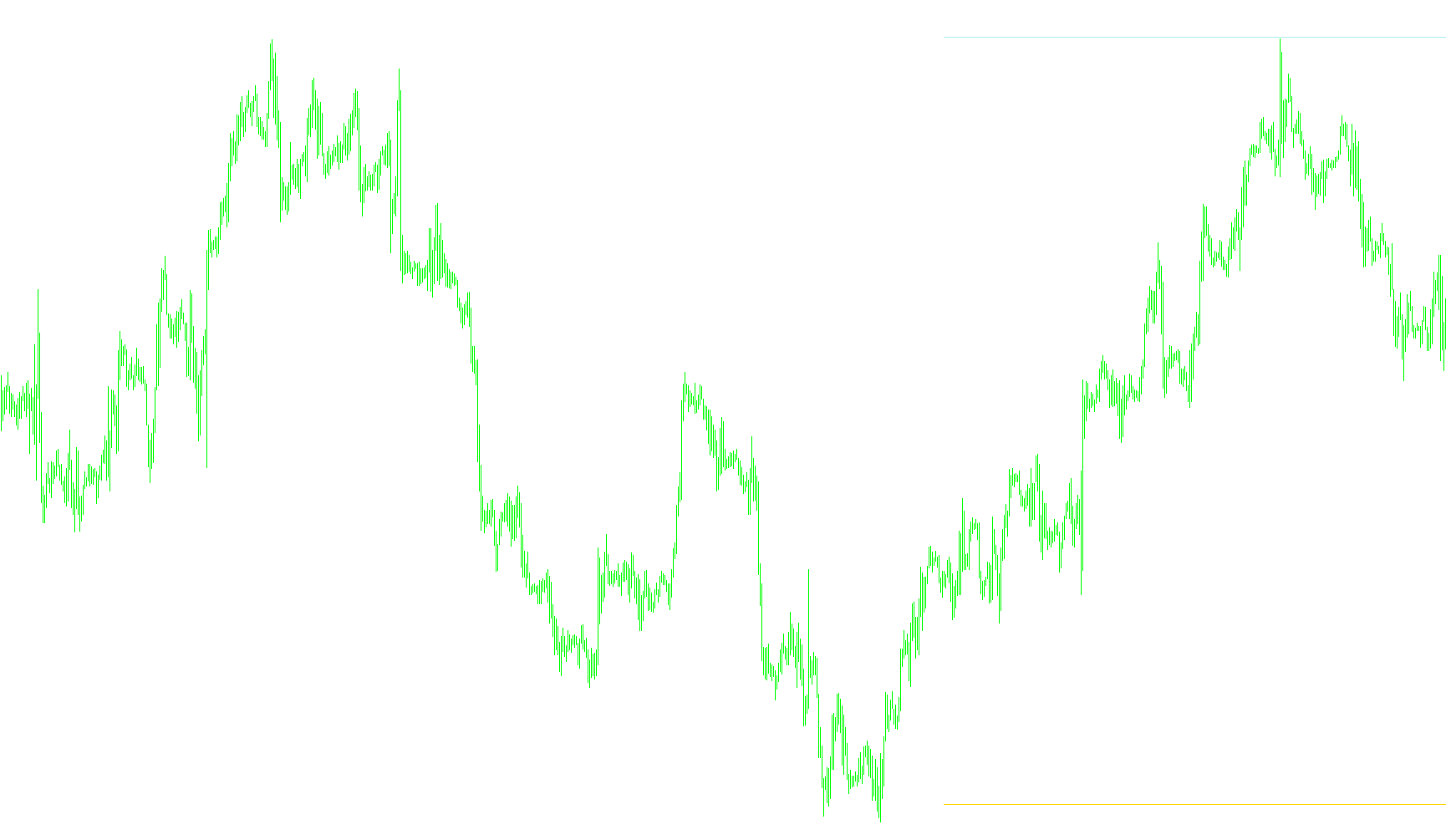

  • Visual Feedback: The result is displayed on your chart in three distinct buffers:
    • Answer: The current prediction made by the neural network.
    • Teacher: The historical signal used for training (to help you see what the model is trying to emulate).
    • Error: A real-time calculation showing the difference between the network's prediction and the teacher's signal.

Summary for the User

Essentially, this tool doesn't just follow a static rule. It looks at a chunk of history, watches what happened there, tries to figure out the "why" behind those movements using a neural network, and then applies that learned logic to current market conditions to provide you with a prediction.

Miscellaneous
Implements a curve of type %1
5 Views
0 Downloads
0 Favorites
NeuroProba_v2
//+------------------------------------------------------------------+
//|                                                   NeuroProba.mq4 |
//|                      Copyright © 2005, MetaQuotes Software Corp. |
//|                                        http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net"
//----
#property indicator_separate_window
#property indicator_buffers 3
#property indicator_color1 Green
#property indicator_color2 Blue
#property indicator_color3 Red
//---- input parameters
extern int       BeginBar=300; // íà÷àëüíûé áàð â îáó÷àþùåé âûáîðêå
extern int       EndBar=201; // êîíå÷íûé áàð â îáó÷àþùåé âûáîðêå
extern int       StudyNumber=100; // êîëè÷åñòâî îáó÷àþùèõ öèêëîâ
extern double    Betta=0.5; // êðóòèçíà ñèãìîèäàëüíîé ôóíêöèè
extern double    StudyCoeff=0.1; // êîýôôèöèåíò îáó÷åíèÿ
extern double    MaxRandom=0.66;//2.0/MathSqrt(9);
//---- buffers
double NeuroExitBuffer[]; // âûõîäíûå çíà÷åíèÿ íåéðîñåòè
double TeacherBuffer[]; // ýòàëîííûå çíà÷åíèÿ íåéðîñåòè (îáó÷àþùèå ñèãíàëû)
double ErrorBuffer[]; // îòêëîíåíèÿ íà êàæäîì áàðå
//----
double deviation; // îòêëîíåíèå íà êàæäîì øàãå îáó÷åíèÿ
double GradientFirstLay[9][9];// äëÿ ðàñ÷åòà ãðàäèåíòà 1-ãî ñëîÿ
double GradientSecondLay[9]; //  äëÿ ðàñ÷åòà ãðàäèåíòà 2-ãî ñëîÿ
double OutputFirstLay[9]; // ñóììà âûõîäà êàæäîãî íåéðîíà
double SecondSum;// ñóììà âûõîäíîãî ñëîÿ - àðãóìåíò ñèãìîèäàëüíîé ôóíêöèè
double FirstLayWeights[9][9]; // âåñà íåéðîíîâ ïåðâîãî (ñêðûòîãî ñëîÿ)
double OutputSecondWeights[9]; // âåñà âûõîäíîãî íåéðîíà
double InputNormalX[100][9]; // íîðìàëèçîâàííàÿ âûáîðêà âõîäíûõ ñèãíàëîâ
double InputX[9]; // òåêóùèé âõîäíîé âåêòîð (íåíîðìàëèçîâàííûé)
double Normà;// íîðìà òåêóùåãî âõîäíîãî âåêòîðà
double U_First[9];// çíà÷åíèÿ íà âûõîäå ñëîÿ ñêðûòûõ (âõîäíûõ) íåéðîíîâ
double U_Second;//  çíà÷åíèå íà âûõîäå âûõîäíîãî íåéðîíà (àðãóìåíò ñèãìîèäàëüíîé ôóíêöèè)
double SigmaCurr;
double Differ;
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
double NormalRand(double MaxValue=1.0)
  {
   double answer;
   answer=MathRand()/32767.0;
   answer=MaxValue*answer;
   return(answer);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
double Sigma(double argument)
  {
   double help;
   help=(MathExp(argument)-MathExp(-argument))/(MathExp(argument)+MathExp(-argument));
   return(help);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
double GetArgument()
  {
   int j;
   double answer=0.0;
   for(j=0;j<9;j++)
     {
      answer=answer+OutputSecondWeights[j]*OutputFirstLay[j];
     }
   return(answer);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void GetFirstLayOutput()
  {
   int j,t;
   for(j=0;j<9;j++)
     {
      OutputFirstLay[j]=0.0;
      for(t=0;t<9;t++)
        {
         OutputFirstLay[j]=OutputFirstLay[j]+FirstLayWeights[j,t]*InputX[t];
        }
     }
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void SetGradientWeights()
  {
   int j,t;
   for(j=0;j<9;j++)
     {
      //GradientFirstLay[j,t]=0.0;
      for(t=0;t<9;t++)
        {
         GradientFirstLay[j,t]=OutputSecondWeights[j]*InputX[t]*deviation*Differ;
         //GradientFirstLay[j,t]=GradientFirstLay[j,t]+OutputSecondWeights[j]*InputX[t];
        }
      //GradientFirstLay[j,t]=GradientFirstLay[j,t]*deviation*Differ;
      GradientSecondLay[j]=OutputFirstLay[j]*deviation*Differ;
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void ChangeWeigts()
  {
   int i,k;
   for(i=0;i<9;i++)
     {
      for(k=0;k<9;k++)
        {
         FirstLayWeights[i,k]=FirstLayWeights[i,k]-StudyCoeff*GradientFirstLay[i,k];
        }
      OutputSecondWeights [i]=OutputSecondWeights [i]-StudyCoeff*GradientSecondLay[i];// èçìåíåíèå âåñîâ âûõîäíîãî íåéðîíà
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void PrintWeights()
  {
   int i,k;
   for(i=0;i<9;i++)
     {
      for(k=0;k<9;k++)
        {
         //         Print("W1["+i+","+k+"]=",FirstLayWeights[i,k]);
        }
      //      Print("W2["+i+"]=",OutputSecondWeights[i]);
     }
  }
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0,DRAW_LINE);
   SetIndexBuffer(0,NeuroExitBuffer);
   SetIndexStyle(1,DRAW_LINE);
   SetIndexBuffer(1,TeacherBuffer);
   SetIndexStyle(2,DRAW_LINE);
   SetIndexBuffer(2,ErrorBuffer);
   SetIndexLabel(0,"Answer");
   SetIndexLabel(1,"Teacher");
   SetIndexLabel(2,"Error");
   ArrayInitialize(NeuroExitBuffer,0.0);
   ArrayInitialize(TeacherBuffer,0.0);
   ArrayInitialize(ErrorBuffer,0.0);
//----
   int i,k,m,n,p; // m - èíäåêñ âåñîâ âûõîäíîãî íåéðîíà, p - ñ÷åò÷èê öèêëà îáó÷åíèÿ
   for(i=BeginBar;i>=EndBar;i--)
     {
      Normà=0.0;
      for(k=0;k<=8;k++)
        {InputX[k]=Close[i]-Close[i+k+1];
         Normà=Normà+InputX[k]*InputX[k];
        }
      Normà=MathSqrt(Normà);
      for(k=0;k<=8;k++)
        {
         InputNormalX[BeginBar-i,k]=InputX[k]/Normà;
         TeacherBuffer[BeginBar-i]=0.0;
         if (iCustom(NULL,0,"Kaufman2",1,i)>0) TeacherBuffer[BeginBar-i]=1;
         if (iCustom(NULL,0,"Kaufman2",2,i)>0) TeacherBuffer[BeginBar-i]=-1;
         //TeacherBuffer[BeginBar-i]=iCustom(NULL,0,"KaufmanTrend",0,BeginBar);
        }
     }
   MathSrand(LocalTime());
//----
   for(i=0;i<9;i++)
     {
      for(k=0;k<9;k++)
        {
         FirstLayWeights[i,k]=NormalRand(MaxRandom);
         //         Print("FirstLayWeights["+i+","+k+"]=",FirstLayWeights[i,k]);
        }
      OutputSecondWeights[i]=NormalRand(MaxRandom);
     }
   PrintWeights();
   //   Print("Sigma=",Sigma(NormalRand()));
   Print("Èíèöèàëèçàöèÿ çàêîí÷åíà");
//----
   for(p=1;p<=StudyNumber;p++) // öèêë îáó÷åíèÿ - p-íîìåð îáó÷åíèÿ
     {
      for(n=0;n<100;n++) // ïðîõîä ïî âûáîðêå âõîäíûõ ñèãíàëîâ -  n-íîìåð îáó÷àþùåãî ñèãíàëà
        {
         for(int z=0;z<9;z++) InputX[z]=InputNormalX[n,z]; // çàïîëíèì âõîäíîé âåêòîð èç ìàññèâà ïîäãîòîâëåííûõ íîðìàëèçîâàííûõ âåêòîðîâ
         GetFirstLayOutput();
         U_Second=GetArgument();
         Print("p=",p," n=",n," U_Second=",U_Second);
         PrintWeights();
         SigmaCurr=Sigma(Betta*U_Second);
         Differ=Betta*(1-SigmaCurr*SigmaCurr); // ïðîèçâîäíàÿ îò òàíãåíñà ãèïåðáîëè÷åñêîãî
         deviation=TeacherBuffer[BeginBar-n]-SigmaCurr; //îøèáêà ïîëó÷åíà, òåïåðü íàäî ïîäêîððåêòèðîâàòü âåñà
         SetGradientWeights();
         ChangeWeigts();
        }// ïðîõîä ïî âûáîðêå âõîäíûõ ñèãíàëîâ
     }// öèêë îáó÷åíèÿ
//----
   PrintWeights();
   Comment("Îáó÷åíèå çàêîí÷åíî");
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//---- TODO: add your code here
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int i,m;
   int counted_bars=IndicatorCounted();
   if (counted_bars<0) return(-1);
   int limit;
   //limit=Bars-10-counted_bars;
   limit=300;
   for(i=limit;i>=0;i--)
     {
      if (iCustom(NULL,0,"Kaufman2",1,i)>0) TeacherBuffer[i]=1;
      if (iCustom(NULL,0,"Kaufman2",2,i)>0) TeacherBuffer[i]=-1;
      Normà=0.0;
      for(m=0;m<9;m++)
        {
         InputX[m]=Close[i]-Close[i+m+1];
         Normà=Normà+InputX[m]*InputX[m];
        }
      Normà=MathSqrt(Normà);
      Print("Normà=",Normà);
      for(m=0;m<9;m++)
        {
         InputX[m]=InputX[m]/Normà;
        }
      GetFirstLayOutput();
      U_Second=GetArgument();
      Print("U_Second=",U_Second);
      NeuroExitBuffer[i]=Sigma(Betta*U_Second);
      //Print("NeuroExitBuffer["+i+"]=",NeuroExitBuffer[i]);
      ErrorBuffer[i]=TeacherBuffer[i]-NeuroExitBuffer[i];
     }
//---- TODO: add your code here
//----
   return(0);
  }
//+------------------------------------------------------------------+
