Mouteki Heart-Mono v1_v2

This script is designed to analyze price action on a trading chart by identifying significant structural turning points and projecting potential future price targets. Instead of relying on standard moving averages or momentum oscillators, it focuses on the "peaks" and "valleys" of the market to determine trend direction and potential exhaustion points.

Core Logic and Functionality

1. Identification of Turning Points (TD Points) The script scans historical price data to find specific high and low points. It looks for instances where a bar's high or low is significantly higher or lower than the bars surrounding it. These are identified as "TD Points." Depending on your settings, you can choose to let the script identify these based on raw price action or based on "Fractals" (a common geometric pattern in trading).

2. Trend Line Construction Once the script identifies a sequence of high and low points, it automatically draws trend lines connecting them:

  • Upper Trend Lines: Connect successive market peaks to visualize the ceiling of the current price movement.
  • Lower Trend Lines: Connect successive market valleys to visualize the floor of the current price movement.

The script creates these lines dynamically, allowing you to customize their colors, thickness, and style (solid, dashed, or dotted) to suit your visual preference.

3. Price Projections (Take Profit Targets) One of the most advanced features of this script is its ability to project future prices. By calculating the angle and distance between two consecutive turning points, the script:

  • Extrapolates the current trend forward.
  • Identifies potential "breakout" levels.
  • Automatically draws projection lines that indicate where the price might travel next based on the current momentum.
  • Calculates specific target values (often referred to as T1) which help traders anticipate where a move might stall or reverse.

4. Automated Alerts and Visual Aids To keep the trader informed without needing to watch the screen constantly, the script includes several automated features:

  • Breakout Alerts: It monitors the current price against the calculated trend lines. If the price closes above an upper trend line or below a lower one, it triggers an audible and visual alert.
  • Horizontal Reference Lines: It can draw horizontal lines at key calculation points where the script predicts the price might experience significant interaction with the trend.

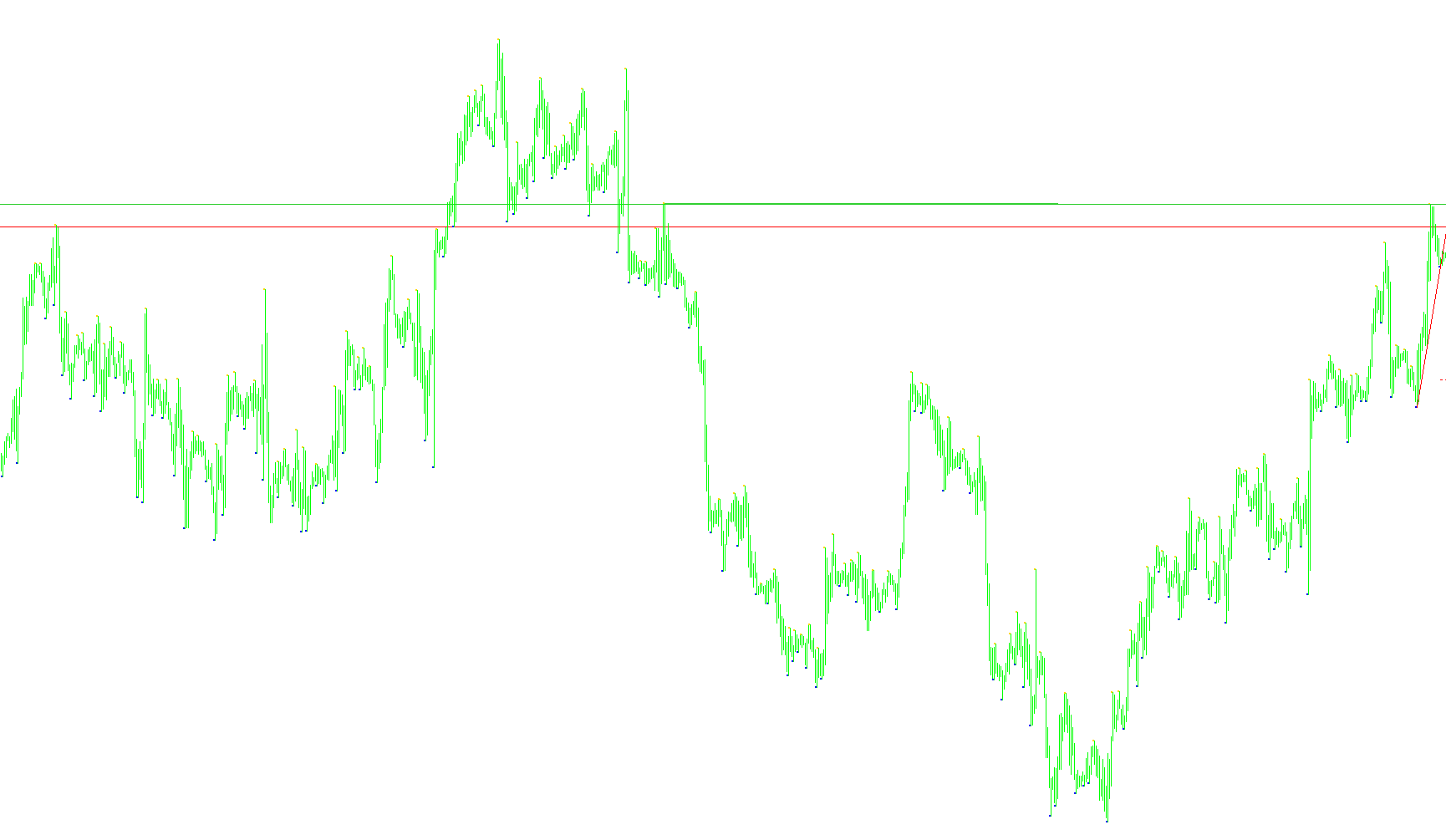

  • On-Screen Commentary: The script provides a text summary on the chart, showing you which steps are being calculated, the specific prices of the detected turning points, and whether it is currently using TD points or Fractals.

Summary for the User

Essentially, this tool acts as an automated "chart drawer." It finds the highs and lows of the market for you, connects them with trend lines to show you the current direction, projects where that direction is likely to lead next, and notifies you immediately if the price breaks through those established boundaries.

Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
13 Views
0 Downloads
0 Favorites
Mouteki Heart-Mono v1_v2
//+------------------------------------------------------------------+
//|                                            Mouteki.mq4           |
//|                                                                  |
//+------------------------------------------------------------------+
#property copyright ""
#property link      ""
//----
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 White /*Original #property indicator_color1 Red. Color of Upper TD Points*/
#property indicator_color2 White /*Original #property indicator_color2 Blue. Color of Lower TD Points*/
//---- input parameters
/* Mod 02: only one step, no back steps, only one target, no fractal trendlines,
no large arrow option for TD points, and added user changable colours and styles*/
/* Mod 03: Alerts Added.  Horizontal Lines indicating where projections start from and
where alerts should be determined from re-enabled with Default of False.*/
/* Mod 03B: Bug where TD Points and TD Lines drawn in wrong place for
double, triple and quadruple tops or bottoms is fixed*/
extern bool      AlertsOn=true; // Line added.  Default is true.
extern bool      Comments=true;/*Optional Comments.  Default is false. Orginal variable called "Commen"*/
extern bool      TrendLine=True;/*Default is true to draw current TD Lines*/
extern int       TrendLineStyle=STYLE_SOLID;/*STYLE>_SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4. Line of code added from original.*/
extern int       TrendLineWidth=1;/*Thinnest or allow dots and dashes = 0 or 1, Thinner=2, Medium=3,Thicker=4,Thickest=5.  Line of code added from original.*/
extern color     UpperTrendLineColour=LimeGreen;/*Line of code added from original.*/
extern color     LowerTrendLineColour=Red;/*Line of code added from original.*/
extern bool      ProjectionLines=True;/*Default is True.  These are the TD Price Projections. Original variable called "Take Prof"*/
extern int       ProjectionLinesStyle=STYLE_DOT;/*STYLE>_SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4. Line of code added from original.*/
extern int       ProjectionLinesWidth=1;/*Thinnest or allow dots and dashes = 0 or 1, Thinner=2, Medium=3,Thicker=4,Thickest=5.  Line of code added from original.*/
extern color     UpperProjectionLineColour=LimeGreen;/*Line of code added from original.*/
extern color     LowerProjectionLineColour=Red;/*Line of code added from original.*/
extern bool      HorizontLine=true;/*Default is false.  It seems the Horizontal Lines are were the code predicts price may cross TD line.*/
//----
bool             TD=False;/*Default is false. True setting draws up and down arrows instead of dots on TD Points creating more clutter.*/
int              BackSteps=0;/*Used to be extern int now just int. Leave at 0*/
int              ShowingSteps=1;/*Used to be extern int now just int.  Leave at 1*/
bool             FractalAsTD=false;/*Used to be extern bool now just bool.  Leave at false, otherwise Trend Lines based on Fractal Points not TD Points*/
double TrendLineBreakUp=-1;//Line added.
bool TrendLineBreakUpFlag=False;//Line added.
double TrendLineBreakDown=-1;//Line added.
bool TrendLineBreakDownFlag=False;//Line added.
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int init()
  {
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,217);
   SetIndexBuffer(0,ExtMapBuffer1);
   SetIndexEmptyValue(0,0.0);
   SetIndexStyle(1,DRAW_ARROW);
   SetIndexArrow(1,218);
   SetIndexBuffer(1,ExtMapBuffer2);
   SetIndexEmptyValue(1,0.0);
   for(int i=1;i<=10;i++)
     {
      ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
      ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
      ObjectDelete("HC1_"+i);
      ObjectDelete("HC2_"+i);
      ObjectDelete("HC3_"+i);
      ObjectDelete("LC1_"+i);
      ObjectDelete("LC2_"+i);
      ObjectDelete("LC3_"+i);
     }
   Comment("");
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int deinit()
  {
   for(int i=1;i<=10;i++)
     {
      ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
      ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
      ObjectDelete("HC1_"+i);
      ObjectDelete("HC2_"+i);
      ObjectDelete("HC3_"+i);
      ObjectDelete("LC1_"+i);
      ObjectDelete("LC2_"+i);
      ObjectDelete("LC3_"+i);
     }
   Comment("");
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int SetTDPoint(int B)//It seems B is the same as IndicatorCounted() function
  {
   int shift;
   if (FractalAsTD==false)
     {
      //Print("B = ",B);
      //Print("Bars = ",Bars);
      //Print("IndicatorCounted() = ",IndicatorCounted());
      for(shift=B;shift>1;shift--)
        {
         if (High[shift+2]<High[shift] && High[shift+1]<High[shift]&& High[shift-1]<High[shift]&& High[shift-2]<High[shift])//I added for double top
            ExtMapBuffer1[shift]=High[shift];//I added for double top
         //else ExtMapBuffer1[shift]=0;
         if (Low[shift+2]>Low[shift] && Low[shift+1]>Low[shift] && Low[shift-1]>Low[shift]&& Low[shift-2]>Low[shift])//I added for double bottom
            ExtMapBuffer2[shift]=Low[shift];//I added for double bottom
         //else ExtMapBuffer2[shift]=0;
        }
      ExtMapBuffer1[0]=0;
      ExtMapBuffer2[0]=0;
      ExtMapBuffer1[1]=0;
      ExtMapBuffer2[1]=0;
     }
   else
     {
      for(shift=B;shift>3;shift--)
        {
         if (High[shift+1]<=High[shift] && High[shift-1]<High[shift] && High[shift+2]<=High[shift] && High[shift-2]<High[shift])
            ExtMapBuffer1[shift]=High[shift];
         else ExtMapBuffer1[shift]=0;
         if (Low[shift+1]>=Low[shift] && Low[shift-1]>Low[shift] && Low[shift+2]>=Low[shift] && Low[shift-2]>Low[shift])
            ExtMapBuffer2[shift]=Low[shift];
         else ExtMapBuffer2[shift]=0;
        }
      ExtMapBuffer1[0]=0;
      ExtMapBuffer2[0]=0;
      ExtMapBuffer1[1]=0;
      ExtMapBuffer2[1]=0;
      ExtMapBuffer1[2]=0;
      ExtMapBuffer2[2]=0;
     }
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetHighTD(int P)
  {
   int i=0,j=0;
   while(j<P)
     {
      i++;
      while(ExtMapBuffer1[i]==0)
      {i++;if(i>Bars-2)return(-1);}
      j++;
     }
   return(i);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetNextHighTD(int P)
  {
   int i=P+1;
   while(ExtMapBuffer1[i]<=High[P]){i++;if(i>Bars-2)return(-1);}
   return(i);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetLowTD(int P)
  {
   int i=0,j=0;
   while(j<P)
     {
      i++;
      while(ExtMapBuffer2[i]==0)
      {i++;if(i>Bars-2)return(-1);}
      j++;
     }
   return(i);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetNextLowTD(int P)
  {
   int i=P+1;
   while(ExtMapBuffer2[i]>=Low[P] || ExtMapBuffer2[i]==0){i++;if(i>Bars-2)return(-1);}
   return(i);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int TrendLineHighTD(int H1,int H2,int Step,int Col)/*Draw Upper Trend Line*/
  {
   ObjectSet("HL_"+Step,OBJPROP_TIME1,Time[H2]);ObjectSet("HL_"+Step,OBJPROP_TIME2,Time[H1]);
   ObjectSet("HL_"+Step,OBJPROP_PRICE1,High[H2]);ObjectSet("HL_"+Step,OBJPROP_PRICE2,High[H1]);
 ObjectSet("HL_"+Step,OBJPROP_COLOR,UpperTrendLineColour);/*TEMP Original OBJPROP_COLOR,Col*/
 if (Step==1)ObjectSet("HL_"+Step,OBJPROP_WIDTH,TrendLineWidth);/*Original OBJPROP_WIDTH,2*/
   else ObjectSet("HL_"+Step,OBJPROP_WIDTH,1);
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int TrendLineLowTD(int L1,int L2,int Step,int Col)/*Draw Lower Trend Line*/
  {
   ObjectSet("LL_"+Step,OBJPROP_TIME1,Time[L2]);ObjectSet("LL_"+Step,OBJPROP_TIME2,Time[L1]);
   ObjectSet("LL_"+Step,OBJPROP_PRICE1,Low[L2]);ObjectSet("LL_"+Step,OBJPROP_PRICE2,Low[L1]);
   ObjectSet("LL_"+Step,OBJPROP_COLOR,LowerTrendLineColour);/*TEMP Original OBJPROP_COLOR,Col*/
 if (Step==1)ObjectSet("LL_"+Step,OBJPROP_WIDTH,TrendLineWidth);/*Original OBJPROP_WIDTH,2*/
   else ObjectSet("LL_"+Step,OBJPROP_WIDTH,1);
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int HorizontLineHighTD(int H1,int H2,int Step,double St,int Col)
  {
   ObjectSet("HHL_"+Step,OBJPROP_PRICE1,High[H2]-(High[H2]-High[H1])/(H2-H1)*H2);//HORIZONTAL HIGH LINE HEIGHT CALCULATION
   ObjectSet("HHL_"+Step,OBJPROP_STYLE,St);
   ObjectSet("HHL_"+Step,OBJPROP_COLOR,Col);
   ObjectSet("HHL_"+Step,OBJPROP_BACK,True);//Line added
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int HorizontLineLowTD(int L1,int L2,int Step,double St,int Col)
  {
   ObjectSet("HLL_"+Step,OBJPROP_PRICE1,Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2);//HORIZONTAL LOW LINE HEIGHT CALCULATION
   ObjectSet("HLL_"+Step,OBJPROP_STYLE,St);
   ObjectSet("HLL_"+Step,OBJPROP_COLOR,Col);
   ObjectSet("HLL_"+Step,OBJPROP_BACK,True);//Line added
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
string TakeProfitHighTD(int H1,int H2,int Step,int Col)/*Draw Buy TD Price Projection(s)*/
  {
   int i,ii,j=0;
   string Comm="";
   double kH,HC1,HC2,HC3,k,St;
   kH=(High[H2]-High[H1])/(H2-H1);
   while(NormalizeDouble(Point,j)==0)j++;
   k=0;
   for(i=H1;i>0;i--)if(Close[i]>High[H2]-kH*(H2-i)){k=High[H2]-kH*(H2-i);break;}
   if (k>0)
     {
      Comm=Comm+"UTD_Line ("+DoubleToStr(High[H2]-kH*H2,j)+") broken at "+DoubleToStr(k,j)+", uptargets:\n";
      ii=Lowest(NULL,0,MODE_LOW,H2-i,i);
      HC1=High[H2]-kH*(H2-ii)-Low[ii];
      HC2=High[H2]-kH*(H2-ii)-Close[ii];
      ii=Lowest(NULL,0,MODE_CLOSE,H2-i,i);
      HC3=High[H2]-kH*(H2-ii)-Close[ii];
    St=TrendLineStyle;/*Original STYLE_SOLID*/
     }
   else
     {
      k=High[H2]-kH*H2;
      Comm=Comm+"UTD_Line ("+DoubleToStr(k,j)+"), probable break-up targets:\n";
      ii=Lowest(NULL,0,MODE_LOW,H2,0);
      HC1=High[H2]-kH*(H2-ii)-Low[ii];
      HC2=High[H2]-kH*(H2-ii)-Close[ii];
      ii=Lowest(NULL,0,MODE_CLOSE,H2,0);
      HC3=High[H2]-kH*(H2-ii)-Close[ii];
    St=TrendLineStyle;/*Original STYLE_DASHDOT*/
     }
   ObjectSet("HL_"+Step,OBJPROP_STYLE,St);
   Comm=Comm+"T1="+DoubleToStr(HC1+k,j)+" ("+DoubleToStr(HC1/Point,0)+"pts.)\n";//changed "pts.)" to "pts.)\n"
   //Comm=Comm+" T2="+DoubleToStr(HC2+k,j)+" ("+DoubleToStr(HC2/Point,0)+"pts.)";
   //Comm=Comm+" T3="+DoubleToStr(HC3+k,j)+" ("+DoubleToStr(HC3/Point,0)+"pts.)\n";
   ObjectSet("HC1_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC1_"+Step,OBJPROP_TIME2,Time[0]);
   ObjectSet("HC1_"+Step,OBJPROP_PRICE1,HC1+k);ObjectSet("HC1_"+Step,OBJPROP_PRICE2,HC1+k);
   ObjectSet("HC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC1_"+Step,OBJPROP_STYLE,St);
   //ObjectSet("HC2_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC2_"+Step,OBJPROP_TIME2,Time[0]);
   //ObjectSet("HC2_"+Step,OBJPROP_PRICE1,HC2+k);ObjectSet("HC2_"+Step,OBJPROP_PRICE2,HC2+k);
   //ObjectSet("HC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC2_"+Step,OBJPROP_STYLE,St);
   //ObjectSet("HC3_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC3_"+Step,OBJPROP_TIME2,Time[0]);
   //ObjectSet("HC3_"+Step,OBJPROP_PRICE1,HC3+k);ObjectSet("HC3_"+Step,OBJPROP_PRICE2,HC3+k);
   //ObjectSet("HC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC3_"+Step,OBJPROP_STYLE,St);
   if (Step==1)
     {
    ObjectSet("HC1_"+Step,OBJPROP_WIDTH,ProjectionLinesWidth);/*Original OBJPROP_WIDTH,2*/
    ObjectSet("HC1_"+Step,OBJPROP_STYLE,ProjectionLinesStyle);/*This Line of code added from original. TD Upper Projection Line Style*/
      //    ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
      //    ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
     }
   else
     {
      ObjectSet("HC1_"+Step,OBJPROP_WIDTH,2);
      //    ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
      //    ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
     }
   return(Comm);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
string TakeProfitLowTD(int L1,int L2,int Step,int Col)/*Draw Sell TD Price Projection(s)*/
  {
   int i,ii,j=0;
   string Comm="";
   double kL,LC1,LC2,LC3,k,St;
   kL=(Low[L1]-Low[L2])/(L2-L1);
   while(NormalizeDouble(Point,j)==0)j++;
   k=0;
   for(i=L1;i>0;i--)if(Close[i]<Low[L2]+kL*(L2-i)){k=Low[L2]+kL*(L2-i);break;}
   if (k>0)
     {
      Comm=Comm+"LTD_Line ("+DoubleToStr(Low[L2]+kL*L2,j)+") broken at "+DoubleToStr(k,j)+", downtargets:\n";
      ii=Highest(NULL,0,MODE_HIGH,L2-i,i);
      LC1=High[ii]-(Low[L2]+kL*(L2-ii));
      LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
      i=Highest(NULL,0,MODE_CLOSE,L2-i,i);
      LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
    St=TrendLineStyle;/*Original STYLE_SOLID*/
     }
   else
     {
      k=Low[L2]+kL*L2;
      Comm=Comm+"LTD_Line ("+DoubleToStr(k,j)+"), probable downbreak targets:\n";
      ii=Highest(NULL,0,MODE_HIGH,L2,0);
      LC1=High[ii]-(Low[L2]+kL*(L2-ii));
      LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
      ii=Highest(NULL,0,MODE_CLOSE,L2,0);
      LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
    St=TrendLineStyle;/*Original STYLE_DASHDOT*/
     }
   ObjectSet("LL_"+Step,OBJPROP_STYLE,St);
   Comm=Comm+"T1="+DoubleToStr(k-LC1,j)+" ("+DoubleToStr(LC1/Point,0)+"pts.)\n";//changed "pts.)" to "pts.)\n"
   //Comm=Comm+" T2="+DoubleToStr(k-LC2,j)+" ("+DoubleToStr(LC2/Point,0)+"pts.)";
   //Comm=Comm+" T3="+DoubleToStr(k-LC3,j)+" ("+DoubleToStr(LC3/Point,0)+"pts.)\n";
   ObjectSet("LC1_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC1_"+Step,OBJPROP_TIME2,Time[0]);
   ObjectSet("LC1_"+Step,OBJPROP_PRICE1,k-LC1);ObjectSet("LC1_"+Step,OBJPROP_PRICE2,k-LC1);
   ObjectSet("LC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC1_"+Step,OBJPROP_STYLE,St);
   //ObjectSet("LC2_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC2_"+Step,OBJPROP_TIME2,Time[0]);
   //ObjectSet("LC2_"+Step,OBJPROP_PRICE1,k-LC2);ObjectSet("LC2_"+Step,OBJPROP_PRICE2,k-LC2);
   //ObjectSet("LC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC2_"+Step,OBJPROP_STYLE,St);
   //ObjectSet("LC3_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC3_"+Step,OBJPROP_TIME2,Time[0]);
   //ObjectSet("LC3_"+Step,OBJPROP_PRICE1,k-LC3);ObjectSet("LC3_"+Step,OBJPROP_PRICE2,k-LC3);
   //ObjectSet("LC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC3_"+Step,OBJPROP_STYLE,St);
   if (Step==1)
     {
    ObjectSet("LC1_"+Step,OBJPROP_WIDTH,ProjectionLinesWidth);/*Original OBJPROP_WIDTH,2*/
    ObjectSet("LC1_"+Step,OBJPROP_STYLE,ProjectionLinesStyle);/*This Line of code added from original. TD Lower Projection Line Style*/
      //ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
      //ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
     }
   else
     {
      ObjectSet("LC1_"+Step,OBJPROP_WIDTH,2);
      //ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
      //ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
     }
   return(Comm);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
string TDMain(int Step)
  {
   int H1,H2,L1,L2;
   string Comm="---   step "+Step+"   --------------------\n";
   int i,j; while(NormalizeDouble(Point,j)==0)j++;
   double Style;
 double Col[20];Col[0]=UpperProjectionLineColour/*Original Col[0]=Red, Colour for Current Upper TD Projection*/;Col[2]=Magenta;Col[4]=Chocolate;Col[6]=Goldenrod;Col[8]=SlateBlue;
                Col[1]=LowerProjectionLineColour/*Original Col[1]=Blue, Colour for Current Lower TD Projection*/;Col[3]=FireBrick;Col[5]=Green;Col[7]=MediumOrchid;Col[9]=CornflowerBlue;
   Col[10]=Red;Col[12]=Magenta;Col[14]=Chocolate;Col[16]=Goldenrod;Col[18]=SlateBlue;
   Col[11]=Blue;Col[13]=FireBrick;Col[15]=Green;Col[17]=MediumOrchid;Col[19]=CornflowerBlue;
   Step=Step+BackSteps;
   H1=GetHighTD(Step);
   H2=GetNextHighTD(H1);
   L1=GetLowTD(Step);
   L2=GetNextLowTD(L1);
   TrendLineBreakUp=High[H2]-(High[H2]-High[H1])/(H2-H1)*H2;//added line
   TrendLineBreakDown=Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2;//added line
   if (H1<0)Comm=Comm+"UTD no TD up-point \n";
   else
      if (H2<0)Comm=Comm+"UTD no TD point-upper then last one ("+DoubleToStr(High[H1],j)+")\n";
      else Comm=Comm+"UTD "+DoubleToStr(High[H2],j)+"  "+DoubleToStr(High[H1],j)+"\n";
   if (L1<0)Comm=Comm+"LTD no TD down-point \n";
   else
      if (L2<0)Comm=Comm+"LTD no TD point-lower then last one ("+DoubleToStr(Low[L1],j)+")\n";
      else Comm=Comm+"LTD  "+DoubleToStr(Low[L2],j)+"  "+DoubleToStr(Low[L1],j)+"\n";
//----
   if (Step==1)Style=STYLE_SOLID;
   else Style=STYLE_DOT;
   if (H1>0 && H2>0)
     {
      if (TrendLine==1)
        {
         ObjectCreate("HL_"+Step,OBJ_TREND,0,0,0,0,0);
         TrendLineHighTD(H1,H2,Step,Col[Step*2-2]);
        }
      else ObjectDelete("HL_"+Step);
      if (HorizontLine==1 && Step==1)
        {
         ObjectCreate("HHL_"+Step,OBJ_HLINE,0,0,0,0,0);
         ObjectSet("HHL_"+Step,OBJPROP_BACK,True);//Line added
         HorizontLineHighTD(H1,H2,Step,Style,Col[Step*2-2]);
        }
      else ObjectDelete("HHL_"+Step);
      if (ProjectionLines==1)
        {
         ObjectCreate("HC1_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("HC2_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("HC3_"+Step,OBJ_TREND,0,0,0,0,0);
         Comm=Comm+TakeProfitHighTD(H1,H2,Step,Col[Step*2-2]);
        }
      else
        {
         ObjectDelete("HC1_"+Step);
         ObjectDelete("HC2_"+Step);
         ObjectDelete("HC3_"+Step);
        }
     }
//----
   if (L1>0 && L2>0)
     {
      if (TrendLine==1)
        {
         ObjectCreate("LL_"+Step,OBJ_TREND,0,0,0,0,0);
         TrendLineLowTD(L1,L2,Step,Col[Step*2-1]);
        }
      else ObjectDelete("LL_"+Step);
      if (HorizontLine==1 && Step==1)
        {
         ObjectCreate("HLL_"+Step,OBJ_HLINE,0,0,0,0,0);
         ObjectSet("HLL_"+Step,OBJPROP_BACK,True);//Line added
         HorizontLineLowTD(L1,L2,Step,Style,Col[Step*2-1]);
        }
      else ObjectDelete("HLL_"+Step);
      if (ProjectionLines==1)
        {
         ObjectCreate("LC1_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("LC2_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("LC3_"+Step,OBJ_TREND,0,0,0,0,0);
         Comm=Comm+TakeProfitLowTD(L1,L2,Step,Col[Step*2-1]);
        }
      else
        {
         ObjectDelete("LC1_"+Step);
         ObjectDelete("LC2_"+Step);
         ObjectDelete("LC3_"+Step);
        }
     }
//----
   if(AlertsOn)//added this Alerts section
     {
      //Print("Alerts On");
      if(Close[0]>TrendLineBreakUp && TrendLineBreakUpFlag==False)
        {
         //Print("Upper TrendLine Break ",Symbol()," ",Period()," ",Bid);
         Alert("UTL Break>",TrendLineBreakUp," on ",Symbol()," ",Period()," @ ",Bid);
         TrendLineBreakUpFlag=True;
        }
      if(Close[0]<TrendLineBreakDown && TrendLineBreakDownFlag==False)
        {
         //Print("Lower Trendline Break ",Symbol()," ",Period()," ",Bid);
         Alert("LTL Break<",TrendLineBreakDown," on ",Symbol()," ",Period()," @ ",Bid);
         TrendLineBreakDownFlag=True;
        }
      //----
     }
   return(Comm);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   string Comm="";
   SetTDPoint(Bars-1);
   if (TD==1)
     {
      SetIndexArrow(0,217);
      SetIndexArrow(1,218);
     }
   else
     {
      SetIndexArrow(0,160);
      SetIndexArrow(1,160);
     }
   if (ShowingSteps>10)
     {
      Comment("ShowingSteps readings 0 - 10");
      return(0);
     }
   for(int i=1;i<=ShowingSteps;i++)Comm=Comm+TDMain(i);
   Comm=Comm+"------------------------------------\nShowingSteps="+ShowingSteps+"\nBackSteps="+BackSteps;
   if (FractalAsTD==true)Comm=Comm+"\nFractals";
   else Comm=Comm+"\nTD point";
   if (Comments==1)Comment(Comm);
   else Comment("");
   return(0);
  }
//+------------------------------------------------------------------+

Similar scripts

Mouteki Heart-Mono v2_v1

This indicator identifies Trend Drawing (TD) points to plot geometric trendlines and calculate automated price projection targets based on structural breaks.

Mouteki Heart-Mono v2

Identifies trend reversal points using Triple Dragon (TD) logic to project linear price targets and execute automated alerts upon trendline breaches.

Mouteki Heart-Mono v1_v1

An advanced technical analysis tool that identifies TD points to construct dynamic trendlines and calculate mathematical price projection targets for breakout reversals.

Mouteki Heart-Mono v1

This indicator identifies structural pivot points to project linear trend trajectories and calculate potential breakout price targets based on geometric expansion.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v3

This indicator identifies TD structural points to automate the calculation of multi-step trendlines and execute precise price projection targets based on historical pivot geometry.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v2

This indicator identifies Triple Danger (TD) price points to project trendline breaks and automated profit targets based on historical geometric pivots.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v1

This indicator identifies TD Sequential points to project trendlines and calculate objective price targets based on historical pivot highs and lows.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_002

This indicator identifies specific price pivot points to construct DeMark trendlines and automatically calculate multi-step geometric projections for potential breakout targets.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_001

This indicator identifies Trend Danger (TD) points to construct dynamic trendlines and project mathematical price targets based on multi-step structural analysis.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME

Identifies multi-step Trend Deviation points to project linear breakout targets and trendline violations using historical pivot analysis.

DeMark Trendline Trader_v2

This indicator identifies TD sequential high and low points to construct trendlines, calculate price projection targets, and trigger alerts upon structural breakouts.

Comments
