Ind_TD_DeMark_3_1_LA_Mod_03B_AIME

Download script
Author: Copyright � 2005-07, Kara Software Corp.
Ind_TD_DeMark_3_1_LA_Mod_03B_AIME

This script is a specialized technical analysis tool designed to identify specific price action patterns known as "TD Points" (Trend Dynamics). It helps traders visualize market structure by identifying significant peaks and valleys, drawing trend lines based on those points, and projecting potential future price targets.

Core Logic and Functionality

1. Identification of Key Price Points The primary job of the script is to scan through historical price data to find specific "Turning Points." It looks for:

  • Upper Turning Points (Highs): It identifies peaks where the high of a specific candle is higher than those immediately before and after it. The logic is sophisticated enough to recognize not just single tops, but also double, triple, and quadruple tops (where multiple consecutive candles share the same high price).
  • Lower Turning Points (Lows): Similarly, it identifies valleys where a candle's low is lower than its neighbors. It also accounts for double, triple, and quadruple bottoms to ensure these significant "floors" are captured accurately.

2. Trend Line Mapping Once the script identifies these key highs and lows, it automatically draws trend lines on the chart:

  • Upper Trend Lines: These connect consecutive high points to show the trajectory of resistance or upward movement.
  • Lower Trend Lines: These connect consecutive low points to visualize support levels or downward momentum.
  • Customization: Users can adjust the colors, thicknesses, and styles (such as dots, dashes, or solid lines) of these trend lines to make them easier to read.

3. Price Projections and Targets One of the most advanced features of this script is its ability to project where the price might go next based on the angle of the trend lines:

  • Take Profit/Target Zones: When a trend line is established, the script calculates "Projections." These are visual markers indicating potential areas where the price might react or reverse in the future.
  • Breakout Detection: The logic calculates specific "Break-up" and "Break-down" prices. If the current market price crosses these calculated levels, the script provides a clear target for where the next significant movement might end.

4. Real-Time Alerts and Feedback The script is designed to be proactive rather than reactive:

  • Price Break Alerts: If enabled, the tool will trigger an audible alert and a pop-up notification the moment the current price breaks through one of the identified trend lines.

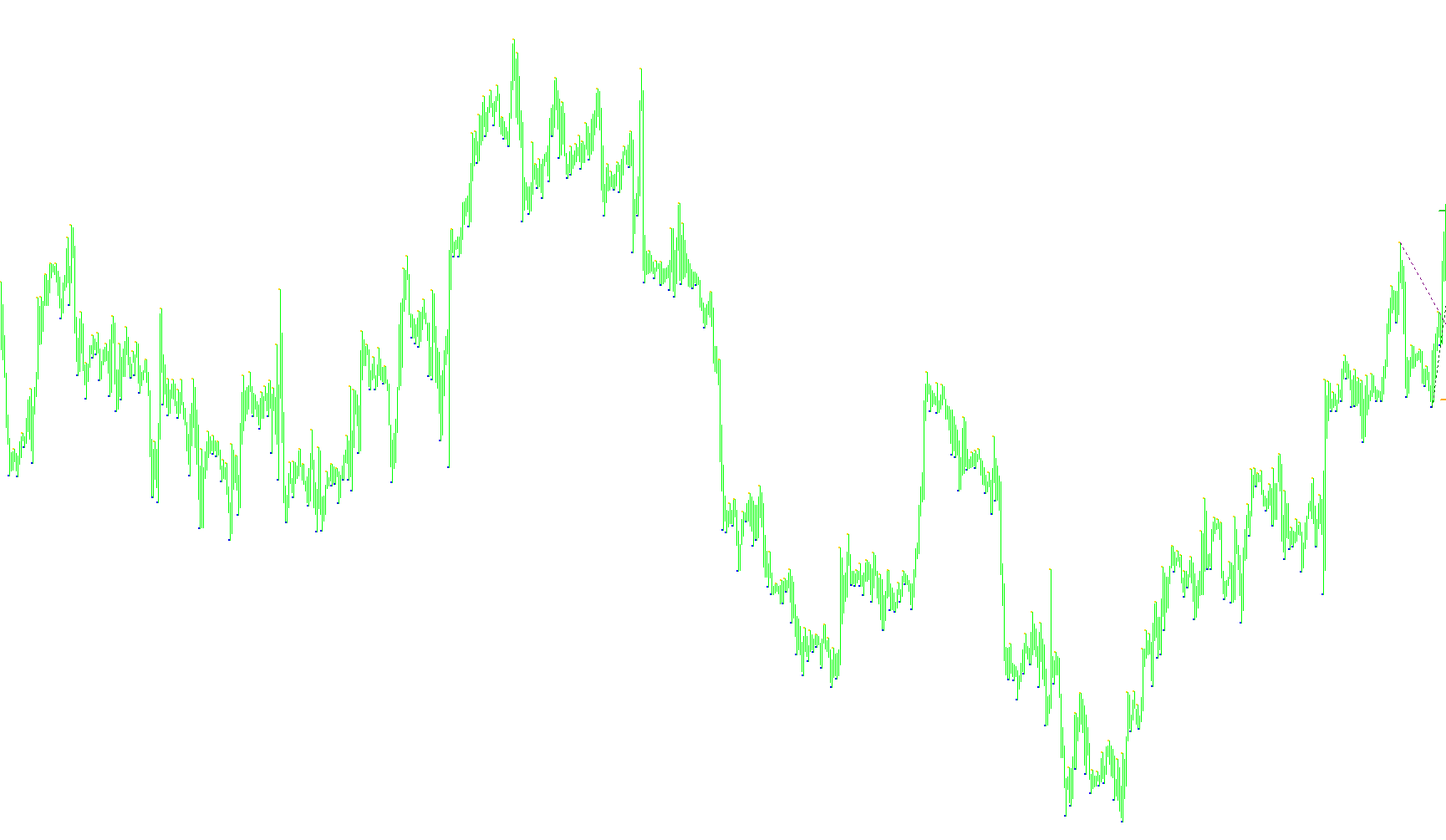

  • On-Screen Data: It provides a comprehensive text summary on the chart (if enabled) that lists the specific prices of the identified points and the calculated targets, allowing for a quick glance at the current market "math."

User Experience Features

  • Visual Clarity: To prevent the chart from becoming cluttered, the script uses distinct colors (such as Purple, Lime Green, and Orange) to differentiate between upward and downward trends.
  • Flexibility: It allows users to choose between using standard "TD Points" or "Fractal" points as the basis for their trend lines, depending on which geometric style they prefer for their trading strategy.
  • Automated Cleanup: The script manages its own memory by automatically removing old objects and clearing data when it is closed or restarted, ensuring a clean workspace.
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
12 Views
0 Downloads
0 Favorites
Ind_TD_DeMark_3_1_LA_Mod_03B_AIME
//+------------------------------------------------------------------+
//|                            Ind-TD-DeMark-3-1-LA-Mod-03B-AIME.mq4 |
//|                         Copyright © 2005-07,Kara Software Corp.  |
//|                                                                  |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005-07, Kara Software Corp."
#property link      ""
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Purple /*Original #property indicator_color1 Red. Color of Upper TD Points*/
#property indicator_color2 Magenta /*Original #property indicator_color2 Blue. Color of Lower TD Points*/
//---- input parameters
/* Mod 02: only one step, no back steps, only one target, no fractal trendlines,
no large arrow option for TD points, and added user changable colours and styles*/
/* Mod 03: Alerts Added.  Horizontal Lines indicating where projections start from and
where alerts should be determined from re-enabled with Default of False.*/
/* Mod 03B: Bug where TD Points and TD Lines drawn in wrong place for
double, triple and quadruple tops or bottoms is fixed*/

extern string note1 = "Turn on Alerts? true = Yes; false = No";
extern bool AlertsOn = false; // Line added.  Default is true.
extern bool      Comments=True;/*Optional Comments.  Default is false. Orginal variable called "Commen"*/
extern bool      TrendLine=True;/*Default is true to draw current TD Lines*/
extern string note2 = "SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4";
extern int       TrendLineStyle=STYLE_DOT;/*STYLE>_SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4. Line of code added from original.*/
extern int       TrendLineWidth=1;/*Thinnest or allow dots and dashes = 0 or 1, Thinner=2, Medium=3,Thicker=4,Thickest=5.  Line of code added from original.*/
extern color     UpperTrendLineColour=Purple;/*Line of code added from original.*/
extern color     LowerTrendLineColour=DarkGreen;/*Line of code added from original.*/
extern bool      ProjectionLines=True;/*Default is True.  These are the TD Price Projections. Original variable called "Take Prof"*/
extern string note3 = "SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4";
extern int       ProjectionLinesStyle=STYLE_SOLID;/*STYLE>_SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4. Line of code added from original.*/
extern int       ProjectionLinesWidth=2;/*Thinnest or allow dots and dashes = 0 or 1, Thinner=2, Medium=3,Thicker=4,Thickest=5.  Line of code added from original.*/
extern color     UpperProjectionLineColour=LimeGreen;/*Line of code added from original.*/
extern color     LowerProjectionLineColour=Orange;/*Line of code added from original.*/
extern bool      HorizontLine=False;/*Default is false.  It seems the Horizontal Lines are were the code predicts price may cross TD line.*/

bool             TD=False;/*Default is false. True setting draws up and down arrows instead of dots on TD Points creating more clutter.*/
int              BackSteps=0;/*Used to be extern int now just int. Leave at 0*/
int              ShowingSteps=1;/*Used to be extern int now just int.  Leave at 1*/
bool             FractalAsTD=false;/*Used to be extern bool now just bool.  Leave at false, otherwise Trend Lines based on Fractal Points not TD Points*/


double TrendLineBreakUp=-1;//Line added.
bool TrendLineBreakUpFlag=False;//Line added.
double TrendLineBreakDown=-1;//Line added.
bool TrendLineBreakDownFlag=False;//Line added.

//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//====================================================================
int init()
  {
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,217);
   SetIndexBuffer(0,ExtMapBuffer1);
   SetIndexEmptyValue(0,0.0);
   SetIndexStyle(1,DRAW_ARROW);
   SetIndexArrow(1,218);
   SetIndexBuffer(1,ExtMapBuffer2);
   SetIndexEmptyValue(1,0.0);
   for (int i=1;i<=10;i++)
     {
      ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
      ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
      ObjectDelete("HC1_"+i);
      ObjectDelete("HC2_"+i);
      ObjectDelete("HC3_"+i);
      ObjectDelete("LC1_"+i);
      ObjectDelete("LC2_"+i);
      ObjectDelete("LC3_"+i);
     }
   Comment("");
   return(0);
  }
int deinit()
  {
   for (int i=1;i<=10;i++)
     {
      ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
      ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
      ObjectDelete("HC1_"+i);
      ObjectDelete("HC2_"+i);
      ObjectDelete("HC3_"+i);
      ObjectDelete("LC1_"+i);
      ObjectDelete("LC2_"+i);
      ObjectDelete("LC3_"+i);
     }
   Comment("");
   return(0);
  }
//--------------------------------------------------------------------
int SetTDPoint(int B)//It seems B is the same as IndicatorCounted() function
{
 int shift;
 if (FractalAsTD==false)
   {
    //Print("B = ",B);
    //Print("Bars = ",Bars);
    //Print("IndicatorCounted() = ",IndicatorCounted());
    for (shift=B;shift>1;shift--)
       {
        if (High[shift+1]<High[shift] && High[shift-1]<High[shift])// determine single top TD Point
           ExtMapBuffer1[shift]=High[shift];// determine single top TD Point

        if (High[shift+2]<High[shift] && High[shift+1]==High[shift]&& High[shift-1]<High[shift])//I added for double top
           ExtMapBuffer1[shift]=High[shift];//I added for double top

        if (High[shift+3]<High[shift] && High[shift+2]==High[shift]&& High[shift+1]==High[shift]//I added for triple top
           && High[shift-1]<High[shift])//I added for triple top
           ExtMapBuffer1[shift]=High[shift];//I added for triple top

        if (High[shift+4]<High[shift] && High[shift+3]==High[shift]&& High[shift+2]==High[shift]//I added for quadruple top
           && High[shift+1]==High[shift]//I added for quadruple top
           && High[shift-1]<High[shift])//I added for quadruple top
           ExtMapBuffer1[shift]=High[shift];//I added for quadruple top

        if (High[shift-1]>=High[shift])//I added for new way to determine Non-TD High Point
           ExtMapBuffer1[shift]=0;//I added for new way to determine Non-TD High Point

        //else ExtMapBuffer1[shift]=0;


        if (Low[shift+1]>Low[shift] && Low[shift-1]>Low[shift])// determine single bottom TD Point
           ExtMapBuffer2[shift]=Low[shift];// determine single bottom TD Point

        if (Low[shift+2]>Low[shift] && Low[shift+1]==Low[shift] && Low[shift-1]>Low[shift])//I added for double bottom
           ExtMapBuffer2[shift]=Low[shift];//I added for double bottom

        if (Low[shift+3]>Low[shift] && Low[shift+2]==Low[shift] && Low[shift+1]==Low[shift]//I added for triple bottom
           && Low[shift-1]>Low[shift])//I added for triple bottom
           ExtMapBuffer2[shift]=Low[shift];//I added for triple bottom

        if (Low[shift+4]>Low[shift] && Low[shift+3]==Low[shift]&& Low[shift+2]==Low[shift] && Low[shift+1]==Low[shift]//I added for quadruple bottom
           && Low[shift-1]>Low[shift])//I added for quadruple bottom
           ExtMapBuffer2[shift]=Low[shift];//I added for quadruple bottom

        if (Low[shift-1]<=Low[shift])//I added
           ExtMapBuffer2[shift]=0;//I added

        //else ExtMapBuffer2[shift]=0;
       }
    ExtMapBuffer1[0]=0;
    ExtMapBuffer2[0]=0;
    ExtMapBuffer1[1]=0;
    ExtMapBuffer2[1]=0;
   }
 else
   {
    for (shift=B;shift>3;shift--)
       {
        if (High[shift+1]<=High[shift] && High[shift-1]<High[shift] && High[shift+2]<=High[shift] && High[shift-2]<High[shift])
             ExtMapBuffer1[shift]=High[shift];
        else ExtMapBuffer1[shift]=0;
        if (Low[shift+1]>=Low[shift] && Low[shift-1]>Low[shift] && Low[shift+2]>=Low[shift] && Low[shift-2]>Low[shift])
            ExtMapBuffer2[shift]=Low[shift];
        else ExtMapBuffer2[shift]=0;
       }
    ExtMapBuffer1[0]=0;
    ExtMapBuffer2[0]=0;
    ExtMapBuffer1[1]=0;
    ExtMapBuffer2[1]=0;
    ExtMapBuffer1[2]=0;
    ExtMapBuffer2[2]=0;
   }
 return(0);
}
//--------------------------------------------------------------------
int GetHighTD(int P)
{
 int i=0,j=0;
 while (j<P)
   {
    i++;
    while(ExtMapBuffer1[i]==0)
      {i++;if(i>Bars-2)return(-1);}
    j++;
   }
 return (i);
}
//--------------------------------------------------------------------
int GetNextHighTD(int P)
{
 int i=P+1;
 while(ExtMapBuffer1[i]<=High[P]){i++;if(i>Bars-2)return(-1);}
 return (i);
}
//--------------------------------------------------------------------
int GetLowTD(int P)
{
 int i=0,j=0;
 while (j<P)
   {
    i++;
    while(ExtMapBuffer2[i]==0)
      {i++;if(i>Bars-2)return(-1);}
    j++;
   }
 return (i);
}
//--------------------------------------------------------------------
int GetNextLowTD(int P)
{
 int i=P+1;
 while(ExtMapBuffer2[i]>=Low[P] || ExtMapBuffer2[i]==0){i++;if(i>Bars-2)return(-1);}
 return (i);
}
//--------------------------------------------------------------------
int TrendLineHighTD(int H1,int H2,int Step,int Col)/*Draw Upper Trend Line*/
{
 ObjectSet("HL_"+Step,OBJPROP_TIME1,Time[H2]);ObjectSet("HL_"+Step,OBJPROP_TIME2,Time[H1]);
 ObjectSet("HL_"+Step,OBJPROP_PRICE1,High[H2]);ObjectSet("HL_"+Step,OBJPROP_PRICE2,High[H1]);
 ObjectSet("HL_"+Step,OBJPROP_COLOR,UpperTrendLineColour);/*TEMP Original OBJPROP_COLOR,Col*/
 if (Step==1)ObjectSet("HL_"+Step,OBJPROP_WIDTH,TrendLineWidth);/*Original OBJPROP_WIDTH,2*/
 else ObjectSet("HL_"+Step,OBJPROP_WIDTH,1);
 return(0);
}
//--------------------------------------------------------------------
int TrendLineLowTD(int L1,int L2,int Step,int Col)/*Draw Lower Trend Line*/
{
 ObjectSet("LL_"+Step,OBJPROP_TIME1,Time[L2]);ObjectSet("LL_"+Step,OBJPROP_TIME2,Time[L1]);
 ObjectSet("LL_"+Step,OBJPROP_PRICE1,Low[L2]);ObjectSet("LL_"+Step,OBJPROP_PRICE2,Low[L1]);
 ObjectSet("LL_"+Step,OBJPROP_COLOR,LowerTrendLineColour);/*TEMP Original OBJPROP_COLOR,Col*/
 if (Step==1)ObjectSet("LL_"+Step,OBJPROP_WIDTH,TrendLineWidth);/*Original OBJPROP_WIDTH,2*/
 else ObjectSet("LL_"+Step,OBJPROP_WIDTH,1);
 return(0);
}
//--------------------------------------------------------------------
int HorizontLineHighTD(int H1,int H2,int Step,double St,int Col)
{
 ObjectSet("HHL_"+Step,OBJPROP_PRICE1,High[H2]-(High[H2]-High[H1])/(H2-H1)*H2);//HORIZONTAL HIGH LINE HEIGHT CALCULATION
 ObjectSet("HHL_"+Step,OBJPROP_STYLE,St);
 ObjectSet("HHL_"+Step,OBJPROP_COLOR,Col);
 ObjectSet("HHL_"+Step,OBJPROP_BACK,True);//Line added
 return(0);
}
//--------------------------------------------------------------------
int HorizontLineLowTD(int L1,int L2,int Step,double St,int Col)
{

 ObjectSet("HLL_"+Step,OBJPROP_PRICE1,Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2);//HORIZONTAL LOW LINE HEIGHT CALCULATION
 ObjectSet("HLL_"+Step,OBJPROP_STYLE,St);
 ObjectSet("HLL_"+Step,OBJPROP_COLOR,Col);
 ObjectSet("HLL_"+Step,OBJPROP_BACK,True);//Line added
 return(0);
}
//--------------------------------------------------------------------
string TakeProfitHighTD(int H1,int H2,int Step,int Col)/*Draw Buy TD Price Projection(s)*/
{
 int i,ii,j=0;
 string Comm="";
 double kH,HC1,HC2,HC3,k,St;
 kH=(High[H2]-High[H1])/(H2-H1);
 while (NormalizeDouble(Point,j)==0)j++;
 k=0;
 for(i=H1;i>0;i--)if(Close[i]>High[H2]-kH*(H2-i)){k=High[H2]-kH*(H2-i);break;}
 if (k>0)
   {
    Comm=Comm+"UTD_Line ("+DoubleToStr(High[H2]-kH*H2,j)+") broken at "+DoubleToStr(k,j)+", uptargets:\n";
    ii=Lowest(NULL,0,MODE_LOW,H2-i,i);
    HC1=High[H2]-kH*(H2-ii)-Low[ii];
    HC2=High[H2]-kH*(H2-ii)-Close[ii];
    ii=Lowest(NULL,0,MODE_CLOSE,H2-i,i);
    HC3=High[H2]-kH*(H2-ii)-Close[ii];
    St=TrendLineStyle;/*Original STYLE_SOLID*/
   }
 else
   {
    k=High[H2]-kH*H2;
    Comm=Comm+"UTD_Line ("+DoubleToStr(k,j)+"), probable break-up targets:\n";
    ii=Lowest(NULL,0,MODE_LOW,H2,0);
    HC1=High[H2]-kH*(H2-ii)-Low[ii];
    HC2=High[H2]-kH*(H2-ii)-Close[ii];
    ii=Lowest(NULL,0,MODE_CLOSE,H2,0);
    HC3=High[H2]-kH*(H2-ii)-Close[ii];
    St=TrendLineStyle;/*Original STYLE_DASHDOT*/
   }
 ObjectSet("HL_"+Step,OBJPROP_STYLE,St);
 Comm=Comm+"T1="+DoubleToStr(HC1+k,j)+" ("+DoubleToStr(HC1/Point,0)+"pts.)\n";//changed "pts.)" to "pts.)\n"
 //Comm=Comm+" T2="+DoubleToStr(HC2+k,j)+" ("+DoubleToStr(HC2/Point,0)+"pts.)";
 //Comm=Comm+" T3="+DoubleToStr(HC3+k,j)+" ("+DoubleToStr(HC3/Point,0)+"pts.)\n";
 ObjectSet("HC1_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC1_"+Step,OBJPROP_TIME2,Time[0]);
 ObjectSet("HC1_"+Step,OBJPROP_PRICE1,HC1+k);ObjectSet("HC1_"+Step,OBJPROP_PRICE2,HC1+k);
 ObjectSet("HC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC1_"+Step,OBJPROP_STYLE,St);
 //ObjectSet("HC2_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC2_"+Step,OBJPROP_TIME2,Time[0]);
 //ObjectSet("HC2_"+Step,OBJPROP_PRICE1,HC2+k);ObjectSet("HC2_"+Step,OBJPROP_PRICE2,HC2+k);
 //ObjectSet("HC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC2_"+Step,OBJPROP_STYLE,St);
 //ObjectSet("HC3_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC3_"+Step,OBJPROP_TIME2,Time[0]);
 //ObjectSet("HC3_"+Step,OBJPROP_PRICE1,HC3+k);ObjectSet("HC3_"+Step,OBJPROP_PRICE2,HC3+k);
 //ObjectSet("HC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC3_"+Step,OBJPROP_STYLE,St);
 if (Step==1)
   {
    ObjectSet("HC1_"+Step,OBJPROP_WIDTH,ProjectionLinesWidth);/*Original OBJPROP_WIDTH,2*/
    ObjectSet("HC1_"+Step,OBJPROP_STYLE,ProjectionLinesStyle);/*This Line of code added from original. TD Upper Projection Line Style*/
//    ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
//    ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
   }
 else
   {
    ObjectSet("HC1_"+Step,OBJPROP_WIDTH,2);
//    ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
//    ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
   }
 return(Comm);
}
//--------------------------------------------------------------------
string TakeProfitLowTD(int L1,int L2,int Step,int Col)/*Draw Sell TD Price Projection(s)*/
{
 int i,ii,j=0;
 string Comm="";
 double kL,LC1,LC2,LC3,k,St;
 kL=(Low[L1]-Low[L2])/(L2-L1);
 while (NormalizeDouble(Point,j)==0)j++;
 k=0;
 for(i=L1;i>0;i--)if(Close[i]<Low[L2]+kL*(L2-i)){k=Low[L2]+kL*(L2-i);break;}
 if (k>0)
   {
    Comm=Comm+"LTD_Line ("+DoubleToStr(Low[L2]+kL*L2,j)+") broken at "+DoubleToStr(k,j)+", downtargets:\n";
    ii=Highest(NULL,0,MODE_HIGH,L2-i,i);
    LC1=High[ii]-(Low[L2]+kL*(L2-ii));
    LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
    i=Highest(NULL,0,MODE_CLOSE,L2-i,i);
    LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
    St=TrendLineStyle;/*Original STYLE_SOLID*/
   }
 else
   {
    k=Low[L2]+kL*L2;
    Comm=Comm+"LTD_Line ("+DoubleToStr(k,j)+"), probable downbreak targets:\n";
    ii=Highest(NULL,0,MODE_HIGH,L2,0);
    LC1=High[ii]-(Low[L2]+kL*(L2-ii));
    LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
    ii=Highest(NULL,0,MODE_CLOSE,L2,0);
    LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
    St=TrendLineStyle;/*Original STYLE_DASHDOT*/
   }
 ObjectSet("LL_"+Step,OBJPROP_STYLE,St);
 Comm=Comm+"T1="+DoubleToStr(k-LC1,j)+" ("+DoubleToStr(LC1/Point,0)+"pts.)\n";//changed "pts.)" to "pts.)\n"
 //Comm=Comm+" T2="+DoubleToStr(k-LC2,j)+" ("+DoubleToStr(LC2/Point,0)+"pts.)";
 //Comm=Comm+" T3="+DoubleToStr(k-LC3,j)+" ("+DoubleToStr(LC3/Point,0)+"pts.)\n";
 ObjectSet("LC1_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC1_"+Step,OBJPROP_TIME2,Time[0]);
 ObjectSet("LC1_"+Step,OBJPROP_PRICE1,k-LC1);ObjectSet("LC1_"+Step,OBJPROP_PRICE2,k-LC1);
 ObjectSet("LC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC1_"+Step,OBJPROP_STYLE,St);
 //ObjectSet("LC2_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC2_"+Step,OBJPROP_TIME2,Time[0]);
 //ObjectSet("LC2_"+Step,OBJPROP_PRICE1,k-LC2);ObjectSet("LC2_"+Step,OBJPROP_PRICE2,k-LC2);
 //ObjectSet("LC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC2_"+Step,OBJPROP_STYLE,St);
 //ObjectSet("LC3_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC3_"+Step,OBJPROP_TIME2,Time[0]);
 //ObjectSet("LC3_"+Step,OBJPROP_PRICE1,k-LC3);ObjectSet("LC3_"+Step,OBJPROP_PRICE2,k-LC3);
 //ObjectSet("LC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC3_"+Step,OBJPROP_STYLE,St);
 if (Step==1)
   {
    ObjectSet("LC1_"+Step,OBJPROP_WIDTH,ProjectionLinesWidth);/*Original OBJPROP_WIDTH,2*/
    ObjectSet("LC1_"+Step,OBJPROP_STYLE,ProjectionLinesStyle);/*This Line of code added from original. TD Lower Projection Line Style*/
    //ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
    //ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
   }
 else
   {
    ObjectSet("LC1_"+Step,OBJPROP_WIDTH,2);
    //ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
    //ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
   }
 return(Comm);
}
//--------------------------------------------------------------------
string TDMain(int Step)
{
 int H1,H2,L1,L2;
 string Comm="---   step "+Step+"   --------------------\n";
 int i,j; while (NormalizeDouble(Point,j)==0)j++;
 double Style;
 double Col[20];Col[0]=UpperProjectionLineColour/*Original Col[0]=Red, Colour for Current Upper TD Projection*/;Col[2]=Magenta;Col[4]=Chocolate;Col[6]=Goldenrod;Col[8]=SlateBlue;
                Col[1]=LowerProjectionLineColour/*Original Col[1]=Blue, Colour for Current Lower TD Projection*/;Col[3]=FireBrick;Col[5]=Green;Col[7]=MediumOrchid;Col[9]=CornflowerBlue;
                Col[10]=Red;Col[12]=Magenta;Col[14]=Chocolate;Col[16]=Goldenrod;Col[18]=SlateBlue;
                Col[11]=Blue;Col[13]=FireBrick;Col[15]=Green;Col[17]=MediumOrchid;Col[19]=CornflowerBlue;
   Step=Step+BackSteps;
   H1=GetHighTD(Step);
   H2=GetNextHighTD(H1);
   L1=GetLowTD(Step);
   L2=GetNextLowTD(L1);
   TrendLineBreakUp=High[H2]-(High[H2]-High[H1])/(H2-H1)*H2;//added line
   TrendLineBreakDown=Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2;//added line
   if (H1<0)Comm=Comm+"UTD no TD up-point \n";
   else
     if (H2<0)Comm=Comm+"UTD no TD point-upper then last one ("+DoubleToStr(High[H1],j)+")\n";
     else Comm=Comm+"UTD "+DoubleToStr(High[H2],j)+"  "+DoubleToStr(High[H1],j)+"\n";
   if (L1<0)Comm=Comm+"LTD no TD down-point \n";
   else
     if (L2<0)Comm=Comm+"LTD no TD point-lower then last one ("+DoubleToStr(Low[L1],j)+")\n";
     else Comm=Comm+"LTD  "+DoubleToStr(Low[L2],j)+"  "+DoubleToStr(Low[L1],j)+"\n";
   //-----------------------------------------------------------------------------------
   if (Step==1)Style=STYLE_SOLID;
   else Style=STYLE_DOT;
   if (H1>0 && H2>0)
     {
      if (TrendLine==1)
        {
         ObjectCreate("HL_"+Step,OBJ_TREND,0,0,0,0,0);
         TrendLineHighTD(H1,H2,Step,Col[Step*2-2]);
        }
      else ObjectDelete("HL_"+Step);
      if (HorizontLine==1 && Step==1)
        {
         ObjectCreate("HHL_"+Step,OBJ_HLINE,0,0,0,0,0);
         ObjectSet("HHL_"+Step,OBJPROP_BACK,True);//Line added
         HorizontLineHighTD(H1,H2,Step,Style,Col[Step*2-2]);
        }
      else ObjectDelete("HHL_"+Step);
      if (ProjectionLines==1)
        {
         ObjectCreate("HC1_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("HC2_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("HC3_"+Step,OBJ_TREND,0,0,0,0,0);
         Comm=Comm+TakeProfitHighTD(H1,H2,Step,Col[Step*2-2]);
        }
      else
        {
         ObjectDelete("HC1_"+Step);
         ObjectDelete("HC2_"+Step);
         ObjectDelete("HC3_"+Step);
        }
     }

   //-----------------------------------------------------------------------------------
   if (L1>0 && L2>0)
     {
      if (TrendLine==1)
        {
         ObjectCreate("LL_"+Step,OBJ_TREND,0,0,0,0,0);
         TrendLineLowTD(L1,L2,Step,Col[Step*2-1]);
        }
      else ObjectDelete("LL_"+Step);
      if (HorizontLine==1 && Step==1)
        {
         ObjectCreate("HLL_"+Step,OBJ_HLINE,0,0,0,0,0);
         ObjectSet("HLL_"+Step,OBJPROP_BACK,True);//Line added
         HorizontLineLowTD(L1,L2,Step,Style,Col[Step*2-1]);
        }
      else ObjectDelete("HLL_"+Step);
      if (ProjectionLines==1)
        {
         ObjectCreate("LC1_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("LC2_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("LC3_"+Step,OBJ_TREND,0,0,0,0,0);
         Comm=Comm+TakeProfitLowTD(L1,L2,Step,Col[Step*2-1]);
        }
      else
        {
         ObjectDelete("LC1_"+Step);
         ObjectDelete("LC2_"+Step);
         ObjectDelete("LC3_"+Step);
        }
     }
//--------------------------------------------------------------------
   if(AlertsOn)//added this Alerts section
   {
     //Print("Alerts On");

     if(Close[0]>TrendLineBreakUp && TrendLineBreakUpFlag==False)
     {
     //Print("Upper TrendLine Break ",Symbol()," ",Period()," ",Bid);
     Alert("UTL Break>",TrendLineBreakUp," on ",Symbol()," ",Period()," @ ",Bid);
     TrendLineBreakUpFlag=True;
     }
   if(Close[0]<TrendLineBreakDown && TrendLineBreakDownFlag==False)
     {
     //Print("Lower Trendline Break ",Symbol()," ",Period()," ",Bid);
     Alert("LTL Break<",TrendLineBreakDown," on ",Symbol()," ",Period()," @ ",Bid);
     TrendLineBreakDownFlag=True;
     }
 //--------------------------------------------------------------------
   }
 return(Comm);
}
//--------------------------------------------------------------------
int start()
{
 string Comm="";
   SetTDPoint(Bars-1);
   if (TD==1)
     {
      SetIndexArrow(0,217);
      SetIndexArrow(1,218);
     }
   else
     {
      SetIndexArrow(0,160);
      SetIndexArrow(1,160);
     }
   if (ShowingSteps>10)
    {
     Comment("ShowingSteps readings 0 - 10");
     return(0);
    }
   for (int i=1;i<=ShowingSteps;i++)Comm=Comm+TDMain(i);
   Comm=Comm+"------------------------------------\nShowingSteps="+ShowingSteps+"\nBackSteps="+BackSteps;
   if (FractalAsTD==true)Comm=Comm+"\nFractals";
   else Comm=Comm+"\nTD point";
   if (Comments==1)Comment(Comm);
   else Comment("");
   return(0);
  }

//+------------------------------------------------------------------+

Similar scripts

Mouteki Heart-Mono v1_v1

An advanced technical analysis tool that identifies TD points to construct dynamic trendlines and calculate mathematical price projection targets for breakout reversals.

Mouteki Heart-Mono v1

This indicator identifies structural pivot points to project linear trend trajectories and calculate potential breakout price targets based on geometric expansion.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v3

This indicator identifies TD structural points to automate the calculation of multi-step trendlines and execute precise price projection targets based on historical pivot geometry.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v2

This indicator identifies Triple Danger (TD) price points to project trendline breaks and automated profit targets based on historical geometric pivots.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v1

This indicator identifies TD Sequential points to project trendlines and calculate objective price targets based on historical pivot highs and lows.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_002

This indicator identifies specific price pivot points to construct DeMark trendlines and automatically calculate multi-step geometric projections for potential breakout targets.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_001

This indicator identifies Trend Danger (TD) points to construct dynamic trendlines and project mathematical price targets based on multi-step structural analysis.

DeMark Trendline Trader_v2

This indicator identifies TD sequential high and low points to construct trendlines, calculate price projection targets, and trigger alerts upon structural breakouts.

DeMark Trendline Trader_v1

Identifies Trend Dynamics using multi-point highs and lows to project geometric break-out targets and trendline violations.

DeMark Trendline Trader_001

This indicator identifies TD-style price pivots to plot multi-step trendlines and calculate automated profit projection targets based on structural breaks.

DeMark Trendline Trader

Identifies price reversal points and trend lines based on Thomas DeMark theory to project potential take-profit targets and alert on structural breakouts.

Comments
