Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v2

This script is a specialized trading tool designed to identify structural trends and price targets by automatically detecting significant "turning points" in market price action. It uses a logic system based on identifying high and low peaks to establish trendlines, project future price goals, and provide real-time alerts.

Core Logic Overview

1. Turning Point Identification (TD Points) The script scans historical price data to find specific "Tops" and "Bottoms."

  • High Points: It looks for instances where the market reached a peak that is higher than the candles immediately preceding and following it. It is designed to recognize single peaks as well as complex formations like double, triple, or quadruple tops.
  • Low Points: Similarly, it identifies troughs where the price dropped to a low point lower than the surrounding price action, capturing single bottoms or multi-peak structures (double/triple bottoms).

2. Trendline Construction Once these high and low points are identified, the script connects them to draw visual trendlines on your chart:

  • Upper Trendlines: Connect consecutive high points to show the ceiling of the current price movement.
  • Lower Trendlines: Connect consecutive low points to show the floor of the current price movement. The script allows for customization of these lines, including their thickness, style (dotted or solid), and color, to ensure they are clearly visible to the user.

3. Price Projections (Take Profit Targets) One of the primary functions of this tool is its ability to "project" where the price might go next based on the angle of the established trendlines:

  • It calculates the trajectory of the current trend and extends it forward.
  • It identifies potential target zones by looking back at historical price extremes (the highest highs or lowest lows) relative to that trajectory.
  • These targets are plotted as projection lines, helping traders visualize potential "Take Profit" areas based on the momentum of the current trend.

4. Breakout Alerts and Monitoring The script actively monitors the live price against the generated trendlines:

  • Breakout Detection: It watches for the moment the current market price crosses over an established upper or lower trendline.
  • Notifications: If a breakout occurs, the script can trigger a pop-up alert to notify the trader immediately. This is intended to signal a potential shift in market sentiment or a continuation of a strong move.

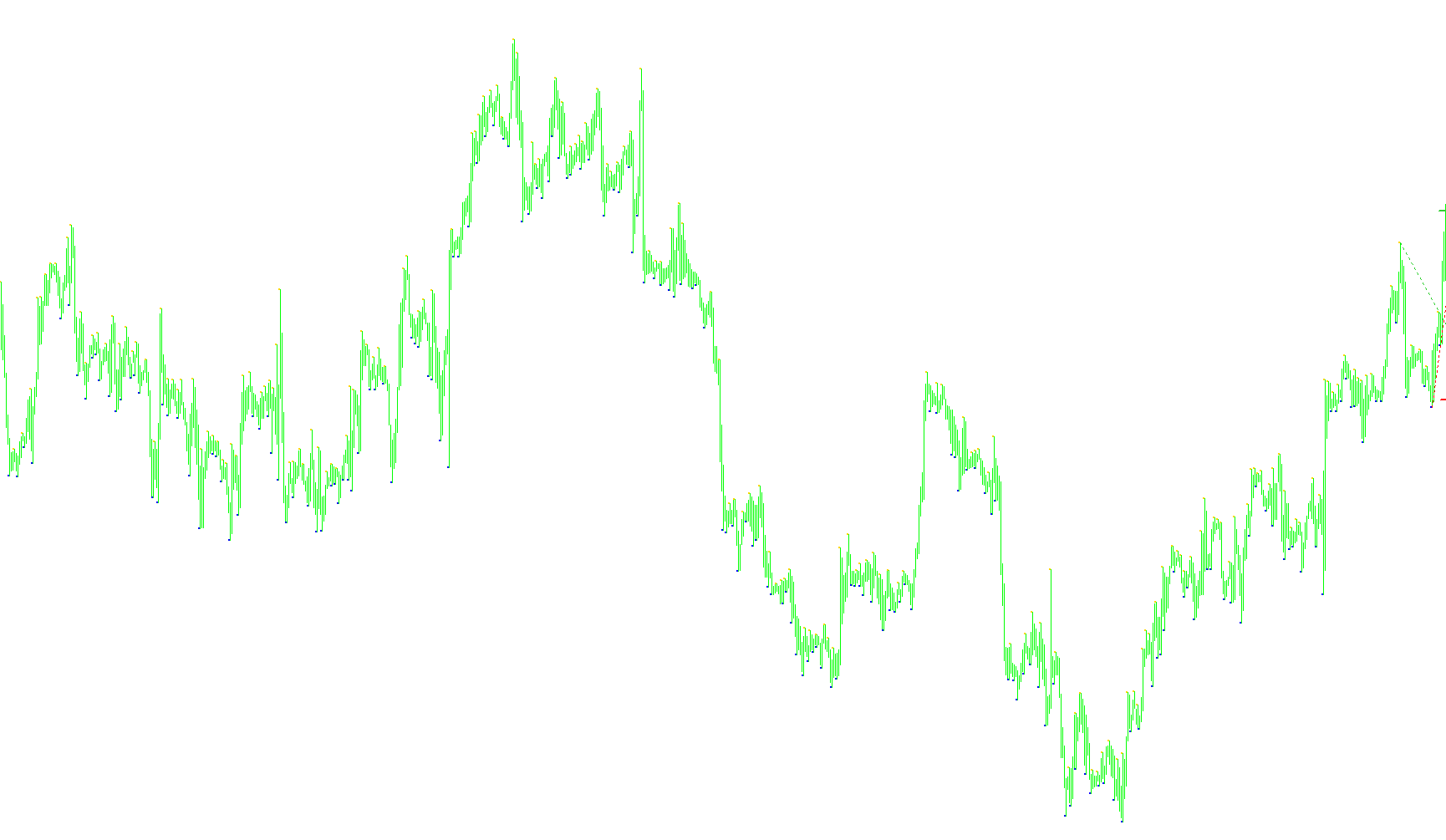

5. User Interface and Information Display To keep the user informed without cluttering the screen, the script provides:

  • Visual Markers: Arrows or dots are placed on the chart at every identified turning point.
  • On-Screen Comments: A data summary can be displayed in the corner of the chart, providing text details about the current trendline values, target prices (T1), and the specific steps being calculated.
  • Customization: Users can toggle various features on or off, such as horizontal lines that indicate where price might cross a trendline, or whether to use "Fractal" points (a different mathematical way of defining peaks) instead of the standard TD points.
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
16 Views
0 Downloads
0 Favorites
Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v2
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//|                            Ind-TD-DeMark-3-1-LA-Mod-03B-AIME.mq4 |
//|                            Copyright © 2005,Kara Software Corp.  |
//|                                                                  |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, Kara Software Corp."
#property link      ""
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Blue /*Original #property indicator_color1 Red. Color of Upper TD Points*/
#property indicator_color2 Blue /*Original #property indicator_color2 Blue. Color of Lower TD Points*/
//---- input parameters
/* Mod 02: only one step, no back steps, only one target, no fractal trendlines,
no large arrow option for TD points, and added user changable colours and styles*/
/* Mod 03: Alerts Added.  Horizontal Lines indicating where projections start from and
where alerts should be determined from re-enabled with Default of False.*/
/* Mod 03B: Bug where TD Points and TD Lines drawn in wrong place for
double, triple and quadruple tops or bottoms is fixed*/

extern bool AlertsOn = true; // Line added.  Default is true.
extern bool      Comments=True;/*Optional Comments.  Default is false. Orginal variable called "Commen"*/
extern bool      TrendLine=True;/*Default is true to draw current TD Lines*/
extern int       TrendLineStyle=STYLE_DOT;/*STYLE>_SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4. Line of code added from original.*/
extern int       TrendLineWidth=1;/*Thinnest or allow dots and dashes = 0 or 1, Thinner=2, Medium=3,Thicker=4,Thickest=5.  Line of code added from original.*/
extern color     UpperTrendLineColour=LimeGreen;/*Line of code added from original.*/
extern color     LowerTrendLineColour=Red;/*Line of code added from original.*/
extern bool      ProjectionLines=True;/*Default is True.  These are the TD Price Projections. Original variable called "Take Prof"*/
extern int       ProjectionLinesStyle=STYLE_SOLID;/*STYLE>_SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4. Line of code added from original.*/
extern int       ProjectionLinesWidth=2;/*Thinnest or allow dots and dashes = 0 or 1, Thinner=2, Medium=3,Thicker=4,Thickest=5.  Line of code added from original.*/
extern color     UpperProjectionLineColour=LimeGreen;/*Line of code added from original.*/
extern color     LowerProjectionLineColour=Red;/*Line of code added from original.*/
extern bool      HorizontLine=False;/*Default is false.  It seems the Horizontal Lines are were the code predicts price may cross TD line.*/

bool             TD=False;/*Default is false. True setting draws up and down arrows instead of dots on TD Points creating more clutter.*/
int              BackSteps=0;/*Used to be extern int now just int. Leave at 0*/
int              ShowingSteps=1;/*Used to be extern int now just int.  Leave at 1*/
bool             FractalAsTD=false;/*Used to be extern bool now just bool.  Leave at false, otherwise Trend Lines based on Fractal Points not TD Points*/


double TrendLineBreakUp=-1;//Line added.
bool TrendLineBreakUpFlag=False;//Line added.
double TrendLineBreakDown=-1;//Line added.
bool TrendLineBreakDownFlag=False;//Line added.

//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//====================================================================
int init()
  {
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,217);
   SetIndexBuffer(0,ExtMapBuffer1);
   SetIndexEmptyValue(0,0.0);
   SetIndexStyle(1,DRAW_ARROW);
   SetIndexArrow(1,218);
   SetIndexBuffer(1,ExtMapBuffer2);
   SetIndexEmptyValue(1,0.0);
   for (int i=1;i<=10;i++)
     {
      ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
      ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
      ObjectDelete("HC1_"+i);
      ObjectDelete("HC2_"+i);
      ObjectDelete("HC3_"+i);
      ObjectDelete("LC1_"+i);
      ObjectDelete("LC2_"+i);
      ObjectDelete("LC3_"+i);
     }
   Comment("");
   return(0);
  }
int deinit()
  {
   for (int i=1;i<=10;i++)
     {
      ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
      ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
      ObjectDelete("HC1_"+i);
      ObjectDelete("HC2_"+i);
      ObjectDelete("HC3_"+i);
      ObjectDelete("LC1_"+i);
      ObjectDelete("LC2_"+i);
      ObjectDelete("LC3_"+i);
     }
   Comment("");
   return(0);
  }
//--------------------------------------------------------------------
int SetTDPoint(int B)//It seems B is the same as IndicatorCounted() function
{
 int shift;
 if (FractalAsTD==false)
   {
    //Print("B = ",B);
    //Print("Bars = ",Bars);
    //Print("IndicatorCounted() = ",IndicatorCounted());
    for (shift=B;shift>1;shift--)
       {
        if (High[shift+1]<High[shift] && High[shift-1]<High[shift])// determine single top TD Point
           ExtMapBuffer1[shift]=High[shift];// determine single top TD Point

        if (High[shift+2]<High[shift] && High[shift+1]==High[shift]&& High[shift-1]<High[shift])//I added for double top
           ExtMapBuffer1[shift]=High[shift];//I added for double top

        if (High[shift+3]<High[shift] && High[shift+2]==High[shift]&& High[shift+1]==High[shift]//I added for triple top
           && High[shift-1]<High[shift])//I added for triple top
           ExtMapBuffer1[shift]=High[shift];//I added for triple top

        if (High[shift+4]<High[shift] && High[shift+3]==High[shift]&& High[shift+2]==High[shift]//I added for quadruple top
           && High[shift+1]==High[shift]//I added for quadruple top
           && High[shift-1]<High[shift])//I added for quadruple top
           ExtMapBuffer1[shift]=High[shift];//I added for quadruple top

        if (High[shift-1]>=High[shift])//I added for new way to determine Non-TD High Point
           ExtMapBuffer1[shift]=0;//I added for new way to determine Non-TD High Point

        //else ExtMapBuffer1[shift]=0;


        if (Low[shift+1]>Low[shift] && Low[shift-1]>Low[shift])// determine single bottom TD Point
           ExtMapBuffer2[shift]=Low[shift];// determine single bottom TD Point

        if (Low[shift+2]>Low[shift] && Low[shift+1]==Low[shift] && Low[shift-1]>Low[shift])//I added for double bottom
           ExtMapBuffer2[shift]=Low[shift];//I added for double bottom

        if (Low[shift+3]>Low[shift] && Low[shift+2]==Low[shift] && Low[shift+1]==Low[shift]//I added for triple bottom
           && Low[shift-1]>Low[shift])//I added for triple bottom
           ExtMapBuffer2[shift]=Low[shift];//I added for triple bottom

        if (Low[shift+4]>Low[shift] && Low[shift+3]==Low[shift]&& Low[shift+2]==Low[shift] && Low[shift+1]==Low[shift]//I added for quadruple bottom
           && Low[shift-1]>Low[shift])//I added for quadruple bottom
           ExtMapBuffer2[shift]=Low[shift];//I added for quadruple bottom

        if (Low[shift-1]<=Low[shift])//I added
           ExtMapBuffer2[shift]=0;//I added

        //else ExtMapBuffer2[shift]=0;
       }
    ExtMapBuffer1[0]=0;
    ExtMapBuffer2[0]=0;
    ExtMapBuffer1[1]=0;
    ExtMapBuffer2[1]=0;
   }
 else
   {
    for (shift=B;shift>3;shift--)
       {
        if (High[shift+1]<=High[shift] && High[shift-1]<High[shift] && High[shift+2]<=High[shift] && High[shift-2]<High[shift])
             ExtMapBuffer1[shift]=High[shift];
        else ExtMapBuffer1[shift]=0;
        if (Low[shift+1]>=Low[shift] && Low[shift-1]>Low[shift] && Low[shift+2]>=Low[shift] && Low[shift-2]>Low[shift])
            ExtMapBuffer2[shift]=Low[shift];
        else ExtMapBuffer2[shift]=0;
       }
    ExtMapBuffer1[0]=0;
    ExtMapBuffer2[0]=0;
    ExtMapBuffer1[1]=0;
    ExtMapBuffer2[1]=0;
    ExtMapBuffer1[2]=0;
    ExtMapBuffer2[2]=0;
   }
 return(0);
}
//--------------------------------------------------------------------
int GetHighTD(int P)
{
 int i=0,j=0;
 while (j<P)
   {
    i++;
    while(ExtMapBuffer1[i]==0)
      {i++;if(i>Bars-2)return(-1);}
    j++;
   }
 return (i);
}
//--------------------------------------------------------------------
int GetNextHighTD(int P)
{
 int i=P+1;
 while(ExtMapBuffer1[i]<=High[P]){i++;if(i>Bars-2)return(-1);}
 return (i);
}
//--------------------------------------------------------------------
int GetLowTD(int P)
{
 int i=0,j=0;
 while (j<P)
   {
    i++;
    while(ExtMapBuffer2[i]==0)
      {i++;if(i>Bars-2)return(-1);}
    j++;
   }
 return (i);
}
//--------------------------------------------------------------------
int GetNextLowTD(int P)
{
 int i=P+1;
 while(ExtMapBuffer2[i]>=Low[P] || ExtMapBuffer2[i]==0){i++;if(i>Bars-2)return(-1);}
 return (i);
}
//--------------------------------------------------------------------
int TrendLineHighTD(int H1,int H2,int Step,int Col)/*Draw Upper Trend Line*/
{
 ObjectSet("HL_"+Step,OBJPROP_TIME1,Time[H2]);ObjectSet("HL_"+Step,OBJPROP_TIME2,Time[H1]);
 ObjectSet("HL_"+Step,OBJPROP_PRICE1,High[H2]);ObjectSet("HL_"+Step,OBJPROP_PRICE2,High[H1]);
 ObjectSet("HL_"+Step,OBJPROP_COLOR,UpperTrendLineColour);/*TEMP Original OBJPROP_COLOR,Col*/
 if (Step==1)ObjectSet("HL_"+Step,OBJPROP_WIDTH,TrendLineWidth);/*Original OBJPROP_WIDTH,2*/
 else ObjectSet("HL_"+Step,OBJPROP_WIDTH,1);
 return(0);
}
//--------------------------------------------------------------------
int TrendLineLowTD(int L1,int L2,int Step,int Col)/*Draw Lower Trend Line*/
{
 ObjectSet("LL_"+Step,OBJPROP_TIME1,Time[L2]);ObjectSet("LL_"+Step,OBJPROP_TIME2,Time[L1]);
 ObjectSet("LL_"+Step,OBJPROP_PRICE1,Low[L2]);ObjectSet("LL_"+Step,OBJPROP_PRICE2,Low[L1]);
 ObjectSet("LL_"+Step,OBJPROP_COLOR,LowerTrendLineColour);/*TEMP Original OBJPROP_COLOR,Col*/
 if (Step==1)ObjectSet("LL_"+Step,OBJPROP_WIDTH,TrendLineWidth);/*Original OBJPROP_WIDTH,2*/
 else ObjectSet("LL_"+Step,OBJPROP_WIDTH,1);
 return(0);
}
//--------------------------------------------------------------------
int HorizontLineHighTD(int H1,int H2,int Step,double St,int Col)
{
 ObjectSet("HHL_"+Step,OBJPROP_PRICE1,High[H2]-(High[H2]-High[H1])/(H2-H1)*H2);//HORIZONTAL HIGH LINE HEIGHT CALCULATION
 ObjectSet("HHL_"+Step,OBJPROP_STYLE,St);
 ObjectSet("HHL_"+Step,OBJPROP_COLOR,Col);
 ObjectSet("HHL_"+Step,OBJPROP_BACK,True);//Line added
 return(0);
}
//--------------------------------------------------------------------
int HorizontLineLowTD(int L1,int L2,int Step,double St,int Col)
{

 ObjectSet("HLL_"+Step,OBJPROP_PRICE1,Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2);//HORIZONTAL LOW LINE HEIGHT CALCULATION
 ObjectSet("HLL_"+Step,OBJPROP_STYLE,St);
 ObjectSet("HLL_"+Step,OBJPROP_COLOR,Col);
 ObjectSet("HLL_"+Step,OBJPROP_BACK,True);//Line added
 return(0);
}
//--------------------------------------------------------------------
string TakeProfitHighTD(int H1,int H2,int Step,int Col)/*Draw Buy TD Price Projection(s)*/
{
 int i,ii,j=0;
 string Comm="";
 double kH,HC1,HC2,HC3,k,St;
 kH=(High[H2]-High[H1])/(H2-H1);
 while (NormalizeDouble(Point,j)==0)j++;
 k=0;
 for(i=H1;i>0;i--)if(Close[i]>High[H2]-kH*(H2-i)){k=High[H2]-kH*(H2-i);break;}
 if (k>0)
   {
    Comm=Comm+"UTD_Line ("+DoubleToStr(High[H2]-kH*H2,j)+") broken at "+DoubleToStr(k,j)+", uptargets:\n";
    ii=Lowest(NULL,0,MODE_LOW,H2-i,i);
    HC1=High[H2]-kH*(H2-ii)-Low[ii];
    HC2=High[H2]-kH*(H2-ii)-Close[ii];
    ii=Lowest(NULL,0,MODE_CLOSE,H2-i,i);
    HC3=High[H2]-kH*(H2-ii)-Close[ii];
    St=TrendLineStyle;/*Original STYLE_SOLID*/
   }
 else
   {
    k=High[H2]-kH*H2;
    Comm=Comm+"UTD_Line ("+DoubleToStr(k,j)+"), probable break-up targets:\n";
    ii=Lowest(NULL,0,MODE_LOW,H2,0);
    HC1=High[H2]-kH*(H2-ii)-Low[ii];
    HC2=High[H2]-kH*(H2-ii)-Close[ii];
    ii=Lowest(NULL,0,MODE_CLOSE,H2,0);
    HC3=High[H2]-kH*(H2-ii)-Close[ii];
    St=TrendLineStyle;/*Original STYLE_DASHDOT*/
   }
 ObjectSet("HL_"+Step,OBJPROP_STYLE,St);
 Comm=Comm+"T1="+DoubleToStr(HC1+k,j)+" ("+DoubleToStr(HC1/Point,0)+"pts.)\n";//changed "pts.)" to "pts.)\n"
 //Comm=Comm+" T2="+DoubleToStr(HC2+k,j)+" ("+DoubleToStr(HC2/Point,0)+"pts.)";
 //Comm=Comm+" T3="+DoubleToStr(HC3+k,j)+" ("+DoubleToStr(HC3/Point,0)+"pts.)\n";
 ObjectSet("HC1_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC1_"+Step,OBJPROP_TIME2,Time[0]);
 ObjectSet("HC1_"+Step,OBJPROP_PRICE1,HC1+k);ObjectSet("HC1_"+Step,OBJPROP_PRICE2,HC1+k);
 ObjectSet("HC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC1_"+Step,OBJPROP_STYLE,St);
 //ObjectSet("HC2_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC2_"+Step,OBJPROP_TIME2,Time[0]);
 //ObjectSet("HC2_"+Step,OBJPROP_PRICE1,HC2+k);ObjectSet("HC2_"+Step,OBJPROP_PRICE2,HC2+k);
 //ObjectSet("HC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC2_"+Step,OBJPROP_STYLE,St);
 //ObjectSet("HC3_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC3_"+Step,OBJPROP_TIME2,Time[0]);
 //ObjectSet("HC3_"+Step,OBJPROP_PRICE1,HC3+k);ObjectSet("HC3_"+Step,OBJPROP_PRICE2,HC3+k);
 //ObjectSet("HC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC3_"+Step,OBJPROP_STYLE,St);
 if (Step==1)
   {
    ObjectSet("HC1_"+Step,OBJPROP_WIDTH,ProjectionLinesWidth);/*Original OBJPROP_WIDTH,2*/
    ObjectSet("HC1_"+Step,OBJPROP_STYLE,ProjectionLinesStyle);/*This Line of code added from original. TD Upper Projection Line Style*/
//    ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
//    ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
   }
 else
   {
    ObjectSet("HC1_"+Step,OBJPROP_WIDTH,2);
//    ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
//    ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
   }
 return(Comm);
}
//--------------------------------------------------------------------
string TakeProfitLowTD(int L1,int L2,int Step,int Col)/*Draw Sell TD Price Projection(s)*/
{
 int i,ii,j=0;
 string Comm="";
 double kL,LC1,LC2,LC3,k,St;
 kL=(Low[L1]-Low[L2])/(L2-L1);
 while (NormalizeDouble(Point,j)==0)j++;
 k=0;
 for(i=L1;i>0;i--)if(Close[i]<Low[L2]+kL*(L2-i)){k=Low[L2]+kL*(L2-i);break;}
 if (k>0)
   {
    Comm=Comm+"LTD_Line ("+DoubleToStr(Low[L2]+kL*L2,j)+") broken at "+DoubleToStr(k,j)+", downtargets:\n";
    ii=Highest(NULL,0,MODE_HIGH,L2-i,i);
    LC1=High[ii]-(Low[L2]+kL*(L2-ii));
    LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
    i=Highest(NULL,0,MODE_CLOSE,L2-i,i);
    LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
    St=TrendLineStyle;/*Original STYLE_SOLID*/
   }
 else
   {
    k=Low[L2]+kL*L2;
    Comm=Comm+"LTD_Line ("+DoubleToStr(k,j)+"), probable downbreak targets:\n";
    ii=Highest(NULL,0,MODE_HIGH,L2,0);
    LC1=High[ii]-(Low[L2]+kL*(L2-ii));
    LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
    ii=Highest(NULL,0,MODE_CLOSE,L2,0);
    LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
    St=TrendLineStyle;/*Original STYLE_DASHDOT*/
   }
 ObjectSet("LL_"+Step,OBJPROP_STYLE,St);
 Comm=Comm+"T1="+DoubleToStr(k-LC1,j)+" ("+DoubleToStr(LC1/Point,0)+"pts.)\n";//changed "pts.)" to "pts.)\n"
 //Comm=Comm+" T2="+DoubleToStr(k-LC2,j)+" ("+DoubleToStr(LC2/Point,0)+"pts.)";
 //Comm=Comm+" T3="+DoubleToStr(k-LC3,j)+" ("+DoubleToStr(LC3/Point,0)+"pts.)\n";
 ObjectSet("LC1_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC1_"+Step,OBJPROP_TIME2,Time[0]);
 ObjectSet("LC1_"+Step,OBJPROP_PRICE1,k-LC1);ObjectSet("LC1_"+Step,OBJPROP_PRICE2,k-LC1);
 ObjectSet("LC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC1_"+Step,OBJPROP_STYLE,St);
 //ObjectSet("LC2_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC2_"+Step,OBJPROP_TIME2,Time[0]);
 //ObjectSet("LC2_"+Step,OBJPROP_PRICE1,k-LC2);ObjectSet("LC2_"+Step,OBJPROP_PRICE2,k-LC2);
 //ObjectSet("LC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC2_"+Step,OBJPROP_STYLE,St);
 //ObjectSet("LC3_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC3_"+Step,OBJPROP_TIME2,Time[0]);
 //ObjectSet("LC3_"+Step,OBJPROP_PRICE1,k-LC3);ObjectSet("LC3_"+Step,OBJPROP_PRICE2,k-LC3);
 //ObjectSet("LC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC3_"+Step,OBJPROP_STYLE,St);
 if (Step==1)
   {
    ObjectSet("LC1_"+Step,OBJPROP_WIDTH,ProjectionLinesWidth);/*Original OBJPROP_WIDTH,2*/
    ObjectSet("LC1_"+Step,OBJPROP_STYLE,ProjectionLinesStyle);/*This Line of code added from original. TD Lower Projection Line Style*/
    //ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
    //ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
   }
 else
   {
    ObjectSet("LC1_"+Step,OBJPROP_WIDTH,2);
    //ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
    //ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
   }
 return(Comm);
}
//--------------------------------------------------------------------
string TDMain(int Step)
{
 int H1,H2,L1,L2;
 string Comm="---   step "+Step+"   --------------------\n";
 int i,j; while (NormalizeDouble(Point,j)==0)j++;
 double Style;
 double Col[20];Col[0]=UpperProjectionLineColour/*Original Col[0]=Red, Colour for Current Upper TD Projection*/;Col[2]=Magenta;Col[4]=Chocolate;Col[6]=Goldenrod;Col[8]=SlateBlue;
                Col[1]=LowerProjectionLineColour/*Original Col[1]=Blue, Colour for Current Lower TD Projection*/;Col[3]=FireBrick;Col[5]=Green;Col[7]=MediumOrchid;Col[9]=CornflowerBlue;
                Col[10]=Red;Col[12]=Magenta;Col[14]=Chocolate;Col[16]=Goldenrod;Col[18]=SlateBlue;
                Col[11]=Blue;Col[13]=FireBrick;Col[15]=Green;Col[17]=MediumOrchid;Col[19]=CornflowerBlue;
   Step=Step+BackSteps;
   H1=GetHighTD(Step);
   H2=GetNextHighTD(H1);
   L1=GetLowTD(Step);
   L2=GetNextLowTD(L1);
   TrendLineBreakUp=High[H2]-(High[H2]-High[H1])/(H2-H1)*H2;//added line
   TrendLineBreakDown=Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2;//added line
   if (H1<0)Comm=Comm+"UTD no TD up-point \n";
   else
     if (H2<0)Comm=Comm+"UTD no TD point-upper then last one ("+DoubleToStr(High[H1],j)+")\n";
     else Comm=Comm+"UTD "+DoubleToStr(High[H2],j)+"  "+DoubleToStr(High[H1],j)+"\n";
   if (L1<0)Comm=Comm+"LTD no TD down-point \n";
   else
     if (L2<0)Comm=Comm+"LTD no TD point-lower then last one ("+DoubleToStr(Low[L1],j)+")\n";
     else Comm=Comm+"LTD  "+DoubleToStr(Low[L2],j)+"  "+DoubleToStr(Low[L1],j)+"\n";
   //-----------------------------------------------------------------------------------
   if (Step==1)Style=STYLE_SOLID;
   else Style=STYLE_DOT;
   if (H1>0 && H2>0)
     {
      if (TrendLine==1)
        {
         ObjectCreate("HL_"+Step,OBJ_TREND,0,0,0,0,0);
         TrendLineHighTD(H1,H2,Step,Col[Step*2-2]);
        }
      else ObjectDelete("HL_"+Step);
      if (HorizontLine==1 && Step==1)
        {
         ObjectCreate("HHL_"+Step,OBJ_HLINE,0,0,0,0,0);
         ObjectSet("HHL_"+Step,OBJPROP_BACK,True);//Line added
         HorizontLineHighTD(H1,H2,Step,Style,Col[Step*2-2]);
        }
      else ObjectDelete("HHL_"+Step);
      if (ProjectionLines==1)
        {
         ObjectCreate("HC1_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("HC2_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("HC3_"+Step,OBJ_TREND,0,0,0,0,0);
         Comm=Comm+TakeProfitHighTD(H1,H2,Step,Col[Step*2-2]);
        }
      else
        {
         ObjectDelete("HC1_"+Step);
         ObjectDelete("HC2_"+Step);
         ObjectDelete("HC3_"+Step);
        }
     }

   //-----------------------------------------------------------------------------------
   if (L1>0 && L2>0)
     {
      if (TrendLine==1)
        {
         ObjectCreate("LL_"+Step,OBJ_TREND,0,0,0,0,0);
         TrendLineLowTD(L1,L2,Step,Col[Step*2-1]);
        }
      else ObjectDelete("LL_"+Step);
      if (HorizontLine==1 && Step==1)
        {
         ObjectCreate("HLL_"+Step,OBJ_HLINE,0,0,0,0,0);
         ObjectSet("HLL_"+Step,OBJPROP_BACK,True);//Line added
         HorizontLineLowTD(L1,L2,Step,Style,Col[Step*2-1]);
        }
      else ObjectDelete("HLL_"+Step);
      if (ProjectionLines==1)
        {
         ObjectCreate("LC1_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("LC2_"+Step,OBJ_TREND,0,0,0,0,0);
         ObjectCreate("LC3_"+Step,OBJ_TREND,0,0,0,0,0);
         Comm=Comm+TakeProfitLowTD(L1,L2,Step,Col[Step*2-1]);
        }
      else
        {
         ObjectDelete("LC1_"+Step);
         ObjectDelete("LC2_"+Step);
         ObjectDelete("LC3_"+Step);
        }
     }
//--------------------------------------------------------------------
   if(AlertsOn)//added this Alerts section
   {
     //Print("Alerts On");

     if(Close[0]>TrendLineBreakUp && TrendLineBreakUpFlag==False)
     {
     //Print("Upper TrendLine Break ",Symbol()," ",Period()," ",Bid);
     Alert("UTL Break>",TrendLineBreakUp," on ",Symbol()," ",Period()," @ ",Bid);
     TrendLineBreakUpFlag=True;
     }
   if(Close[0]<TrendLineBreakDown && TrendLineBreakDownFlag==False)
     {
     //Print("Lower Trendline Break ",Symbol()," ",Period()," ",Bid);
     Alert("LTL Break<",TrendLineBreakDown," on ",Symbol()," ",Period()," @ ",Bid);
     TrendLineBreakDownFlag=True;
     }
 //--------------------------------------------------------------------
   }
 return(Comm);
}
//--------------------------------------------------------------------
int start()
{
 string Comm="";
   SetTDPoint(Bars-1);
   if (TD==1)
     {
      SetIndexArrow(0,217);
      SetIndexArrow(1,218);
     }
   else
     {
      SetIndexArrow(0,160);
      SetIndexArrow(1,160);
     }
   if (ShowingSteps>10)
    {
     Comment("ShowingSteps readings 0 - 10");
     return(0);
    }
   for (int i=1;i<=ShowingSteps;i++)Comm=Comm+TDMain(i);
   Comm=Comm+"------------------------------------\nShowingSteps="+ShowingSteps+"\nBackSteps="+BackSteps;
   if (FractalAsTD==true)Comm=Comm+"\nFractals";
   else Comm=Comm+"\nTD point";
   if (Comments==1)Comment(Comm);
   else Comment("");
   return(0);
  }

//+------------------------------------------------------------------+

Similar scripts

Mouteki Heart-Mono v1_v1

An advanced technical analysis tool that identifies TD points to construct dynamic trendlines and calculate mathematical price projection targets for breakout reversals.

Mouteki Heart-Mono v1

This indicator identifies structural pivot points to project linear trend trajectories and calculate potential breakout price targets based on geometric expansion.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v3

This indicator identifies TD structural points to automate the calculation of multi-step trendlines and execute precise price projection targets based on historical pivot geometry.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_v1

This indicator identifies TD Sequential points to project trendlines and calculate objective price targets based on historical pivot highs and lows.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_002

This indicator identifies specific price pivot points to construct DeMark trendlines and automatically calculate multi-step geometric projections for potential breakout targets.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME_001

This indicator identifies Trend Danger (TD) points to construct dynamic trendlines and project mathematical price targets based on multi-step structural analysis.

Ind_TD_DeMark_3_1_LA_Mod_03B_AIME

Identifies multi-step Trend Deviation points to project linear breakout targets and trendline violations using historical pivot analysis.

DeMark Trendline Trader_v2

This indicator identifies TD sequential high and low points to construct trendlines, calculate price projection targets, and trigger alerts upon structural breakouts.

DeMark Trendline Trader_v1

Identifies Trend Dynamics using multi-point highs and lows to project geometric break-out targets and trendline violations.

DeMark Trendline Trader_001

This indicator identifies TD-style price pivots to plot multi-step trendlines and calculate automated profit projection targets based on structural breaks.

DeMark Trendline Trader

Identifies price reversal points and trend lines based on Thomas DeMark theory to project potential take-profit targets and alert on structural breakouts.

Comments
