Instantaneous Trend_v1
Download scriptThis tool is designed to help traders visualize market direction and cycle behavior by identifying the "instantaneous" trend of a price chart. Rather than relying on simple moving averages that can lag behind current price action, this script uses advanced mathematical logic to determine how fast and in what direction the market is currently moving.
Core Logic Overview
The script operates through several layers of calculation to translate raw price data into readable trend information:
1. Price Normalization The tool begins by identifying a baseline price point, calculated as the midpoint between the high and low of each previous bar. This helps smooth out minor "noise" before the deeper analysis begins.
2. Cycle and Phase Analysis Instead of just looking at where the price is, the script analyzes the wave-like nature of the market. It breaks down price movements into two components:
- In-Phase: The direct movement of the price.
- Quadrature: The "momentum" or perpendicular movement.
By comparing these two components, the tool calculates a "Phase Angle." This essentially treats the market like a rotating wave, allowing the script to understand where we are in a specific cycle (e.g., are we at a peak, a valley, or in the middle of a move?).
3. Calculating the Instantaneous Period One of the most unique features of this logic is its ability to determine the "Period." The market doesn't always move in fixed cycles; sometimes it speeds up and sometimes it slows down. The script calculates a "Delta Phase" (the change in the wave's angle) and sums these changes to find the current dominant cycle length. This allows the tool to adapt dynamically as the market volatility changes.
4. Trendline Generation Once the script knows the current period (the cycle length), it creates a trendline based on that specific data:
- The Trendline: It calculates an average of the price over the newly discovered dominant cycle. This provides a "smoothed" view of the long-term direction.
- Zero Line Tracking: The script also maintains a secondary calculation to help identify the balance point, providing a clear visual distinction between the current price action and the calculated trend.
Summary for Traders

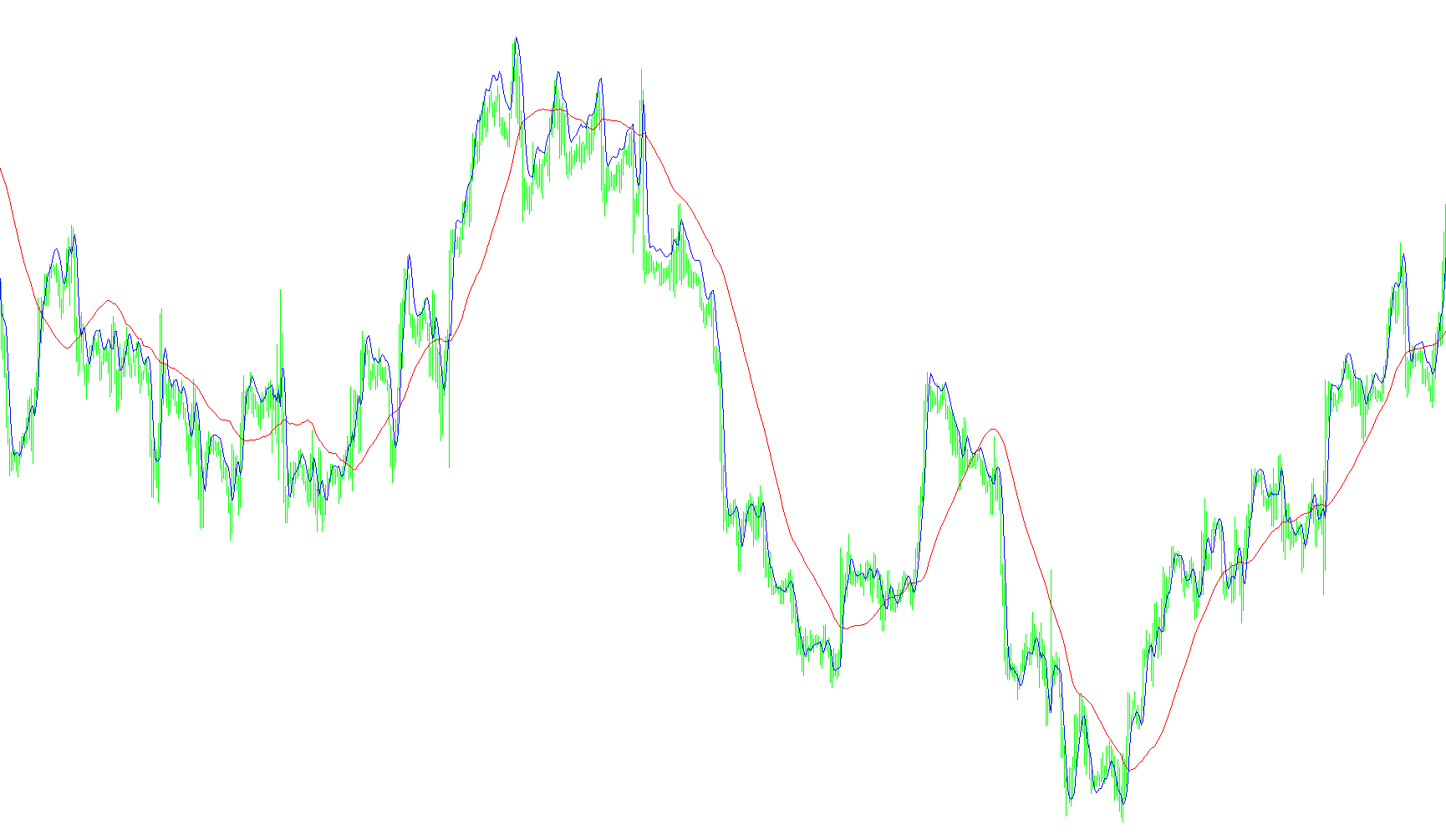

In simple terms, this script acts like a smart filter. It looks at the "rhythm" of the market to figure out how long the current wave is. Once it knows the length of that wave, it draws a line representing the true trend. This helps traders ignore short-term fluctuations and focus on the underlying direction of the price move based on real-time cycle detection.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| Instantaneous Trend Line by John Ehlers |
//| Copyright © 2004, Poul_Trade_Forum |
//| Aborigen |
//| http://forex.kbpauk.ru/ |
//+------------------------------------------------------------------+
#property copyright "Poul Trade Forum"
#property link "http://forex.kbpauk.ru/"
#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Red
#property indicator_color2 Blue
//---- buffers
double TRBuffer[];
double ZLBuffer[];
double Value1[],Value2,Value3,Value4,Value5[2],Value11[2];
double Price[],InPhase[2],Quadrature[2],Phase[2],DeltaPhase[],InstPeriod[2],Period_,Trendline;
double test[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
string short_name;
IndicatorBuffers(5);
//---- indicator line
SetIndexStyle(0,DRAW_LINE,EMPTY,1,Red);
SetIndexStyle(1,DRAW_LINE,EMPTY,1,Blue);
SetIndexBuffer(0,TRBuffer);
SetIndexBuffer(1,ZLBuffer);
SetIndexBuffer(2,Value1);
SetIndexBuffer(3,Price);
SetIndexBuffer(4,DeltaPhase);
SetIndexEmptyValue(0,0);
SetIndexEmptyValue(1,0);
//---- name for DataWindow and indicator subwindow label
short_name="Instantaneous Trend";
IndicatorShortName(short_name);
SetIndexLabel(0,short_name);
//----
SetIndexDrawBegin(0,30);
SetIndexDrawBegin(1,30);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars=IndicatorCounted(),i,shift,count;
//---- TODO: add your code here
if (counted_bars==0) counted_bars=100;
i=(Bars-counted_bars)-2;
for (shift=i; shift>=0;shift--)
{
InPhase[1] =InPhase[0]; Quadrature[1] =Quadrature[0];
Phase[1]=Phase[0]; InstPeriod[1] = InstPeriod[0];
Value5[1] =Value5[0];Value11[1] =Value11[0];
Price[shift]=(High[shift+1]+Low[shift+1])/2;
// {Compute InPhase and Quadrature components}
Value1[shift] = Price[shift] - Price[shift+6];
Value2 =Value1[shift+3];
Value3 =0.75*(Value1[shift] - Value1[shift+6]) + 0.25*(Value1[shift+2] - Value1[shift+4]);
InPhase[0] = 0.33*Value2 + 0.67*InPhase[1];
Quadrature[0] = 0.2*Value3 + 0.8*Quadrature[1];
// {Use ArcTangent to compute the current phase}
if (MathAbs(InPhase[0]+InPhase[1])>0) Phase[0]=MathArctan(MathAbs((Quadrature[0]+Quadrature[1])/(InPhase[0]+InPhase[1])));
// {Resolve the ArcTangent ambiguity}
if (InPhase[0] < 0 && Quadrature[0] > 0) Phase[0] = 180 - Phase[0];
if (InPhase[0] < 0 && Quadrature[0] < 0) Phase[0] = 180 + Phase[0];
if (InPhase[0] > 0 && Quadrature[0] < 0) Phase[0] = 360 - Phase[0];
// {Compute a differential phase, resolve phase wraparound, and limit delta phase errors}
DeltaPhase[shift] = Phase[1] - Phase[0];
if (Phase[1] < 90 && Phase[0] > 270) DeltaPhase[shift] = 360 + Phase[1] - Phase[0];
if (DeltaPhase[shift] < 1) DeltaPhase[shift] = 1;
if (DeltaPhase[shift] > 60) DeltaPhase[shift] = 60;
// {Sum DeltaPhases to reach 360 degrees. The sum is the instantaneous period.}
InstPeriod[0] = 0;
Value4 = 0;
for (count = 0;count<=40;count++)
{
Value4 = Value4 + DeltaPhase[shift+count];
if (Value4 > 360 && InstPeriod[0] == 0) InstPeriod[0] = count;
}
// {Resolve Instantaneous Period errors and smooth}
if (InstPeriod[0] == 0) InstPeriod[0] = InstPeriod[1];
Value5[0] = 0.25*(InstPeriod[0]) + 0.75*Value5[1];
// {Compute Trendline as simple average over the measured dominant cycle period}
Period_ = MathCeil(Value5[0]); Trendline = 0;///Period_ = IntPortion(Value5)
for (count = 0;count<=Period_ + 1;count++)
{ Trendline = Trendline + Price[shift+count]; }
if (Period_ > 0) Trendline = Trendline / (Period_ + 2);
Value11[0] = 0.33*(Price[shift] + 0.5*(Price[shift] - Price[shift+3])) + 0.67*Value11[1];
TRBuffer[shift]=Trendline;
ZLBuffer[shift]=Value11[0];
//----
}
return(0);
}
//+------------------------------------------------------------------+
