DeMark Trendline Trader_001
Download scriptThis DeMark Trendline Trader is a specialized technical analysis tool designed to help traders visualize market trends and identify potential price targets. It automates the identification of specific structural points in price action—known as TD Points—to draw trendlines and project where the price might head next.
Core Logic & Functionality
1. Identification of Structural Points (TD Points) The script scans historical price data to find significant "peaks" (Highs) and "troughs" (Lows). It specifically looks for:
- Single Tops/Bottoms: Where a high or low point is higher or lower than the candles immediately preceding and following it.
- Multiple Tops/Bottoms: The logic is sophisticated enough to recognize double, triple, and quadruple tops or bottoms (where multiple consecutive bars share the same highest or lowest price).
- Fractal Support: There is an option to switch from these specific TD points to "Fractals," which are another common method of identifying structural turns in the market.
2. Dynamic Trendline Generation Once the script identifies these significant points, it connects them to form trendlines:
- Upper Trendlines: These connect sequential high points to show the "ceiling" of a current price move or the resistance level of an uptrend.
- Lower Trendlines: These connect sequential low points to show the "floor" of a price move or the support level of a downtrend.
- Visual Customization: Users can customize the style (solid, dots, dashes), thickness, and colors of these lines to suit their visual preference.
3. Price Projections & Take Profit Targets One of the script's most advanced features is its ability to calculate "Projections." Based on the angle and distance between the identified TD points:
- It calculates where the current trendline will likely "break" or reach a point of exhaustion.
- It automatically draws projection lines that suggest potential Take Profit targets.
- These targets are derived by measuring the distance from the trendline to previous structural highs or lows, giving traders a mathematical estimate of where price might react next.
4. Automated Alerts & Monitoring To help traders stay attentive without constantly staring at the screen:
- Trendline Break Alerts: The script monitors the current market price against the calculated trendlines. If the price closes above an upper trendline or below a lower trendline, it triggers a real-time alert.

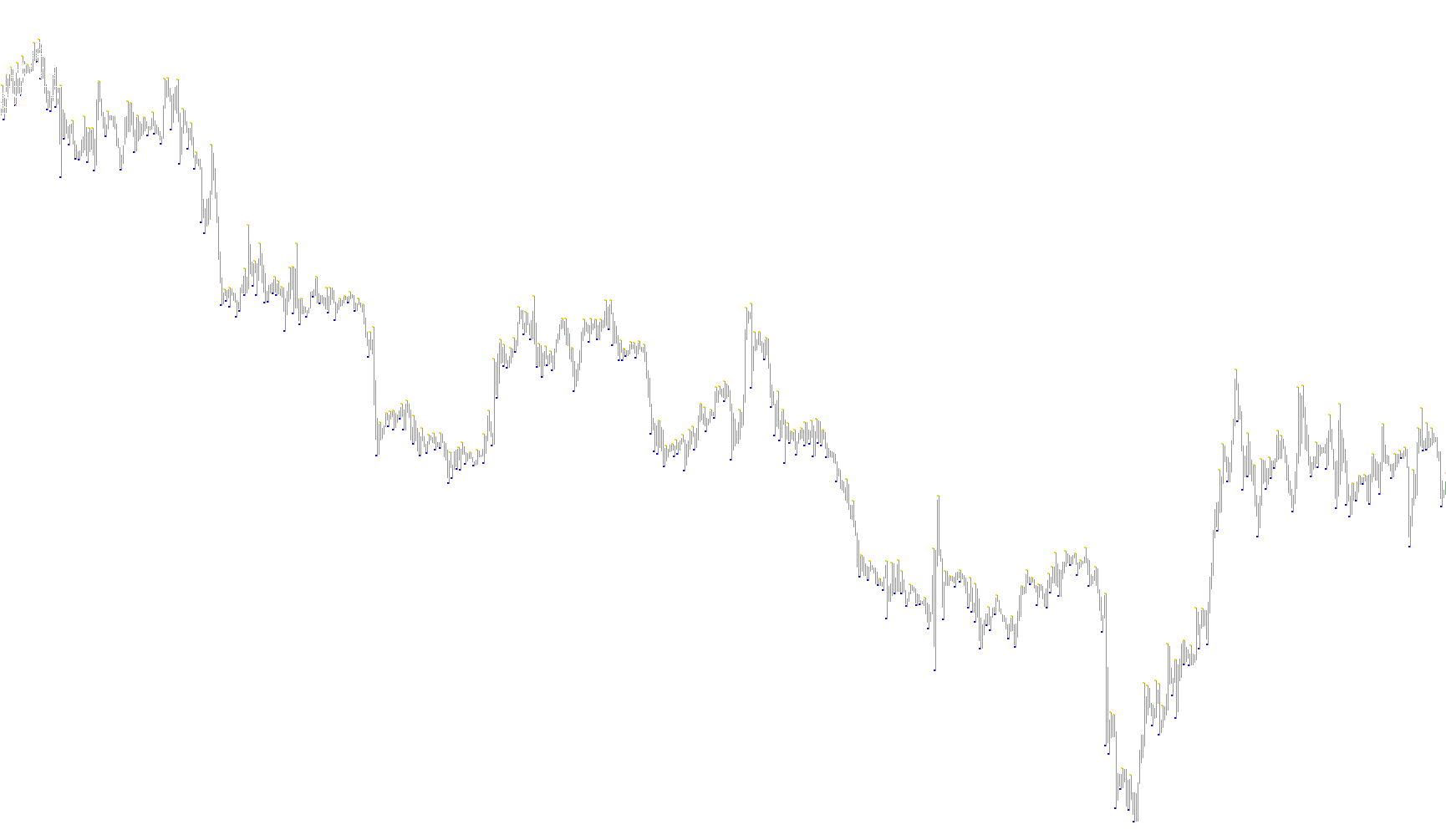

- On-Screen Commentary: It provides a text summary in the corner of the chart, listing the specific prices of the detected points, the status of the trends, and the calculated target levels.
Summary for the User
In essence, this tool acts as an automated "trend mapper." Instead of you having to manually click on every high and low to draw lines, the script identifies the most relevant structural data, draws the trendlines for you, highlights where the trend might break, and provides specific price targets for potential exits.
//+------------------------------------------------------------------+
//| DeMark Trendline Trader.mq4 |
//| Copyright © 2005,Kara Software Corp. |
//| |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, Kara Software Corp."
#property link ""
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Blue /*Original #property indicator_color1 Red. Color of Upper TD Points*/
#property indicator_color2 Blue /*Original #property indicator_color2 Blue. Color of Lower TD Points*/
//---- input parameters
/* Mod 02: only one step, no back steps, only one target, no fractal trendlines,
no large arrow option for TD points, and added user changable colours and styles*/
/* Mod 03: Alerts Added. Horizontal Lines indicating where projections start from and
where alerts should be determined from re-enabled with Default of False.*/
/* Mod 03B: Bug where TD Points and TD Lines drawn in wrong place for
double, triple and quadruple tops or bottoms is fixed*/
extern bool AlertsOn = true; // Line added. Default is true.
extern bool Comments=True;/*Optional Comments. Default is false. Orginal variable called "Commen"*/
extern bool TrendLine=True;/*Default is true to draw current TD Lines*/
extern int TrendLineStyle=STYLE_DOT;/*STYLE>_SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4. Line of code added from original.*/
extern int TrendLineWidth=2;/*Thinnest or allow dots and dashes = 0 or 1, Thinner=2, Medium=3,Thicker=4,Thickest=5. Line of code added from original.*/
extern color UpperTrendLineColour=LimeGreen;/*Line of code added from original.*/
extern color LowerTrendLineColour=Red;/*Line of code added from original.*/
extern bool ProjectionLines=True;/*Default is True. These are the TD Price Projections. Original variable called "Take Prof"*/
extern int ProjectionLinesStyle=STYLE_SOLID;/*STYLE>_SOLID=0,DASH=1,_DOT=2,_DASHDOT=3,_DASHDDOTDOT=4. Line of code added from original.*/
extern int ProjectionLinesWidth=3;/*Thinnest or allow dots and dashes = 0 or 1, Thinner=2, Medium=3,Thicker=4,Thickest=5. Line of code added from original.*/
extern color UpperProjectionLineColour=Green;/*Line of code added from original.*/
extern color LowerProjectionLineColour=Crimson;/*Line of code added from original.*/
extern bool HorizontLine=False;/*Default is false. It seems the Horizontal Lines are were the code predicts price may cross TD line.*/
bool TD=False;/*Default is false. True setting draws up and down arrows instead of dots on TD Points creating more clutter.*/
int BackSteps=0;/*Used to be extern int now just int. Leave at 0*/
int ShowingSteps=1;/*Used to be extern int now just int. Leave at 1*/
bool FractalAsTD=false;/*Used to be extern bool now just bool. Leave at false, otherwise Trend Lines based on Fractal Points not TD Points*/
double TrendLineBreakUp=-1;//Line added.
bool TrendLineBreakUpFlag=False;//Line added.
double TrendLineBreakDown=-1;//Line added.
bool TrendLineBreakDownFlag=False;//Line added.
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//====================================================================
int init()
{
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,217);
SetIndexBuffer(0,ExtMapBuffer1);
SetIndexEmptyValue(0,0.0);
SetIndexStyle(1,DRAW_ARROW);
SetIndexArrow(1,218);
SetIndexBuffer(1,ExtMapBuffer2);
SetIndexEmptyValue(1,0.0);
for (int i=1;i<=10;i++)
{
ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
ObjectDelete("HC1_"+i);
ObjectDelete("HC2_"+i);
ObjectDelete("HC3_"+i);
ObjectDelete("LC1_"+i);
ObjectDelete("LC2_"+i);
ObjectDelete("LC3_"+i);
}
Comment("");
return(0);
}
int deinit()
{
for (int i=1;i<=10;i++)
{
ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
ObjectDelete("HC1_"+i);
ObjectDelete("HC2_"+i);
ObjectDelete("HC3_"+i);
ObjectDelete("LC1_"+i);
ObjectDelete("LC2_"+i);
ObjectDelete("LC3_"+i);
}
Comment("");
return(0);
}
//--------------------------------------------------------------------
int SetTDPoint(int B)//It seems B is the same as IndicatorCounted() function
{
int shift;
if (FractalAsTD==false)
{
//Print("B = ",B);
//Print("Bars = ",Bars);
//Print("IndicatorCounted() = ",IndicatorCounted());
for (shift=B;shift>1;shift--)
{
if (High[shift+1]<High[shift] && High[shift-1]<High[shift])// determine single top TD Point
ExtMapBuffer1[shift]=High[shift];// determine single top TD Point
if (High[shift+2]<High[shift] && High[shift+1]==High[shift]&& High[shift-1]<High[shift])//I added for double top
ExtMapBuffer1[shift]=High[shift];//I added for double top
if (High[shift+3]<High[shift] && High[shift+2]==High[shift]&& High[shift+1]==High[shift]//I added for triple top
&& High[shift-1]<High[shift])//I added for triple top
ExtMapBuffer1[shift]=High[shift];//I added for triple top
if (High[shift+4]<High[shift] && High[shift+3]==High[shift]&& High[shift+2]==High[shift]//I added for quadruple top
&& High[shift+1]==High[shift]//I added for quadruple top
&& High[shift-1]<High[shift])//I added for quadruple top
ExtMapBuffer1[shift]=High[shift];//I added for quadruple top
if (High[shift-1]>=High[shift])//I added for new way to determine Non-TD High Point
ExtMapBuffer1[shift]=0;//I added for new way to determine Non-TD High Point
//else ExtMapBuffer1[shift]=0;
if (Low[shift+1]>Low[shift] && Low[shift-1]>Low[shift])// determine single bottom TD Point
ExtMapBuffer2[shift]=Low[shift];// determine single bottom TD Point
if (Low[shift+2]>Low[shift] && Low[shift+1]==Low[shift] && Low[shift-1]>Low[shift])//I added for double bottom
ExtMapBuffer2[shift]=Low[shift];//I added for double bottom
if (Low[shift+3]>Low[shift] && Low[shift+2]==Low[shift] && Low[shift+1]==Low[shift]//I added for triple bottom
&& Low[shift-1]>Low[shift])//I added for triple bottom
ExtMapBuffer2[shift]=Low[shift];//I added for triple bottom
if (Low[shift+4]>Low[shift] && Low[shift+3]==Low[shift]&& Low[shift+2]==Low[shift] && Low[shift+1]==Low[shift]//I added for quadruple bottom
&& Low[shift-1]>Low[shift])//I added for quadruple bottom
ExtMapBuffer2[shift]=Low[shift];//I added for quadruple bottom
if (Low[shift-1]<=Low[shift])//I added
ExtMapBuffer2[shift]=0;//I added
//else ExtMapBuffer2[shift]=0;
}
ExtMapBuffer1[0]=0;
ExtMapBuffer2[0]=0;
ExtMapBuffer1[1]=0;
ExtMapBuffer2[1]=0;
}
else
{
for (shift=B;shift>3;shift--)
{
if (High[shift+1]<=High[shift] && High[shift-1]<High[shift] && High[shift+2]<=High[shift] && High[shift-2]<High[shift])
ExtMapBuffer1[shift]=High[shift];
else ExtMapBuffer1[shift]=0;
if (Low[shift+1]>=Low[shift] && Low[shift-1]>Low[shift] && Low[shift+2]>=Low[shift] && Low[shift-2]>Low[shift])
ExtMapBuffer2[shift]=Low[shift];
else ExtMapBuffer2[shift]=0;
}
ExtMapBuffer1[0]=0;
ExtMapBuffer2[0]=0;
ExtMapBuffer1[1]=0;
ExtMapBuffer2[1]=0;
ExtMapBuffer1[2]=0;
ExtMapBuffer2[2]=0;
}
return(0);
}
//--------------------------------------------------------------------
int GetHighTD(int P)
{
int i=0,j=0;
while (j<P)
{
i++;
while(ExtMapBuffer1[i]==0)
{i++;if(i>Bars-2)return(-1);}
j++;
}
return (i);
}
//--------------------------------------------------------------------
int GetNextHighTD(int P)
{
int i=P+1;
while(ExtMapBuffer1[i]<=High[P]){i++;if(i>Bars-2)return(-1);}
return (i);
}
//--------------------------------------------------------------------
int GetLowTD(int P)
{
int i=0,j=0;
while (j<P)
{
i++;
while(ExtMapBuffer2[i]==0)
{i++;if(i>Bars-2)return(-1);}
j++;
}
return (i);
}
//--------------------------------------------------------------------
int GetNextLowTD(int P)
{
int i=P+1;
while(ExtMapBuffer2[i]>=Low[P] || ExtMapBuffer2[i]==0){i++;if(i>Bars-2)return(-1);}
return (i);
}
//--------------------------------------------------------------------
int TrendLineHighTD(int H1,int H2,int Step,int Col)/*Draw Upper Trend Line*/
{
ObjectSet("HL_"+Step,OBJPROP_TIME1,Time[H2]);ObjectSet("HL_"+Step,OBJPROP_TIME2,Time[H1]);
ObjectSet("HL_"+Step,OBJPROP_PRICE1,High[H2]);ObjectSet("HL_"+Step,OBJPROP_PRICE2,High[H1]);
ObjectSet("HL_"+Step,OBJPROP_COLOR,UpperTrendLineColour);/*TEMP Original OBJPROP_COLOR,Col*/
if (Step==1)ObjectSet("HL_"+Step,OBJPROP_WIDTH,TrendLineWidth);/*Original OBJPROP_WIDTH,2*/
else ObjectSet("HL_"+Step,OBJPROP_WIDTH,1);
return(0);
}
//--------------------------------------------------------------------
int TrendLineLowTD(int L1,int L2,int Step,int Col)/*Draw Lower Trend Line*/
{
ObjectSet("LL_"+Step,OBJPROP_TIME1,Time[L2]);ObjectSet("LL_"+Step,OBJPROP_TIME2,Time[L1]);
ObjectSet("LL_"+Step,OBJPROP_PRICE1,Low[L2]);ObjectSet("LL_"+Step,OBJPROP_PRICE2,Low[L1]);
ObjectSet("LL_"+Step,OBJPROP_COLOR,LowerTrendLineColour);/*TEMP Original OBJPROP_COLOR,Col*/
if (Step==1)ObjectSet("LL_"+Step,OBJPROP_WIDTH,TrendLineWidth);/*Original OBJPROP_WIDTH,2*/
else ObjectSet("LL_"+Step,OBJPROP_WIDTH,1);
return(0);
}
//--------------------------------------------------------------------
int HorizontLineHighTD(int H1,int H2,int Step,double St,int Col)
{
ObjectSet("HHL_"+Step,OBJPROP_PRICE1,High[H2]-(High[H2]-High[H1])/(H2-H1)*H2);//HORIZONTAL HIGH LINE HEIGHT CALCULATION
ObjectSet("HHL_"+Step,OBJPROP_STYLE,St);
ObjectSet("HHL_"+Step,OBJPROP_COLOR,Col);
ObjectSet("HHL_"+Step,OBJPROP_BACK,True);//Line added
return(0);
}
//--------------------------------------------------------------------
int HorizontLineLowTD(int L1,int L2,int Step,double St,int Col)
{
ObjectSet("HLL_"+Step,OBJPROP_PRICE1,Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2);//HORIZONTAL LOW LINE HEIGHT CALCULATION
ObjectSet("HLL_"+Step,OBJPROP_STYLE,St);
ObjectSet("HLL_"+Step,OBJPROP_COLOR,Col);
ObjectSet("HLL_"+Step,OBJPROP_BACK,True);//Line added
return(0);
}
//--------------------------------------------------------------------
string TakeProfitHighTD(int H1,int H2,int Step,int Col)/*Draw Buy TD Price Projection(s)*/
{
int i,ii,j=0;
string Comm="";
double kH,HC1,HC2,HC3,k,St;
kH=(High[H2]-High[H1])/(H2-H1);
while (NormalizeDouble(Point,j)==0)j++;
k=0;
for(i=H1;i>0;i--)if(Close[i]>High[H2]-kH*(H2-i)){k=High[H2]-kH*(H2-i);break;}
if (k>0)
{
Comm=Comm+"UTD_Line ("+DoubleToStr(High[H2]-kH*H2,j)+") broken at "+DoubleToStr(k,j)+", uptargets:\n";
ii=Lowest(NULL,0,MODE_LOW,H2-i,i);
HC1=High[H2]-kH*(H2-ii)-Low[ii];
HC2=High[H2]-kH*(H2-ii)-Close[ii];
ii=Lowest(NULL,0,MODE_CLOSE,H2-i,i);
HC3=High[H2]-kH*(H2-ii)-Close[ii];
St=TrendLineStyle;/*Original STYLE_SOLID*/
}
else
{
k=High[H2]-kH*H2;
Comm=Comm+"UTD_Line ("+DoubleToStr(k,j)+"), probable break-up targets:\n";
ii=Lowest(NULL,0,MODE_LOW,H2,0);
HC1=High[H2]-kH*(H2-ii)-Low[ii];
HC2=High[H2]-kH*(H2-ii)-Close[ii];
ii=Lowest(NULL,0,MODE_CLOSE,H2,0);
HC3=High[H2]-kH*(H2-ii)-Close[ii];
St=TrendLineStyle;/*Original STYLE_DASHDOT*/
}
ObjectSet("HL_"+Step,OBJPROP_STYLE,St);
Comm=Comm+"T1="+DoubleToStr(HC1+k,j)+" ("+DoubleToStr(HC1/Point,0)+"pts.)\n";//changed "pts.)" to "pts.)\n"
//Comm=Comm+" T2="+DoubleToStr(HC2+k,j)+" ("+DoubleToStr(HC2/Point,0)+"pts.)";
//Comm=Comm+" T3="+DoubleToStr(HC3+k,j)+" ("+DoubleToStr(HC3/Point,0)+"pts.)\n";
ObjectSet("HC1_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC1_"+Step,OBJPROP_TIME2,Time[0]);
ObjectSet("HC1_"+Step,OBJPROP_PRICE1,HC1+k);ObjectSet("HC1_"+Step,OBJPROP_PRICE2,HC1+k);
ObjectSet("HC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC1_"+Step,OBJPROP_STYLE,St);
//ObjectSet("HC2_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC2_"+Step,OBJPROP_TIME2,Time[0]);
//ObjectSet("HC2_"+Step,OBJPROP_PRICE1,HC2+k);ObjectSet("HC2_"+Step,OBJPROP_PRICE2,HC2+k);
//ObjectSet("HC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC2_"+Step,OBJPROP_STYLE,St);
//ObjectSet("HC3_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC3_"+Step,OBJPROP_TIME2,Time[0]);
//ObjectSet("HC3_"+Step,OBJPROP_PRICE1,HC3+k);ObjectSet("HC3_"+Step,OBJPROP_PRICE2,HC3+k);
//ObjectSet("HC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC3_"+Step,OBJPROP_STYLE,St);
if (Step==1)
{
ObjectSet("HC1_"+Step,OBJPROP_WIDTH,ProjectionLinesWidth);/*Original OBJPROP_WIDTH,2*/
ObjectSet("HC1_"+Step,OBJPROP_STYLE,ProjectionLinesStyle);/*This Line of code added from original. TD Upper Projection Line Style*/
// ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
// ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
}
else
{
ObjectSet("HC1_"+Step,OBJPROP_WIDTH,2);
// ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
// ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
}
return(Comm);
}
//--------------------------------------------------------------------
string TakeProfitLowTD(int L1,int L2,int Step,int Col)/*Draw Sell TD Price Projection(s)*/
{
int i,ii,j=0;
string Comm="";
double kL,LC1,LC2,LC3,k,St;
kL=(Low[L1]-Low[L2])/(L2-L1);
while (NormalizeDouble(Point,j)==0)j++;
k=0;
for(i=L1;i>0;i--)if(Close[i]<Low[L2]+kL*(L2-i)){k=Low[L2]+kL*(L2-i);break;}
if (k>0)
{
Comm=Comm+"LTD_Line ("+DoubleToStr(Low[L2]+kL*L2,j)+") broken at "+DoubleToStr(k,j)+", downtargets:\n";
ii=Highest(NULL,0,MODE_HIGH,L2-i,i);
LC1=High[ii]-(Low[L2]+kL*(L2-ii));
LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
i=Highest(NULL,0,MODE_CLOSE,L2-i,i);
LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
St=TrendLineStyle;/*Original STYLE_SOLID*/
}
else
{
k=Low[L2]+kL*L2;
Comm=Comm+"LTD_Line ("+DoubleToStr(k,j)+"), probable downbreak targets:\n";
ii=Highest(NULL,0,MODE_HIGH,L2,0);
LC1=High[ii]-(Low[L2]+kL*(L2-ii));
LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
ii=Highest(NULL,0,MODE_CLOSE,L2,0);
LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
St=TrendLineStyle;/*Original STYLE_DASHDOT*/
}
ObjectSet("LL_"+Step,OBJPROP_STYLE,St);
Comm=Comm+"T1="+DoubleToStr(k-LC1,j)+" ("+DoubleToStr(LC1/Point,0)+"pts.)\n";//changed "pts.)" to "pts.)\n"
//Comm=Comm+" T2="+DoubleToStr(k-LC2,j)+" ("+DoubleToStr(LC2/Point,0)+"pts.)";
//Comm=Comm+" T3="+DoubleToStr(k-LC3,j)+" ("+DoubleToStr(LC3/Point,0)+"pts.)\n";
ObjectSet("LC1_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC1_"+Step,OBJPROP_TIME2,Time[0]);
ObjectSet("LC1_"+Step,OBJPROP_PRICE1,k-LC1);ObjectSet("LC1_"+Step,OBJPROP_PRICE2,k-LC1);
ObjectSet("LC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC1_"+Step,OBJPROP_STYLE,St);
//ObjectSet("LC2_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC2_"+Step,OBJPROP_TIME2,Time[0]);
//ObjectSet("LC2_"+Step,OBJPROP_PRICE1,k-LC2);ObjectSet("LC2_"+Step,OBJPROP_PRICE2,k-LC2);
//ObjectSet("LC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC2_"+Step,OBJPROP_STYLE,St);
//ObjectSet("LC3_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC3_"+Step,OBJPROP_TIME2,Time[0]);
//ObjectSet("LC3_"+Step,OBJPROP_PRICE1,k-LC3);ObjectSet("LC3_"+Step,OBJPROP_PRICE2,k-LC3);
//ObjectSet("LC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC3_"+Step,OBJPROP_STYLE,St);
if (Step==1)
{
ObjectSet("LC1_"+Step,OBJPROP_WIDTH,ProjectionLinesWidth);/*Original OBJPROP_WIDTH,2*/
ObjectSet("LC1_"+Step,OBJPROP_STYLE,ProjectionLinesStyle);/*This Line of code added from original. TD Lower Projection Line Style*/
//ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
//ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
}
else
{
ObjectSet("LC1_"+Step,OBJPROP_WIDTH,2);
//ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
//ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
}
return(Comm);
}
//--------------------------------------------------------------------
string TDMain(int Step)
{
int H1,H2,L1,L2;
string Comm="--- step "+Step+" --------------------\n";
int i,j; while (NormalizeDouble(Point,j)==0)j++;
double Style;
double Col[20];Col[0]=UpperProjectionLineColour/*Original Col[0]=Red, Colour for Current Upper TD Projection*/;Col[2]=Magenta;Col[4]=Chocolate;Col[6]=Goldenrod;Col[8]=SlateBlue;
Col[1]=LowerProjectionLineColour/*Original Col[1]=Blue, Colour for Current Lower TD Projection*/;Col[3]=FireBrick;Col[5]=Green;Col[7]=MediumOrchid;Col[9]=CornflowerBlue;
Col[10]=Red;Col[12]=Magenta;Col[14]=Chocolate;Col[16]=Goldenrod;Col[18]=SlateBlue;
Col[11]=Blue;Col[13]=FireBrick;Col[15]=Green;Col[17]=MediumOrchid;Col[19]=CornflowerBlue;
Step=Step+BackSteps;
H1=GetHighTD(Step);
H2=GetNextHighTD(H1);
L1=GetLowTD(Step);
L2=GetNextLowTD(L1);
TrendLineBreakUp=High[H2]-(High[H2]-High[H1])/(H2-H1)*H2;//added line
TrendLineBreakDown=Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2;//added line
if (H1<0)Comm=Comm+"UTD no TD up-point \n";
else
if (H2<0)Comm=Comm+"UTD no TD point-upper then last one ("+DoubleToStr(High[H1],j)+")\n";
else Comm=Comm+"UTD "+DoubleToStr(High[H2],j)+" "+DoubleToStr(High[H1],j)+"\n";
if (L1<0)Comm=Comm+"LTD no TD down-point \n";
else
if (L2<0)Comm=Comm+"LTD no TD point-lower then last one ("+DoubleToStr(Low[L1],j)+")\n";
else Comm=Comm+"LTD "+DoubleToStr(Low[L2],j)+" "+DoubleToStr(Low[L1],j)+"\n";
//-----------------------------------------------------------------------------------
if (Step==1)Style=STYLE_SOLID;
else Style=STYLE_DOT;
if (H1>0 && H2>0)
{
if (TrendLine==1)
{
ObjectCreate("HL_"+Step,OBJ_TREND,0,0,0,0,0);
TrendLineHighTD(H1,H2,Step,Col[Step*2-2]);
}
else ObjectDelete("HL_"+Step);
if (HorizontLine==1 && Step==1)
{
ObjectCreate("HHL_"+Step,OBJ_HLINE,0,0,0,0,0);
ObjectSet("HHL_"+Step,OBJPROP_BACK,True);//Line added
HorizontLineHighTD(H1,H2,Step,Style,Col[Step*2-2]);
}
else ObjectDelete("HHL_"+Step);
if (ProjectionLines==1)
{
ObjectCreate("HC1_"+Step,OBJ_TREND,0,0,0,0,0);
ObjectCreate("HC2_"+Step,OBJ_TREND,0,0,0,0,0);
ObjectCreate("HC3_"+Step,OBJ_TREND,0,0,0,0,0);
Comm=Comm+TakeProfitHighTD(H1,H2,Step,Col[Step*2-2]);
}
else
{
ObjectDelete("HC1_"+Step);
ObjectDelete("HC2_"+Step);
ObjectDelete("HC3_"+Step);
}
}
//-----------------------------------------------------------------------------------
if (L1>0 && L2>0)
{
if (TrendLine==1)
{
ObjectCreate("LL_"+Step,OBJ_TREND,0,0,0,0,0);
TrendLineLowTD(L1,L2,Step,Col[Step*2-1]);
}
else ObjectDelete("LL_"+Step);
if (HorizontLine==1 && Step==1)
{
ObjectCreate("HLL_"+Step,OBJ_HLINE,0,0,0,0,0);
ObjectSet("HLL_"+Step,OBJPROP_BACK,True);//Line added
HorizontLineLowTD(L1,L2,Step,Style,Col[Step*2-1]);
}
else ObjectDelete("HLL_"+Step);
if (ProjectionLines==1)
{
ObjectCreate("LC1_"+Step,OBJ_TREND,0,0,0,0,0);
ObjectCreate("LC2_"+Step,OBJ_TREND,0,0,0,0,0);
ObjectCreate("LC3_"+Step,OBJ_TREND,0,0,0,0,0);
Comm=Comm+TakeProfitLowTD(L1,L2,Step,Col[Step*2-1]);
}
else
{
ObjectDelete("LC1_"+Step);
ObjectDelete("LC2_"+Step);
ObjectDelete("LC3_"+Step);
}
}
//--------------------------------------------------------------------
if(AlertsOn)//added this Alerts section
{
//Print("Alerts On");
if(Close[0]>TrendLineBreakUp && TrendLineBreakUpFlag==False)
{
//Print("Upper TrendLine Break ",Symbol()," ",Period()," ",Bid);
Alert("UTL Break>",TrendLineBreakUp," on ",Symbol()," ",Period()," @ ",Bid);
TrendLineBreakUpFlag=True;
}
if(Close[0]<TrendLineBreakDown && TrendLineBreakDownFlag==False)
{
//Print("Lower Trendline Break ",Symbol()," ",Period()," ",Bid);
Alert("LTL Break<",TrendLineBreakDown," on ",Symbol()," ",Period()," @ ",Bid);
TrendLineBreakDownFlag=True;
}
//--------------------------------------------------------------------
}
return(Comm);
}
//--------------------------------------------------------------------
int start()
{
string Comm="";
SetTDPoint(Bars-1);
if (TD==1)
{
SetIndexArrow(0,217);
SetIndexArrow(1,218);
}
else
{
SetIndexArrow(0,160);
SetIndexArrow(1,160);
}
if (ShowingSteps>10)
{
Comment("ShowingSteps readings 0 - 10");
return(0);
}
for (int i=1;i<=ShowingSteps;i++)Comm=Comm+TDMain(i);
Comm=Comm+"------------------------------------\nShowingSteps="+ShowingSteps+"\nBackSteps="+BackSteps;
if (FractalAsTD==true)Comm=Comm+"\nFractals";
else Comm=Comm+"\nTD point";
if (Comments==1)Comment(Comm);
else Comment("");
return(0);
}
//+------------------------------------------------------------------+
Comments
