IDWma
Download script
This tool is a sophisticated technical analysis indicator designed to help traders identify market trends by calculating an Inverse Distance Weighted Moving Average (IDWma). Unlike standard moving averages that treat all data points in a period equally, this script uses a mathematical approach to give more significance to price points that are closer to the current market value.
Core Functionality
The primary logic of this indicator relies on "weighting." In simple terms, it looks at a specific window of past prices (the period) and calculates how far each individual price point is from every other price point within that same window.
- Distance Weighting: The closer a price is to the rest of the group, the more influence it has on the final average. This helps smooth out "noise" or outliers that might otherwise distort the trend line.
- Dynamic Calculation: Instead of simply adding up prices and dividing by the number of bars, it calculates a weight for every bar based on its relative distance, ensuring the resulting line reflects a more nuanced view of market momentum.
Key Features & Customization
The script provides several layers of flexibility to suit different trading styles:
1. Multi-Timeframe Analysis One of the most powerful features of this tool is its ability to look beyond the current chart. You can set the indicator to calculate data from higher timeframes (such as viewing Weekly or Daily trends while looking at a 15-minute chart). This allows traders to see the "big picture" without switching screens.
2. Customizable Price Sources The indicator does not just look at the closing price by default. It can be configured to calculate its average based on various data points, including:
- Open, High, Low, or Close prices.
- Weighted Prices (a combination of high and low).
- Typical or Median prices.

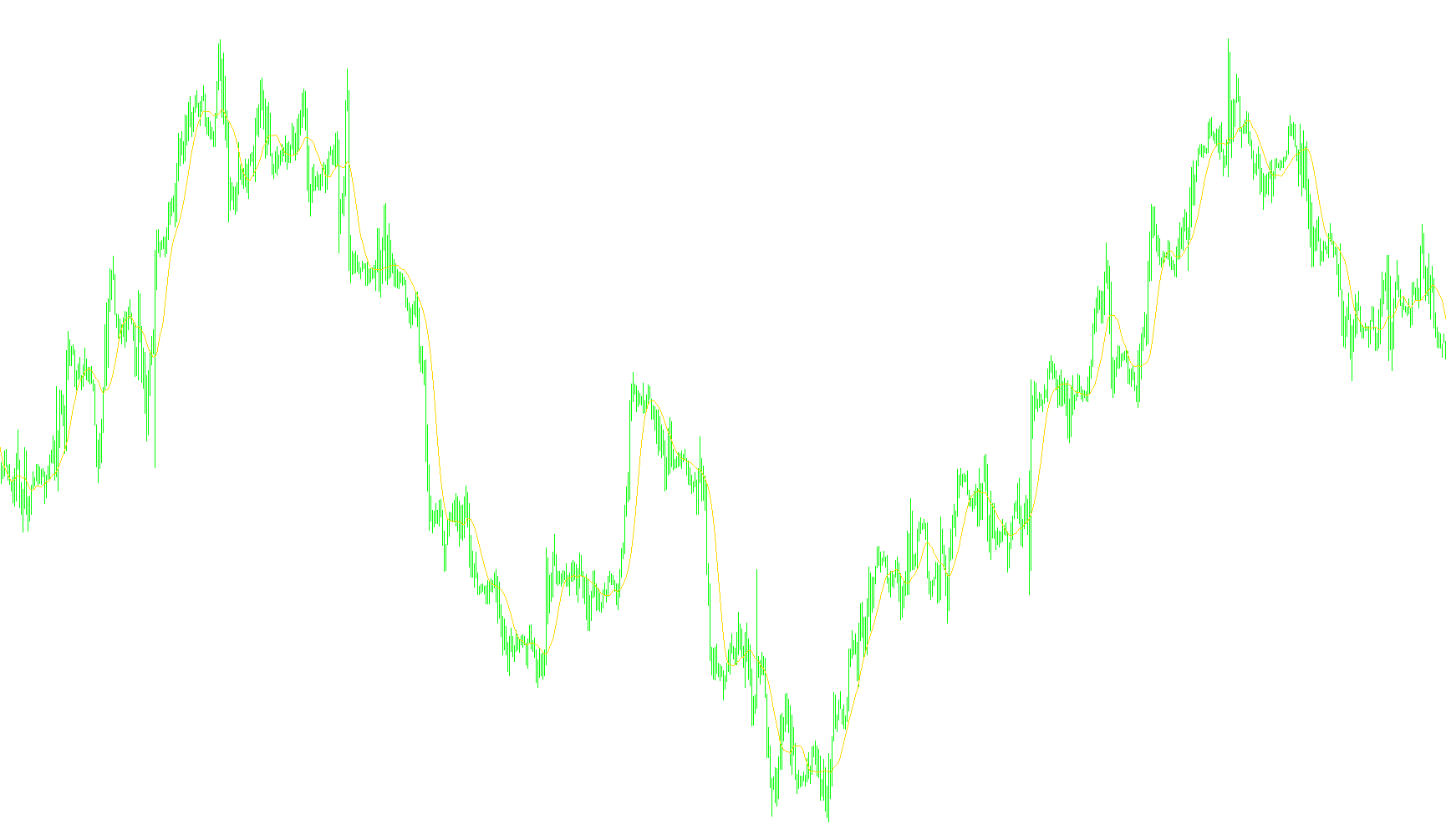

3. Smart Visualization The script automatically adjusts the starting point on your chart to ensure that the moving average line has enough historical data to be calculated accurately. It also provides a clear label on the chart, displaying the specific parameters used (such as the period and timeframe), making it easy to keep track of multiple overlapping indicators.
Summary for Traders
This indicator is designed for those who find standard moving averages too "laggy" or prone to being misled by sudden, insignificant price spikes. By using an inverse distance weighting logic, it attempts to provide a smoother, more mathematically grounded representation of price action, whether you are focused on immediate scalp movements or long-term structural trends.
//+------------------------------------------------------------------+
//| IDWma.mq4 |
//| Copyright © 2012, WHRoeder@yahoo.com |
//| mailto:WHRoeder@yahoo.com |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2012, WHRoeder@yahoo.com"
#property link "mailto:WHRoeder@yahoo.com"
#define MY_NAME "IDWma"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Red // Default Moving Average
//---- indicator parameters
extern int MA_Period = 14; // Default Moving Average
extern int MA_Shift = 0; // Default Moving Average
extern int MA_Price = 0; // PRICE_CLOSE=0, O1, H2, L3, m4, t5, w6
extern int MA_TF = 0; // Chart
//---- indicator buffers
double MAs[]; #define MAS_BUF 0
double prices[]; #define PRICES_BUF 1
//---- auxiliary buffers
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int drawBegin;
int init(){
if (MA_TF <= Period()){ MA_TF = Period(); string periodTxt = ""; }
else{
int TFperiod[] = { PERIOD_M1, PERIOD_M5, PERIOD_M15, PERIOD_M30,
PERIOD_H1, PERIOD_H4, PERIOD_D1, PERIOD_W1,
PERIOD_MN1, 0 };
string TFtext[] = { "M1", "M5", "M15", "M30",
"H1", "H4", "D1", "W1",
"Mn1", "InvTF" };
for(int iPeriod = 0; TFperiod[iPeriod] < MA_TF; iPeriod++){}
if(MA_TF != TFperiod[iPeriod]){
MA_TF = TFperiod[iPeriod]; Alert("MA_TF = ",MA_TF); }
periodTxt = ","+TFtext[iPeriod];
}
if(MA_Period<2){ MA_Period=13; Alert("MA_Period = ",MA_Period); }
string price2txt[] = { "", ",O", ",H", ",L", ",M", ",T", ",W" };
string sn = MY_NAME+"("+MA_Period+price2txt[MA_Price]+periodTxt+")";
IndicatorShortName(sn);
drawBegin = MA_Period * MA_TF / Period();
SetIndexBuffer(MAS_BUF,MAs);
SetIndexStyle(MAS_BUF,DRAW_LINE);
SetIndexShift(MAS_BUF,MA_Shift);
SetIndexLabel(MAS_BUF,sn);
SetIndexDrawBegin(MAS_BUF,drawBegin);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
if (MA_TF <= Period()){
IndicatorBuffers(PRICES_BUF+1);
SetIndexBuffer(PRICES_BUF,prices);
}
return(MAS_BUF);
}
//+------------------------------------------------------------------+
//| Inverse Distance Weighted Moving Average MultiTimeFrame |
//+------------------------------------------------------------------+
int start(){
int counted_bars = IndicatorCounted();
if (MA_TF <= Period()){
for(int iBar = Bars - 1 - counted_bars; iBar >= 0; iBar--)
switch(MA_Price){
case PRICE_WEIGHTED: prices[iBar] =( High[iBar]
+ Low[iBar]
+ Close[iBar]
+ Close[iBar] )/4.; break;
case PRICE_TYPICAL: prices[iBar] =( High[iBar]
+ Low[iBar]
+ Close[iBar] )/3.; break;
case PRICE_MEDIAN: prices[iBar] =( High[iBar]
+ Low[iBar] )/2.; break;
case PRICE_LOW: prices[iBar] = Low[iBar]; break;
case PRICE_HIGH: prices[iBar] = High[iBar]; break;
case PRICE_OPEN: prices[iBar] = Open[iBar]; break;
case PRICE_CLOSE:
default: prices[iBar] = Close[iBar]; break;
} // switch/iBar
if (counted_bars < drawBegin) counted_bars = drawBegin;
for(iBar = Bars - 1 - counted_bars; iBar >= 0; iBar--){
// reference //en.wikipedia.org/wiki/Distance-weighted_estimator
// W[i] = (n-1)/E[j=1..n]|x[i]-x[j]|
// ave[i] = E[i=1..n](W[i]X[i]) / E[i=1..n]W[i]
double Ewx=0, Ew=0; int iLimit = iBar + MA_Period;
for(int iWeight = iBar; iWeight < iLimit; iWeight++){
double Ed = 0.;
for(int iDist = iBar; iDist < iLimit; iDist++){
Ed += MathAbs(prices[iWeight] - prices[iDist]);
}
double w = (MA_Period - 1) / MathMax(Ed, Point);
Ew += w;
Ewx += w * prices[iWeight];
}
MAs[iBar] = Ewx / Ew;
} // iBar
}
else{ // MA_TF > Period()
if (counted_bars < drawBegin) counted_bars = drawBegin;
for(iBar = Bars - 1 - counted_bars; iBar >= 0; iBar--){
int iTF = iBarShift(NULL, MA_TF, Time[iBar]);
MAs[iBar] = iCustom( NULL, MA_TF, MY_NAME,
MA_Period,
0, //MA_Shift
MA_Price,
MA_TF,
MAS_BUF, iTF );
}
}
} // start
