Heart Beat_v1
Download script
The Elliott Wave Oscillator is a specialized technical analysis tool designed to help traders visualize market momentum and price action. By isolating the "force" behind price movements, it provides a clearer picture of whether the current trend has sufficient strength to continue or if it is beginning to exhaust.
Core Logic and Functionality
Dynamic Environment Adaptation The script is intelligent enough to recognize the timeframe you are viewing (e.g., 1-minute, 5-minute, 30-minute, or 60-minute charts). Depending on the timeframe, it automatically adjusts its internal boundaries and sensitivity levels. This ensures that the data remains consistent and readable whether you are performing high-frequency scalping or longer-term trend analysis.
Momentum Calculation At its heart, the tool calculates the change in market "force" between consecutive price points. Rather than just looking at where the price is, it looks at how much pressure is being applied to move the price from one moment to the next.
Noise Filtering To prevent traders from being distracted by minor market fluctuations or "noise," the script incorporates a filtering mechanism. It sets specific upper and lower thresholds; if the calculated momentum falls within these neutral zones, the indicator treats the movement as insignificant and keeps the display flat. This helps highlight only the most meaningful shifts in market energy.

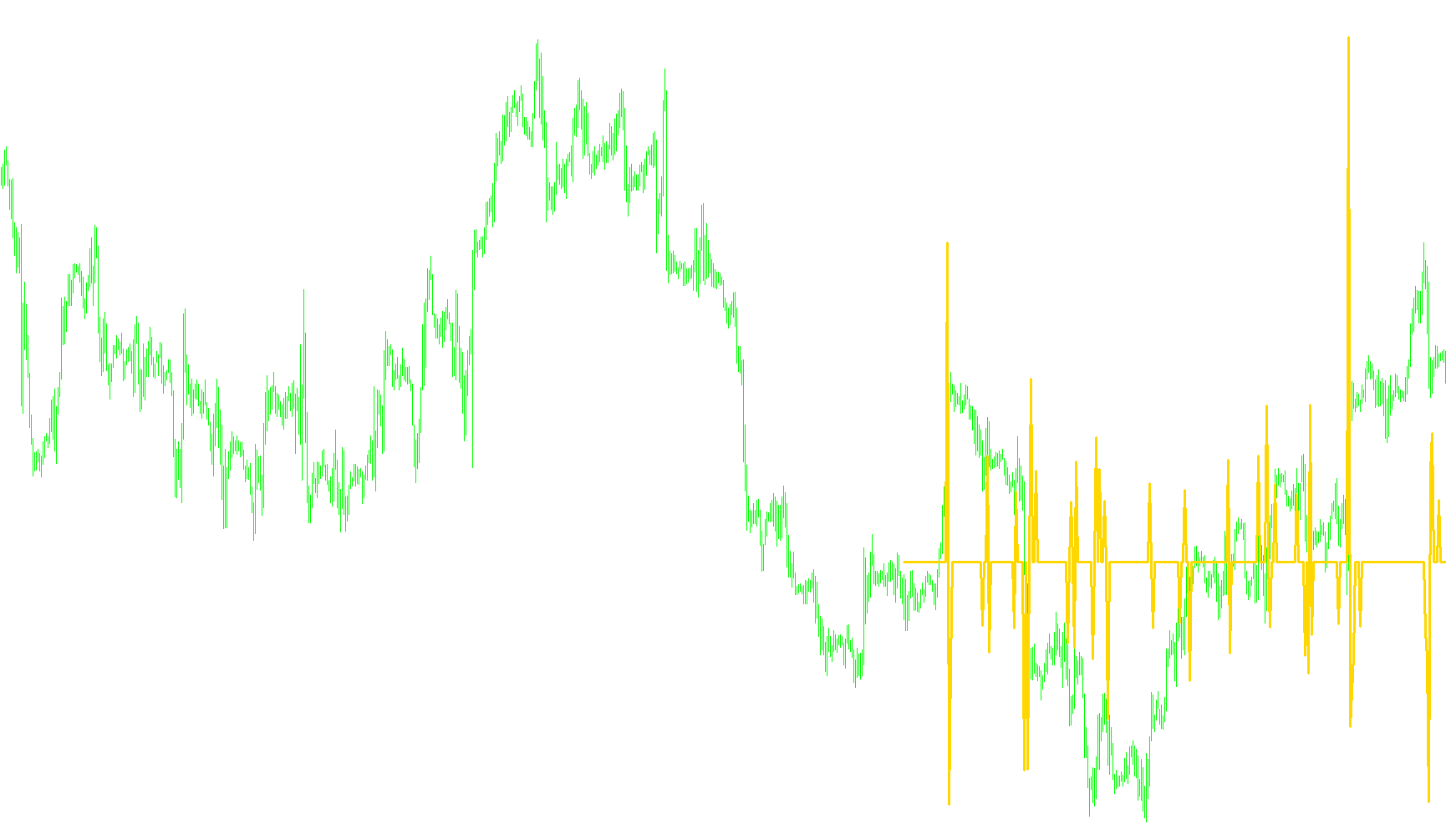

Visual Output The resulting data is displayed as a smooth line in a separate window below your main price chart. By magnifying the calculated force (using specific multipliers for different timeframes), it provides an exaggerated but accurate representation of momentum, making it easier to spot significant trend reversals or accelerations.
Real-Time Notifications The tool includes an integrated alert system. When the script detects a significant surge in momentum that breaks past its neutral zones on the current live candle, it triggers a proactive notification. This is designed to catch the trader's attention immediately when a "life" event—or a significant shift in market dynamics—occurs in real-time.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| Elliott Wave Oscillator.mq4 |
//| tonyc2a@yahoo.com |
//| |
//+------------------------------------------------------------------+
#property copyright "tonyc2a@yahoo.com"
#property link ""
#property indicator_separate_window
#property indicator_color1 LightBlue
//---- buffers
double Buffer1[];
double forcey=0;
double upper=0.04;
double lower=-0.04;
double multiplicant=1;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,3);
SetIndexBuffer(0,Buffer1);
SetIndexLabel(0,"EWO");
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
#property indicator_maximum 0.07
#property indicator_minimum -0.07
int start()
{
int counted_bars=IndicatorCounted();
if (Period()==30)
{
upper=0.2;
lower=-0.2;
}
if (Period()==60)
{
upper=0.3;
lower=-0.3;
}
if (Period()==5)
{
upper=0.0100;
lower=-0.0100;
multiplicant=5;
}
if (Period()==1)
{
upper=0.0005;
lower=-0.0005;
}
//---- TODO: add your code here
for(int i=300 ;i>=0;i--)
{
forcey=iForce(NULL,0,7,0,PRICE_CLOSE,i)-iForce(NULL,0,7,0,PRICE_CLOSE,i+1);
if (forcey > 0 && forcey < upper) forcey=0;
if (forcey < 0 && forcey > lower) forcey=0;
Buffer1[i]=forcey*multiplicant;
if (i==0 && forcey !=0)
{
Alert(Symbol()," ",Period(),"M LIFE!");
}
}
//----
return(0);
}
//+------------------------------------------------------------------+
