FX_FISH
Download scriptThis script is designed as a visual trading tool for MetaTrader, providing users with automated signals to identify potential buying and selling opportunities based on price momentum and historical trends. It operates by analyzing price fluctuations over a specific period to determine the "strength" of market movement.
Core Logic and Calculation
The indicator functions by evaluating where the current market price sits relative to its recent high and low extremes. Instead of looking at just one data point, it considers a moving window of time (determined by the user). It calculates a normalized value based on these highs and lows and then applies a mathematical smoothing process. This smoothing ensures that the indicator doesn't react erratically to tiny price flickers, but rather focuses on the broader direction of the market.

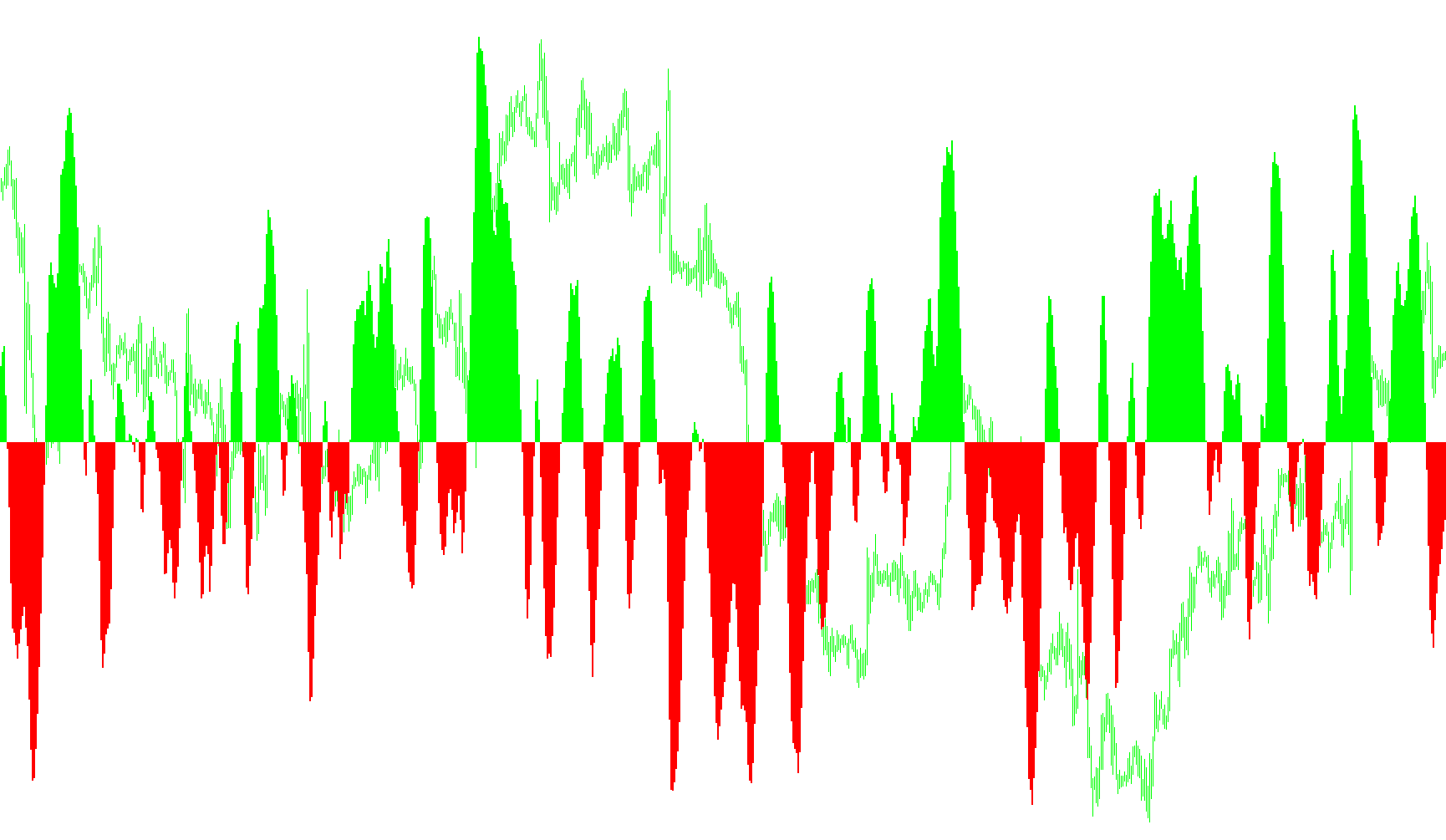

The final output is visualized as a histogram in a separate window. The script uses two distinct colors—Lime and Red—to represent positive and negative momentum trends respectively.
Signal Generation
The primary goal of the script is to identify clear "turning points" in the market. It generates three specific types of visual labels on the main chart:
- Buy Signals: When the momentum strength exceeds a specific threshold and shows a significant upward acceleration compared to previous data points, a "BUY" label is placed on the chart.
- Sell Signals: Conversely, when the momentum strength drops below a specific negative threshold and shows a sharp downward turn, a "SELL" label appears.
- Exit Points: The script also monitors for "crossovers." When the momentum flips from positive to negative (or vice versa), it identifies these as potential exit zones where a trader might consider closing an existing position.
Customizable Features
The logic is designed to be flexible, allowing users to adjust how the indicator perceives price:
- Price Source: Users can choose which price data to analyze, such as the opening price, closing price, highs, lows, or various averages of these values.
- Speed: There is a "Fast Mode" toggle that limits the amount of historical data processed, making the indicator react more quickly to very recent changes.
- Visual Clarity: Users can toggle the on-screen text signals (Buy, Sell, and Exit) on or off, depending on whether they want a clean chart or active guidance.
// FX_FISH
#property copyright "Copyright © 2005, Kiko Segui"
#property link "webtecnic@terra.es"
#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Lime
#property indicator_color2 Red
double buffer1[];
double buffer2[];
extern int period=10;
extern int price=0; // 0 or other = (H+L)/2
// 1 = Open
// 2 = Close
// 3 = High
// 4 = Low
// 5 = (H+L+C)/3
// 6 = (O+C+H+L)/4
// 7 = (O+C)/2
extern bool Mode_Fast= False;
extern bool Signals= False;
int init()
{
SetIndexStyle(0,DRAW_HISTOGRAM,STYLE_SOLID,2,Lime);
SetIndexBuffer(0,buffer1);
SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID,2,Red);
SetIndexBuffer(1,buffer2);
return(0);
}
int deinit()
{
int i;
double tmp;
for (i=0;i<Bars;i++)
{
ObjectDelete("SELL SIGNAL: "+DoubleToStr(i,0));
ObjectDelete("BUY SIGNAL: "+DoubleToStr(i,0));
ObjectDelete("EXIT: "+DoubleToStr(i,0));
}
return(0);
}
double Value=0,Value1=0,Value2=0,Fish=0,Fish1=0,Fish2=0;
int buy=0,sell=0;
int start()
{
int i;
int barras;
double _price;
double tmp;
double MinL=0;
double MaxH=0;
double Threshold=1.2;
barras = Bars;
if (Mode_Fast)
barras = 100;
i = 0;
while(i<barras)
{
MaxH = High[Highest(NULL,0,MODE_HIGH,period,i)];
MinL = Low[Lowest(NULL,0,MODE_LOW,period,i)];
switch (price)
{
case 1: _price = Open[i]; break;
case 2: _price = Close[i]; break;
case 3: _price = High[i]; break;
case 4: _price = Low[i]; break;
case 5: _price = (High[i]+Low[i]+Close[i])/3; break;
case 6: _price = (Open[i]+High[i]+Low[i]+Close[i])/4; break;
case 7: _price = (Open[i]+Close[i])/2; break;
default: _price = (High[i]+Low[i])/2; break;
}
Value = 0.33*2*((_price-MinL)/(MaxH-MinL)-0.5) + 0.67*Value1;
Value=MathMin(MathMax(Value,-0.999),0.999);
Fish = 0.5*MathLog((1+Value)/(1-Value))+0.5*Fish1;
buffer1[i]= 0;
buffer2[i]= 0;
if ( (Fish<0) && (Fish1>0))
{
if (Signals)
{
ObjectCreate("EXIT: "+DoubleToStr(i,0),OBJ_TEXT,0,Time[i],_price);
ObjectSetText("EXIT: "+DoubleToStr(i,0),"EXIT AT "+DoubleToStr(_price,4),7,"Arial",White);
}
buy = 0;
}
if ((Fish>0) && (Fish1<0))
{
if (Signals)
{
ObjectCreate("EXIT: "+DoubleToStr(i,0),OBJ_TEXT,0,Time[i],_price);
ObjectSetText("EXIT: "+DoubleToStr(i,0),"EXIT AT "+DoubleToStr(_price,4),7,"Arial",White);
}
sell = 0;
}
if (Fish>=0)
{
buffer1[i] = Fish;
}
else
{
buffer2[i] = Fish;
}
tmp = i;
if ((Fish<-Threshold) &&
(Fish>Fish1) &&
(Fish1<=Fish2))
{
if (Signals)
{
ObjectCreate("SELL SIGNAL: "+DoubleToStr(i,0),OBJ_TEXT,0,Time[i],_price);
ObjectSetText("SELL SIGNAL: "+DoubleToStr(i,0),"SELL AT "+DoubleToStr(_price,4),7,"Arial",Red);
}
sell = 1;
}
if ((Fish>Threshold) &&
(Fish<Fish1) &&
(Fish1>=Fish2))
{
if (Signals)
{
ObjectCreate("BUY SIGNAL: "+DoubleToStr(i,0),OBJ_TEXT,0,Time[i],_price);
ObjectSetText("BUY SIGNAL: "+DoubleToStr(i,0),"BUY AT "+DoubleToStr(_price,4),7,"Arial",Lime);
}
buy=1;
}
Value1 = Value;
Fish2 = Fish1;
Fish1 = Fish;
i++;
}
return(0);
}
//+------------------------------------------------------------------+
