ForexFreedomBars
Download scriptThis script is designed as a multi-timeframe analysis tool for the MetaTrader platform. Its primary purpose is to help traders identify the overall market direction by consolidating data from four different timeframes simultaneously into a single visual display.
Core Logic and Functionality
Multi-Timeframe Synchronization The tool monitors four distinct time periods at once (for example: 5-minute, 15-minute, 30-minute, and 1-hour charts). Rather than forcing a trader to switch between different windows to see the "big picture," this script pulls data from all four sources and aligns them into one view. It features an automatic display mode that intelligently selects which timeframes to monitor based on the chart you are currently viewing.
Trend Detection Mechanism To determine market direction, the script utilizes a technical indicator known as the Commodity Channel Index (CCI). For each of the four monitored timeframes, the script calculates the CCI value:
- If the CCI value falls below zero, the script identifies this as a specific directional signal.
- If the CCI value is above zero, it identifies the opposite direction.

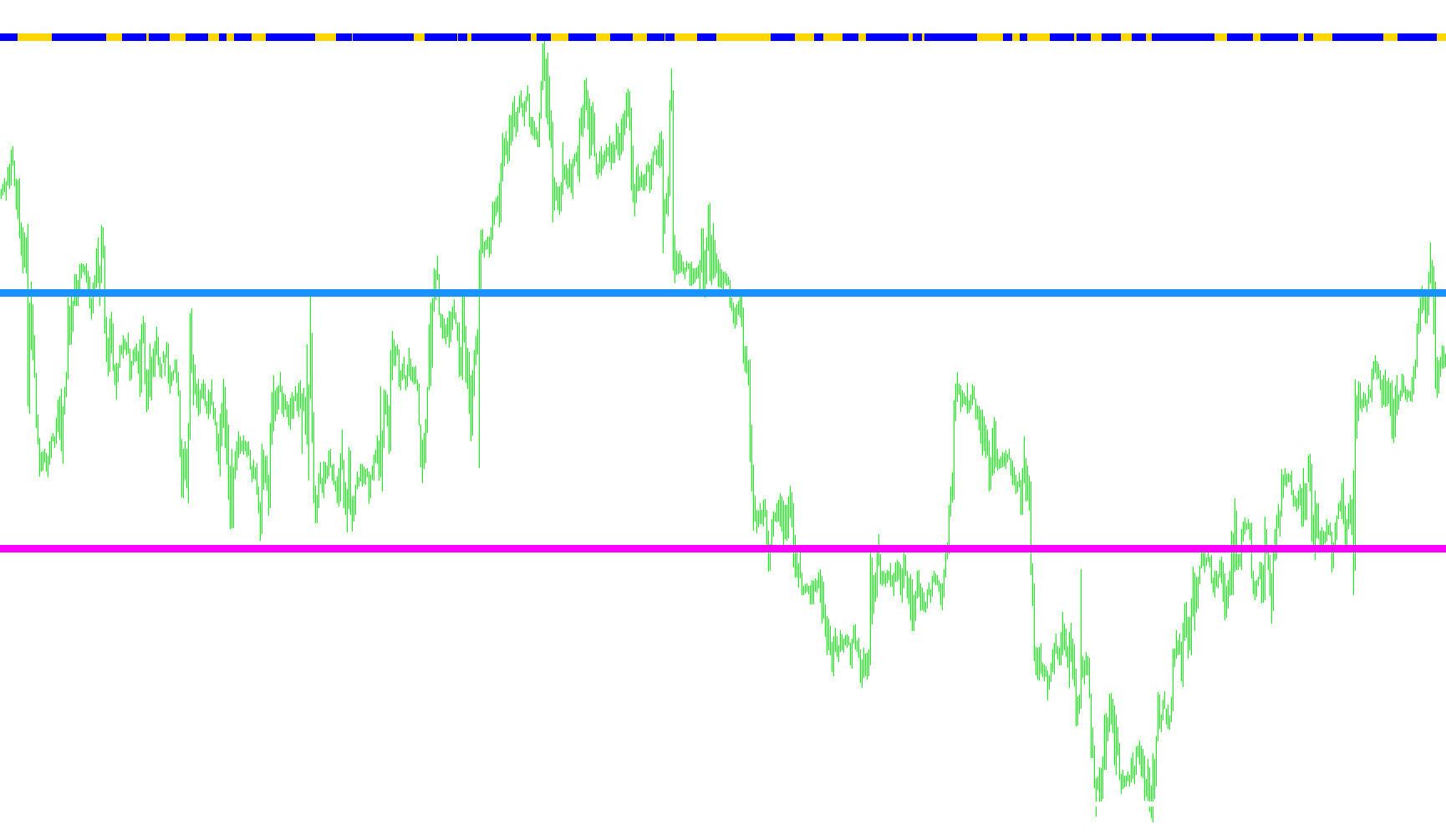

Visual Representation The script creates a dedicated visual area (a separate window) where it plots four distinct rows of data. Each row represents one of the timeframes. These are displayed as colored arrows or markers:
- Each row provides a clear "Up" or "Down" signal based on that specific timeframe's momentum.
- The rows are spaced out visually (using a customizable "Gap") so that the user can clearly distinguish between the short-term signals and the long-term trends.
Unified Signal Alerts The most powerful feature of this logic is the "Confluence" check. The script looks for moments where all four timeframes agree on the same direction:
- Strong Upward Momentum: If all four timeframes simultaneously show an "Up" signal, the script triggers a notification.
- Strong Downward Momentum: If all four timeframes simultaneously show a "Down" signal, it triggers a notification.
When this total agreement occurs, the script provides an audible alert and prints a message in the log, signaling a high-probability trend where the market is moving in harmony across multiple time horizons.
//+------------------------------------------------------------------+
//| #The Forex Freedom Bars
//|
//+------------------------------------------------------------------+
#property copyright "Programmed by Eli hayun"
#property indicator_separate_window
#property indicator_minimum -0.5
//#property indicator_maximum 5
#property indicator_buffers 8
#property indicator_color1 Red
#property indicator_color2 DodgerBlue
#property indicator_color3 Red
#property indicator_color4 DodgerBlue
#property indicator_color5 Red
#property indicator_color6 DodgerBlue
#property indicator_color7 Red
#property indicator_color8 DodgerBlue
//---- buffers
double buf4_up[];
double buf4_down[];
double buf3_up[];
double buf3_down[];
double buf2_up[];
double buf2_down[];
double buf1_up[];
double buf1_down[];
extern double Gap = 1; // Gap between the lines of bars
extern int Period_1 = PERIOD_M5;//M15
extern int Period_2 = PERIOD_M15;//M30
extern int Period_3 = PERIOD_M30;//H1
extern int Period_4 = PERIOD_H1;//H4
extern int cci_1 = 34;//50
extern int cci_2 = 34;//14
extern int cci_3 = 14;
extern int cci_4 = 14;
extern bool AutoDisplay = false;
string shortname = "";
bool firstTime = true;
int UniqueNum = 228;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
SetAutoDisplay();
shortname = "# Forex Freedom("+Period_1+","+Period_2+","+Period_3+","+Period_4+")";
firstTime = true;
IndicatorShortName(shortname);
//---- indicators
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,110);
SetIndexBuffer(0,buf4_up);
SetIndexEmptyValue(0,0.0);
SetIndexStyle(1,DRAW_ARROW);
SetIndexArrow(1,110);
SetIndexBuffer(1,buf4_down);
SetIndexEmptyValue(1,0.0);
SetIndexStyle(2,DRAW_ARROW);
SetIndexArrow(2,110);
SetIndexBuffer(2,buf3_up);
SetIndexEmptyValue(2,0.0);
SetIndexStyle(3,DRAW_ARROW);
SetIndexArrow(3,110);
SetIndexBuffer(3,buf3_down);
SetIndexEmptyValue(3,0.0);
SetIndexStyle(4,DRAW_ARROW);
SetIndexArrow(4,110);
SetIndexBuffer(4,buf2_up);
SetIndexEmptyValue(4,0.0);
SetIndexStyle(5,DRAW_ARROW);
SetIndexArrow(5,110);
SetIndexBuffer(5,buf2_down);
SetIndexEmptyValue(5,0.0);
SetIndexStyle(6,DRAW_ARROW);
SetIndexArrow(6,110);
SetIndexBuffer(6,buf1_up);
SetIndexEmptyValue(6,0.0);
SetIndexStyle(7,DRAW_ARROW);
SetIndexArrow(7,110);
SetIndexBuffer(7,buf1_down);
SetIndexEmptyValue(7,0.0);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
SetAutoDisplay();
shortname = "# Forex Freedom("+Period_1+","+Period_2+","+Period_3+","+Period_4+")";
firstTime = true;
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars=IndicatorCounted();
int i=0, y5m=0, y1h=0, y30m=0, y15m=0, yy;
int limit=Bars-counted_bars;
datetime TimeArray_1H[], TimeArray_30M[], TimeArray_15M[], TimeArray_5M[];
//----
if (firstTime || NewBar())
{
firstTime = false;
int win = UniqueNum; // WindowFind(shortname);
double dif = Time[0] - Time[1];
for (int ii=ObjectsTotal()-1; ii>-1; ii--)
{
if (StringFind(ObjectName(ii),"FF_"+win+"_") >= 0)
ObjectDelete(ObjectName(ii));
else
ii=-1;
}
double shift = 0.2;
for (ii=0; ii<4; ii++)
{
string txt = "??";
double gp;
switch (ii)
{
case 0: txt = tf2txt(Period_1); gp = 1 + shift; break;
case 1: txt = tf2txt(Period_2); gp = 1 + Gap + shift; break;
case 2: txt = tf2txt(Period_3); gp = 1 + Gap*2 + shift; break;
case 3: txt = tf2txt(Period_4); gp = 1 + Gap*3 + shift; break;
}
string name = "FF_"+win+"_"+ii+"_"+txt;
ObjectCreate(name, OBJ_TEXT, WindowFind(shortname), iTime(NULL,0,0)+dif*3, gp);
ObjectSetText(name, txt,8,"Arial", Silver);
}
}
ArrayCopySeries(TimeArray_1H,MODE_TIME,Symbol(),Period_4);
ArrayCopySeries(TimeArray_30M,MODE_TIME,Symbol(),Period_3);
ArrayCopySeries(TimeArray_15M,MODE_TIME,Symbol(),Period_2);
ArrayCopySeries(TimeArray_5M,MODE_TIME,Symbol(),Period_1);
for(i=0, y5m=0, y1h=0, y30m=0, y15m=0;i<limit;i++)
{
if (Time[i]<TimeArray_5M[y5m]) y5m++;
if (Time[i]<TimeArray_1H[y1h]) y1h++;
if (Time[i]<TimeArray_30M[y30m]) y30m++;
if (Time[i]<TimeArray_15M[y15m]) y15m++;
int cci_n = cci_1;
for (int tf = 0; tf < 4; tf++)
{
int prd;
switch (tf)
{
case 0: prd = Period_1; cci_n = cci_1; yy = y5m; break;
case 1: prd = Period_2; cci_n = cci_2; yy = y15m; break;
case 2: prd = Period_3; cci_n = cci_3; yy = y30m; break;
case 3: prd = Period_4; cci_n = cci_4; yy = y1h; break;
}
double cci = iCCI(NULL, prd, cci_n,PRICE_TYPICAL, yy);
double dUp = EMPTY_VALUE; // iCustom(NULL, prd, "SuperTrend", false, 1, yy);
double dDn = EMPTY_VALUE; //iCustom(NULL, prd, "SuperTrend", false, 0, yy);
if (cci < 0) dUp = 1; else dDn = 1;
switch (tf)
{
case 0: if (dUp == EMPTY_VALUE) buf1_down[i] = 1; else buf1_up[i] = 1; break;
case 1: if (dUp == EMPTY_VALUE) buf2_down[i] = 1 + Gap * 1; else buf2_up[i] = 1 + Gap * 1; break;
case 2: if (dUp == EMPTY_VALUE) buf3_down[i] = 1 + Gap * 2; else buf3_up[i] = 1 + Gap * 2; break;
case 3: if (dUp == EMPTY_VALUE) buf4_down[i] = 1 + Gap * 3; else buf4_up[i] = 1 + Gap * 3; break;
}
if (NewBar())
{
string sDir = "";
if (buf1_up[0] + buf2_up[0] + buf3_up[0] + buf4_up[0] == 4)
sDir = "Up";
if (buf1_down[0] + buf2_down[0] + buf3_down[0] + buf4_down[0] == 4)
sDir = "Down";
if (sDir != "")
{
PlaySound("alert1.wav");
Print("Forex freeway - Direction ",sDir);
}
}
}
}
return(0);
}
//+------------------------------------------------------------------+
string tf2txt(int tf)
{
if (tf == PERIOD_M1) return("M1");
if (tf == PERIOD_M5) return("M5");
if (tf == PERIOD_M15) return("M15");
if (tf == PERIOD_M30) return("M30");
if (tf == PERIOD_H1) return("H1");
if (tf == PERIOD_H4) return("H4");
if (tf == PERIOD_D1) return("D1");
if (tf == PERIOD_W1) return("W1");
if (tf == PERIOD_MN1) return("MN1");
return("??");
}
void SetValues(int p1, int p2, int p3, int p4)
{
Period_1 = p1; Period_2 = p2; Period_3 = p3; Period_4 = p4;
}
void SetAutoDisplay()
{
if (AutoDisplay)
{
switch (Period())
{
case PERIOD_M1 : SetValues(PERIOD_M1, PERIOD_M5, PERIOD_M15,PERIOD_M30); break;
case PERIOD_M5 : SetValues(PERIOD_M5, PERIOD_M15,PERIOD_M30,PERIOD_H1); break;
case PERIOD_M15 : SetValues(PERIOD_M5, PERIOD_M15,PERIOD_M30,PERIOD_H1); break;
case PERIOD_M30 : SetValues(PERIOD_M5, PERIOD_M15,PERIOD_M30, PERIOD_H1); break;
case PERIOD_H1 : SetValues(PERIOD_M15, PERIOD_M30,PERIOD_H1, PERIOD_H4); break;
case PERIOD_H4 : SetValues(PERIOD_M30, PERIOD_H1, PERIOD_H4, PERIOD_D1); break;
case PERIOD_D1 : SetValues(PERIOD_H1, PERIOD_H4, PERIOD_D1, PERIOD_W1); break;
case PERIOD_W1 : SetValues(PERIOD_H4, PERIOD_D1, PERIOD_W1,PERIOD_MN1); break;
case PERIOD_MN1 : SetValues(PERIOD_H4, PERIOD_D1, PERIOD_W1,PERIOD_MN1); break;
}
}
}
bool NewBar()
{
static datetime dt = 0;
if (Time[0] != dt)
{
dt = Time[0];
return(true);
}
return(false);
}
