Fisher_m11_001
Download script
This script is designed as a specialized technical analysis tool (an indicator) for the MetaTrader platform. Its primary purpose is to identify and visualize market trends by analyzing price movement over a specific period.
Core Logic Overview
The script operates by evaluating the relationship between current prices and a historical "range" of data. Instead of looking at every tiny price fluctuation, it focuses on where the current price sits relative to the highest highs and lowest lows over a defined window of time (the Range Periods).
Step-by-Step Processing
The logic follows a structured four-step calculation for every bar on the chart:
-
Price Positioning: The script first identifies the "Greatest Range" by finding the highest high and the lowest low within your chosen lookback period. It then determines where the current price sits within that range. By converting this into a numerical scale (ranging from -1 to +1), it creates a standardized way to see if the price is currently leaning toward the top or the bottom of its recent history.
-
Price Smoothing: Raw market data can be "noisy" and jumpy. To make the data more readable, the script applies a smoothing factor (Price Smoothing). This stabilizes the price location, ensuring that one-off spikes don't cause erratic movements in the final output.
-
The Fisher Index Calculation: This is the heart of the script. It takes the smoothed price position and runs it through a logarithmic formula. This mathematical transformation is designed to highlight the acceleration or deceleration of a trend. It essentially "stretches" the data to make trends more visible to the human eye.
-

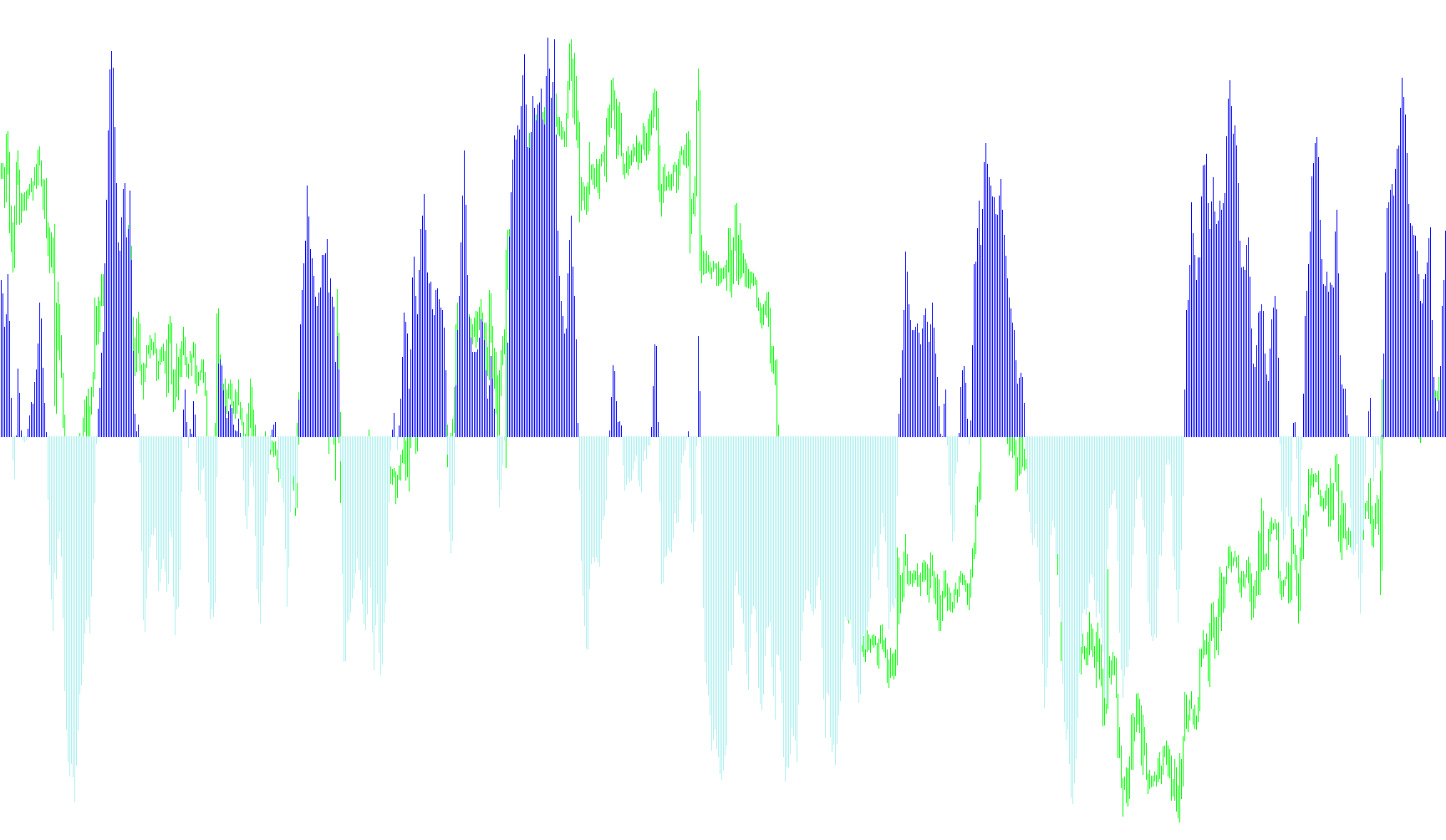

Trend Smoothing and Visualization: Finally, the script applies a second layer of smoothing (Index Smoothing) to the resulting Fisher Index. This creates the final visual output shown in the indicator window:
- Upward Trend: When the final value is positive, the script displays a green histogram (Lime).
- Downward Trend: When the final value is negative, the script displays a red histogram (Red).
Key User Parameters
- Range Periods: Defines how far back the script looks to determine the "High" and "Low" boundaries.
- Price Smoothing: Controls how much of the "noise" is filtered out from the raw price movement.
- Index Smoothing: Controls the fluidity of the final trend line, helping to differentiate between a sharp move and a sustained trend.
//+------------------------------------------------------------------+
//| #(e-ValTrg)-HA MT.mq4 |
//| Fisher_m11.mq4 |
//| Copyright © 23.07.2006 MartinG |
//| http://home.arcor.de/cam06/fisher |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007 ValTrg"
// #property copyright "Copyright © 23.07.2006 MartinG"
// #property link "http://home.arcor.de/cam06/fisher"
#property indicator_separate_window
//#property indicator_minimum -1
//#property indicator_maximum 1
#property indicator_buffers 3
#property indicator_color2 Lime
#property indicator_color3 Red
#property indicator_width2 2
#property indicator_width3 2
int LeftNum1=56;
int LeftNum2=56;
extern int RangePeriods=30;
extern double PriceSmoothing=0.3; // =0.67 bei Fisher_m10
extern double IndexSmoothing=0.3; // =0.50 bei Fisher_m10
string ThisName="Fisher_m11";
int DrawStart;
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double ExtMapBuffer4[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
IndicatorBuffers(4);
SetIndexLabel(0,"Fish");
SetIndexStyle(0,DRAW_NONE);
SetIndexBuffer(0,ExtMapBuffer1);
SetIndexStyle(1,DRAW_HISTOGRAM);
SetIndexBuffer(1,ExtMapBuffer2);
SetIndexStyle(2,DRAW_HISTOGRAM);
SetIndexBuffer(2,ExtMapBuffer3);
SetIndexStyle(3,DRAW_NONE);
SetIndexBuffer(3,ExtMapBuffer4);
string Text=ThisName;
Text=Text+" (rPeriods "+RangePeriods;
Text=Text+", pSmooth "+DoubleToStr(PriceSmoothing,2);
Text=Text+", iSmooth "+DoubleToStr(IndexSmoothing,2);
Text=Text+") ";
IndicatorShortName(Text);
SetIndexLabel(1,NULL);
SetIndexLabel(2,NULL);
DrawStart=2*RangePeriods+4; // DrawStart= BarNumber calculated from left to right
SetIndexDrawBegin(1,DrawStart);
SetIndexDrawBegin(2,DrawStart);
if (PriceSmoothing>=1.0)
{
PriceSmoothing=0.9999;
Alert("Fish61: PriceSmothing factor has to be smaller 1!");
}
if (PriceSmoothing<0)
{
PriceSmoothing=0;
Alert("Fish61: PriceSmothing factor mustn''t be negative!");
}
if (IndexSmoothing>=1.0)
{
IndexSmoothing=0.9999;
Alert("Fish61: PriceSmothing factor has to be smaller 1!");
}
if (IndexSmoothing<0)
{
IndexSmoothing=0;
Alert("Fish61: PriceSmothing factor mustn''t be negative!");
}
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
if (Bars<DrawStart)
{
Alert("Fish84: Not enough Bars loaded to calculate FisherIndicator with RangePeriods=",RangePeriods);
return(-1);
}
//----
int counted_bars=IndicatorCounted();
if (counted_bars<0) return(-1);
if (counted_bars>0) counted_bars--;
//----
int Position=Bars-counted_bars; // Position = BarPosition calculated from right to left
int LeftNum1=Bars-Position; // when more bars are loaded the Position of a bar changes but not its LeftNum
if (LeftNum1<RangePeriods+1)Position=Bars-RangePeriods-1;
while(Position>=0)
{
CalculateCurrentBar(Position);
Position--;
}
//----
return(0);
}
//+------------------------------------------------------------------+
//| Single Bar Calculation function |
//+------------------------------------------------------------------+
int CalculateCurrentBar(int pos)
{
double LowestLow, HighestHigh, GreatestRange, MidPrice;
double PriceLocation, SmoothedLocation, FishIndex, SmoothedFish;
//----
LowestLow = Low[Lowest(NULL,0,MODE_LOW,RangePeriods,pos)];
HighestHigh = High[Highest(NULL,0,MODE_HIGH,RangePeriods,pos)];
if (HighestHigh-LowestLow<0.1*Point)HighestHigh=LowestLow+0.1*Point;
GreatestRange=HighestHigh-LowestLow;
MidPrice = (High[pos]+Low[pos])/2;
// PriceLocation in current Range
if (GreatestRange!=0)
{
PriceLocation=(MidPrice-LowestLow)/GreatestRange;
PriceLocation= 2.0*PriceLocation - 1.0; // -> -1 < PriceLocation < +1
}
// Smoothing of PriceLocation
ExtMapBuffer4[pos]=PriceSmoothing*ExtMapBuffer4[pos+1]+(1.0-PriceSmoothing)*PriceLocation;
SmoothedLocation=ExtMapBuffer4[pos];
if (SmoothedLocation> 0.99) SmoothedLocation= 0.99; // verhindert, dass MathLog unendlich wird
if (SmoothedLocation<-0.99) SmoothedLocation=-0.99; // verhindert, dass MathLog minuns unendlich wird
// FisherIndex
if(1-SmoothedLocation!=0) FishIndex=MathLog((1+SmoothedLocation)/(1-SmoothedLocation));
else Alert("Fisher129: Unerlaubter Zustand bei Bar Nummer ",Bars-pos);
// Smoothing of FisherIndex
ExtMapBuffer1[pos]=IndexSmoothing*ExtMapBuffer1[pos+1]+(1.0-IndexSmoothing)*FishIndex;
if (Bars-pos<DrawStart)ExtMapBuffer1[pos]=0;
SmoothedFish=ExtMapBuffer1[pos];
if (SmoothedFish>0) // up trend
{
ExtMapBuffer2[pos]=SmoothedFish;
ExtMapBuffer3[pos]=0;
}
else // else down trend
{
ExtMapBuffer2[pos]=0;
ExtMapBuffer3[pos]=SmoothedFish;
}
//----
return(0);
}
//+------------------------------------------------------------------+
