This script functions as a comprehensive multi-timeframe analysis tool designed to help traders visualize market trends and price positioning simultaneously. It works by calculating several different Moving Averages (MAs) across various timeframes and providing a "status dashboard" on the chart.
Here is a breakdown of its logic:
1. Multi-Timeframe Monitoring
The script allows you to select up to nine different timeframes (e.g., M1, M5, H1, D1). It monitors these intervals independently, allowing you to see what is happening on a small scale (like a 1-minute chart) while simultaneously observing the broader context (like a daily or weekly chart).
2. The "Fan" Logic
The tool uses a series of Moving Averages to create what it calls a "Fan."
- Trend Direction: It checks the sequence of these averages on each selected timeframe. If the averages are perfectly stacked in an ascending order, the script identifies an "Up" trend. If they are descending, it identifies a "Down" trend. If they are mixed or flat, it marks the status as neutral/wrong.
- Price Position: Simultaneously, the script compares the current market price against this "Fan." It determines if the price is currently trading above all the averages, below all of them, or cutting through the middle of the fan.
3. Visual Dashboard and Symbols
Instead of just drawing lines, the script generates a text-based dashboard in the corner of your screen. This dashboard provides three rows of information for every timeframe you have active:
- Price Status: Uses symbols (like circles) to indicate if the price is above or below the fan.
- Fan Status: Uses directional arrows to show whether the overall trend of the averages is pointing up, down, or is currently disorganized.
- Dynamic Labels: It automatically identifies the timeframe names so you can easily read which data corresponds to which timeframe.
4. Tracking and Sliding Mechanics
The script includes a unique "Tracking" feature:
- Vertical Reference: You can place a vertical line on a specific historical bar to see what the market status was at that exact moment in time.
- Sliding Mode: If enabled, this tracking point can move automatically as new candles form, allowing you to "ride" the current price action while keeping your multi-timeframe dashboard updated in real-time.
- Audio Alerts: It has the capability to play a sound file whenever the tracking point shifts or moves, providing an audible cue for price movement.
5. Technical Rendering

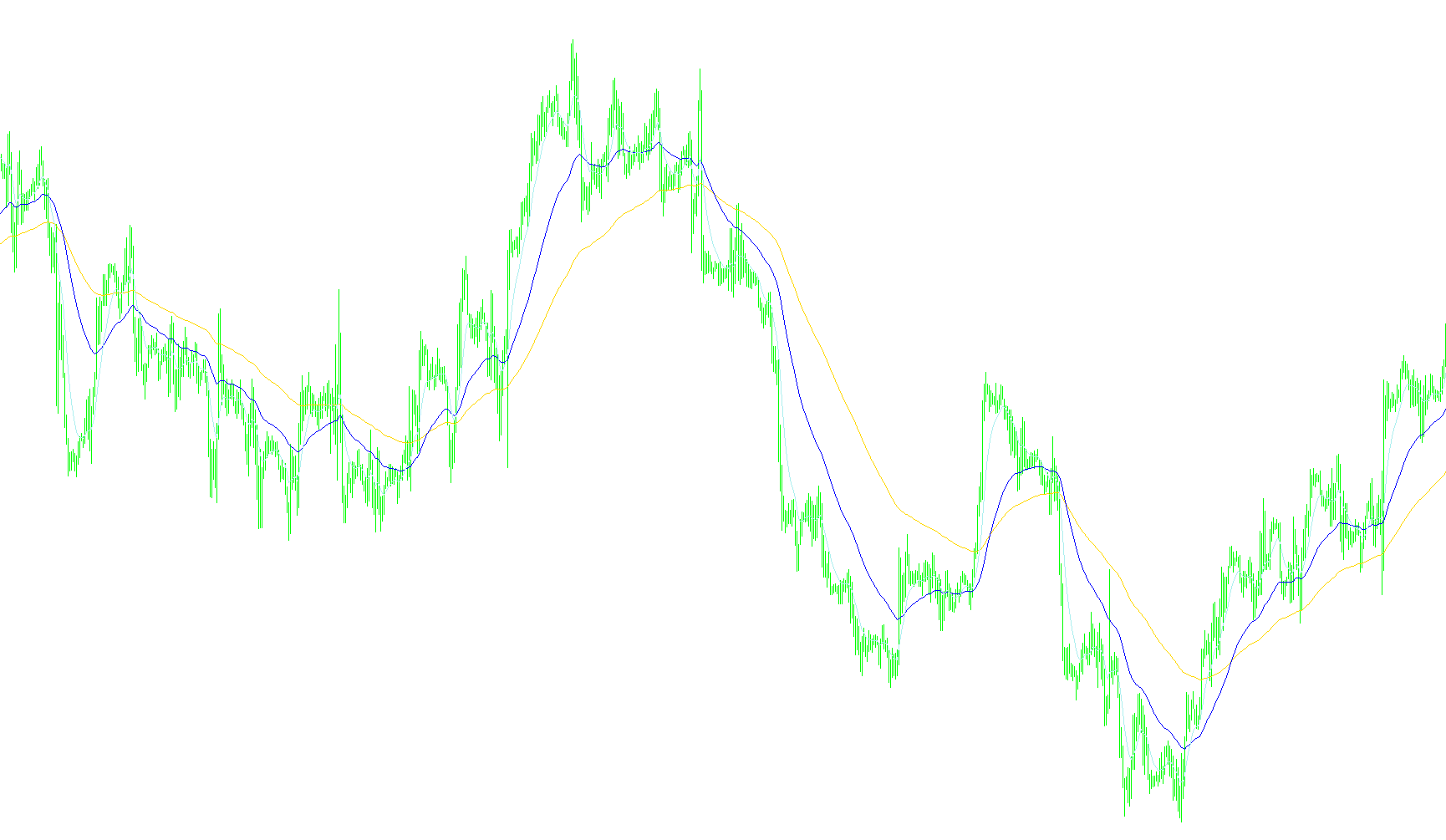

While it monitors many timeframes in the background, it also draws several Moving Averages directly onto your current chart (using specific types like Simple Moving Average and Exponential Moving Average). These lines provide the primary visual data for the timeframe you are currently viewing, while the dashboard provides the "big picture" for all other selected timeframes.
12
Views
0
Downloads
0
Favorites
FanSimple8_mEn
//+------------------------------------------------------------------+
//| |
//| Copyright © 2000-2007, MetaQuotes Software Corp. |
//| http://www.metaquotes.ru |
//+------------------------------------------------------------------+
#include <stdlib.mqh>
//----
#property indicator_chart_window
#property indicator_buffers 8
/* Here's possible to change values, used by default */
/* Colors of a set of averages (put cursor on a name of the color, press F1 and to see names of other colors) */
#property indicator_color1 Gold
#property indicator_color2 Blue
#property indicator_color3 PaleTurquoise
#property indicator_color4 DodgerBlue
#property indicator_color5 Aqua
#property indicator_color6 Magenta
#property indicator_color7 Gray
#property indicator_color8 White
/* Main switch of display of correctness of a fan, allows to cut off display of set of periods */
extern bool DisplayFanStatus=true;
/* Main switch of display of averages, allows to cut off display of all set of averages */
extern bool DisplayFan=true;
/* Values of the periods of a set timeframes, from left to right (recurrences are possible, "0" and wrong values will not be included in a set) */
extern int Timeframe1=PERIOD_M1;
extern int Timeframe2=PERIOD_M5;
extern int Timeframe3=PERIOD_M15;
extern int Timeframe4=PERIOD_H1;
extern int Timeframe5=PERIOD_H4;
extern int Timeframe6=PERIOD_D1;
extern int Timeframe7=PERIOD_W1;
extern int Timeframe8=0;
extern int Timeframe9=0;
extern datetime TrackingTime=0;
/* Date and time for which correctness of a fan displayed */
extern bool Tracking=false;
/*to draw (or not) a vertical line through a traced bar */
extern bool Sliding=true;
/* to shift (or not) a point of tracking with formation of a following bar ïðàâèëüíîñòü êîòîðîãî îòñëåæèâàåòñÿ (0-âûå è íåïðàâèëüíûå çíà÷åíèÿ âêëþ÷åíû â íàáîð íå áóäóò) */
extern string SlidingSound="";
/*Name of a soundfile played at shift of a tracking point*/
extern int MA1=55;
extern int MA2=21;
extern int MA3=5;
extern int MA4=0;
extern int MA5=0;
extern int MA6=0;
extern int MA7=0;
extern int MA8=0;
/* Values of the periods of a set of averages combined into a fan, correctness of which is traced ("0" and wrong values will not be included in a set) */
/*Individual switch to display of each average*/
extern bool DisplayMA1=true;
extern bool DisplayMA2=true;
extern bool DisplayMA3=true;
extern bool DisplayMA4=true;
extern bool DisplayMA5=true;
extern bool DisplayMA6=true;
extern bool DisplayMA7=true;
extern bool DisplayMA8=true;
/* Font Name */
extern string FontName="Wingdings";
/* Font Size */
extern int FontSize=12;
/* Symbols of the drawn and erased index of position of the price in regard to a fan */
extern int PriceOnSymbol=108; // Circle
extern int PriceOffSymbol=32; // Space
/* Colors of the drawn index of position of the price relative to a fan */
extern color PriceColor=LimeGreen;
/* Symbols of the index of correctness of a fan */
extern int FanWrongSymbol=117; // Diamond
extern int FanUpSymbol=233; // Up Arrow
extern int FanDownSymbol=234; // Down Arrow
/* Colors of the index of correctness of a fan */
extern color FanWrongColor=DarkGray;
extern color FanUpColor=DodgerBlue;
extern color FanDownColor=OrangeRed;
/* Displacement to the left (X) and to the right (Y) from the right top corner */
extern int X=0;
extern int Y=0;
// Tracking vertical line label and color
#define TRACKING_NAME "Bar, traced by indicator FanSimple"
#define TRACKING_COLOR DarkGray
//----
string RowName[3]={ "Price above the Fan",
"Fan Status",
"Price below the Fan" };
// Type of rendering codes
#define is_down 0
#define is_none 1
#define is_up 2
//----
int Timeframe[9];
string TimeframeNames[9];
int TimeframeInUse=0;
//----
int MAs[8];
int Xlat[8];
int MAsInUse=0;
//----
double MA1Buf[], MA2Buf[], MA3Buf[], MA4Buf[], MA5Buf[], MA6Buf[], MA7Buf[], MA8Buf[];
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
string LabelName(int i, int j) { return(RowName[j] + "(" + (i + 1) + "): " + TimeframeNames[i]); }
//----
int symcolor[3][2];
int syms[3][2];
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void UpdateFanStatus(int i, int how)
{
string s=" ";
ObjectSetText(LabelName(i, 1), StringSetChar(s, 0, symcolor[how][0]), FontSize, FontName, symcolor[how][1]);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void UpdatePriceStatus(int i, int how)
{
string s=" ";
ObjectSetText(LabelName(i, 0), StringSetChar(s, 0, syms[how][0]), FontSize, FontName, PriceColor);
ObjectSetText(LabelName(i, 2), StringSetChar(s, 0, syms[how][1]), FontSize, FontName, PriceColor);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void InitTimeframe(int &P[], int PV)
{
if(PV!=0)
{
switch(PV)
{
case PERIOD_M1: TimeframeNames[TimeframeInUse]="M1"; break;
case PERIOD_M5: TimeframeNames[TimeframeInUse]="M5"; break;
case PERIOD_M15: TimeframeNames[TimeframeInUse]="M15"; break;
case PERIOD_M30: TimeframeNames[TimeframeInUse]="M30"; break;
case PERIOD_H1: TimeframeNames[TimeframeInUse]="H1"; break;
case PERIOD_H4: TimeframeNames[TimeframeInUse]="H4"; break;
case PERIOD_D1: TimeframeNames[TimeframeInUse]="D1"; break;
case PERIOD_W1: TimeframeNames[TimeframeInUse]="W1"; break;
case PERIOD_MN1: TimeframeNames[TimeframeInUse]="MN1"; break;
default: return;
}
P[TimeframeInUse]=PV; TimeframeInUse++;
}
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void InitMAs(int &P[], int MA) { if(MA > 0) { P[MAsInUse]=MA; MAsInUse++; } }
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int init()
{
int i, j;
if(DisplayFanStatus)
{
syms[0][0]=PriceOffSymbol; syms[0][1]=PriceOnSymbol;
syms[1][0]=PriceOffSymbol; syms[1][1]=PriceOffSymbol;
syms[2][0]=PriceOnSymbol; syms[2][1]=PriceOffSymbol;
InitTimeframe(Timeframe, Timeframe1); InitTimeframe(Timeframe, Timeframe2); InitTimeframe(Timeframe, Timeframe3); InitTimeframe(Timeframe, Timeframe4);
InitTimeframe(Timeframe, Timeframe5); InitTimeframe(Timeframe, Timeframe6); InitTimeframe(Timeframe, Timeframe7); InitTimeframe(Timeframe, Timeframe8);
InitTimeframe(Timeframe, Timeframe9);
InitMAs(MAs, MA1); InitMAs(MAs, MA2); InitMAs(MAs, MA3); InitMAs(MAs, MA4);
InitMAs(MAs, MA5); InitMAs(MAs, MA6); InitMAs(MAs, MA7); InitMAs(MAs, MA8);
for(i=0; i < MAsInUse; i++) Xlat[i]=i;
for(i=0; i < MAsInUse - 1; i++)
for(j=i + 1; j < MAsInUse; j++)
if(MAs[Xlat[i]] > MAs[Xlat[j]]) { int k=Xlat[j]; Xlat[j]=Xlat[i]; Xlat[i]=k; }
for(i=0; i < TimeframeInUse; i++)
for(j=0; j < 3; j++)
{
string s=LabelName(i, j);
//----
ObjectCreate(s, OBJ_LABEL, 0, 0, 0);
ObjectSet(s, OBJPROP_XDISTANCE, (TimeframeInUse - i - 1) * 13 * FontSize/10 + 2 * FontSize/10 + X);
ObjectSet(s, OBJPROP_YDISTANCE, j * 16 * FontSize/10 + 3 * FontSize/10 + Y);
ObjectSet(s, OBJPROP_BACK, true);
ObjectSet(s, OBJPROP_CORNER, 1);
ObjectSetText(s, " ", FontSize, FontName, Black);
}
//----
if(Tracking)
{
ObjectCreate(TRACKING_NAME, OBJ_VLINE, 0, TrackingTime, 0);
ObjectSet(TRACKING_NAME, OBJPROP_COLOR, TRACKING_COLOR);
}
}
//----
if(DisplayFan)
{
string IndicatorName="FanSimple(";
symcolor[0][0]=FanDownSymbol; symcolor[0][1]=FanDownColor;
symcolor[1][0]=FanWrongSymbol; symcolor[1][1]=FanWrongColor;
symcolor[2][0]=FanUpSymbol; symcolor[2][1]=FanUpColor;
//----
if(DisplayMA1 && MA1 > 0) IndicatorName=IndicatorName + MA1; if(DisplayMA2 && MA2 > 0) IndicatorName=IndicatorName + ", " + MA2;
if(DisplayMA3 && MA3 > 0) IndicatorName=IndicatorName + ", " + MA3; if(DisplayMA4 && MA4 > 0) IndicatorName=IndicatorName + ", " + MA4;
if(DisplayMA5 && MA5 > 0) IndicatorName=IndicatorName + ", " + MA5; if(DisplayMA6 && MA6 > 0) IndicatorName=IndicatorName + ", " + MA6;
if(DisplayMA7 && MA7 > 0) IndicatorName=IndicatorName + ", " + MA7; if(DisplayMA8 && MA8 > 0) IndicatorName=IndicatorName + ", " + MA8;
IndicatorShortName(IndicatorName + ")");
IndicatorBuffers(8);
SetIndexBuffer(0, MA1Buf); SetIndexBuffer(1, MA2Buf); SetIndexBuffer(2, MA3Buf); SetIndexBuffer(3, MA4Buf);
SetIndexBuffer(4, MA5Buf); SetIndexBuffer(5, MA6Buf); SetIndexBuffer(6, MA7Buf); SetIndexBuffer(7, MA8Buf);
SetIndexLabel(0, "Fan, MA(" + MA1 + ")"); SetIndexLabel(1, "Fan, MA(" + MA2 + ")");
SetIndexLabel(2, "Fan,MA( " + MA3 + ")"); SetIndexLabel(3, "Fan, MA( " + MA4 + ")");
SetIndexLabel(4, "Fan,MA( " + MA5 + ")"); SetIndexLabel(5, "Fan, MA( " + MA6 + ")");
SetIndexLabel(6, "Fan,MA( " + MA7 + ")"); SetIndexLabel(7, "Fan, MA(" + MA8 + ")");
//----
for(i=0; i < 7; i++)
{
SetIndexStyle(i, DRAW_LINE, EMPTY, 1);
SetIndexEmptyValue(i, 0);
}
//----
ArraySetAsSeries(MA1Buf, true); ArraySetAsSeries(MA2Buf, true); ArraySetAsSeries(MA3Buf, true); ArraySetAsSeries(MA4Buf, true);
ArraySetAsSeries(MA5Buf, true); ArraySetAsSeries(MA6Buf, true); ArraySetAsSeries(MA7Buf, true); ArraySetAsSeries(MA8Buf, true);
for(i=Bars - 1; i>=0; i--)
{
MA1Buf[i]=0; MA2Buf[i]=0; MA3Buf[i]=0; MA4Buf[i]=0; MA5Buf[i]=0; MA6Buf[i]=0; MA7Buf[i]=0; MA8Buf[i]=0;
}
}
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int deinit()
{
for(int i=0; i < TimeframeInUse; i++)
for(int j=0; j < 3; j++)
ObjectDelete(LabelName(i, j));
//----
if(Tracking)
ObjectDelete(TRACKING_NAME);
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int start()
{
int i;
datetime NewTrackingTime=TrackingTime;
static datetime time=0;
//----
if(time==0)
{
if(TrackingTime==0)
TrackingTime=Time[0];
i=((TimeDay(TrackingTime) * 24 + TimeHour(TrackingTime)) * 60 + TimeMinute(TrackingTime)) * 60 + TimeSeconds(TrackingTime);
TrackingTime-=i;
i/=60;
i-=i%Period();
TrackingTime+=i * 60;
if(Tracking)
ObjectSet(TRACKING_NAME, OBJPROP_TIME1, TrackingTime);
else
NewTrackingTime=TrackingTime;
}
//-----
if(Tracking)
NewTrackingTime=ObjectGet(TRACKING_NAME, OBJPROP_TIME1);
/* User shifted a tracking point or tracking point- the last bar or a new bar appeared // Ïîëüçîâàòåëü ñäâèíóë òî÷êó ñëåæåíèÿ èëè òî÷êà ñëåæåíèÿ - ïîñëåäíèé áàð èëè ïîÿâèëñÿ íîâûé áàð */
if(NewTrackingTime!=TrackingTime || (CurTime() - TrackingTime)/60 < Period() || time!=Time[0])
{
if(DisplayFanStatus)
for(i=0; i < TimeframeInUse; i++)
{
bool Up=true, Down=true;
bool PriceUp=true, PriceDown=true;
int LocalShift=iBarShift(Symbol(), Timeframe[i], NewTrackingTime + (Period() - 1) * 60);
double PrevMA=0;
//----
for(int j=0; j < MAsInUse; j++)
{
double MA=iMA(Symbol(), Timeframe[i], MAs[Xlat[j]], 0, MODE_EMA, PRICE_CLOSE, LocalShift);
if(j > 0) { if(Up && PrevMA < MA) Up=false; if(Down && PrevMA > MA) Down=false; }
if(PriceUp && MA > iClose(Symbol(), Timeframe[i], LocalShift)) PriceUp=false;
if(PriceDown && MA < iClose(Symbol(), Timeframe[i], LocalShift)) PriceDown=false;
PrevMA=MA;
}
//----
if(Up) UpdateFanStatus(i, is_up); else if(Down) UpdateFanStatus(i, is_down); else UpdateFanStatus(i, is_none);
if(PriceUp) UpdatePriceStatus(i, is_up); else if(PriceDown) UpdatePriceStatus(i, is_down); else UpdatePriceStatus(i, is_none);
}
if(DisplayFan)
for(i=Bars - IndicatorCounted() - 1; i>=0; i--)
{
if(DisplayMA1 && MA1 > 0) MA1Buf[i]=iMA(Symbol(), 0, MA1, 0, MODE_SMMA, PRICE_TYPICAL, i);
if(DisplayMA2 && MA2 > 0) MA2Buf[i]=iMA(Symbol(), 0, MA2, 0, MODE_SMMA, PRICE_TYPICAL, i);
if(DisplayMA3 && MA3 > 0) MA3Buf[i]=iMA(Symbol(), 0, MA3, 0, MODE_SMMA, PRICE_TYPICAL, i);
if(DisplayMA4 && MA4 > 0) MA4Buf[i]=iMA(Symbol(), 0, MA4, 0, MODE_EMA, PRICE_CLOSE, i);
if(DisplayMA5 && MA5 > 0) MA5Buf[i]=iMA(Symbol(), 0, MA5, 0, MODE_EMA, PRICE_CLOSE, i);
if(DisplayMA6 && MA6 > 0) MA6Buf[i]=iMA(Symbol(), 0, MA6, 0, MODE_EMA, PRICE_CLOSE, i);
if(DisplayMA7 && MA7 > 0) MA7Buf[i]=iMA(Symbol(), 0, MA7, 0, MODE_EMA, PRICE_CLOSE, i);
if(DisplayMA8 && MA8 > 0) MA8Buf[i]=iMA(Symbol(), 0, MA8, 0, MODE_EMA, PRICE_CLOSE, i);
}
//----
if(time!=Time[0])
{
if(Sliding && time!=0)
NewTrackingTime+=Time[0] - time;
time=Time[0];
}
if(Tracking && NewTrackingTime!=TrackingTime)
ObjectSet(TRACKING_NAME, OBJPROP_TIME1, NewTrackingTime);
if(StringLen(SlidingSound)!=0 && NewTrackingTime!=TrackingTime)
PlaySound(SlidingSound);
TrackingTime=NewTrackingTime;
}
return(0);
}
//+------------------------------------------------------------------+
