This script introduces the Fractal Adaptive Moving Average (FRAMA), a sophisticated technical analysis tool designed to provide a smoother and more responsive trend line than traditional moving averages. Unlike standard indicators that apply a fixed weight to past price data, this tool "adapts" its behavior based on current market conditions—specifically, it adjusts how much it reacts to new price information depending on whether the market is trending or ranging (moving sideways).
How the Logic Works
The core intelligence of this script lies in its ability to measure market volatility and "fractal" dimensions. Here is a breakdown of the process:
1. Dynamic Period Adjustment The script starts by looking at a user-defined period of price history. It automatically ensures this number is even to maintain mathematical consistency during its calculations. It then divides this timeframe into two equal halves to compare recent price action against older data.
2. Volatility Measurement The tool identifies the highest highs and lowest lows within three specific segments:
- The entire look-back period.
- The first half of the period.
- The second half of the period.
By comparing the range of these segments, the script calculates how "spread out" or "compressed" the price movement is.
3. Fractal Dimension Calculation Using the information gathered from those highs and lows, the script determines a "Fractal Dimension." In simple terms, this is a mathematical way to describe the complexity of the price movement:
- If the price is moving in a clear, steady trend, the fractal dimension reflects that consistency.
- If the price is乱 (choppy) and erratic, the dimension changes accordingly.
4. The Adaptive "Alpha" Factor This is the most critical step. The script converts the Fractal Dimension into an Alpha value. This value acts as a sensitivity slider:
- In a strong trend: The Alpha adjusts to make the moving average follow the price more closely, allowing traders to stay on top of the move.
- In a sideways/choppy market: The Alpha adjusts to "smooth out" the noise, preventing the indicator from providing false signals caused by minor fluctuations.

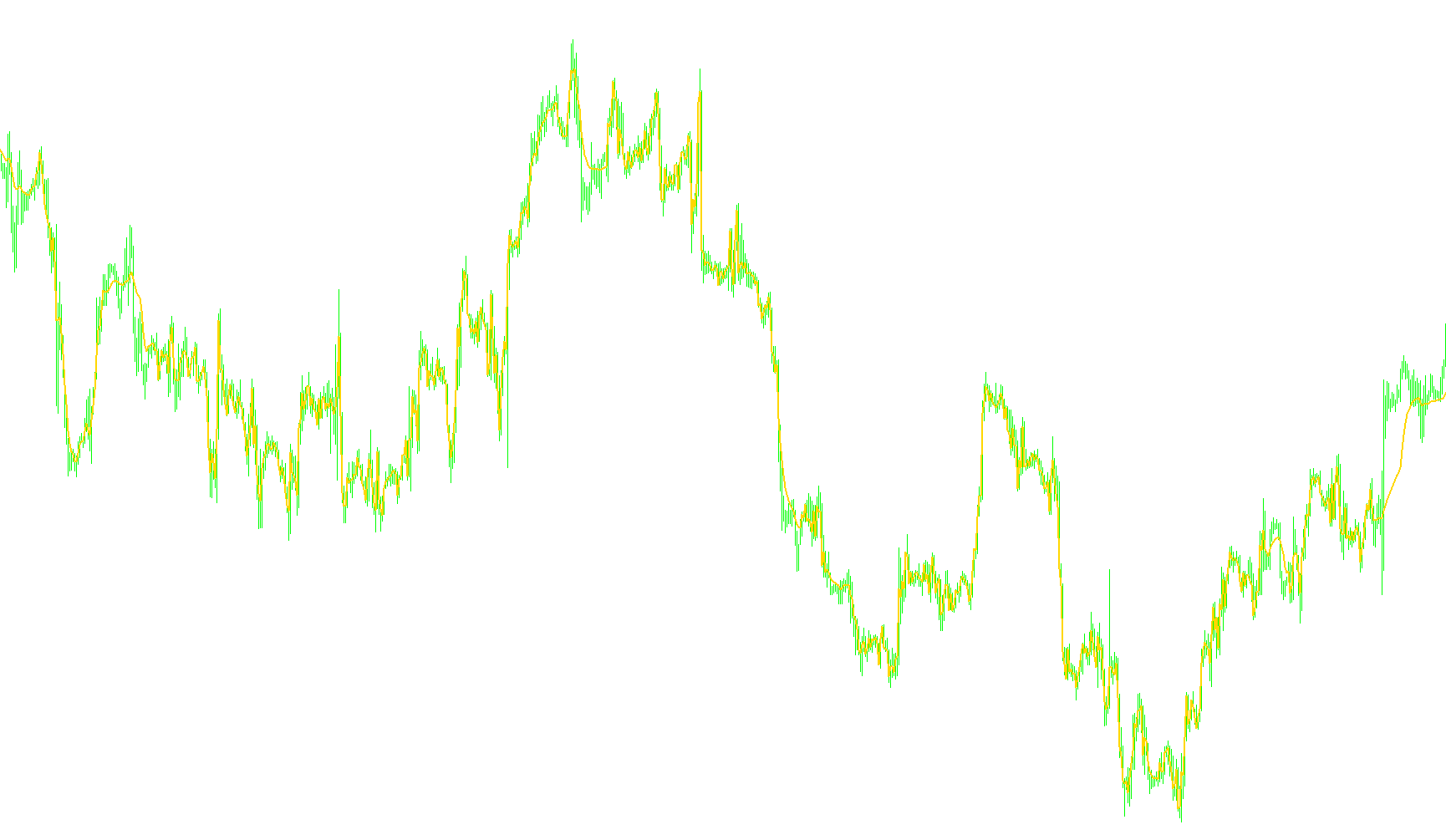

5. Final Filtering Finally, the script blends the current closing price with the previous filtered value using this unique Alpha. The result is a moving average line that appears to "tighten" or "loosen" automatically as market conditions shift, aiming to provide a clearer picture of the underlying trend without the significant lag often found in traditional indicators.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
//
// Description: Fractal Adaptive Moving Average - by John Ehlers
// Version 1.0 8/9/2005
// Notes:
// October 2005 Issue - "FRAMA - Fractal Adaptive Moving Average"
// Length will be forced to be an even number. Odd numbers will be bumped up to the
// next even number.
// Formula Parameters: Defaults:
// RPeriod 16
#property copyright "Copyright © 2005, MrPip "
#property link "http://www.metaquotes.net/"
//---- indicator settings
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Red
//---- buffers
double ExtMapBuffer1[];
extern int RPeriod = 60;
int shift;
int loopbegin;
double Filt_1 = 0; //previous bar's Filt
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- 1 additional buffers are used for counting.
IndicatorBuffers(1);
//---- drawing settings
SetIndexBuffer(0,ExtMapBuffer1);
SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
SetIndexShift(0,0);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
//---- initialization done
return(0);
}
int start()
{
if (Bars < RPeriod) return(0);
Comment("Bars : ",Bars);
loopbegin = Bars - RPeriod - 1;
Filt_1=Close[loopbegin];
for(shift = loopbegin; shift >= 0; shift--)
{
Filt_1 = FAMA();
// if (shift < RPeriod+1) Filt = Close[shift];
//========== COLOR CODING ===========================================
ExtMapBuffer1[shift] = Filt_1;
}
// done
return (0);
}
double FAMA()
{
double Filt = 0;
int count = 0;
int tmp = 0;
int N = 0;
int HalfN = 0;
double N1 = 0;
double N2 = 0;
double N3 = 0;
double HH = 0;
double LL = 0;
double Dimen = 0;
double alpha = 0;
N = MathFloor(RPeriod/2)*2; // Force N to even number
HalfN = MathFloor(N/2);
N3 = (High[Highest(NULL,0,MODE_HIGH,shift + N-1, shift)] - Low[Lowest(NULL,0,MODE_LOW,shift + N-1, shift)]) / N;
// Print("High ",High[Highest(NULL,0,MODE_HIGH,shift+N, shift)],"Low ",Low[Lowest(NULL,0,MODE_LOW,shift+N, shift)]);
HH = High[shift+N-1];
LL = Low[shift+N-1];
// First half
for( count = 0; count <= (HalfN -1); count++) {
tmp = shift + count;
if (High[tmp] > HH) HH = High[tmp];
if (Low[tmp] < LL) LL = Low[tmp];
}
N1 = (HH - LL) / HalfN;
HH = High[shift+HalfN-1];
LL = Low[shift+HalfN-1];
// Second half
for (count = HalfN; count <= (N-1); count++) {
tmp = shift + count;
if (High[tmp] > HH) HH = High[tmp];
if (Low[tmp] < LL) LL = Low[tmp];
}
N2 = (HH - LL) / HalfN;
if (N1 > 0 && N2 > 0 && N3 > 0) {
Dimen = (MathLog(N1 + N2) - MathLog(N3)) / MathLog(2);
}
alpha = MathExp(-4.6*(Dimen - 1));
if (alpha < 0.01) alpha = 0.01;
if (alpha > 1) alpha = 1;
Filt = (alpha*Close[shift]) + (1 - alpha)*Filt_1;
return (Filt);
}
//+------------------------------------------------------------------+
