CustomCandleCC_Shift

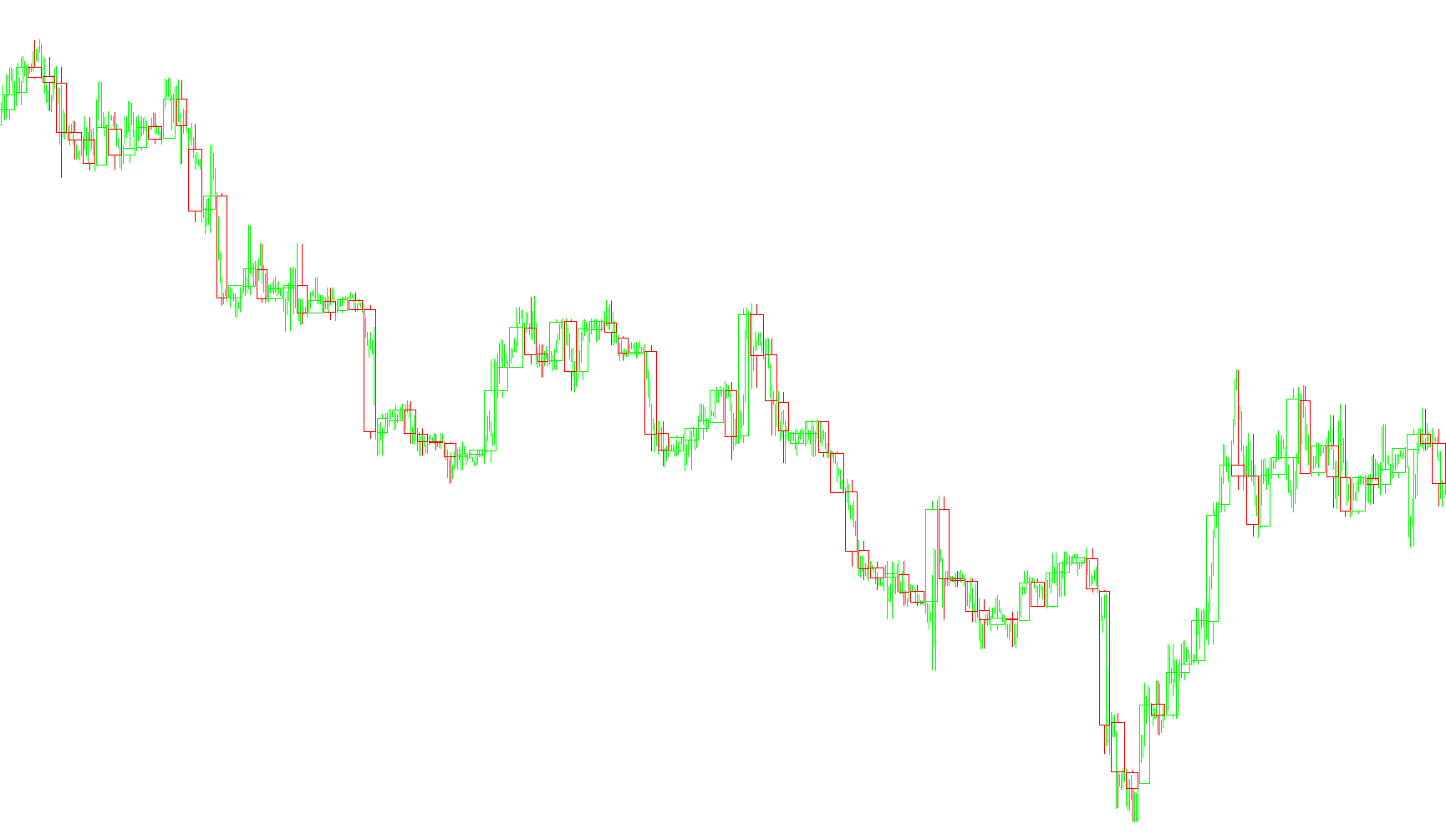

This script is designed to enhance the visual representation of trading charts by creating a multi-timeframe "higher-resolution" view. It allows traders to see consolidated price action from a larger timeframe (like an 8-hour chart) while viewing a smaller, more active timeframe (like a 1-hour chart).

Core Functionality

The primary purpose of this tool is to project the "body" and "shadows" of candles from a higher timeframe onto your current lower timeframe chart. It acts as a visual overlay that helps you identify where the price has been moving on a larger scale without needing to constantly switch tabs or windows.

Key Features & Logic

1. Dynamic Timeframe Alignment The script is configured to look at a specific higher timeframe (for example, 480 minutes). It includes built-in safety checks to ensure that the chart you are currently viewing is compatible with the chosen timeframe. If the timeframes are not mathematically proportional or are too far apart, the script will notify you via an on-screen message.

2. Visual Candle Construction Instead of just drawing lines, the script creates physical objects on your chart:

  • The Body: It draws a rectangular box representing the "body" of the higher timeframe candle. This box changes color automatically based on market movement: Lime for upward movements, Red for downward movements, and Blue for "Doji" candles (where the opening and closing prices are nearly equal).
  • The Shadows: It identifies the highest and lowest points reached during that larger timeframe period. It then draws "shadow" lines to connect these extremes to the candle body, providing a clear picture of the price volatility during that period.

3. Real-Time Updates The logic is designed to be reactive. As the current higher timeframe candle develops:

  • The script updates the dimensions and position of the current "live" candle in real-time.
  • It preserves the history of completed candles, ensuring that once a higher timeframe period ends, its visual representation remains fixed on the chart for reference.

4. Informational Overlays To provide maximum clarity, the script adds text labels to the objects it creates:

  • It displays the exact Open, High, Low, and Close prices for the higher timeframe directly on the chart.
  • It provides a summary in the corner of the screen, listing these OHLC (Open, High, Low, Close) values for quick reading.

Summary of User Experience

For a trader, this means you can stay on a fast-moving chart to catch entries while visually seeing the "big picture" progress of the larger timeframe. You will see large colored blocks representing the overall trend of the day or session, complete with price labels, allowing for better context in your trading decisions.

6 Views
0 Downloads
0 Favorites
CustomCandleCC_Shift
#property link      "mankurt@freemail.ru"
#property copyright "© 2006, mankurt"
#property indicator_chart_window
//+------------------------------------------------------------------------------------------------+
extern int   TimeFrame=480;
extern int   shift=60;
extern bool  week=false;
extern color UpCandle=Lime;
extern color DnCandle=Red;
extern color DojiColor=Blue;
extern int   Width=1;
extern bool  BGCandle=false;
//+------------------------------------------------------------------------------------------------+
int      Nbar,OpenBar,timer,i,timerTF,name,MidBar,x;
double   HighPrevBar,LowPrevBar,ClosePrevBar;
double   OpenNewBar,HighNewBar,LowNewBar,CloseNewBar;
double   HighCurBar,LowCurBar,CloseCurBar;
double   priceNewSH,priceNewSL,pricePrevSH,pricePrevSL,priceCurSH,priceCurSL;
string   nameNewCandle,namePrevCandle;
string   nameNewShadowH,nameNewShadowL,namePrevShadowH,namePrevShadowL;
string   NameBar, NameHigh, NameLow;
datetime TimeOpenNewBar,TimeCloseNewBar,TimeClosePrevBar;
datetime timeNewShadow,timePrevShadow;
bool     NewBar;
//+------------------------------------------------------------------------------------------------+
int init(){
IndicatorShortName("M_s"+TimeFrame+" íà M_s"+Period());
Nbar=TimeFrame/Period();
timer=Period()*60;
timerTF=TimeFrame*60;
name=0;
TimeOpenNewBar=Time[Bars-1];
OpenNewBar=Open[Bars-1];
NewBar=false;
NameBar="Bar_s M"+TimeFrame+"-";
NameHigh="High_s M"+TimeFrame+"-";
NameLow="Low_s M"+TimeFrame+"-";
if (week==true) x=1;
 else x=0;
return(0);}
//+------------------------------------------------------------------------------------------------+
int deinit(){
for(int DelOBJ=1; DelOBJ<=name; DelOBJ++){
ObjectDelete(NameBar+DelOBJ);
ObjectDelete(NameHigh+DelOBJ);
ObjectDelete(NameLow+DelOBJ);}
Comment("");
return(0);}
//+------------------------------------------------------------------------------------------------+
void start(){
if(TimeFrame>1440)
{Comment("\n"," TimeFrame áîëüøèé D1 íå ïîääåðæèâàåòñÿ!!!");return(0);}
if(Period()>240)
{Comment("\n"," Period áîëüøèé H4 íå ïîääåðæèâàåòñÿ!!!");return(0);}
if(TimeFrame<=Period()||MathMod(TimeFrame,Period())!=0)
{Comment("\n"," Íåîáõîäèì TimeFrame áîëüøèé è êðàòíûé M",Period());return(0);}
i=Bars-IndicatorCounted();
while(i>0){i--;
while(i>=0) if(Time[i]==TimeOpenNewBar||BarNew(i,TimeFrame)==false)i--;
             else{NewBar=true; name++; break;}
if(i<0) i=0;
if(NewBar==true){
//+-----------------------------------------Previos Bar--------------------------------------------+
  OpenBar=iBarShift(0,0,TimeOpenNewBar,false);
  TimeClosePrevBar=Time[i+1];
  ClosePrevBar=Close[i+1];
  HighPrevBar=High[Highest(0,0,MODE_HIGH,OpenBar-i,i+1)];
  LowPrevBar=Low[Lowest(0,0,MODE_LOW,OpenBar-i,i+1)];
  namePrevCandle=NameBar+(name-1);
  MidBar=OpenBar-MathRound((OpenBar-i)/2);
  timePrevShadow=Time[MidBar];
  pricePrevSH=PriceShadow(OpenNewBar,ClosePrevBar,0);
  pricePrevSL=PriceShadow(OpenNewBar,ClosePrevBar,1);
  namePrevShadowH=NameHigh+(name-1);
  namePrevShadowL=NameLow+(name-1);
//+----------------------------------Modifi Previos Bar & Shadow-----------------------------------+
if(ObjectFind(namePrevCandle)==0){
  ObjectMove(namePrevCandle,1,TimeClosePrevBar,ClosePrevBar);
  PropBar(OpenNewBar,ClosePrevBar,namePrevCandle);
  if(OpenBar==i+1) ObjectSet(namePrevCandle,OBJPROP_WIDTH, Width*3);}
if(ObjectFind(namePrevShadowH)==0){
  if(pricePrevSH==HighPrevBar) ObjectDelete(namePrevShadowH);
   else{ObjectMove(namePrevShadowH,0,timePrevShadow,pricePrevSH);
    ObjectMove(namePrevShadowH,1,timePrevShadow,HighPrevBar);
    ColorShadow(OpenNewBar,ClosePrevBar,namePrevShadowH);
    ObjectSetText(namePrevShadowH,"High="+DoubleToStr(HighPrevBar,Digits),7,"Tahoma");}}
if(ObjectFind(namePrevShadowL)==0){
  if(pricePrevSL==LowPrevBar) ObjectDelete(namePrevShadowL);
   else{ObjectMove(namePrevShadowL,0,timePrevShadow,pricePrevSL);
    ObjectMove(namePrevShadowL,1,timePrevShadow,LowPrevBar);
    ColorShadow(OpenNewBar,ClosePrevBar,namePrevShadowL);
    ObjectSetText(namePrevShadowL,"Low="+DoubleToStr(LowPrevBar,Digits),7,"Tahoma");}}
//+-------------------------------------------New Bar----------------------------------------------+
  OpenNewBar=Open[i];
  TimeOpenNewBar=Time[i];
  HighNewBar=High[i];
  LowNewBar=Low[i];
  CloseNewBar=Close[i];
  TimeCloseNewBar=Time[i]+timerTF-timer;
  nameNewCandle=NameBar+name;
  timeNewShadow=Time[i]+MathRound(Nbar/2)*timer;
  priceNewSH=PriceShadow(OpenNewBar,CloseNewBar,0);
  priceNewSL=PriceShadow(OpenNewBar,CloseNewBar,1);
  nameNewShadowH=NameHigh+name;
  nameNewShadowL=NameLow+name;
  NewBar=false;}
 else{
//+------------------------------------------Current Bar-------------------------------------------+
  OpenBar=iBarShift(0,0,TimeOpenNewBar,false);
  CloseCurBar=Close[i];
  HighCurBar=High[Highest(0,0,MODE_HIGH,OpenBar+1,i)];
  LowCurBar=Low[Lowest(0,0,MODE_LOW,OpenBar+1,i)];
  priceCurSH=PriceShadow(OpenNewBar,CloseCurBar,0);
  priceCurSL=PriceShadow(OpenNewBar,CloseCurBar,1);}
//+------------------------------Create New Object & Modifi Current--------------------------------+
if(ObjectFind(nameNewCandle)!=0){
  ObjectCreate(nameNewCandle,OBJ_RECTANGLE,0,TimeOpenNewBar,OpenNewBar,TimeCloseNewBar,CloseNewBar);
  ObjectSet(nameNewCandle,OBJPROP_STYLE, STYLE_SOLID);
  PropBar(OpenNewBar,CloseNewBar,nameNewCandle);}
 else{
  ObjectMove(nameNewCandle,1,TimeCloseNewBar,CloseCurBar);
  PropBar(OpenNewBar,CloseCurBar,nameNewCandle);}
if(ObjectFind(nameNewShadowH)!=0){
  ObjectCreate(nameNewShadowH,OBJ_TREND,0,timeNewShadow,priceNewSH,timeNewShadow,HighNewBar);
  ObjectSet(nameNewShadowH,OBJPROP_STYLE, STYLE_SOLID);
  ObjectSet(nameNewShadowH,OBJPROP_WIDTH, Width);
  ObjectSet(nameNewShadowH,OBJPROP_RAY, false);
  ColorShadow(OpenNewBar,CloseNewBar,nameNewShadowH);}
 else{
  ObjectMove(nameNewShadowH,0,timeNewShadow,priceCurSH);
  ObjectMove(nameNewShadowH,1,timeNewShadow,HighCurBar);
  ColorShadow(OpenNewBar,CloseCurBar,nameNewShadowH);}
if(ObjectFind(nameNewShadowL)!=0){
  ObjectCreate(nameNewShadowL,OBJ_TREND,0,timeNewShadow,priceNewSL,timeNewShadow,LowNewBar);
  ObjectSet(nameNewShadowL,OBJPROP_STYLE, STYLE_SOLID);
  ObjectSet(nameNewShadowL,OBJPROP_WIDTH, Width);
  ObjectSet(nameNewShadowL,OBJPROP_RAY, false);
  ColorShadow(OpenNewBar,CloseNewBar,nameNewShadowL);}
 else{
  ObjectMove(nameNewShadowL,0,timeNewShadow,priceCurSL);
  ObjectMove(nameNewShadowL,1,timeNewShadow,LowCurBar);
  ColorShadow(OpenNewBar,CloseCurBar,nameNewShadowL);}}
//+-------------------------------------Comment OHLC-----------------------------------------------+
Comment(Symbol(),",M",TimeFrame,"   O=",OpenNewBar,",  H=",HighCurBar,
                                ",  L=",LowCurBar,",  C=",CloseCurBar,"\n");
}
//+---------------------Main Function "New Bar or Old Bar"-----------------------------------------+
bool BarNew (int j, int tmf)
{int t0=(1440*x*(TimeDayOfWeek(Time[j])-1)+60*TimeHour(Time[j])+TimeMinute(Time[j]))-shift,
t1=(1440*x*(TimeDayOfWeek(Time[j+1])-1)+60*TimeHour(Time[j+1])+TimeMinute(Time[j+1]))-shift;//
if(MathMod(t0,tmf)-MathMod(t1,tmf)==t0-t1)return(false);
else return(true);}
//+---------------------Function "Price Shadow"----------------------------------------------------+
double PriceShadow (double OpnB, double ClsB, int swt)
{double prH, prL;
if(OpnB<ClsB){prH=ClsB; prL=OpnB;}
if(OpnB>ClsB){prH=OpnB; prL=ClsB;}
if(OpnB==ClsB){prH=ClsB; prL=ClsB;}
switch(swt){case 0:return(prH);break;
case 1:return(prL);break;}}
//+---------------------Function "Properti Bars"---------------------------------------------------+
void PropBar (double OpPr, double ClPr, string NmOBJ)
{string Cl=" Close="+DoubleToStr(ClPr,Digits);
string Op=" Open="+DoubleToStr(OpPr,Digits);
if(OpPr==ClPr){ObjectSet(NmOBJ,OBJPROP_BACK, false);
ObjectSet(NmOBJ,OBJPROP_COLOR,DojiColor);
ObjectSetText(NmOBJ,"Doji "+Op+Cl,7,"Tahoma");}
if(OpPr<ClPr){ObjectSet(NmOBJ,OBJPROP_COLOR,UpCandle);
ObjectSet(NmOBJ,OBJPROP_BACK, BGCandle);
ObjectSetText(NmOBJ,"UpBar "+Op+Cl,7,"Tahoma");}
if (OpPr>ClPr){ObjectSet(NmOBJ,OBJPROP_COLOR,DnCandle);
ObjectSet(NmOBJ,OBJPROP_BACK, BGCandle);
ObjectSetText(NmOBJ,"DnBar "+Op+Cl,7,"Tahoma");}
ObjectSet(NmOBJ,OBJPROP_WIDTH, Width);}
//+----------------------Function "Color Shadow"---------------------------------------------------+
void ColorShadow (double OP, double CP, string NOBJ)
{if(OP==CP)ObjectSet(NOBJ,OBJPROP_COLOR,DojiColor);
if(OP<CP)ObjectSet(NOBJ,OBJPROP_COLOR,UpCandle);
if (OP>CP)ObjectSet(NOBJ,OBJPROP_COLOR,DnCandle);}
//+----------------------------------------------END-----------------------------------------------+
