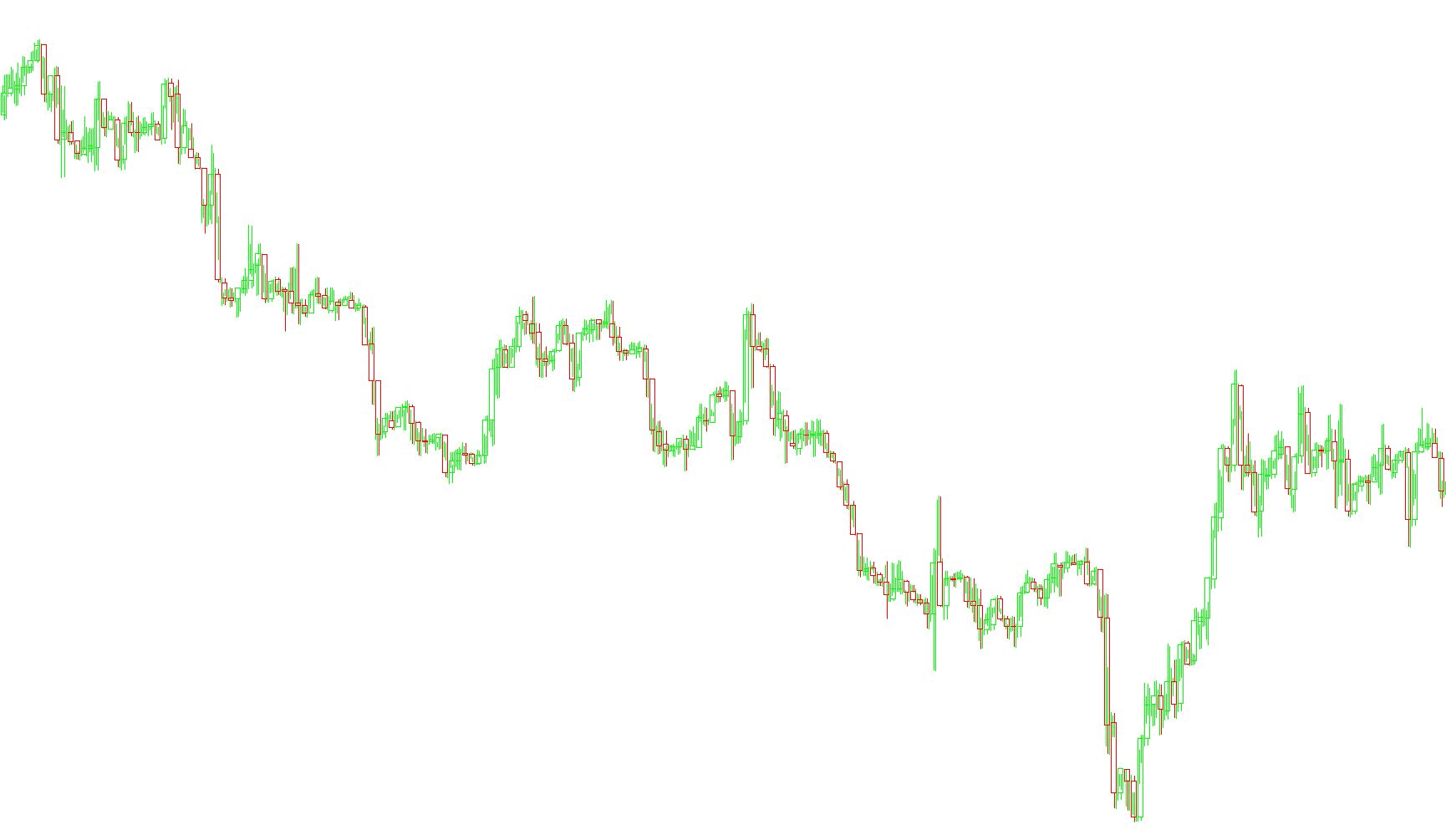

Download scriptThis tool is designed to enhance the visual clarity of a trading chart by projecting and displaying higher timeframe data directly onto a lower timeframe view. It allows traders to see the "big picture" (such as 4-hour bars) while simultaneously interacting with smaller, more active price movements (such as 15-minute or 1-hour charts).
Core Functionality
The primary purpose of this script is to create a visual representation of specific higher timeframe candles. Instead of the user having to switch between different tabs or windows to see long-term trends, the tool draws these larger candles as distinct geometric objects on the current active chart.
How the Logic Works:
-
Timeframe Synchronization: The script requires a specific relationship between your current chart and the timeframe you wish to view. It ensures that the higher timeframe is a clean multiple of the lower one (for example, viewing 4-hour bars while looking at a 1-hour chart). It will automatically notify you if the settings are incompatible.
-
Dynamic Visual Rendering: Unlike standard candles, this script treats the data as visual objects. It calculates the specific "High," "Low," "Open," and "Close" prices of the higher timeframe bar and draws them accordingly:
- Body Representation: The main body of the higher timeframe candle is drawn as a rectangle.
- Shadow/Wick Visualization: It identifies the extreme highs and lows of that period and projects "shadows" to show the full range of price movement.
- Real-Time Updates: As the current market moves, the script continuously updates the most recent "active" higher timeframe candle, showing its growth in real-time until that period is finalized.
-
Automated Visual Styling: The tool handles all aesthetic adjustments automatically based on price action:
- Color Coding: It distinguishes between bullish (upward) and bearish (downward) movements by changing the colors of the boxes and shadows.
- Doji Detection: If a period ends with no significant price change (the opening and closing prices are the same), it identifies this as a "Doji" and adjusts the color accordingly.
- Data Labeling: The script provides clear text labels on the chart, explicitly displaying the exact Open, High, Low, and Close prices for the higher timeframe bars currently being displayed.
User Experience
For the trader, this means the chart becomes a multi-layered information hub. You can see the immediate price action of the current minute or hour while visually "stacked" on top of it are the boundaries of the larger daily or hourly trends. This helps in identifying whether the current price movement is aligned with or resisting the broader market direction.
#property link "mankurt@freemail.ru"
#property copyright "© 2006, mankurt"
#property indicator_chart_window
//+------------------------------------------------------------------------------------------------+
extern int TimeFrame=240;
extern color UpCandle=Lime;
extern color DnCandle=Red;
extern color DojiColor=Blue;
extern int Width=1;
extern bool BGCandle=false;
//+------------------------------------------------------------------------------------------------+
int Nbar,OpenBar,timer,i,timerTF,name,MidBar;
double HighPrevBar,LowPrevBar,ClosePrevBar;
double OpenNewBar,HighNewBar,LowNewBar,CloseNewBar;
double HighCurBar,LowCurBar,CloseCurBar;
double priceNewSH,priceNewSL,pricePrevSH,pricePrevSL,priceCurSH,priceCurSL;
string nameNewCandle,namePrevCandle;
string nameNewShadowH,nameNewShadowL,namePrevShadowH,namePrevShadowL;
string NameBar, NameHigh, NameLow;
datetime TimeOpenNewBar,TimeCloseNewBar,TimeClosePrevBar;
datetime timeNewShadow,timePrevShadow;
bool NewBar;
//+------------------------------------------------------------------------------------------------+
int init(){
IndicatorShortName("M"+TimeFrame+" - M"+Period());
Nbar=TimeFrame/Period();
timer=Period()*60;
timerTF=TimeFrame*60;
name=0;
TimeOpenNewBar=Time[Bars-1];
OpenNewBar=Open[Bars-1];
NewBar=false;
NameBar="Bar M"+TimeFrame+"-";
NameHigh="High M"+TimeFrame+"-";
NameLow="Low M"+TimeFrame+"-";
return(0);}
//+------------------------------------------------------------------------------------------------+
int deinit(){
for(int DelOBJ=1; DelOBJ<=name; DelOBJ++){
ObjectDelete(NameBar+DelOBJ);
ObjectDelete(NameHigh+DelOBJ);
ObjectDelete(NameLow+DelOBJ);}
Comment("");
return(0);}
//+------------------------------------------------------------------------------------------------+
int start(){
if(TimeFrame>1440)
{Comment("\n"," TimeFrame more than D1 is not supporting!!!");return(0);}
if(Period()>240)
{Comment("\n"," Period more than H4 is not supporting!!!");return(0);}
if(TimeFrame<=Period()||MathMod(TimeFrame,Period())!=0)
{Comment("\n"," TimeFrame should be more or divisible by M",Period());return(0);}
i=Bars-IndicatorCounted();
while(i>0){i--;
while(i>=0) if(Time[i]==TimeOpenNewBar||BarNew(i,TimeFrame)==false)i--;
else{NewBar=true; name++; break;}
if(i<0) i=0;
if(NewBar==true){
//+-----------------------------------------Previos Bar--------------------------------------------+
OpenBar=iBarShift(0,0,TimeOpenNewBar,false);
TimeClosePrevBar=Time[i+1];
ClosePrevBar=Close[i+1];
HighPrevBar=High[Highest(0,0,MODE_HIGH,OpenBar-i,i+1)];
LowPrevBar=Low[Lowest(0,0,MODE_LOW,OpenBar-i,i+1)];
namePrevCandle=NameBar+(name-1);
MidBar=OpenBar-MathRound((OpenBar-i)/2);
timePrevShadow=Time[MidBar];
pricePrevSH=PriceShadow(OpenNewBar,ClosePrevBar,0);
pricePrevSL=PriceShadow(OpenNewBar,ClosePrevBar,1);
namePrevShadowH=NameHigh+(name-1);
namePrevShadowL=NameLow+(name-1);
//+----------------------------------Modifi Previos Bar & Shadow-----------------------------------+
if(ObjectFind(namePrevCandle)==0){
ObjectMove(namePrevCandle,1,TimeClosePrevBar,ClosePrevBar);
PropBar(OpenNewBar,ClosePrevBar,namePrevCandle);
if(OpenBar==i+1) ObjectSet(namePrevCandle,OBJPROP_WIDTH, Width*3);}
if(ObjectFind(namePrevShadowH)==0){
if(pricePrevSH==HighPrevBar) ObjectDelete(namePrevShadowH);
else{ObjectMove(namePrevShadowH,0,timePrevShadow,pricePrevSH);
ObjectMove(namePrevShadowH,1,timePrevShadow,HighPrevBar);
ColorShadow(OpenNewBar,ClosePrevBar,namePrevShadowH);
ObjectSetText(namePrevShadowH,"High="+DoubleToStr(HighPrevBar,Digits),7,"Tahoma");}}
if(ObjectFind(namePrevShadowL)==0){
if(pricePrevSL==LowPrevBar) ObjectDelete(namePrevShadowL);
else{ObjectMove(namePrevShadowL,0,timePrevShadow,pricePrevSL);
ObjectMove(namePrevShadowL,1,timePrevShadow,LowPrevBar);
ColorShadow(OpenNewBar,ClosePrevBar,namePrevShadowL);
ObjectSetText(namePrevShadowL,"Low="+DoubleToStr(LowPrevBar,Digits),7,"Tahoma");}}
//+-------------------------------------------New Bar----------------------------------------------+
OpenNewBar=Open[i];
TimeOpenNewBar=Time[i];
HighNewBar=High[i];
LowNewBar=Low[i];
CloseNewBar=Close[i];
TimeCloseNewBar=Time[i]+timerTF-timer;
nameNewCandle=NameBar+name;
timeNewShadow=Time[i]+MathRound(Nbar/2)*timer;
priceNewSH=PriceShadow(OpenNewBar,CloseNewBar,0);
priceNewSL=PriceShadow(OpenNewBar,CloseNewBar,1);
nameNewShadowH=NameHigh+name;
nameNewShadowL=NameLow+name;
NewBar=false;}
else{
//+------------------------------------------Current Bar-------------------------------------------+
OpenBar=iBarShift(0,0,TimeOpenNewBar,false);
CloseCurBar=Close[i];
HighCurBar=High[Highest(0,0,MODE_HIGH,OpenBar+1,i)];
LowCurBar=Low[Lowest(0,0,MODE_LOW,OpenBar+1,i)];
priceCurSH=PriceShadow(OpenNewBar,CloseCurBar,0);
priceCurSL=PriceShadow(OpenNewBar,CloseCurBar,1);}
//+------------------------------Create New Object & Modifi Current--------------------------------+
if(ObjectFind(nameNewCandle)!=0){
ObjectCreate(nameNewCandle,OBJ_RECTANGLE,0,TimeOpenNewBar,OpenNewBar,TimeCloseNewBar,CloseNewBar);
ObjectSet(nameNewCandle,OBJPROP_STYLE, STYLE_SOLID);
PropBar(OpenNewBar,CloseNewBar,nameNewCandle);}
else{
ObjectMove(nameNewCandle,1,TimeCloseNewBar,CloseCurBar);
PropBar(OpenNewBar,CloseCurBar,nameNewCandle);}
if(ObjectFind(nameNewShadowH)!=0){
ObjectCreate(nameNewShadowH,OBJ_TREND,0,timeNewShadow,priceNewSH,timeNewShadow,HighNewBar);
ObjectSet(nameNewShadowH,OBJPROP_STYLE, STYLE_SOLID);
ObjectSet(nameNewShadowH,OBJPROP_WIDTH, Width);
ObjectSet(nameNewShadowH,OBJPROP_RAY, false);
ColorShadow(OpenNewBar,CloseNewBar,nameNewShadowH);}
else{
ObjectMove(nameNewShadowH,0,timeNewShadow,priceCurSH);
ObjectMove(nameNewShadowH,1,timeNewShadow,HighCurBar);
ColorShadow(OpenNewBar,CloseCurBar,nameNewShadowH);}
if(ObjectFind(nameNewShadowL)!=0){
ObjectCreate(nameNewShadowL,OBJ_TREND,0,timeNewShadow,priceNewSL,timeNewShadow,LowNewBar);
ObjectSet(nameNewShadowL,OBJPROP_STYLE, STYLE_SOLID);
ObjectSet(nameNewShadowL,OBJPROP_WIDTH, Width);
ObjectSet(nameNewShadowL,OBJPROP_RAY, false);
ColorShadow(OpenNewBar,CloseNewBar,nameNewShadowL);}
else{
ObjectMove(nameNewShadowL,0,timeNewShadow,priceCurSL);
ObjectMove(nameNewShadowL,1,timeNewShadow,LowCurBar);
ColorShadow(OpenNewBar,CloseCurBar,nameNewShadowL);}}
//+-------------------------------------Comment OHLC-----------------------------------------------+
Comment(Symbol(),",M",TimeFrame," O=",OpenNewBar,", H=",HighCurBar,
", L=",LowCurBar,", C=",CloseCurBar,"\n");
return(0);}
//+---------------------Main Function "New Bar or Old Bar"-----------------------------------------+
bool BarNew (int j, int tmf)
{int t0=1440*(TimeDayOfWeek(Time[j])-1)+60*TimeHour(Time[j])+TimeMinute(Time[j]),
t1=1440*(TimeDayOfWeek(Time[j+1])-1)+60*TimeHour(Time[j+1])+TimeMinute(Time[j+1]);
if(MathMod(t0,tmf)-MathMod(t1,tmf)==t0-t1)return(false);
else return(true);}
//+---------------------Function "Price Shadow"----------------------------------------------------+
double PriceShadow (double OpnB, double ClsB, int swt)
{double prH, prL;
if(OpnB<ClsB){prH=ClsB; prL=OpnB;}
if(OpnB>ClsB){prH=OpnB; prL=ClsB;}
if(OpnB==ClsB){prH=ClsB; prL=ClsB;}
switch(swt){case 0:return(prH);break;
case 1:return(prL);break;}}
//+---------------------Function "Properti Bars"---------------------------------------------------+
void PropBar (double OpPr, double ClPr, string NmOBJ)
{string Cl=" Close="+DoubleToStr(ClPr,Digits);
string Op=" Open="+DoubleToStr(OpPr,Digits);
if(OpPr==ClPr){ObjectSet(NmOBJ,OBJPROP_BACK, false);
ObjectSet(NmOBJ,OBJPROP_COLOR,DojiColor);
ObjectSetText(NmOBJ,"Doji "+Op+Cl,7,"Tahoma");}
if(OpPr<ClPr){ObjectSet(NmOBJ,OBJPROP_COLOR,UpCandle);
ObjectSet(NmOBJ,OBJPROP_BACK, BGCandle);
ObjectSetText(NmOBJ,"UpBar "+Op+Cl,7,"Tahoma");}
if (OpPr>ClPr){ObjectSet(NmOBJ,OBJPROP_COLOR,DnCandle);
ObjectSet(NmOBJ,OBJPROP_BACK, BGCandle);
ObjectSetText(NmOBJ,"DnBar "+Op+Cl,7,"Tahoma");}
ObjectSet(NmOBJ,OBJPROP_WIDTH, Width);}
//+----------------------Function "Color Shadow"---------------------------------------------------+
void ColorShadow (double OP, double CP, string NOBJ)
{if(OP==CP)ObjectSet(NOBJ,OBJPROP_COLOR,DojiColor);
if(OP<CP)ObjectSet(NOBJ,OBJPROP_COLOR,UpCandle);
if (OP>CP)ObjectSet(NOBJ,OBJPROP_COLOR,DnCandle);}
//+----------------------------------------------END-----------------------------------------------+
