Author: � 2006, mankurt
CustomCandle_Shift

This tool is designed for traders who need to visualize higher timeframe price action on a lower timeframe chart. Essentially, it acts as an overlay that "draws" larger candles (like the 8-hour or 4-hour blocks) directly onto your current active screen (like the 15-minute or 1-hour charts).

Core Functionality

The script works by identifying specific time intervals based on a user-defined "TimeFrame." Instead of you having to switch back and forth between different charts to see the bigger picture, this tool renders that data visually on your current chart. It treats the larger timeframe data as physical objects (rectangles and lines) that move and update in real-time.

How it Processes Data

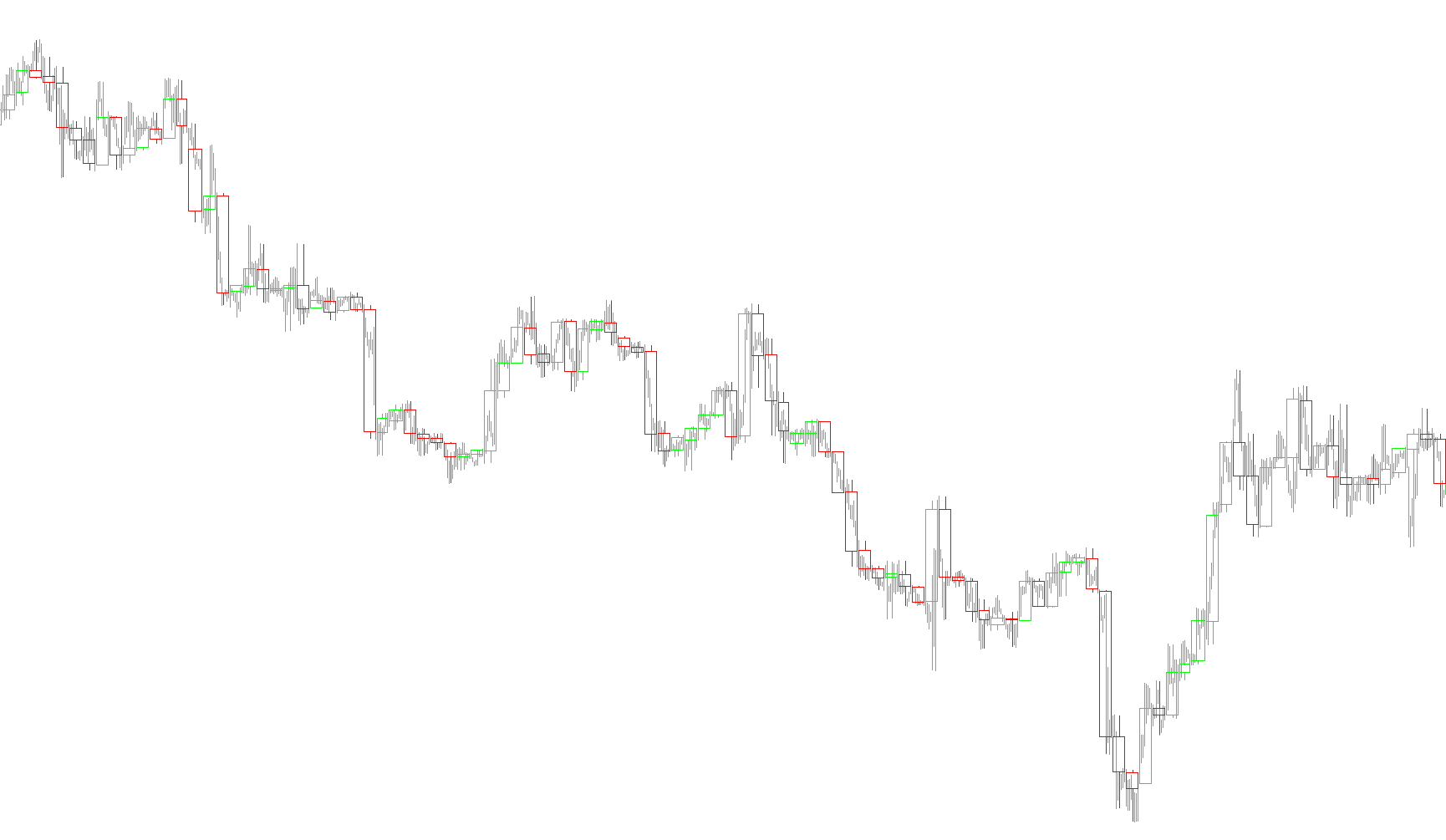

  • Candle Visualization: For every completed period of the higher timeframe, the script creates a visual "block" representing the Open, High, Low, and Close prices.
  • Dynamic Updating: As the current higher timeframe candle is still forming, the tool constantly updates the size and position of the rectangle on your screen. This allows you to see exactly where the "big" price is moving relative to your smaller movements.
  • Shadow Tracking: It specifically tracks the "shadows" (the highest and lowest points reached) of these larger candles. It draws lines to show these extremes, providing a clear view of the price's reach during that period.
  • Automated Labeling: The script automatically labels the bars with their Open and Close prices and identifies them as "Up," "Down," or "Doji" (flat) candles based on the direction of the movement.

Visual Feedback

The tool uses a color-coded system to make the data easy to read at a glance:

  • Bullish Movements: Highlighted in a specific "Up" color (default Lime).
  • Bearish Movements: Highlighted in a specific "Down" color (default Red).
  • Neutral Movements: Highlighted in a "Doji" color (default Blue) when there is little to no price movement between the open and close.

Summary of Benefits

The primary logic here is contextual awareness. It ensures that while you are trading on a fast, granular timeframe, you can always see the "macro" structure of the market. It bridges the gap between short-term execution and long-term trend analysis by keeping both sets of data visible simultaneously in one clean layout.

10 Views
0 Downloads
0 Favorites
CustomCandle_Shift
#property link      "mankurt@freemail.ru"
#property copyright "© 2006, mankurt"
#property indicator_chart_window
//+------------------------------------------------------------------------------------------------+
extern int   TimeFrame=480;
extern int   shift=60;
//extern bool  day=true;
extern color UpCandle=Lime;
extern color DnCandle=Red;
extern color DojiColor=Blue;
extern int   Width=1;
extern bool  BGCandle=false;
//+------------------------------------------------------------------------------------------------+
int      Nbar,OpenBar,timer,i,timerTF,name,MidBar,x;
double   HighPrevBar,LowPrevBar,ClosePrevBar;
double   OpenNewBar,HighNewBar,LowNewBar,CloseNewBar;
double   HighCurBar,LowCurBar,CloseCurBar;
double   priceNewSH,priceNewSL,pricePrevSH,pricePrevSL,priceCurSH,priceCurSL;
string   nameNewCandle,namePrevCandle;
string   nameNewShadowH,nameNewShadowL,namePrevShadowH,namePrevShadowL;
string   NameBar, NameHigh, NameLow;
datetime TimeOpenNewBar,TimeCloseNewBar,TimeClosePrevBar;
datetime timeNewShadow,timePrevShadow;
bool     NewBar;
//+------------------------------------------------------------------------------------------------+
int init(){
IndicatorShortName("M"+TimeFrame+" íà M"+Period());
Nbar=TimeFrame/Period();
timer=Period()*60;
timerTF=TimeFrame*60;
name=0;
TimeOpenNewBar=Time[Bars-1];
OpenNewBar=Open[Bars-1];
NewBar=false;
NameBar="Bar M"+TimeFrame+"-"+shift+"-";
NameHigh="High M"+TimeFrame+"-"+shift+"-";
NameLow="Low M"+TimeFrame+"-"+shift+"-";
//if (day==true) x=1;
// else x=0;
return(0);}
//+------------------------------------------------------------------------------------------------+
int deinit(){
for(int DelOBJ=1; DelOBJ<=name; DelOBJ++){
ObjectDelete(NameBar+DelOBJ);
ObjectDelete(NameHigh+DelOBJ);
ObjectDelete(NameLow+DelOBJ);}
Comment("");
return(0);}
//+------------------------------------------------------------------------------------------------+
void start(){
if(TimeFrame>1440)
{Comment("\n"," TimeFrame áîëüøèé D1 íå ïîääåðæèâàåòñÿ!!!");return(0);}
if(Period()>240)
{Comment("\n"," Period áîëüøèé H4 íå ïîääåðæèâàåòñÿ!!!");return(0);}
if(TimeFrame<=Period()||MathMod(TimeFrame,Period())!=0)
{Comment("\n"," Íåîáõîäèì TimeFrame áîëüøèé è êðàòíûé M",Period());return(0);}
i=Bars-IndicatorCounted();
while(i>0){i--;
while(i>=0) if(Time[i]==TimeOpenNewBar||BarNew(i,TimeFrame)==false)i--;
             else{NewBar=true; name++; break;}
if(i<0) i=0;
if(NewBar==true){
//+-----------------------------------------Previos Bar--------------------------------------------+
  OpenBar=iBarShift(0,0,TimeOpenNewBar,false);
  TimeClosePrevBar=Time[i+1];
  ClosePrevBar=Close[i+1];
  HighPrevBar=High[Highest(0,0,MODE_HIGH,OpenBar-i,i+1)];
  LowPrevBar=Low[Lowest(0,0,MODE_LOW,OpenBar-i,i+1)];
  namePrevCandle=NameBar+(name-1);
  MidBar=OpenBar-MathRound((OpenBar-i)/2);
  timePrevShadow=Time[MidBar];
  pricePrevSH=PriceShadow(OpenNewBar,ClosePrevBar,0);
  pricePrevSL=PriceShadow(OpenNewBar,ClosePrevBar,1);
  namePrevShadowH=NameHigh+(name-1);
  namePrevShadowL=NameLow+(name-1);
//+----------------------------------Modifi Previos Bar & Shadow-----------------------------------+
if(ObjectFind(namePrevCandle)==0){
  ObjectMove(namePrevCandle,1,TimeClosePrevBar,ClosePrevBar);
  PropBar(OpenNewBar,ClosePrevBar,namePrevCandle);
  if(OpenBar==i+1) ObjectSet(namePrevCandle,OBJPROP_WIDTH, Width*3);}
if(ObjectFind(namePrevShadowH)==0){
  if(pricePrevSH==HighPrevBar) ObjectDelete(namePrevShadowH);
   else{ObjectMove(namePrevShadowH,0,timePrevShadow,pricePrevSH);
    ObjectMove(namePrevShadowH,1,timePrevShadow,HighPrevBar);
    ColorShadow(OpenNewBar,ClosePrevBar,namePrevShadowH);
    ObjectSetText(namePrevShadowH,"High="+DoubleToStr(HighPrevBar,Digits),7,"Tahoma");}}
if(ObjectFind(namePrevShadowL)==0){
  if(pricePrevSL==LowPrevBar) ObjectDelete(namePrevShadowL);
   else{ObjectMove(namePrevShadowL,0,timePrevShadow,pricePrevSL);
    ObjectMove(namePrevShadowL,1,timePrevShadow,LowPrevBar);
    ColorShadow(OpenNewBar,ClosePrevBar,namePrevShadowL);
    ObjectSetText(namePrevShadowL,"Low="+DoubleToStr(LowPrevBar,Digits),7,"Tahoma");}}
//+-------------------------------------------New Bar----------------------------------------------+
  OpenNewBar=Open[i];
  TimeOpenNewBar=Time[i];
  HighNewBar=High[i];
  LowNewBar=Low[i];
  CloseNewBar=Close[i];
  TimeCloseNewBar=Time[i]+timerTF-timer;
  nameNewCandle=NameBar+name;
  timeNewShadow=Time[i]+MathRound(Nbar/2)*timer;
  priceNewSH=PriceShadow(OpenNewBar,CloseNewBar,0);
  priceNewSL=PriceShadow(OpenNewBar,CloseNewBar,1);
  nameNewShadowH=NameHigh+name;
  nameNewShadowL=NameLow+name;
  NewBar=false;}
 else{
//+------------------------------------------Current Bar-------------------------------------------+
  OpenBar=iBarShift(0,0,TimeOpenNewBar,false);
  CloseCurBar=Close[i];
  HighCurBar=High[Highest(0,0,MODE_HIGH,OpenBar+1,i)];
  LowCurBar=Low[Lowest(0,0,MODE_LOW,OpenBar+1,i)];
  priceCurSH=PriceShadow(OpenNewBar,CloseCurBar,0);
  priceCurSL=PriceShadow(OpenNewBar,CloseCurBar,1);}
//+------------------------------Create New Object & Modifi Current--------------------------------+
if(ObjectFind(nameNewCandle)!=0){
  ObjectCreate(nameNewCandle,OBJ_RECTANGLE,0,TimeOpenNewBar,OpenNewBar,TimeCloseNewBar,CloseNewBar);
  ObjectSet(nameNewCandle,OBJPROP_STYLE, STYLE_SOLID);
  PropBar(OpenNewBar,CloseNewBar,nameNewCandle);}
 else{
  ObjectMove(nameNewCandle,1,TimeCloseNewBar,CloseCurBar);
  PropBar(OpenNewBar,CloseCurBar,nameNewCandle);}
if(ObjectFind(nameNewShadowH)!=0){
  ObjectCreate(nameNewShadowH,OBJ_TREND,0,timeNewShadow,priceNewSH,timeNewShadow,HighNewBar);
  ObjectSet(nameNewShadowH,OBJPROP_STYLE, STYLE_SOLID);
  ObjectSet(nameNewShadowH,OBJPROP_WIDTH, Width);
  ObjectSet(nameNewShadowH,OBJPROP_RAY, false);
  ColorShadow(OpenNewBar,CloseNewBar,nameNewShadowH);}
 else{
  ObjectMove(nameNewShadowH,0,timeNewShadow,priceCurSH);
  ObjectMove(nameNewShadowH,1,timeNewShadow,HighCurBar);
  ColorShadow(OpenNewBar,CloseCurBar,nameNewShadowH);}
if(ObjectFind(nameNewShadowL)!=0){
  ObjectCreate(nameNewShadowL,OBJ_TREND,0,timeNewShadow,priceNewSL,timeNewShadow,LowNewBar);
  ObjectSet(nameNewShadowL,OBJPROP_STYLE, STYLE_SOLID);
  ObjectSet(nameNewShadowL,OBJPROP_WIDTH, Width);
  ObjectSet(nameNewShadowL,OBJPROP_RAY, false);
  ColorShadow(OpenNewBar,CloseNewBar,nameNewShadowL);}
 else{
  ObjectMove(nameNewShadowL,0,timeNewShadow,priceCurSL);
  ObjectMove(nameNewShadowL,1,timeNewShadow,LowCurBar);
  ColorShadow(OpenNewBar,CloseCurBar,nameNewShadowL);}}
//+-------------------------------------Comment OHLC-----------------------------------------------+
Comment(Symbol(),",M",TimeFrame,"   O=",OpenNewBar,",  H=",HighCurBar,
                                ",  L=",LowCurBar,",  C=",CloseCurBar,"\n");
}
//+---------------------Main Function "New Bar or Old Bar"-----------------------------------------+
bool BarNew (int j, int tmf)
{int t0=(1440*(TimeDayOfWeek(Time[j])-1)+60*TimeHour(Time[j])+TimeMinute(Time[j]))-shift,//x*
t1=(1440*(TimeDayOfWeek(Time[j+1])-1)+60*TimeHour(Time[j+1])+TimeMinute(Time[j+1]))-shift;//*x*
if(MathMod(t0,tmf)-MathMod(t1,tmf)==t0-t1)return(false);
else return(true);}
//+---------------------Function "Price Shadow"----------------------------------------------------+
double PriceShadow (double OpnB, double ClsB, int swt)
{double prH, prL;
if(OpnB<ClsB){prH=ClsB; prL=OpnB;}
if(OpnB>ClsB){prH=OpnB; prL=ClsB;}
if(OpnB==ClsB){prH=ClsB; prL=ClsB;}
switch(swt){case 0:return(prH);break;
case 1:return(prL);break;}}
//+---------------------Function "Properti Bars"---------------------------------------------------+
void PropBar (double OpPr, double ClPr, string NmOBJ)
{string Cl=" Close="+DoubleToStr(ClPr,Digits);
string Op=" Open="+DoubleToStr(OpPr,Digits);
if(OpPr==ClPr){ObjectSet(NmOBJ,OBJPROP_BACK, false);
ObjectSet(NmOBJ,OBJPROP_COLOR,DojiColor);
ObjectSetText(NmOBJ,"Doji "+Op+Cl,7,"Tahoma");}
if(OpPr<ClPr){ObjectSet(NmOBJ,OBJPROP_COLOR,UpCandle);
ObjectSet(NmOBJ,OBJPROP_BACK, BGCandle);
ObjectSetText(NmOBJ,"UpBar "+Op+Cl,7,"Tahoma");}
if (OpPr>ClPr){ObjectSet(NmOBJ,OBJPROP_COLOR,DnCandle);
ObjectSet(NmOBJ,OBJPROP_BACK, BGCandle);
ObjectSetText(NmOBJ,"DnBar "+Op+Cl,7,"Tahoma");}
ObjectSet(NmOBJ,OBJPROP_WIDTH, Width);}
//+----------------------Function "Color Shadow"---------------------------------------------------+
void ColorShadow (double OP, double CP, string NOBJ)
{if(OP==CP)ObjectSet(NOBJ,OBJPROP_COLOR,DojiColor);
if(OP<CP)ObjectSet(NOBJ,OBJPROP_COLOR,UpCandle);
if (OP>CP)ObjectSet(NOBJ,OBJPROP_COLOR,DnCandle);}
//+----------------------------------------------END-----------------------------------------------+
