The script calculates and displays the Accelerator/Decelerator Oscillator (AC), an indicator used to gauge the acceleration and deceleration of price movements in a financial market. Here's a breakdown of what the script does:
-
Data Preparation: The script starts by setting up the necessary data structures and properties. It defines several "buffers" which are like temporary storage areas for intermediate calculation results and the final indicator values that will be displayed on the chart.
-
LSMA Calculation: A core part of the script is a function called "LSMA," which stands for Least Squares Moving Average. This function calculates a specific type of moving average that aims to smooth out price data and highlight trends. In simpler terms, it's like taking an average of past prices, but it gives more weight to recent prices. This smoothed price is calculated for different periods for 5 and 34 days respectively.
-
Oscillator Calculation: The script then calculates the AC oscillator. This involves:
- Calculating the difference between two LSMA values of the price for different periods.
- Smoothing that difference with another moving average to get a signal line.
- Subtracting the signal line from the difference to get the final oscillator value.
-

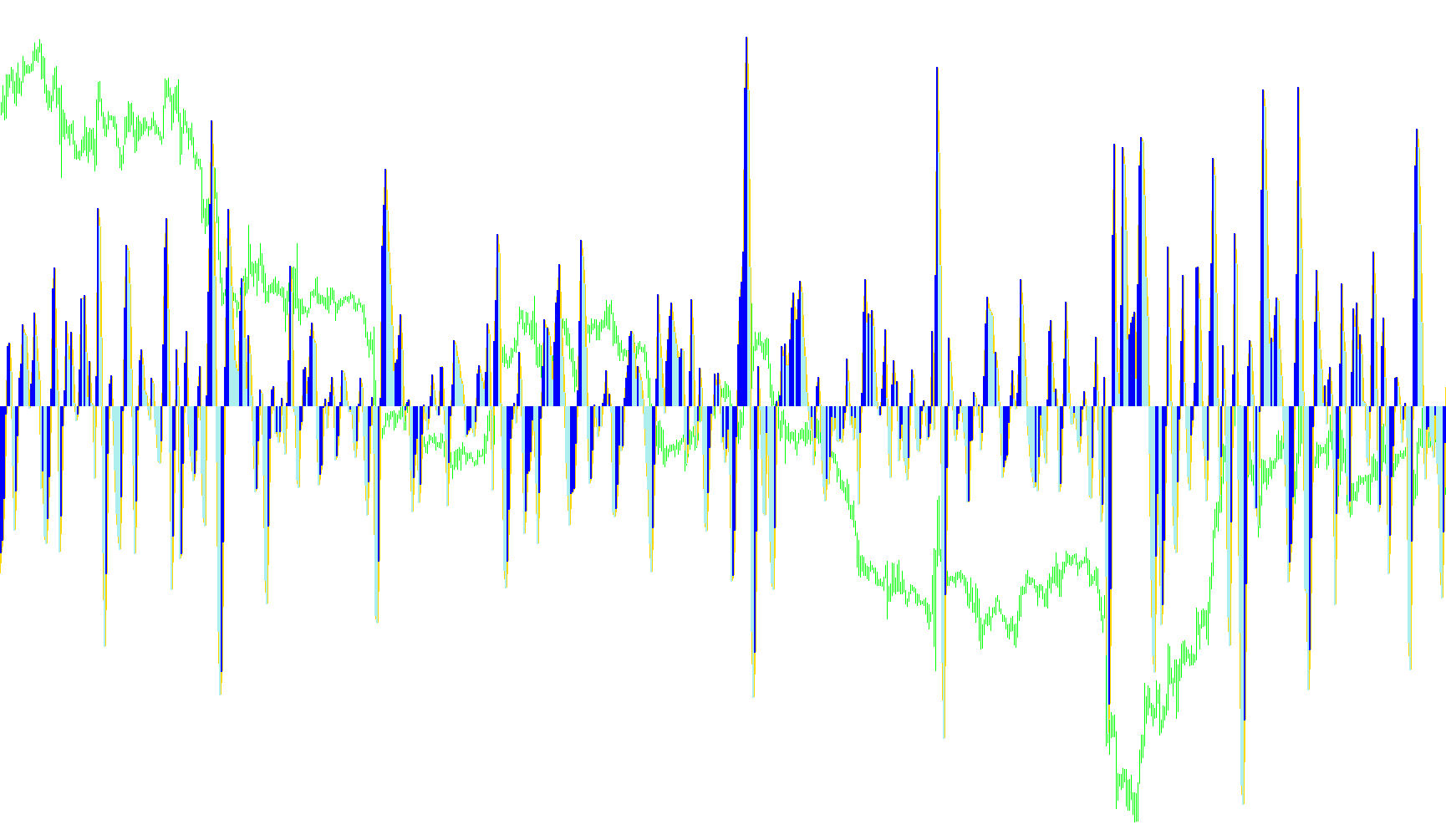

Visual Representation: Finally, the script prepares the data to be displayed visually. It creates a histogram (a bar graph) that shows the oscillator values. The bars are colored differently to indicate whether the oscillator is increasing (green) or decreasing (red). A separate line represents the value of the indicator.
In essence, the script takes price data, smooths it using a special type of moving average, calculates an oscillator based on those smoothed values, and then displays that oscillator in a way that is supposed to help traders understand the momentum and potential trend changes in the market.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| Accelerator_LSMA.mq4 |
//| Copyright © 2005, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net/"
//---- indicator settings
#property indicator_separate_window
#property indicator_buffers 3
#property indicator_color1 Yellow
#property indicator_color2 Green
#property indicator_color3 Red
#property indicator_level1 0.0
//---- indicator buffers
double ExtBuffer0[];
double ExtBuffer1[];
double ExtBuffer2[];
double ExtBuffer3[];
double ExtBuffer4[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- 2 additional buffers are used for counting.
IndicatorBuffers(5);
//---- drawing settings
SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID,2);
SetIndexStyle(2,DRAW_HISTOGRAM,STYLE_SOLID,2);
IndicatorDigits(Digits+2);
SetIndexDrawBegin(0,38);
SetIndexDrawBegin(1,38);
SetIndexDrawBegin(2,38);
//---- 4 indicator buffers mapping
SetIndexBuffer(0,ExtBuffer0);
SetIndexBuffer(1,ExtBuffer1);
SetIndexBuffer(2,ExtBuffer2);
SetIndexBuffer(3,ExtBuffer3);
SetIndexBuffer(4,ExtBuffer4);
//---- name for DataWindow and indicator subwindow label
IndicatorShortName("AC");
SetIndexLabel(1,NULL);
SetIndexLabel(2,NULL);
//---- initialization done
return(0);
}
//+------------------------------------------------------------------------+
//| LSMA - Least Squares Moving Average function calculation |
//| LSMA_In_Color Indicator plots the end of the linear regression line |
//+------------------------------------------------------------------------+
double LSMA(int Rperiod, int shift)
{
int i;
double sum;
int length;
double lengthvar;
double tmp;
double wt;
length = Rperiod;
sum = 0;
for(i = length; i >= 1 ; i--)
{
lengthvar = length + 1;
lengthvar /= 3;
tmp = 0;
tmp = ( i - lengthvar)*Close[length-i+shift];
sum+=tmp;
}
wt = sum*6/(length*(length+1));
return(wt);
}
//+------------------------------------------------------------------+
//| Accelerator/Decelerator Oscillator |
//+------------------------------------------------------------------+
int start()
{
int limit;
int counted_bars=IndicatorCounted();
double prev,current;
//---- last counted bar will be recounted
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars;
//---- macd counted in the 1-st additional buffer
for(int i=0; i<limit; i++)
ExtBuffer3[i]=LSMA(5,i)-LSMA(34,i);
//---- signal line counted in the 2-nd additional buffer
for(i=0; i<limit; i++)
ExtBuffer4[i]=iMAOnArray(ExtBuffer3,Bars,5,0,MODE_SMA,i);
//---- dispatch values between 2 buffers
bool up=true;
for(i=limit-1; i>=0; i--)
{
current=ExtBuffer3[i]-ExtBuffer4[i];
prev=ExtBuffer3[i+1]-ExtBuffer4[i+1];
if(current>prev) up=true;
if(current<prev) up=false;
if(!up)
{
ExtBuffer2[i]=current;
ExtBuffer1[i]=0.0;
}
else
{
ExtBuffer1[i]=current;
ExtBuffer2[i]=0.0;
}
ExtBuffer0[i]=current;
}
//---- done
return(0);
}
