3_Level_ZZ_Semafor_008

Download script
Author: asystem2000
3_Level_ZZ_Semafor_008

This tool is designed to provide visual market analysis by identifying and plotting key price structural points directly on your trading chart. It focuses on detecting significant highs and lows using a multi-layered approach, allowing you to see market "fractals" across three different scales simultaneously.

Core Functionality

The script operates by scanning historical price data to identify major turning points (peaks and valleys). Instead of just showing every small wiggle in the price, it uses specific mathematical filters to determine which movements are significant enough to be considered structural levels.

The logic is divided into three distinct "levels" or tiers:

  • Level 1 (Fast/Small Scale): Identifies minor price fluctuations and immediate local trends.
  • Level 2 (Medium Scale): Highlights broader swings and intermediate market structure.
  • Level 3 (Slow/Large Scale): Pinpoints major historical highs and lows, representing the primary trend of the market.

How the Logic Works

To ensure that only the most relevant data points are shown, the script performs the following steps:

  1. Scanning for Extremes: The tool looks back at a specific number of candles (defined by your settings) to find the highest and lowest prices reached during that window.
  2. Deviation Filtering: It checks if the price movement exceeds a specific "deviation" threshold. This ensures that minor noise—like tiny fluctuations in a sideways market—is ignored, leaving only the significant price breaks visible.
  3. Backstep Verification: The logic includes a "backstep" mechanism. This means it double-checks neighboring candles to ensure that a high or low is truly unique and not just a repeated price point, which helps in creating cleaner, more distinct markers on the chart.
  4. Conflict Resolution (The "Semafor"): One of the script's primary jobs is to remove overlapping or redundant signals. If multiple high or low points are detected too close together, the logic automatically "cuts" the weaker ones and keeps only the most significant extreme. This prevents your chart from becoming cluttered with unnecessary marks.
  5. Multi-Scale Visualization: Because it processes all three levels (Fast, Medium, and Large) at once, you can visually distinguish between a small price correction and a major trend reversal just by looking at which "layer" of markers is being triggered.

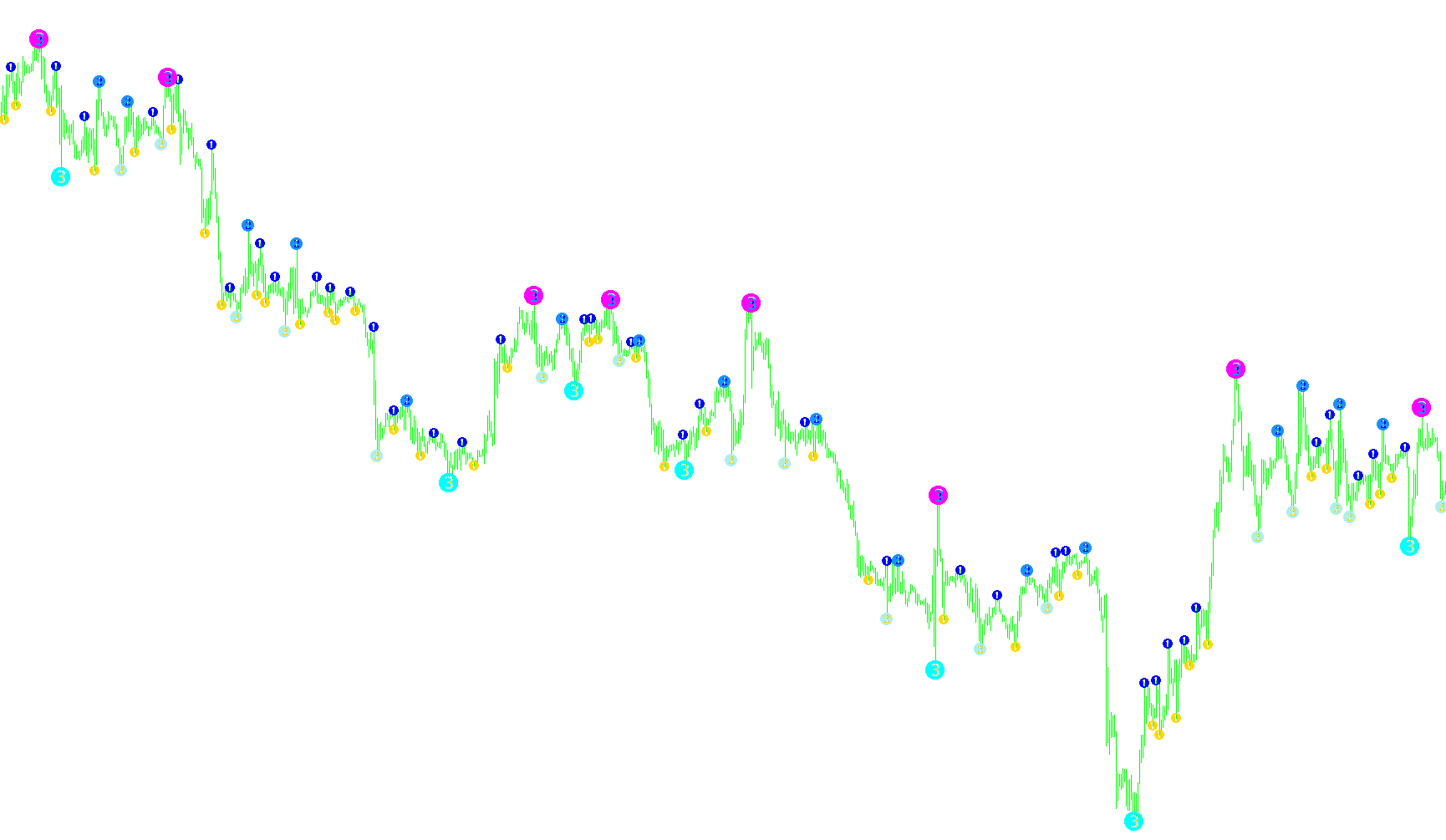

Visual Representation

The script communicates these findings using specific symbols (arrows) on the chart:

  • Different Colors: Each of the three levels is assigned a unique color to help you differentiate between short-term and long-term structures.
  • Variable Thickness: The markers are designed with different visual weights (widths). For example, the major trend markers (Level 3) appear thicker and more prominent than the minor fluctuation markers, allowing for an immediate "at-a-glance" understanding of market structure.
Miscellaneous
Implements a curve of type %1
10 Views
0 Downloads
0 Favorites
3_Level_ZZ_Semafor_008
//+------------------------------------------------------------------+
//|                                        3_Level_ZZ_Semafor.mq4    |
//+------------------------------------------------------------------+
#property copyright "asystem2000"
#property link      "asystem2000@yandex.ru"

#property indicator_chart_window
#property indicator_buffers 6
#property indicator_color1 Lime
#property indicator_color2 Lime
#property indicator_color3 Aqua
#property indicator_color4 Aqua
#property indicator_color5 Yellow
#property indicator_color6 Yellow

#property indicator_width1 1
#property indicator_width2 1
#property indicator_width3 2
#property indicator_width4 2
#property indicator_width5 4
#property indicator_width6 4

//---- input parameters
extern double Period1=5;
extern double Period2=13;
extern double Period3=34;
extern string   Dev_Step_1="1,3";
extern string   Dev_Step_2="8,5";
extern string   Dev_Step_3="13,8";
extern int Symbol_1_Kod=140;
extern int Symbol_2_Kod=141;
extern int Symbol_3_Kod=142;

//---- buffers
double FP_BuferUp[];
double FP_BuferDn[];
double NP_BuferUp[];
double NP_BuferDn[];
double HP_BuferUp[];
double HP_BuferDn[];

int F_Period;
int N_Period;
int H_Period;
int Dev1;
int Stp1;
int Dev2;
int Stp2;
int Dev3;
int Stp3;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
// --------- Êîððåêòèðóåì ïåðèîäû äëÿ ïîñòðîåíèÿ ÇèãÇàãîâ
   if (Period1>0) F_Period=MathCeil(Period1*Period()); else F_Period=0;
   if (Period2>0) N_Period=MathCeil(Period2*Period()); else N_Period=0;
   if (Period3>0) H_Period=MathCeil(Period3*Period()); else H_Period=0;

//---- Îáðàáàòûâàåì 1 áóôåð
   if (Period1>0)
   {
   SetIndexStyle(0,DRAW_ARROW,0,1);
   SetIndexArrow(0,Symbol_1_Kod);
   SetIndexBuffer(0,FP_BuferUp);
   SetIndexEmptyValue(0,0.0);

   SetIndexStyle(1,DRAW_ARROW,0,1);
   SetIndexArrow(1,Symbol_1_Kod);
   SetIndexBuffer(1,FP_BuferDn);
   SetIndexEmptyValue(1,0.0);
   }

//---- Îáðàáàòûâàåì 2 áóôåð
   if (Period2>0)
   {
   SetIndexStyle(2,DRAW_ARROW,0,2);
   SetIndexArrow(2,Symbol_2_Kod);
   SetIndexBuffer(2,NP_BuferUp);
   SetIndexEmptyValue(2,0.0);

   SetIndexStyle(3,DRAW_ARROW,0,2);
   SetIndexArrow(3,Symbol_2_Kod);
   SetIndexBuffer(3,NP_BuferDn);
   SetIndexEmptyValue(3,0.0);
   }
//---- Îáðàáàòûâàåì 3 áóôåð
   if (Period3>0)
   {
   SetIndexStyle(4,DRAW_ARROW,0,4);
   SetIndexArrow(4,Symbol_3_Kod);
   SetIndexBuffer(4,HP_BuferUp);
   SetIndexEmptyValue(4,0.0);

   SetIndexStyle(5,DRAW_ARROW,0,4);
   SetIndexArrow(5,Symbol_3_Kod);
   SetIndexBuffer(5,HP_BuferDn);
   SetIndexEmptyValue(5,0.0);
   }
// Îáðàáàòûâàåì çíà÷åíèÿ äåâèàöèé è øàãîâ
   int CDev=0;
   int CSt=0;
   int Mass[];
   int C=0;
   if (IntFromStr(Dev_Step_1,C, Mass)==1)
      {
        Stp1=Mass[1];
        Dev1=Mass[0];
      }

   if (IntFromStr(Dev_Step_2,C, Mass)==1)
      {
        Stp2=Mass[1];
        Dev2=Mass[0];
      }


   if (IntFromStr(Dev_Step_3,C, Mass)==1)
      {
        Stp3=Mass[1];
        Dev3=Mass[0];
      }
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }

//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   if (Period1>0) CountZZ(FP_BuferUp,FP_BuferDn,Period1,Dev1,Stp1);
   if (Period2>0) CountZZ(NP_BuferUp,NP_BuferDn,Period2,Dev2,Stp2);
   if (Period3>0) CountZZ(HP_BuferUp,HP_BuferDn,Period3,Dev3,Stp3);
   return(0);
  }
//+------------------------------------------------------------------+
// äîïîëíèòåëüíûå ôóíêöèè
//int Take



//+------------------------------------------------------------------+
//| Ôóíêö ôîðìèðîâàíèÿ ÇèãÇàãà                        |
//+------------------------------------------------------------------+
int CountZZ( double& ExtMapBuffer[], double& ExtMapBuffer2[], int ExtDepth, int ExtDeviation, int ExtBackstep )
  {
   int    shift, back,lasthighpos,lastlowpos;
   double val,res;
   double curlow,curhigh,lasthigh,lastlow;

   for(shift=Bars-ExtDepth; shift>=0; shift--)
     {
      val=Low[Lowest(NULL,0,MODE_LOW,ExtDepth,shift)];
      if(val==lastlow) val=0.0;
      else
        {
         lastlow=val;
         if((Low[shift]-val)>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=ExtMapBuffer[shift+back];
               if((res!=0)&&(res>val)) ExtMapBuffer[shift+back]=0.0;
              }
           }
        }

          ExtMapBuffer[shift]=val;
      //--- high
      val=High[Highest(NULL,0,MODE_HIGH,ExtDepth,shift)];
      if(val==lasthigh) val=0.0;
      else
        {
         lasthigh=val;
         if((val-High[shift])>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=ExtMapBuffer2[shift+back];
               if((res!=0)&&(res<val)) ExtMapBuffer2[shift+back]=0.0;
              }
           }
        }
      ExtMapBuffer2[shift]=val;
     }
   // final cutting
   lasthigh=-1; lasthighpos=-1;
   lastlow=-1;  lastlowpos=-1;

   for(shift=Bars-ExtDepth; shift>=0; shift--)
     {
      curlow=ExtMapBuffer[shift];
      curhigh=ExtMapBuffer2[shift];
      if((curlow==0)&&(curhigh==0)) continue;
      //---
      if(curhigh!=0)
        {
         if(lasthigh>0)
           {
            if(lasthigh<curhigh) ExtMapBuffer2[lasthighpos]=0;
            else ExtMapBuffer2[shift]=0;
           }
         //---
         if(lasthigh<curhigh || lasthigh<0)
           {
            lasthigh=curhigh;
            lasthighpos=shift;
           }
         lastlow=-1;
        }
      //----
      if(curlow!=0)
        {
         if(lastlow>0)
           {
            if(lastlow>curlow) ExtMapBuffer[lastlowpos]=0;
            else ExtMapBuffer[shift]=0;
           }
         //---
         if((curlow<lastlow)||(lastlow<0))
           {
            lastlow=curlow;
            lastlowpos=shift;
           }
         lasthigh=-1;
        }
     }

   for(shift=Bars-1; shift>=0; shift--)
     {
      if(shift>=Bars-ExtDepth) ExtMapBuffer[shift]=0.0;
      else
        {
         res=ExtMapBuffer2[shift];
         if(res!=0.0) ExtMapBuffer2[shift]=res;
        }
     }
 }

int Str2Massive(string VStr, int& M_Count, int& VMass[])
  {
    int val=StrToInteger( VStr);
    if (val>0)
       {
         M_Count++;
         int mc=ArrayResize(VMass,M_Count);
         if (mc==0)return(-1);
          VMass[M_Count-1]=val;
         return(1);
       }
    else return(0);
  }


int IntFromStr(string ValStr,int& M_Count, int& VMass[])
  {

    if (StringLen(ValStr)==0) return(-1);
    string SS=ValStr;
    int NP=0;
    string CS;
    M_Count=0;
    ArrayResize(VMass,M_Count);
    while (StringLen(SS)>0)
      {
            NP=StringFind(SS,",");
            if (NP>0)
               {
                 CS=StringSubstr(SS,0,NP);
                 SS=StringSubstr(SS,NP+1,StringLen(SS));
               }
               else
               {
                 if (StringLen(SS)>0)
                    {
                      CS=SS;
                      SS="";
                    }
               }
            if (Str2Massive(CS,M_Count,VMass)==0)
               {
                 return(-2);
               }
      }
    return(1);
  }
