WolfWave_nen_v1

Indicator Logic Overview

This script is designed to identify specific price action patterns on a trading chart, modeled after the "Wolf Wave" concept. It functions by filtering out market noise to highlight significant structural shifts in price and then searching for specific sequences of peaks and valleys.

1. Data Filtering (The ZigZag Foundation)

Before identifying any waves, the script first simplifies the raw price data. It looks at recent highs and lows to establish a "ZigZag" structure. It does this by:

  • Ignoring Minor Fluctuations: It only records a new high or low if the price moves significantly enough to meet a pre-defined threshold (Deviation).
  • Filtering Redundancies: If multiple bars have similar prices, it ensures only the most significant point is kept.
  • Cleaning Trends: The logic specifically checks for continuous upward or downward movements. If it detects a sequence of points moving in a straight line (e.g., three consecutive higher highs), it ignores the middle point to focus only on the major turning points.

2. Identifying Structural Peaks

Once the noise is removed, the script maintains a list of these "major" turning points (peaks and valleys). It organizes these points chronologically so it can analyze the relationship between the most recent five significant price movements. These are internally labeled as five distinct points (1 through 5) to form a recognizable shape.

3. Pattern Recognition (Wolf Wave Detection)

The core logic of the script lies in its ability to recognize two specific geometric patterns based on how these five points relate to one another:

  • Buy Signal Logic: The script looks for a specific "U-shaped" or "W-shaped" structural shift where:

    • Point 1 is lower than Point 2.
    • Point 3 drops even lower than Point 1.
    • Point 4 stays above the low of Point 3.
    • This identifies a specific type of price exhaustion or reversal point.

  • Sell Signal Logic: Conversely, it looks for an inverted "mountain" structure where:

    • Point 1 is higher than Point 2.
    • Point 3 rises even higher than Point 1.
    • Point 4 stays below the high of Point 3.

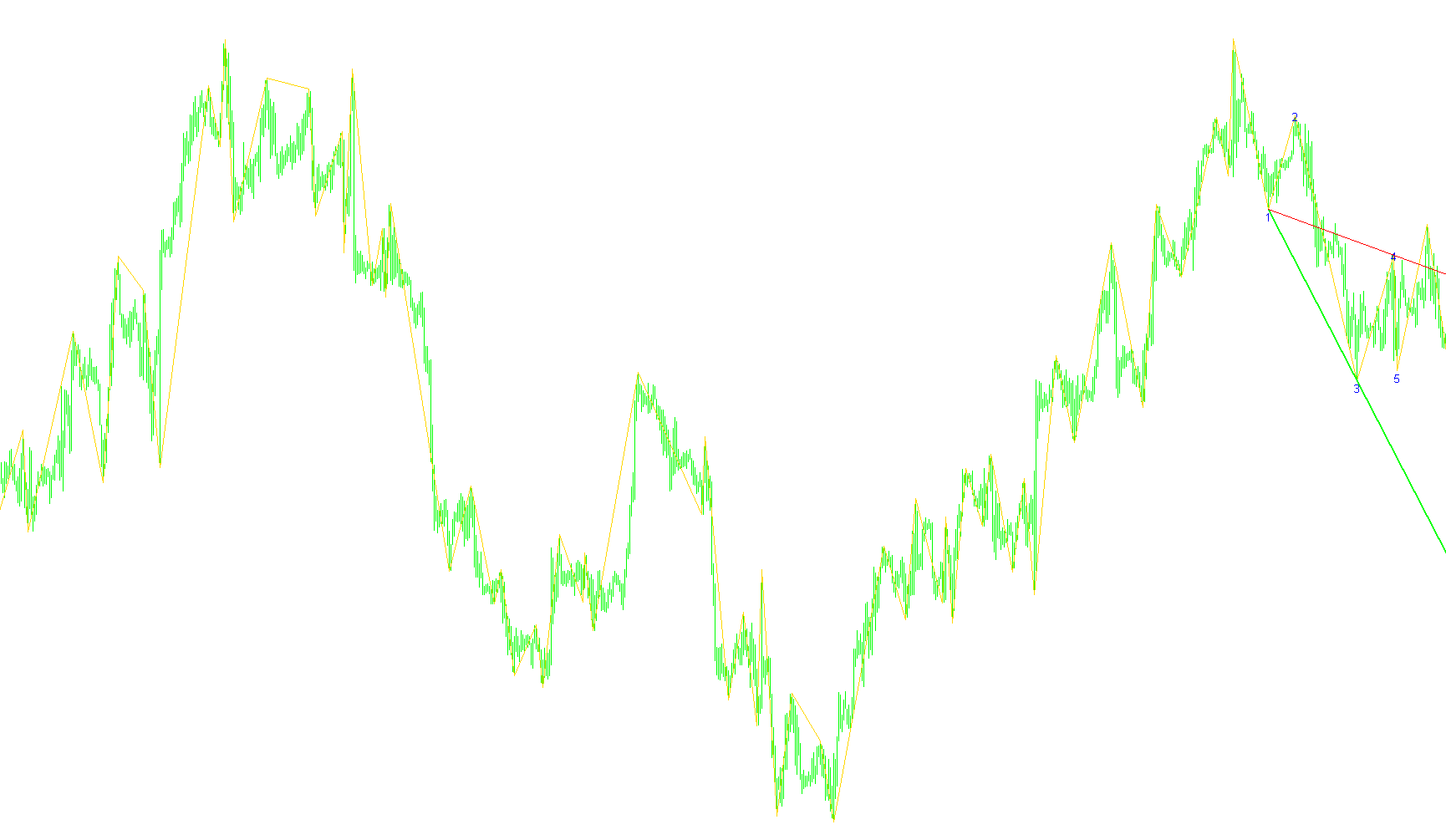

4. Visual Representation

When the script identifies one of these patterns, it automatically draws visual aids on your chart:

  • Trend Lines: It draws connecting lines (in Lime and Red) to highlight the specific price paths of the recognized wave.
  • Numbered Labels: It places numbered markers (1 through 5) above or below the corresponding price peaks and valleys. This allows the trader to see exactly which five points the script used to make its calculation.
  • Real-time Updates: The script constantly recalculates as new price data arrives, ensuring that the labels and lines move and update as the market develops.
Miscellaneous
Implements a curve of type %1
19 Views
0 Downloads
0 Favorites
WolfWave_nen_v1
//+------------------------------------------------------------------+
//| A WolfWave finder based on ZIGZAG.MQ4                            |
//| fukinagashi a t gmx p o i n t net
//| Patched by Nen @  http://onix-trade.net/forum/index.php?showtopic=373
//| Patched again by Maumax                                         |
//+------------------------------------------------------------------+

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Yellow
#property indicator_color2 Blue
#define MaxAnalyze 200
#define UpperDistance 15
#define LowerDistance 5
#define Title "WW"

//---- indicator parameters
extern int ExtDepth=12;
extern int ExtDeviation=3;
extern int ExtBackstep=2;

//---- indicator buffers
double ExtMapBuffer[];
double ExtMapBuffer2[];
int timeFirstBar=0;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorBuffers(2);
//---- drawing settings

   SetIndexStyle(0,DRAW_SECTION);
//---- indicator buffers mapping
   SetIndexBuffer(0,ExtMapBuffer);
   SetIndexBuffer(1,ExtMapBuffer2);

   SetIndexEmptyValue(0,0.0);
   SetIndexEmptyValue(1,0.0);

   ArraySetAsSeries(ExtMapBuffer,true);
   ArraySetAsSeries(ExtMapBuffer2,true);
//---- indicator short name
   IndicatorShortName("WolfWave");
//---- initialization done

   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
      for (int i=1;i<=5;i++)
       {
         ObjectDelete(Title + ""+i);
       }

      ObjectDelete(Title + "Line-2-4");
      ObjectDelete(Title + "Line-1-3");
      ObjectDelete(Title + "Line-1-4");
      ObjectDelete(Title + "Line-2-5");
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int    counted_bars=IndicatorCounted();
   int    shift, back,lasthighpos,lastlowpos;
   double val,res;
   double curlow,curhigh,lasthigh,lastlow;
   int num=0;

   int Peak[MaxAnalyze],h,i,j;
   int Wolf[6];
   string WolfWave="None";
   double Winkel1, Winkel2;
   bool found=false;

   //----+ ïðîâåðêà êîëè÷åñòâà áàðîâ íà äîñòàòî÷íîñòü äëÿ êîððåêòíîãî ðàñ÷¸òà èíäèêàòîðà
   if (Bars-1<ExtDepth)return(0);
   //----+ Ââåäåíèå öåëûõ ïåðåìåííûõ ïàìÿòè äëÿ ïåðåñ÷¸òà èíäèêàòîðà òîëüêî íà íåïîäñ÷èòàííûõ áàðàõ
   static int time2,time3,time4;
   //----+ Ââåäåíèå ïåðåìåííûõ ñ ïëàâàþùåé òî÷êîé äëÿ ïåðåñ÷¸òà èíäèêàòîðà òîëüêî íà íåïîäñ÷èòàííûõ áàðàõ
   static  double ZigZag2,ZigZag3,ZigZag4;
   //----+ Ââåäåíèå öåëûõ ïåðåìåííûõ äëÿ ïåðåñ÷¸òà èíäèêàòîðà òîëüêî íà íåïîäñ÷èòàííûõ áàðàõ è ïîëó÷åíèå óæå ïîäñ÷èòàííûõ áàðîâ
   int MaxBar,limit,supr2_bar,supr3_bar,supr4_bar;
   //---- ïðîâåðêà íà âîçìîæíûå îøèáêè
   if (counted_bars<0)return(-1);
   //---- ïîñëåäíèé ïîäñ÷èòàííûé áàð äîëæåí áûòü ïåðåñ÷èòàí
   if (counted_bars>0) counted_bars--;
   //---- îïðåäåëåíèå íîìåðà ñàìîãî ñòàðîãî áàðà, íà÷èíàÿ ñ êîòîðîãî áóäåò ïðîèçåä¸í ïîëûé ïåðåñ÷¸ò âñåõ áàðîâ
   MaxBar=Bars-ExtDepth;
   //---- îïðåäåëåíèå íîìåðà ñòàðòîâîãî  áàðà â öèêëå, íà÷èíàÿ ñ êîòîðîãî áóäåò ïðîèçåäèòüñÿ  ïåðåñ÷¸ò íîâûõ áàðîâ
   if (counted_bars==0 || Bars-counted_bars>2)
     {
      limit=MaxBar;
     }
   else
     {
      //----
      supr2_bar=iBarShift(NULL,0,time2,TRUE);
      supr3_bar=iBarShift(NULL,0,time3,TRUE);
      supr4_bar=iBarShift(NULL,0,time4,TRUE);
      //----
      limit=supr3_bar;
      if ((supr2_bar<0)||(supr3_bar<0)||(supr4_bar<0))
         {
          limit=MaxBar;
         }
     }

   //---- èíèöèàëèçàöèÿ íóëÿ
   if (limit>=MaxBar || timeFirstBar!=Time[Bars-1])
     {
      timeFirstBar=Time[Bars-1];
      for (shift=Bars-1; shift>0;shift--) {ExtMapBuffer[shift]=0.0; ExtMapBuffer2[shift]=0.0;}
      limit=MaxBar;
     }
   //----


   for(shift=Bars-ExtDepth; shift>=0; shift--)
     {
      val=Low[Lowest(NULL,0,MODE_LOW,ExtDepth,shift)];
      if(val==lastlow) val=0.0;
      else
        {
         lastlow=val;
         if((Low[shift]-val)>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=ExtMapBuffer[shift+back];
               if((res!=0)&&(res>val)) ExtMapBuffer[shift+back]=0.0;
              }
           }
        }
      if (Low[shift]==val) ExtMapBuffer[shift]=val;
      //--- high
      val=High[Highest(NULL,0,MODE_HIGH,ExtDepth,shift)];
      if(val==lasthigh) val=0.0;
      else
        {
         lasthigh=val;
         if((val-High[shift])>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=ExtMapBuffer2[shift+back];
               if((res!=0)&&(res<val)) ExtMapBuffer2[shift+back]=0.0;
              }
           }
        }
      if (High[shift]==val) ExtMapBuffer2[shift]=val;
     }

   // final cutting
   lasthigh=-1; lasthighpos=-1;
   lastlow=-1;  lastlowpos=-1;

   for(shift=Bars-ExtDepth; shift>=0; shift--)
     {
      curlow=ExtMapBuffer[shift];
      curhigh=ExtMapBuffer2[shift];
      if((curlow==0)&&(curhigh==0)) continue;
      //---
      if(curhigh!=0)
        {
         if(lasthigh>0)
           {
            if(lasthigh<curhigh) ExtMapBuffer2[lasthighpos]=0;
            else ExtMapBuffer2[shift]=0;
           }
         //---
         if(lasthigh<curhigh || lasthigh<0)
           {
            lasthigh=curhigh;
            lasthighpos=shift;
           }
         lastlow=-1;
        }
      //----
      if(curlow!=0)
        {
         if(lastlow>0)
           {
            if(lastlow>curlow) ExtMapBuffer[lastlowpos]=0;
            else ExtMapBuffer[shift]=0;
           }
         //---
         if((curlow<lastlow)||(lastlow<0))
           {
            lastlow=curlow;
            lastlowpos=shift;
           }
         lasthigh=-1;
        }
     }

   for(shift=Bars-1; shift>=0; shift--)
     {
      if(shift>=Bars-ExtDepth) ExtMapBuffer[shift]=0.0;
      else
        {
         res=ExtMapBuffer2[shift];
         //if(res!=0.0) ExtMapBuffer[shift]=res;
         if(res>0.0) ExtMapBuffer[shift]=res;
        }
     }

   // Ïðîâåðêà ïåðâîãî ëó÷à
   i=0;j=0;
   res=0;
   for (shift=0;i<3;shift++)
     {
      if (ExtMapBuffer[shift]>0)
        {
         i++;
         if (i==1 && ExtMapBuffer[shift]==High[shift])
           {
            j=shift;
            res=ExtMapBuffer[shift];
           }
         if (i==2 && res>0 && ExtMapBuffer[shift]==High[shift])
           {
            if (ExtMapBuffer[shift]>=ExtMapBuffer[j]) ExtMapBuffer[j]=0; else ExtMapBuffer[shift]=0;
            res=0;
            i=0;
            j=0;
            shift=0;
           }
        }
     }


   //+--- Âîññòàíîâëåíèå çíà÷åíèé èíäèêàòîðíîãî áóôôåðà, êîòîðûå ìîãëè áûòü óòåðÿíû
   if (limit<MaxBar)
     {
      ExtMapBuffer[supr2_bar]=ZigZag2;
      ExtMapBuffer[supr3_bar]=ZigZag3;
      ExtMapBuffer[supr4_bar]=ZigZag4;
      for(int qqq=supr4_bar-1; qqq>supr3_bar; qqq--)ExtMapBuffer[qqq]=0;
      for(int ggg=supr3_bar-1; ggg>supr2_bar; ggg--)ExtMapBuffer[ggg]=0;
     }
   //+---+============================================+

   //+--- èñïðàâëåíèå âîçíèêàþùèõ ãîðáîâ
   double vel1, vel2, vel3, vel4;
   int bar1, bar2, bar3, bar4;
   int count;
   if (limit==MaxBar)supr4_bar=MaxBar;
   for(int bar=supr4_bar; bar>=0; bar--)
    {
     if (ExtMapBuffer[bar]!=0)
      {
       count++;
       vel4=vel3;bar4=bar3;
       vel3=vel2;bar3=bar2;
       vel2=vel1;bar2=bar1;
       vel1=ExtMapBuffer[bar];bar1=bar;
       if (count<3)continue;
       if ((vel3<vel2)&&(vel2<vel1)){ExtMapBuffer[bar2]=0;bar=bar3+1;}
       if ((vel3>vel2)&&(vel2>vel1)){ExtMapBuffer[bar2]=0;bar=bar3+1;}
       if ((vel2==vel1)&&(vel1!=0 )){ExtMapBuffer[bar1]=0;bar=bar3+1;}
     }
    }
   //+--- çàïîìèíàíèå âðåìåíè òð¸õ ïîñëåäíèõ ïåðåãèáîâ Çèãçàãà è çíà÷åíèé èíäèêàòîðà â ýòèõ òî÷êàõ
   time2=Time[bar2];
   time3=Time[bar3];
   time4=Time[bar4];
   ZigZag2=vel2;
   ZigZag3=vel3;
   ZigZag4=vel4;
   //+---


// Basic Modification ==>

   i=0;
   for(h=0; h<Bars && i<MaxAnalyze; h++)
   {
      if ((ExtMapBuffer[h]!=0) || (ExtMapBuffer2[h]!=0)) {
         Peak[i]= h;
         i++;
      }
   }

   for(j=0;j<i && j<MaxAnalyze && found==false;j++) {
      Wolf[1]=Peak[j+4]; // 1 High
      Wolf[2]=Peak[j+3]; // 2 Low
      Wolf[3]=Peak[j+2]; // 3 High
      Wolf[4]=Peak[j+1]; // 4 Low
      Wolf[5]=Peak[j+0]; // 5 High
      if (     // Buy Wolfwave
         Low[Wolf[1]]<High[Wolf[2]] &&  // 1. + 3.a.//1-3
         Low[Wolf[3]]<Low[Wolf[1]] &&   // 2. + 3.b. //3-1
         Low[Wolf[3]]<High[Wolf[4]]  // 4//3-4
         ) {
            WolfWave="Buy";
      } else if
         (     // Sell Wolfwave
         High[Wolf[1]]>Low[Wolf[2]] &&  // 1. + 3.a.
         High[Wolf[3]]>High[Wolf[1]] &&   // 2. + 3.b.
         High[Wolf[3]]>Low[Wolf[4]]  // 4
         ) {
            WolfWave="Sell";
         } else {
            WolfWave="Not";
      }

      if(WolfWave=="Buy") {
      	ObjectCreate(Title + "Line-1-3", OBJ_TREND, 0, Time[Wolf[1]],Low[Wolf[1]], Time[Wolf[3]],Low[Wolf[3]] );
        //	ObjectSet(Title + "Line-1-3",OBJPROP_RAY,0);
        	ObjectSet(Title + "Line-1-3", OBJPROP_COLOR, Lime);
          	ObjectSet(Title + "Line-1-3", OBJPROP_WIDTH, 2);
          //	ObjectSet(Title + "Line-1-3",OBJPROP_BACK,1);

        	if (ObjectGetValueByShift(Title + "Line-1-3", Wolf[3]) >= Low[Wolf[3]]) {
           	ObjectCreate(Title + "1", OBJ_TEXT, 0, Time[Wolf[1]],Low[Wolf[1]]-LowerDistance*Point );
           	ObjectSetText(Title + "1", ""+DoubleToStr(1,0), 10, "Arial", Blue);
           	ObjectCreate(Title + "2", OBJ_TEXT, 0, Time[Wolf[2]],High[Wolf[2]]+UpperDistance*Point );
           	ObjectSetText(Title + "2", ""+DoubleToStr(2,0), 10, "Arial", Blue);
           	ObjectCreate(Title + "3", OBJ_TEXT, 0, Time[Wolf[3]],Low[Wolf[3]]-LowerDistance*Point );
           	ObjectSetText(Title + "3", ""+DoubleToStr(3,0), 10, "Arial", Blue);
           	ObjectCreate(Title + "4", OBJ_TEXT, 0, Time[Wolf[4]],High[Wolf[4]]+UpperDistance*Point );
           	ObjectSetText(Title + "4", ""+DoubleToStr(4,0), 10, "Arial", Blue);
           	ObjectCreate(Title + "5", OBJ_TEXT, 0, Time[Wolf[5]],Low[Wolf[5]]-LowerDistance*Point );
           	ObjectSetText(Title + "5", ""+DoubleToStr(5,0), 10, "Arial", Blue);

           	ObjectCreate(Title + "Line-1-4", OBJ_TREND, 0, Time[Wolf[1]],Low[Wolf[1]], Time[Wolf[4]],High[Wolf[4]] );
           	ObjectSet(Title + "Line-1-4", OBJPROP_COLOR, Red);
           //	ObjectSet(Title + "Line-1-4",OBJPROP_RAY,0);
           	ObjectSet(Title,OBJPROP_STYLE,STYLE_DOT);
          	ObjectSet(Title + "Line-1-4", OBJPROP_WIDTH, 0);
          	ObjectSet(Title + "Line-1-4",OBJPROP_BACK,0);
          	ObjectSet(Title + "Line-2-5",OBJPROP_BACK,0);

          //	ObjectCreate(Title + "Line-2-5", OBJ_TREND, 0, Time[Wolf[2]],High[Wolf[2]], Time[Wolf[5]],Low[Wolf[5]] );
            //ObjectSet(Title,OBJPROP_STYLE,STYLE_DOT);
           // ObjectSet(Title + "Line-2-5",OBJPROP_RAY,0);
            //ObjectSet(Title + "Line-2-5", OBJPROP_COLOR, Lime);
           // ObjectSet(Title + "Line-2-5", OBJPROP_WIDTH, 1);

           //	Comment("Buy Wolfwave (" + TimeToStr(Time[Wolf[5]],TIME_DATE|TIME_MINUTES) + ") at " + (ObjectGetValueByShift("Line-1-3", Wolf[5])-5*Point) + " SL " + High[Wolf[5]]);
          	// found=true;
         //} //else {
           // ObjectDelete(Title + "Line-1-3");
         }
      } else if (WolfWave=="Sell") {
            ObjectCreate(Title + "Line-1-3", OBJ_TREND, 0, Time[Wolf[1]],High[Wolf[1]], Time[Wolf[3]],High[Wolf[3]] );
         //ObjectSet(Title + "Line-1-3",OBJPROP_RAY,0);
         	ObjectSet(Title + "Line-1-3", OBJPROP_COLOR, Lime);
          	ObjectSet(Title + "Line-1-3", OBJPROP_WIDTH, 2);
          //	ObjectSet(Title + "Line-1-3",OBJPROP_BACK,1);

         if ( ObjectGetValueByShift(Title + "Line-1-3", Wolf[3]) <= High[Wolf[3]] ) {
           	ObjectCreate(Title + "1", OBJ_TEXT, 0, Time[Wolf[1]],High[Wolf[1]]+UpperDistance*Point );
            ObjectSetText(Title + "1", ""+DoubleToStr(1,0), 10, "Arial", Blue);
            ObjectCreate(Title + "2", OBJ_TEXT, 0, Time[Wolf[2]],Low[Wolf[2]]-LowerDistance*Point );
            ObjectSetText(Title + "2", ""+DoubleToStr(2,0), 10, "Arial", Blue);
            ObjectCreate(Title + "3", OBJ_TEXT, 0, Time[Wolf[3]],High[Wolf[3]]+UpperDistance*Point );
            ObjectSetText(Title + "3", ""+DoubleToStr(3,0), 10, "Arial", Blue);
            ObjectCreate(Title + "4", OBJ_TEXT, 0, Time[Wolf[4]],Low[Wolf[4]]-LowerDistance*Point );
            ObjectSetText(Title + "4", ""+DoubleToStr(4,0), 10, "Arial", Blue);
            ObjectCreate(Title + "5", OBJ_TEXT, 0, Time[Wolf[5]],High[Wolf[5]]+UpperDistance*Point );
            ObjectSetText(Title + "5", ""+DoubleToStr(5,0), 10, "Arial", Blue);

            ObjectCreate(Title + "Line-1-4", OBJ_TREND, 0, Time[Wolf[1]],High[Wolf[1]], Time[Wolf[4]],Low[Wolf[4]] );
            ObjectSet(Title + "Line-1-4", OBJPROP_COLOR, Red);
            //ObjectSet(Title + "Line-1-4",OBJPROP_RAY,0);
            ObjectSet(Title,OBJPROP_STYLE,STYLE_DOT);
            ObjectSet(Title + "Line-1-4", OBJPROP_WIDTH, 0);
            ObjectSet(Title + "Line-1-4",OBJPROP_BACK,0);


           // ObjectCreate(Title + "Line-2-5", OBJ_TREND, 0, Time[Wolf[2]],Low[Wolf[2]], Time[Wolf[5]],High[Wolf[5]] );
           //// ObjectSet(Title,OBJPROP_STYLE,STYLE_DOT);
           // ObjectSet(Title + "Line-2-5",OBJPROP_RAY,0);
           // ObjectSet(Title + "Line-2-5", OBJPROP_COLOR, Yellow);
           // ObjectSet(Title + "Line-2-5", OBJPROP_WIDTH, 1);
          //  ObjectSet(Title + "Line-2-5",OBJPROP_BACK,0);


            // found=true;
         } //else {
                //ObjectDelete(Title + "Line-1-3");
                 ObjectsRedraw();
         //}
      }
   }
   return(0);
  }
//+------------------------------------------------------------------+

Similar scripts

WolfWave_nen

This indicator utilizes a ZigZag-based recursive algorithm to detect specific five-point geometric price patterns that signify structural trend reversals.

WolfWave_nen_v2

This indicator identifies specific multi-peak price geometries by analyzing ZigZag pivot points to detect proprietary 'Wolf' patterns for directional bias.

WolfWave_nen_v4

WolfWave_nen_v3

Levels_v1

Levels

This indicator projects symmetrical price levels based on previous candle volatility by switching between three distinct Fibonacci expansion ratios depending on the range of the preceding bar.

PivotPoints - MT04 - Indicator_v1

Camarilla-MT04-Ind_MBB_v1

This indicator calculates specific resistance and support price boundaries based on the previous day's volatility and closing range to identify potential reversal zones.

Pivot Manual

This indicator projects a comprehensive array of mathematical levels including standard pivots, Fibonacci retracements, and customized harmonic mean points based on previous session price extremes.

PivotPoints MT04a

Ind_VilkaFractals_v1.2

Comments
