Wolf_v1

This tool is designed to identify specific price patterns on a trading chart by analyzing historical price movements. It essentially scans the market's "peaks" and "valleys" to detect structural shifts that indicate potential momentum.

Core Logic Flow

1. Data Filtering (The Foundation) The script begins by scanning past price data to identify significant high and low points. It doesn't just look at every tiny move; it uses specific sensitivity settings (Depth, Deviation, and Backstep) to filter out "market noise." This ensures that the tool only recognizes substantial structural changes rather than insignificant fluctuations.

2. Structural Mapping Once the major highs and lows are identified, the script performs a "cleaning" process. It compares consecutive peaks to ensure it is only capturing valid turning points. For example, if a new peak is found that is higher or lower than the previous one in a way that contradicts the current trend structure, it adjusts the map to maintain a clean sequence of market geometry.

3. Pattern Recognition (The Wolf Wave) The heart of the script is its ability to recognize a specific 5-point structural pattern known as a "Wolf Wave." The logic looks for a sequence of five key price points:

  • It identifies a specific relationship between the heights and depths of these five points.
  • Buy Signal Logic: It looks for a sequence where specific lows drop below previous highs while maintaining a specific structural "wave" shape. If the price action conforms to this geometric requirement, it flags a potential "Buy" opportunity.
  • Sell Signal Logic: Conversely, it looks for a sequence where specific highs rise above previous lows in a mirroring wave pattern to flag a potential "Sell" opportunity.

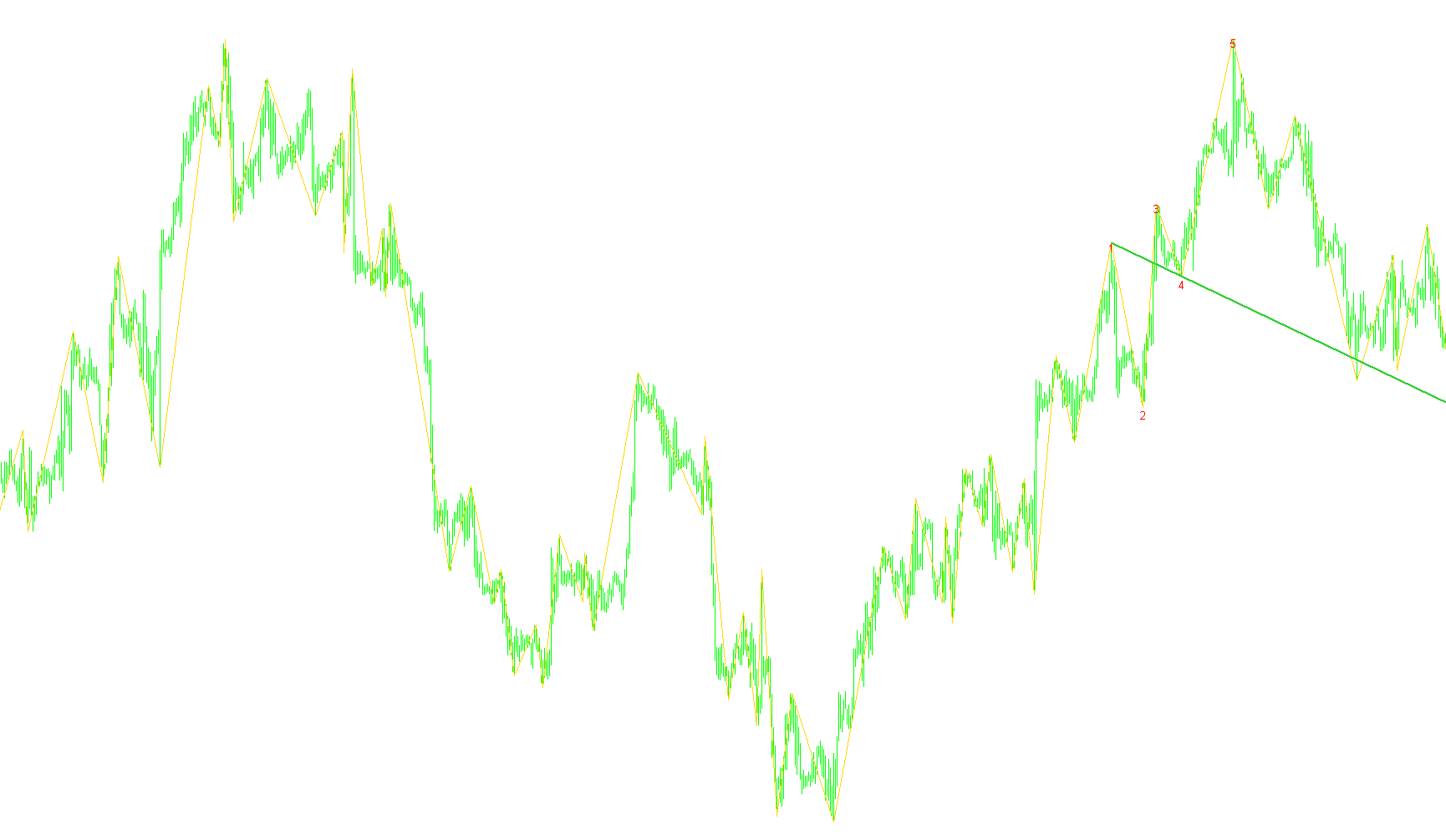

4. Visual Output and Data Overlay When the script successfully identifies one of these patterns, it automatically draws visual aids directly on your chart:

  • Trend Lines: It connects key points (specifically from point 1 to point 3) to visualize the trend.
  • Labels: It numbers the five points of the wave (1 through 5) so the user can see exactly which parts of the price action triggered the logic.
  • Information Header: It provides a text comment on the chart that includes the date and time of the pattern completion, as well as estimated levels for entry and stop-loss consideration based on the identified wave structure.

Summary for the User

Think of this script as an automated "pattern scout." It ignores the minor wobbles of the market to find a specific five-part geometric signature in price history. When it finds that signature, it draws the map out for you, labeling the points and providing a visual summary of the trend, helping you see structural opportunities that might be difficult to spot with the naked eye.

Miscellaneous
Implements a curve of type %1
12 Views
0 Downloads
0 Favorites
Wolf_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//| A WolfWave finder based on ZIGZAG.MQ4                            |
//| fukinagashi a t gmx p o i n t net                                              |
//+------------------------------------------------------------------+

#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 DodgerBlue
#define MaxAnalyze 200
#define UpperDistance 5
#define LowerDistance 5
#define Title "WW"

//---- indicator parameters
extern int ExtDepth=12;
extern int ExtDeviation=5;
extern int ExtBackstep=3;

//---- indicator buffers
double ExtMapBuffer[];
double ExtMapBuffer2[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorBuffers(2);
//---- drawing settings

   SetIndexStyle(0,DRAW_SECTION);
//---- indicator buffers mapping
   SetIndexBuffer(0,ExtMapBuffer);
   SetIndexBuffer(1,ExtMapBuffer2);

   SetIndexEmptyValue(0,0.0);

   ArraySetAsSeries(ExtMapBuffer,true);
   ArraySetAsSeries(ExtMapBuffer2,true);
//---- indicator short name
   IndicatorShortName("WolfWave");
//---- initialization done

   return(0);
  }

int deinit()
{
      for (int i=1;i<=5;i++) {
         ObjectDelete(Title + ""+i);
      }

      ObjectDelete(Title + "Line-2-4");
      ObjectDelete(Title + "Line-1-3");
      ObjectDelete(Title + "Line-1-4");
      }

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   int    shift, back,lasthighpos,lastlowpos;
   double val,res;
   double curlow,curhigh,lasthigh,lastlow;
   int num=0;

   int Peak[MaxAnalyze],h,i,j;
   int Wolf[6];
   string WolfWave="None";
   double Winkel1, Winkel2;
   bool found=false;

   for(shift=Bars-ExtDepth; shift>=0; shift--)
     {
      val=Low[Lowest(NULL,0,MODE_LOW,ExtDepth,shift)];
      if(val==lastlow) val=0.0;
      else
        {
         lastlow=val;
         if((Low[shift]-val)>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=ExtMapBuffer[shift+back];
               if((res!=0)&&(res>val)) ExtMapBuffer[shift+back]=0.0;
              }
           }
        }
      ExtMapBuffer[shift]=val;
      //--- high
      val=High[Highest(NULL,0,MODE_HIGH,ExtDepth,shift)];
      if(val==lasthigh) val=0.0;
      else
        {
         lasthigh=val;
         if((val-High[shift])>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=ExtMapBuffer2[shift+back];
               if((res!=0)&&(res<val)) ExtMapBuffer2[shift+back]=0.0;
              }
           }
        }
      ExtMapBuffer2[shift]=val;
     }

   // final cutting
   lasthigh=-1; lasthighpos=-1;
   lastlow=-1;  lastlowpos=-1;

   for(shift=Bars-ExtDepth; shift>=0; shift--)
     {
      curlow=ExtMapBuffer[shift];
      curhigh=ExtMapBuffer2[shift];
      if((curlow==0)&&(curhigh==0)) continue;
      //---
      if(curhigh!=0)
        {
         if(lasthigh>0)
           {
            if(lasthigh<curhigh) ExtMapBuffer2[lasthighpos]=0;
            else ExtMapBuffer2[shift]=0;
           }
         //---
         if(lasthigh<curhigh || lasthigh<0)
           {
            lasthigh=curhigh;
            lasthighpos=shift;
           }
         lastlow=-1;
        }
      //----
      if(curlow!=0)
        {
         if(lastlow>0)
           {
            if(lastlow>curlow) ExtMapBuffer[lastlowpos]=0;
            else ExtMapBuffer[shift]=0;
           }
         //---
         if((curlow<lastlow)||(lastlow<0))
           {
            lastlow=curlow;
            lastlowpos=shift;
           }
         lasthigh=-1;
        }
     }

   for(shift=Bars-1; shift>=0; shift--)
     {
      if(shift>=Bars-ExtDepth) ExtMapBuffer[shift]=0.0;
      else
        {
         res=ExtMapBuffer2[shift];
         //if(res!=0.0) ExtMapBuffer[shift]=res;
         if(res>0.0) ExtMapBuffer[shift]=res;
        }
     }

// Basic Modification ==>

	i=0;
   for(h=0; h<Bars && i<MaxAnalyze; h++)
   {
      if ((ExtMapBuffer[h]!=0) || (ExtMapBuffer2[h]!=0)) {
         Peak[i]= h;
         i++;
      }
   }

   for(j=0;j<i && j<MaxAnalyze && found==false;j++) {
      Wolf[1]=Peak[j+4]; // 1 High
      Wolf[2]=Peak[j+3]; // 2 Low
      Wolf[3]=Peak[j+2]; // 3 High
      Wolf[4]=Peak[j+1]; // 4 Low
      Wolf[5]=Peak[j+0]; // 5 High
      if (     // Buy Wolfwave
         Low[Wolf[1]]<High[Wolf[2]] &&  // 1. + 3.a.
         Low[Wolf[3]]<Low[Wolf[1]] &&   // 2. + 3.b.
         Low[Wolf[3]]<High[Wolf[4]]  // 4
         ) {
            WolfWave="Buy";
      } else if
         (     // Sell Wolfwave
         High[Wolf[1]]>Low[Wolf[2]] &&  // 1. + 3.a.
         High[Wolf[3]]>High[Wolf[1]] &&   // 2. + 3.b.
         High[Wolf[3]]>Low[Wolf[4]]  // 4
         ) {
            WolfWave="Sell";
         } else {
            WolfWave="Not";
      }

      if(WolfWave=="Buy") {
        	ObjectCreate(Title + "Line-1-3", OBJ_TREND, 0, Time[Wolf[1]],Low[Wolf[1]], Time[Wolf[3]],Low[Wolf[3]] );
        	if (ObjectGetValueByShift(Title + "Line-1-3", Wolf[5]) >= Low[Wolf[5]]) {
           	ObjectCreate(Title + "1", OBJ_TEXT, 0, Time[Wolf[1]],Low[Wolf[1]]-LowerDistance*Point );
           	ObjectSetText(Title + "1", ""+DoubleToStr(1,0), 10, "Arial", Red);
           	ObjectCreate(Title + "2", OBJ_TEXT, 0, Time[Wolf[2]],High[Wolf[2]]+UpperDistance*Point );
           	ObjectSetText(Title + "2", ""+DoubleToStr(2,0), 10, "Arial", Red);
           	ObjectCreate(Title + "3", OBJ_TEXT, 0, Time[Wolf[3]],Low[Wolf[3]]-LowerDistance*Point );
           	ObjectSetText(Title + "3", ""+DoubleToStr(3,0), 10, "Arial", Red);
           	ObjectCreate(Title + "4", OBJ_TEXT, 0, Time[Wolf[4]],High[Wolf[4]]+UpperDistance*Point );
           	ObjectSetText(Title + "4", ""+DoubleToStr(4,0), 10, "Arial", Red);
           	ObjectCreate(Title + "5", OBJ_TEXT, 0, Time[Wolf[5]],Low[Wolf[5]]-LowerDistance*Point );
           	ObjectSetText(Title + "5", ""+DoubleToStr(5,0), 10, "Arial", Red);
           	ObjectCreate(Title + "Line-1-4", OBJ_TREND, 0, Time[Wolf[1]],Low[Wolf[1]], Time[Wolf[4]],High[Wolf[4]] );
           	ObjectSet(Title + "Line-1-4", OBJPROP_COLOR, LimeGreen);
          	ObjectSet(Title + "Line-1-4", OBJPROP_WIDTH, 2);
           	Comment("Buy Wolfwave (" + TimeToStr(Time[Wolf[5]],TIME_DATE|TIME_MINUTES) + ") at " + (ObjectGetValueByShift("Line-1-3", Wolf[5])-5*Point) + " SL " + High[Wolf[5]]);
          	// found=true;
         } else {
            ObjectDelete(Title + "Line-1-3");
         }
      } else if (WolfWave=="Sell") {
         ObjectCreate(Title + "Line-1-3", OBJ_TREND, 0, Time[Wolf[1]],High[Wolf[1]], Time[Wolf[3]],High[Wolf[3]] );
         if ( ObjectGetValueByShift(Title + "Line-1-3", Wolf[5]) <= High[Wolf[5]] ) {
           	ObjectCreate(Title + "1", OBJ_TEXT, 0, Time[Wolf[1]],High[Wolf[1]]+UpperDistance*Point );
            ObjectSetText(Title + "1", ""+DoubleToStr(1,0), 10, "Arial", Red);
            ObjectCreate(Title + "2", OBJ_TEXT, 0, Time[Wolf[2]],Low[Wolf[2]]-LowerDistance*Point );
            ObjectSetText(Title + "2", ""+DoubleToStr(2,0), 10, "Arial", Red);
            ObjectCreate(Title + "3", OBJ_TEXT, 0, Time[Wolf[3]],High[Wolf[3]]+UpperDistance*Point );
            ObjectSetText(Title + "3", ""+DoubleToStr(3,0), 10, "Arial", Red);
            ObjectCreate(Title + "4", OBJ_TEXT, 0, Time[Wolf[4]],Low[Wolf[4]]-LowerDistance*Point );
            ObjectSetText(Title + "4", ""+DoubleToStr(4,0), 10, "Arial", Red);
            ObjectCreate(Title + "5", OBJ_TEXT, 0, Time[Wolf[5]],High[Wolf[5]]+UpperDistance*Point );
            ObjectSetText(Title + "5", ""+DoubleToStr(5,0), 10, "Arial", Red);
            ObjectCreate(Title + "Line-1-4", OBJ_TREND, 0, Time[Wolf[1]],High[Wolf[1]], Time[Wolf[4]],Low[Wolf[4]] );
            ObjectSet(Title + "Line-1-4", OBJPROP_COLOR, LimeGreen);
            ObjectSet(Title + "Line-1-4", OBJPROP_WIDTH, 2);
           	Comment("Sell Wolfwave (" + TimeToStr(Time[Wolf[5]],TIME_DATE|TIME_MINUTES) + ") at " + (ObjectGetValueByShift("Line-1-3", Wolf[5])-5*Point) + " SL " + High[Wolf[5]]);
            // found=true;
         } else {
           	ObjectDelete(Title + "Line-1-3");
         }
      }
   }
}
