StepMA_3D_v3

Download script
Author: Copyright � 2006, TrendLaboratory
StepMA_3D_v3

This script functions as a sophisticated "Step Moving Average" indicator designed to track market trends by creating three distinct, jagged price lines rather than smooth curves. Unlike traditional moving averages that lag behind price movements by constantly averaging old data, this logic identifies specific "levels" or "steps" that the price is currently reacting to.

Core Logic and Mechanics

1. Volatility-Based Scaling The indicator first calculates the market's volatility (the range between high and low prices) over a set period. It uses this information to determine the size of the "steps." Because markets are more volatile at different times, the script automatically adjusts its sensitivity: when the market is moving aggressively, the steps become larger; when the market is calm, the steps become smaller.

2. The Three-Tier Trend System The script projects three unique lines on your chart, each representing a different level of trend intensity:

  • Fast Line (High Sensitivity): This line reacts quickly to small price movements. It acts as a "short-term" tracker, identifying immediate shifts in momentum.
  • Mid Line (Medium Sensitivity): This represents the balanced trend, filtering out minor noise while remaining responsive to significant structural changes.
  • Slow Line (Low Sensitivity): This is the most stable of the three lines. It ignores almost all market noise and only moves when there is a substantial, sustained shift in price direction.

3. "Step" Movement Logic The unique behavior of this script is that the lines do not move fluidly. Instead, they behave like a staircase:

  • Trend Detection: The script constantly compares the current closing price against calculated boundaries based on the volatility.
  • Resistance and Support: If the price breaks above or below a specific threshold, the "step" clicks into a new position.
  • Memory: Once a line moves to a new step, it "locks" into that position until the price provides enough force to push it to the next level. This prevents the indicator from "jittering" back and forth during sideways consolidation.

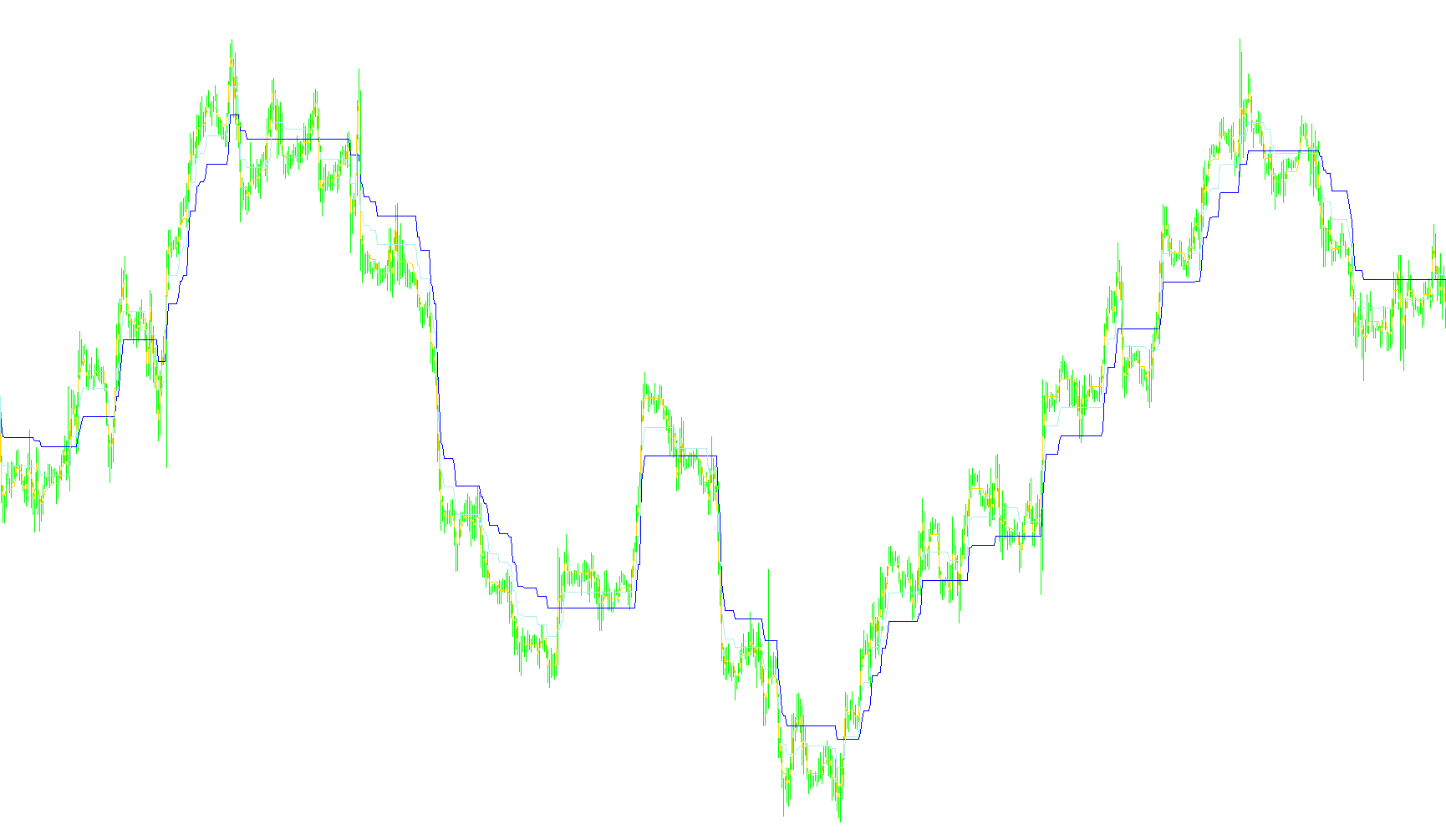

Summary of Visual Behavior

When you view this on a chart, you will see three lines moving in a stepped fashion. When all three lines move in the same direction, it signifies a very strong trend. When they diverge or flatline, it indicates a period of market indecision or a potential reversal. By providing three different sensitivities (Fast, Mid, and Slow), the script allows users to see both the immediate "pulse" of the market and the broader long-term trend simultaneously.

Miscellaneous
Implements a curve of type %1
12 Views
0 Downloads
0 Favorites
StepMA_3D_v3
//+------------------------------------------------------------------+
//|                                                 StepMA_3D_v3.mq4 |
//|                                Copyright © 2006, TrendLaboratory |
//|            http://finance.groups.yahoo.com/group/TrendLaboratory |
//|                                   E-mail: igorad2003@yahoo.co.uk |
//|            Thanks to Nikolay Kositsin for good reversal tecnique |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, TrendLaboratory"
#property link      "http://finance.groups.yahoo.com/group/TrendLaboratory"

#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 LawnGreen
#property indicator_color2 DeepSkyBlue
#property indicator_color3 Pink
#property indicator_width1 2
#property indicator_width2 2
#property indicator_width3 2

//---- input parameters
extern int     Length      = 10;    // Volty Length
extern double  Kv          =  1;    // Sensivity Factor
extern int     MA_Mode     =  0;    // Volty MA Mode : 0-SMA, 1-LWMA
extern int     StepSizeMIN =  0;    // Minimum Step Size  (if need)
extern int     StepSizeMAX =  0;    // Maximum Step Size  (if need)
extern int     ShiftMIN    =  0;
extern int     ShiftMID    =  0;
extern int     ShiftMAX    =  0;
//---- indicator buffers
double LineFstBuffer[];
double LineSlwBuffer[];
double LineMidBuffer[];

int    time[2],TRENDMIN[2],TRENDMID[2],TRENDMAX[2];
double SMINMIN[2],SMAXMIN[2],SMINMAX[2],SMAXMAX[2],SMINMID[2],SMAXMID[2];
bool   Expert=true;
double ATR0,ATRmax=0,ATRmin=100000;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
  int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(3);
   SetIndexStyle(0,DRAW_LINE);
   SetIndexStyle(1,DRAW_LINE);
   SetIndexStyle(2,DRAW_LINE);
   SetIndexBuffer(0,LineFstBuffer);
   SetIndexBuffer(1,LineSlwBuffer);
   SetIndexBuffer(2,LineMidBuffer);

//---- name for DataWindow and indicator subwindow label
   short_name="StepMA 3D v3("+Length+","+DoubleToStr(Kv,2)+")";
   IndicatorShortName(short_name);
   SetIndexLabel(0,"StepMA fast");
   SetIndexLabel(1,"StepMA slow");
   SetIndexLabel(2,"StepMA mid");

   SetIndexShift(0,ShiftMIN);
   SetIndexShift(1,ShiftMAX);
   SetIndexShift(2,ShiftMID);
//----
   SetIndexDrawBegin(0,Length);
   SetIndexDrawBegin(1,Length);
   SetIndexDrawBegin(2,Length);
//----
   return(0);
  }

//+------------------------------------------------------------------+
//| StepMA_3D_v1                                                       |
//+------------------------------------------------------------------+
int start()
{
   int      shift, TrendMin,TrendMax,TrendMid,MaxBar,limit,counted_bars=IndicatorCounted();
   double   StepSizeMin, StepSizeMax,StepSizeMid;
   double   SminMin[1],SmaxMin[1],SminMax[1],SmaxMax[1],SminMid[1],SmaxMid[1];

   if (Bars-1<Length+1)return(0);
   if (counted_bars<0)return(-1);

   if (counted_bars>0) counted_bars--;

   MaxBar=Bars-1-Length-1;
   limit=Bars-counted_bars-1;

   if (limit>MaxBar)
   {
      for (shift=limit;shift>=MaxBar;shift--)
      {
      LineFstBuffer[Bars-shift]=0;
      LineSlwBuffer[Bars-shift]=0;
      LineMidBuffer[Bars-shift]=0;
      }
   limit=MaxBar;
   }
   //----
   if(ArrayResize(SminMin,limit+2)!=limit+2)return(-1);
   if(ArrayResize(SmaxMin,limit+2)!=limit+2)return(-1);
	if(ArrayResize(SminMax,limit+2)!=limit+2)return(-1);
   if(ArrayResize(SmaxMax,limit+2)!=limit+2)return(-1);
	if(ArrayResize(SminMid,limit+2)!=limit+2)return(-1);
   if(ArrayResize(SmaxMid,limit+2)!=limit+2)return(-1);
	//----
   int Tnew=Time[limit+1];

   if (limit<MaxBar)
      if (Tnew==time[1])
      {
      TrendMin=TRENDMIN[1];
      TrendMid=TRENDMID[1];
      TrendMax=TRENDMAX[1];
      SminMin[limit+1]=SMINMIN[1];
      SmaxMin[limit+1]=SMAXMIN[1];
      SminMax[limit+1]=SMINMAX[1];
      SmaxMax[limit+1]=SMAXMAX[1];
      SminMid[limit+1]=SMINMID[1];
      SmaxMid[limit+1]=SMAXMID[1];
      Expert=false;
      }
      else
      if (Tnew==time[0])
      {
      TrendMin=TRENDMIN[0];
      TrendMid=TRENDMID[0];
      TrendMax=TRENDMAX[0];
      SminMin[limit+1]=SMINMIN[0];
      SmaxMin[limit+1]=SMAXMIN[0];
      SminMax[limit+1]=SMINMAX[0];
      SmaxMax[limit+1]=SMAXMAX[0];
      SminMid[limit+1]=SMINMID[0];
      SmaxMid[limit+1]=SMAXMID[0];
      TRENDMIN[1]=TRENDMIN[0];
      TRENDMID[1]=TRENDMID[0];
      TRENDMAX[1]=TRENDMAX[0];
      SMINMIN[1]=SMINMIN[0];
      SMAXMIN[1]=SMAXMIN[0];
      SMINMAX[1]=SMINMAX[0];
      SMAXMAX[1]=SMAXMAX[0];
      SMINMID[1]=SMINMID[0];
      SMAXMID[1]=SMAXMID[0];
      }
   else
   {
   if (Tnew>time[1])Print("ERROR01");
   else Print("ERROR02");
   return(-1);
   }


	for(shift=limit;shift>=0;shift--)
   {

	double AvgRange=0;
	double Weight = 0;
	  for (int i=Length-1;i>=0;i--)
	  {
     if(MA_Mode==0) double alfa= 1.0; else alfa= 1.0*(Length-i)/Length;
     AvgRange+= alfa*(High[shift+i]-Low[shift+i]);
     Weight += alfa;
     }
	  ATR0 = AvgRange/Weight;

	if (ATR0>ATRmax) ATRmax=ATR0;
	if (ATR0<ATRmin) ATRmin=ATR0;

	if (StepSizeMIN > 0) ATRmin = StepSizeMIN*Point;
	if (StepSizeMAX > 0) ATRmax = StepSizeMAX*Point;

	StepSizeMin=MathRound(Kv*ATRmin/Point)*Point;
	StepSizeMax=MathRound(Kv*ATRmax/Point)*Point;
	StepSizeMid=MathRound(Kv*0.5*(ATRmax+ATRmin)/Point)*Point;

	Comment(" StepSize_min = ", StepSizeMin/Point,"\n",
	        " StepSize_mid = ", StepSizeMid/Point,"\n",
	        " StepSize_max = ", StepSizeMax/Point);


	SmaxMin[shift]=Close[shift]+2.0*StepSizeMin;
	SminMin[shift]=Close[shift]-2.0*StepSizeMin;

	SmaxMax[shift]=Close[shift]+2.0*StepSizeMax;
	SminMax[shift]=Close[shift]-2.0*StepSizeMax;

	SmaxMid[shift]=Close[shift]+2.0*StepSizeMid;
	SminMid[shift]=Close[shift]-2.0*StepSizeMid;

	if(Close[shift]>SmaxMin[shift+1]) TrendMin=1;
	if(Close[shift]<SminMin[shift+1]) TrendMin=-1;

	if(Close[shift]>SmaxMax[shift+1]) TrendMax=1;
	if(Close[shift]<SminMax[shift+1]) TrendMax=-1;

	if(Close[shift]>SmaxMid[shift+1]) TrendMid=1;
	if(Close[shift]<SminMid[shift+1]) TrendMid=-1;


	  if(TrendMin>0)
	  {
	  if(SminMin[shift]<SminMin[shift+1]) SminMin[shift]=SminMin[shift+1];
	  LineFstBuffer[shift]=SminMin[shift]+StepSizeMin;
	  }
	  if(TrendMin<0)
	  {
	  if(SmaxMin[shift]>SmaxMin[shift+1]) SmaxMin[shift]=SmaxMin[shift+1];
	  LineFstBuffer[shift]=SmaxMin[shift]-StepSizeMin;
	  }
	  if(TrendMax>0)
	  {
	  if(SminMax[shift]<SminMax[shift+1]) SminMax[shift]=SminMax[shift+1];
	  LineSlwBuffer[shift]=SminMax[shift]+StepSizeMax;
	  }

	  if(TrendMax<0)
	  {
	  if(SmaxMax[shift]>SmaxMax[shift+1]) SmaxMax[shift]=SmaxMax[shift+1];
	  LineSlwBuffer[shift]=SmaxMax[shift]-StepSizeMax;
	  }

	  if(TrendMid>0)
	  {
	  if(SminMid[shift]<SminMid[shift+1]) SminMid[shift]=SminMid[shift+1];
	  LineMidBuffer[shift]=SminMid[shift]+StepSizeMid;
	  }

	  if(TrendMid<0)
	  {
	  if(SmaxMid[shift]>SmaxMid[shift+1]) SmaxMid[shift]=SmaxMid[shift+1];
	  LineMidBuffer[shift]=SmaxMid[shift]-StepSizeMid;
	  }

	  if ((shift==2)||((shift==1)&&(Expert==true)))
      {
      time [shift-1]=Time [shift];

      TRENDMIN[shift-1]=TrendMin;
      TRENDMID[shift-1]=TrendMid;
      TRENDMAX[shift-1]=TrendMax;
      SMINMIN[shift-1]=SminMin[shift];
      SMAXMIN[shift-1]=SmaxMin[shift];
      SMINMAX[shift-1]=SminMax[shift];
      SMAXMAX[shift-1]=SmaxMax[shift];
      SMINMID[shift-1]=SminMid[shift];
      SMAXMID[shift-1]=SmaxMid[shift];
      }
   }
	return(0);
}
