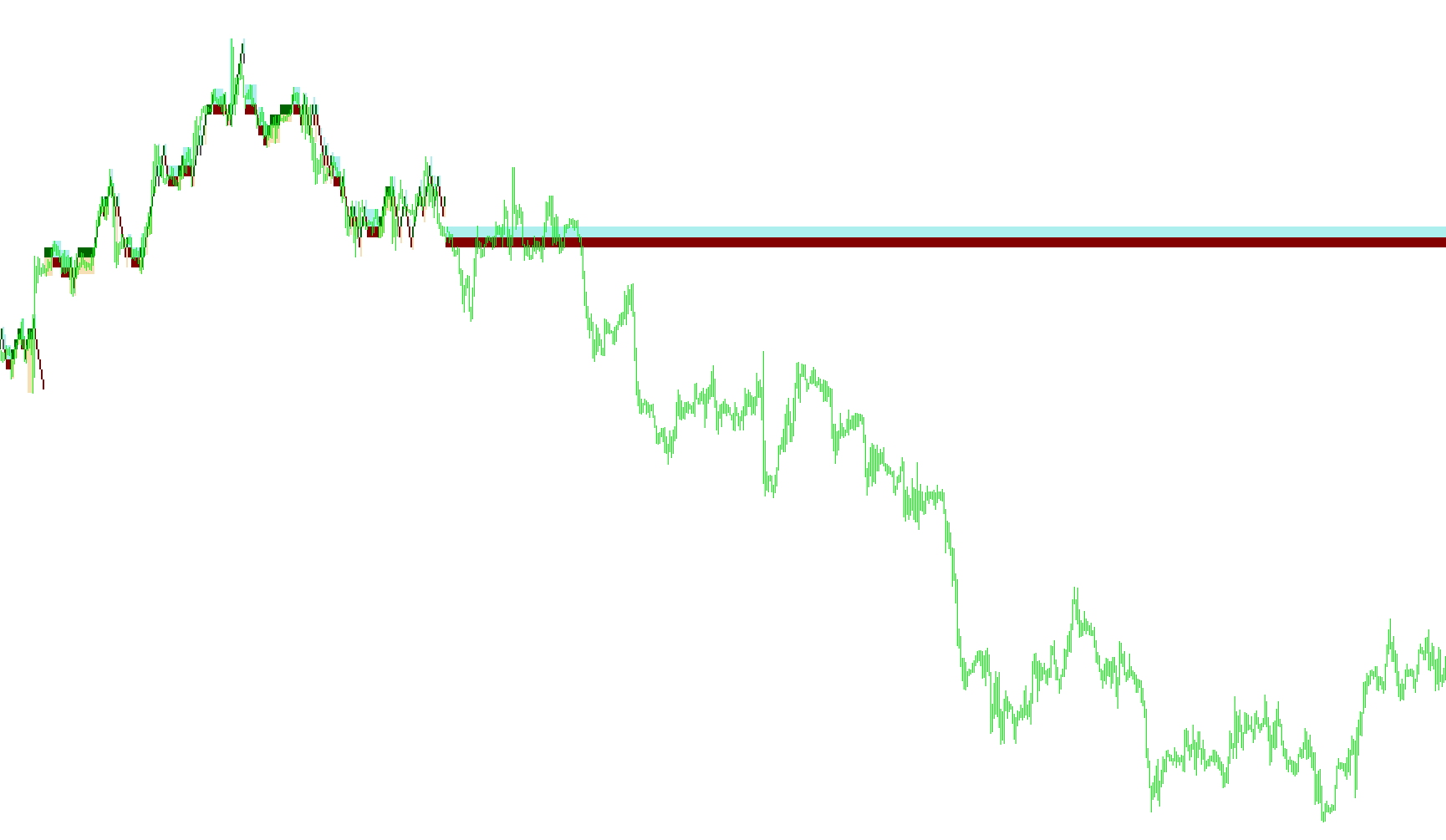

RenkoShade2

This script is designed to transform the standard way you view price movement on a trading chart by overlaying "Renko" bricks onto your existing timeframe. Instead of showing every tiny fluctuation in price over time, it simplifies the market into distinct blocks that only change based on a specific amount of price movement.

How the Logic Works

1. Price Filtering (The Renko Principle) Most charts show every tick, which can create "noise." This script ignores minor price movements and only creates a new visual brick when the price moves by a specific distance (the "Box Size") that you define in the settings.

  • If the price moves up by that amount, a new green brick is drawn.
  • If the price moves down by that amount, a new maroon brick is drawn.

2. Intelligent Calculation The script works by constantly monitoring the "Bid" (current selling price). It compares this live price against the boundaries of the last completed brick:

  • Trend Identification: It determines if the current movement is significant enough to complete a new brick or if it is just a minor fluctuation within the current price range.
  • Automatic Scaling: To ensure accuracy across different types of assets (like Currencies vs. JPY pairs), the script automatically detects how many decimal places are being used and adjusts the brick size accordingly so the visuals remain consistent.

3. Visual Construction The logic doesn't just draw a simple line; it builds a complete visual "brick" consisting of three parts:

  • The Body: The main rectangle representing the price change.
  • The Head/Tail (Wicks): If enabled, the script tracks the highest and lowest points reached during the formation of that brick. This helps you see how far the price "overreached" before settling into the next block.

4. Historical and Live Processing The script handles data in two phases:

  • Historical Phase: When you first load the chart, the script quickly scans back through your previous price history to draw all the old bricks so the chart looks complete from the start.
  • Live Phase: Once the history is loaded, it switches to "live mode," watching every new price tick. As soon as the price hits the required distance to form a new brick, it instantly draws it on your screen.

5. Cleanup and Organization To keep your workspace clean, the script is programmed to identify only its own objects. When you remove the script from the chart, it automatically finds and deletes all the bricks it created, leaving your original chart exactly as you found it.

Miscellaneous
It writes information to fileIt writes information to file
16 Views
0 Downloads
0 Favorites
RenkoShade2
//+------------------------------------------------------------------+
//|                                                  RenkoShade2.mq4 |
//|   Draws renko on normal tf main window                           |
//|   main algo ripped from renkolivechart_v32                       |
//|   plus minor modification to make it work                        |
//|   and make sense to the coder himself                            |
//|                                                     , Doztronics |
//|                                        http://www.doztronics.com |
//+------------------------------------------------------------------+
#property copyright ", Doztronics"
#property link      "http://www.doztronics.com"
// email: regfrea.k@gmail.com

#property indicator_chart_window
#include <stdlib.mqh>
//+------------------------------------------------------------------+
extern color RenkoBodyUp=DarkGreen;
extern color RenkoBodyDn=Maroon;
extern color RenkoHead=PaleTurquoise;
extern color RenkoTail=Wheat;

extern int debugIdx=0;

int rsBoxIdx=1;
bool rsBoxUp=true;

double p=0;
double RenkoSizeP=0;

double rso,rsc,rsh,rsl,rst,rsv;
//+------------------------------------------------------------------+
extern int RenkoBoxSize = 5;
extern int RenkoBoxOffset = 0;
extern bool ShowWicks = true;
extern int BarsCount=500;
//+------------------------------------------------------------------+
int HstHandle = -1, MT4InternalMsg = 0;
string SymbolName;



//+------------------------------------------------------------------+
int start() {

    static double BoxPoints, UpWick, DnWick;
    static double PrevLow, PrevHigh, PrevOpen, PrevClose, CurVolume, CurLow, CurHigh, CurOpen, CurClose;
    static datetime PrevTime;

    //+------------------------------------------------------------------+
    // This is only executed ones, then the first tick arives.
    if(HstHandle < 0) {
        // Init
        HstHandle=0;
        // Error checking
        if(MathAbs(RenkoBoxOffset) >= RenkoBoxSize) {
            Print("Error: |RenkoBoxOffset| should be less then RenkoBoxSize!");
            return(-1);
        }
        //

        int BoxSize = RenkoBoxSize;
        int BoxOffset = RenkoBoxOffset;
        if(Digits == 5 || (Digits == 3 && StringFind(Symbol(), "JPY") != -1)) {
            BoxSize = BoxSize*10;
            BoxOffset = BoxOffset*10;
        }
        if(Digits == 6 || (Digits == 4 && StringFind(Symbol(), "JPY") != -1)) {
            BoxSize = BoxSize*100;
            BoxOffset = BoxOffset*100;
        }

        SymbolName = Symbol();
        BoxPoints = NormalizeDouble(BoxSize*Point, Digits);

//        PrevLow = NormalizeDouble(BoxOffset*Point + MathFloor(Close[Bars-1]/BoxPoints)*BoxPoints, Digits);
        PrevLow = NormalizeDouble(BoxOffset*Point + MathFloor(Close[BarsCount-1]/BoxPoints)*BoxPoints, Digits);
        DnWick = PrevLow;
        PrevHigh = PrevLow + BoxPoints;
        UpWick = PrevHigh;
        PrevOpen = PrevLow;
        PrevClose = PrevHigh;
        CurVolume = 1;
//        PrevTime = Time[Bars-1];
        PrevTime = Time[BarsCount-1];

        //

         // process historical data
          //int i = Bars-2;
          int i = BarsCount-2;
        //Print(Symbol() + " " + High[i] + " " + Low[i] + " " + Open[i] + " " + Close[i]);
        //---------------------------------------------------------------------------
          while(i >= 0) {

            CurVolume = CurVolume + Volume[i];

            UpWick = MathMax(UpWick, High[i]);
            DnWick = MathMin(DnWick, Low[i]);

            // update low before high or the revers depending on is closest to prev. bar
            bool UpTrend = High[i]+Low[i] > High[i+1]+Low[i+1];

            while(UpTrend && (Low[i] < PrevLow-BoxPoints || CompareDoubles(Low[i], PrevLow-BoxPoints))) {
                  PrevHigh = PrevHigh - BoxPoints;
                  PrevLow = PrevLow - BoxPoints;
                  PrevOpen = PrevHigh;
                  PrevClose = PrevLow;

                rst=PrevTime;
                rso=PrevOpen;
                rsl=PrevLow;

                if(ShowWicks && UpWick > PrevHigh) rsh=UpWick;
                else rsh=PrevHigh;

                rsc=PrevClose;
                rsv=CurVolume;

                UpWick = 0;
                DnWick = EMPTY_VALUE;
                CurVolume = 0;
                CurHigh = PrevLow;
                CurLow = PrevLow;

                if(PrevTime < Time[i]) PrevTime = Time[i];
                else PrevTime=PrevTime+60*Period();

               ObjectDelete("rsBox"+rsBoxIdx);
               ObjectDelete("rsHead"+rsBoxIdx);
               ObjectDelete("rsTail"+rsBoxIdx);
               ObjectCreate("rsBox"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsc);
               ObjectCreate("rsHead"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rsc,PrevTime,rsh);
               ObjectCreate("rsTail"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsl);
               ObjectSet("rsBox"+rsBoxIdx,OBJPROP_COLOR,RenkoBodyUp);
               ObjectSet("rsHead"+rsBoxIdx,OBJPROP_COLOR,RenkoHead);
               ObjectSet("rsTail"+rsBoxIdx,OBJPROP_COLOR,RenkoTail);

                     if(rsBoxIdx==debugIdx){
                        Print("2010.01.15 16:10 --**",rsBoxIdx);
                        Print(rso);
                        Print(rsh);
                        Print(rsl);
                        Print(rsc);
                        Print(rst);
                     }

               rsBoxIdx++;

            }     // while(UpTrend && (Low[i] < PrevLow

            while(High[i] > PrevHigh+BoxPoints || CompareDoubles(High[i], PrevHigh+BoxPoints)) {
                  PrevHigh = PrevHigh + BoxPoints;
                  PrevLow = PrevLow + BoxPoints;
                  PrevOpen = PrevLow;
                  PrevClose = PrevHigh;

                rst=PrevTime;
                rso=PrevOpen;

                    if(ShowWicks && DnWick < PrevLow) rsl=DnWick;
                else rsl=PrevLow;

                rsh=PrevHigh;
                rsc=PrevClose;
                rsv=CurVolume;

                UpWick = High[i];
                DnWick = EMPTY_VALUE;
                CurVolume = 0;
                CurHigh = PrevHigh;
                CurLow = PrevHigh;

                if(PrevTime < Time[i]) PrevTime = Time[i];
                else PrevTime=PrevTime+60*Period();

               ObjectDelete("rsBox"+rsBoxIdx);
               ObjectDelete("rsHead"+rsBoxIdx);
               ObjectDelete("rsTail"+rsBoxIdx);
               ObjectCreate("rsBox"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsc);
               ObjectCreate("rsHead"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rsc,PrevTime,rsh);
               ObjectCreate("rsTail"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsl);
               ObjectSet("rsBox"+rsBoxIdx,OBJPROP_COLOR,RenkoBodyUp);
               ObjectSet("rsHead"+rsBoxIdx,OBJPROP_COLOR,RenkoHead);
               ObjectSet("rsTail"+rsBoxIdx,OBJPROP_COLOR,RenkoTail);

                  if(rsBoxIdx==debugIdx){
                     Print("2010.01.15 16:10 --##",rsBoxIdx);
                     Print(rso);
                     Print(rsh);
                     Print(rsl);
                     Print(rsc);
                     Print(rst);
                  }

               rsBoxIdx++;

            }     // while(High[i] > PrevHigh+BoxPoints || CompareDoubles

            while(!UpTrend && (Low[i] < PrevLow-BoxPoints || CompareDoubles(Low[i], PrevLow-BoxPoints))) {
                  PrevHigh = PrevHigh - BoxPoints;
                  PrevLow = PrevLow - BoxPoints;
                  PrevOpen = PrevHigh;
                  PrevClose = PrevLow;

                rst=PrevTime;
                rso=PrevOpen;
                rsl=PrevLow;

                if(ShowWicks && UpWick > PrevHigh) rsh=UpWick;
                else rsh=PrevHigh;

                rsc=PrevClose;
                rsv=CurVolume;

                UpWick = 0;
//                DnWick = EMPTY_VALUE;
                DnWick = Low[i];
                CurVolume = 0;
                CurHigh = PrevLow;
                CurLow = PrevLow;

                if(PrevTime < Time[i]) PrevTime = Time[i];
                else PrevTime=PrevTime+60*Period();

               ObjectDelete("rsBox"+rsBoxIdx);
               ObjectDelete("rsHead"+rsBoxIdx);
               ObjectDelete("rsTail"+rsBoxIdx);
               ObjectCreate("rsBox"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsc);
               ObjectCreate("rsHead"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsh);
               ObjectCreate("rsTail"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rsc,PrevTime,rsl);
               ObjectSet("rsBox"+rsBoxIdx,OBJPROP_COLOR,RenkoBodyDn);
               ObjectSet("rsHead"+rsBoxIdx,OBJPROP_COLOR,RenkoHead);
               ObjectSet("rsTail"+rsBoxIdx,OBJPROP_COLOR,RenkoTail);

                  if(rsBoxIdx==debugIdx){
                     Print("2010.01.15 16:10 --$$",rsBoxIdx);
                     Print(rso);
                     Print(rsh);
                     Print(rsl);
                     Print(rsc);
                     Print(rst);
                  }

               rsBoxIdx++;

            }
            i--;
        }
        //

//        Comment("RenkoLiveChart(" + RenkoBoxSize + "): Open Offline ", SymbolName, ",M", RenkoTimeFrame, " to view chart");

        if(Close[0] > MathMax(PrevClose, PrevOpen)) CurOpen = MathMax(PrevClose, PrevOpen);
        else if (Close[0] < MathMin(PrevClose, PrevOpen)) CurOpen = MathMin(PrevClose, PrevOpen);
        else CurOpen = Close[0];

        CurClose = Close[0];

        if(UpWick > PrevHigh) CurHigh = UpWick;
        if(DnWick < PrevLow) CurLow = DnWick;

        rst=PrevTime;
        rso=CurOpen;
        rsl=CurLow;
        rsh=CurHigh;
        rsc=CurClose;
        rsv=CurVolume;

//ZDO still in the making
        if(rso<rsc) { // UP
               ObjectDelete("rsBox"+rsBoxIdx);
               ObjectDelete("rsHead"+rsBoxIdx);
               ObjectDelete("rsTail"+rsBoxIdx);
               ObjectCreate("rsBox"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsc);
               ObjectCreate("rsHead"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rsc,PrevTime,rsh);
               ObjectCreate("rsTail"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsl);
               ObjectSet("rsBox"+rsBoxIdx,OBJPROP_COLOR,RenkoBodyUp);
               ObjectSet("rsHead"+rsBoxIdx,OBJPROP_COLOR,RenkoHead);
               ObjectSet("rsTail"+rsBoxIdx,OBJPROP_COLOR,RenkoTail);
        } else {  // DOWN
               ObjectDelete("rsBox"+rsBoxIdx);
               ObjectDelete("rsHead"+rsBoxIdx);
               ObjectDelete("rsTail"+rsBoxIdx);
               ObjectCreate("rsBox"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsc);
               ObjectCreate("rsHead"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsh);
               ObjectCreate("rsTail"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rsc,PrevTime,rsl);
               ObjectSet("rsBox"+rsBoxIdx,OBJPROP_COLOR,RenkoBodyDn);
               ObjectSet("rsHead"+rsBoxIdx,OBJPROP_COLOR,RenkoHead);
               ObjectSet("rsTail"+rsBoxIdx,OBJPROP_COLOR,RenkoTail);
        }

         if(rsBoxIdx==debugIdx){
                Print("2010.01.15 16:10 --^^",rsBoxIdx);
                Print(rso);
                Print(rsh);
                Print(rsl);
                Print(rsc);
                Print(rst);
             }

         rsBoxIdx++;


        return(0);
         // End historical data / Init
    }
    //----------------------------------------------------------------------------
     // HstHandle not < 0 so we always enter here after history done
    // Begin live data feed

    UpWick = MathMax(UpWick, Bid);
    DnWick = MathMin(DnWick, Bid);

    CurVolume++;

     //-------------------------------------------------------------------------
     // up box
       if(Bid > PrevHigh+BoxPoints || CompareDoubles(Bid, PrevHigh+BoxPoints)) {
        PrevHigh = PrevHigh + BoxPoints;
        PrevLow = PrevLow + BoxPoints;
          PrevOpen = PrevLow;
          PrevClose = PrevHigh;

        rst=PrevTime;
        rso=PrevOpen;

        if (ShowWicks && DnWick < PrevLow) rsl=DnWick;
        else rsl=PrevLow;

        rsh=PrevHigh;
        rsc=PrevClose;
        rsv=CurVolume;

        if(PrevTime < TimeCurrent()) PrevTime = TimeCurrent();
        else PrevTime=PrevTime+60*Period();

         ObjectDelete("rsBox"+rsBoxIdx);
         ObjectDelete("rsHead"+rsBoxIdx);
         ObjectDelete("rsTail"+rsBoxIdx);
         ObjectCreate("rsBox"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsc);
         ObjectCreate("rsHead"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rsc,PrevTime,rsh);
         ObjectCreate("rsTail"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsl);
         ObjectSet("rsBox"+rsBoxIdx,OBJPROP_COLOR,RenkoBodyUp);
         ObjectSet("rsHead"+rsBoxIdx,OBJPROP_COLOR,RenkoHead);
         ObjectSet("rsTail"+rsBoxIdx,OBJPROP_COLOR,RenkoTail);

         if(rsBoxIdx==debugIdx){
            Print("2010.01.15 16:10 --@@",rsBoxIdx);
            Print(rso);
            Print(rsh);
            Print(rsl);
            Print(rsc);
            Print(rst);
         }

         rsBoxIdx++;

        CurVolume = 0;
        CurHigh = PrevHigh;
        CurLow = PrevHigh;

        UpWick = 0;
        DnWick = EMPTY_VALUE;

      }
     //-------------------------------------------------------------------------
     // down box
    else if(Bid < PrevLow-BoxPoints || CompareDoubles(Bid,PrevLow-BoxPoints)) {
          PrevHigh = PrevHigh - BoxPoints;
          PrevLow = PrevLow - BoxPoints;
          PrevOpen = PrevHigh;
          PrevClose = PrevLow;

        rst=PrevTime;
        rso=PrevOpen;
        rsl=PrevLow;

        if(ShowWicks && UpWick > PrevHigh) rsh=UpWick;
        else rsh=PrevHigh;

        rsc=PrevClose;
        rsv=CurVolume;

        if(PrevTime < TimeCurrent()) PrevTime = TimeCurrent();
        else PrevTime=PrevTime+60*Period();

         ObjectDelete("rsBox"+rsBoxIdx);
         ObjectDelete("rsHead"+rsBoxIdx);
         ObjectDelete("rsTail"+rsBoxIdx);
         ObjectCreate("rsBox"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsc);
         ObjectCreate("rsHead"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rso,PrevTime,rsh);
         ObjectCreate("rsTail"+rsBoxIdx,OBJ_RECTANGLE,0,rst,rsc,PrevTime,rsl);
         ObjectSet("rsBox"+rsBoxIdx,OBJPROP_COLOR,RenkoBodyDn);
         ObjectSet("rsHead"+rsBoxIdx,OBJPROP_COLOR,RenkoHead);
         ObjectSet("rsTail"+rsBoxIdx,OBJPROP_COLOR,RenkoTail);

         if(rsBoxIdx==debugIdx){
            Print("2010.01.15 16:10 --%%",rsBoxIdx);
            Print(rso);
            Print(rsh);
            Print(rsl);
            Print(rsc);
            Print(rst);
         }

         rsBoxIdx++;

          CurVolume = 0;
        CurHigh = PrevLow;
        CurLow = PrevLow;

        UpWick = 0;
        DnWick = EMPTY_VALUE;

         }
     //-------------------------------------------------------------------------
       // no box - high/low not hit
    else {
        if(Bid > CurHigh) CurHigh = Bid;
        if(Bid < CurLow) CurLow = Bid;

        if(PrevHigh <= Bid) CurOpen = PrevHigh;
        else if(PrevLow >= Bid) CurOpen = PrevLow;
        else CurOpen = Bid;

        CurClose = Bid;

/*        FileWriteInteger(HstHandle, PrevTime, LONG_VALUE);        // Time
        FileWriteDouble(HstHandle, CurOpen, DOUBLE_VALUE);             // Open
        FileWriteDouble(HstHandle, CurLow, DOUBLE_VALUE);        // Low
        FileWriteDouble(HstHandle, CurHigh, DOUBLE_VALUE);        // High
        FileWriteDouble(HstHandle, CurClose, DOUBLE_VALUE);        // Close
        FileWriteDouble(HstHandle, CurVolume, DOUBLE_VALUE);        // Volume
            FileFlush(HstHandle);

        UpdateChartWindow();
*/
         }
         return(0);
}
//+------------------------------------------------------------------+
int deinit() {
  int    obj_total=ObjectsTotal();
  string name;
  for(int i=obj_total;i>=0;i--)
    {
     name=ObjectName(i);
     if(StringSubstr(name,0,2)=="rs") {
      ObjectDelete(name);
     }
    }

    Comment("");
    return(0);
}
//+------------------------------------------------------------------+
int init() {
  int    obj_total=ObjectsTotal();
  string name;
  for(int i=obj_total;i>=0;i--)
    {
     name=ObjectName(i);
     if(StringSubstr(name,0,2)=="rs") {
      ObjectDelete(name);
     }
    }

    Comment("");
    return(0);
}
//+------------------------------------------------------------------+

Similar scripts

RSI_Slowdown

DragTrade_v_0.60

00mp.pocLn

This indicator visualizes price distribution across specific geographic trading sessions to identify the Point of Control and historical liquidity density.

marketprofile_pob

This indicator visualizes price action density across different geographic trading sessions to identify the Point of Control (POC) and balance levels.

__s_Koh_OEMA

Envelopes for RSI

6Monitor_v0

Lines_sell

This indicator automatically plots a series of horizontal sell levels at equidistant intervals below a user-defined anchor price to visualize a tiered downside grid.

SL_BW_v1

SL_BW

The code identifies dynamic stop-loss levels by scanning historical price extremes on higher timeframes to find structural pivot points relative to current market movement.

BBands for RSI.1.1

Comments
