Overview
This script is a specialized technical analysis tool designed for the MetaTrader platform. Its primary purpose is to identify "crossovers" between two different moving averages—which are mathematical tools used by traders to smooth out price action and identify trends. Instead of requiring you to manually watch the lines constantly, this tool automatically detects exactly when one line passes over the other and marks those moments on your chart.
Key Features and Logic
1. Customizable Moving Averages The tool allows you to configure two separate moving averages. You can choose the "speed" or "type" of each average (such as Simple, Exponential, Smoothed, or Linear Weighted). This flexibility lets you pair fast-reacting lines with slower, more stable lines to find different types of trading opportunities.

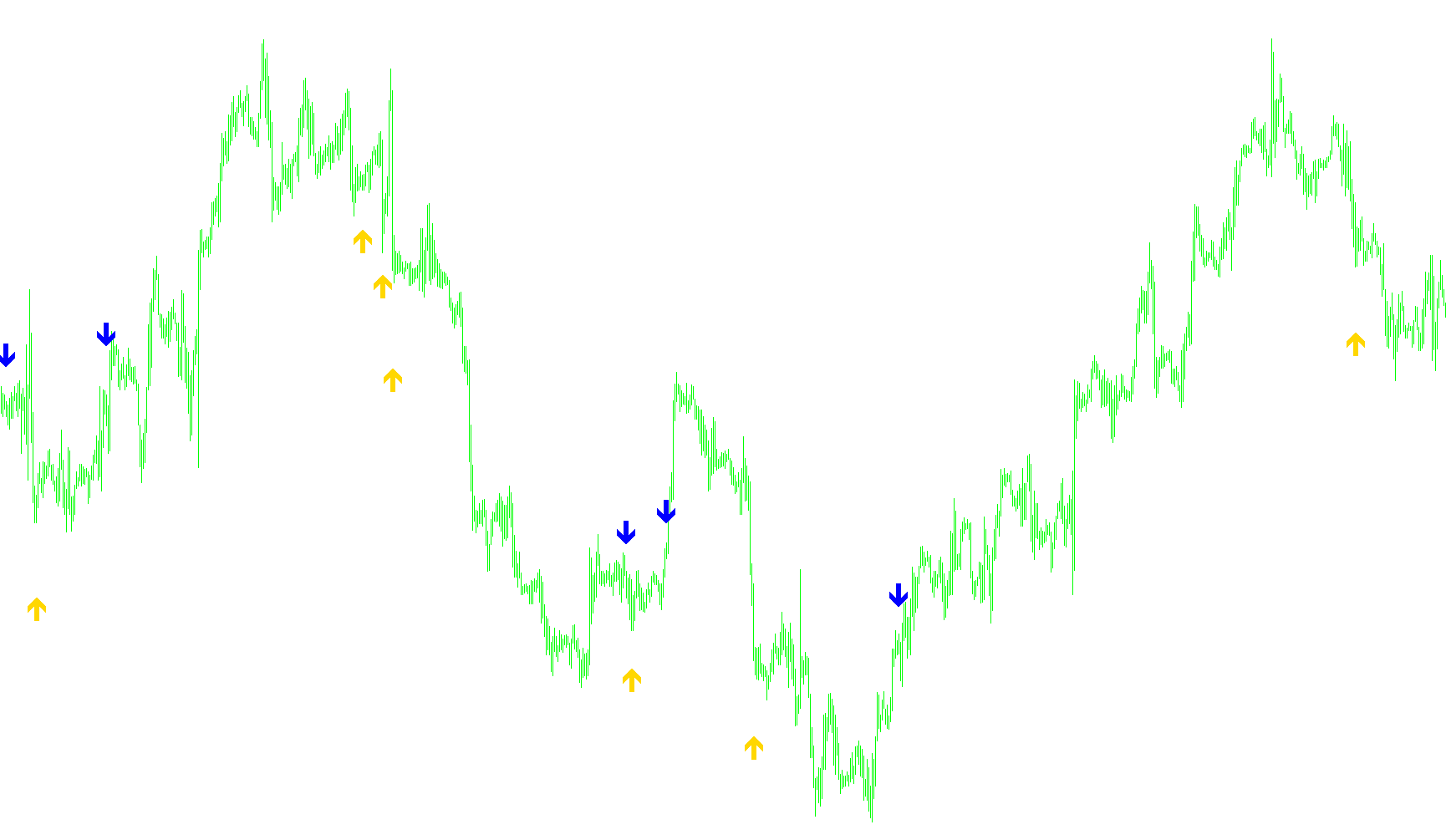

2. Visual Signaling (Arrows) When the script detects a crossover, it places a visual marker on the chart:
- Cross Up: When the first moving average moves from below to above the second, an arrow appears beneath the price candle.
- Cross Down: When the first moving average moves from above to below the second, an arrow appears above the price candle.
The script includes various visual styles (different shapes like thick, thin, hollow, or diagonal arrows) so you can choose the look that best fits your trading layout.
3. Automated Alerts One of the most functional aspects of this logic is the notification system. You don't have to stay glued to the screen to see the crossovers; the script can be configured to:
- Pop-up Alerts: Trigger an immediate sound and visual alert within the trading software.
- Email Notifications: Send an automated email to your registered account the moment a crossover occurs.
These alerts are programmed to trigger only when a "New Bar" forms, which prevents the system from sending multiple redundant notifications during a single price fluctuation.
4. Dynamic Positioning To ensure the markers are easy to see but don't clutter the price action, the script calculates the average range of the recent candles. It then places the arrows at a specific distance (1.5 times that average range) away from the High or Low of the candle, ensuring the signal is always clearly visible regardless of how much you zoom in or out on your chart.
Summary of Use
In simple terms, this tool acts as an automated "scout." It watches two lines for you; when they cross, it highlights the moment with a custom arrow and notifies you via sound or email, making it easier to identify potential trend shifts at a glance.
//+------------------------------------------------------------------+
//| 2MA Crossover.mq4 modified from |
//| EMA-Crossover_Signal.mq4 |
//| Copyright © 2005-07, Jason Robinson (jnrtrading) |
//| http://www.jnrtading.co.uk |
//+------------------------------------------------------------------+
/*
+------------------------------------------------------------------+
| Allows you to enter two ema periods and it will then show you at |
| Which point they crossed over. It is more usful on the shorter |
| periods that get obscured by the bars / candlesticks and when |
| the zoom level is out. Also allows you then to remove the emas |
| from the chart. (emas are initially set at 5 and 6) |
+------------------------------------------------------------------+
*/
#property copyright "Copyright © 2005-07, Jason Robinson (jnrtrading)"
#property link "http://www.jnrtrading.co.uk"
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Yellow
#property indicator_width1 3
#property indicator_color2 Aqua
#property indicator_width2 3
extern string note1 = "First Moving Average";
extern int MA1 = 8;
extern string note2 = "0=sma, 1=ema, 2=smma, 3=lwma";
extern int MA1Mode = 1; //0=sma, 1=ema, 2=smma, 3=lwma
extern string note3 = "--------------------------------------------";
extern string note4 = "Second Moving Average";
extern int MA2 = 13;
extern string note5 = "0=sma, 1=ema, 2=smma, 3=lwma";
extern int MA2Mode = 1; //0=sma, 1=ema, 2=smma, 3=lwma
extern string note6 = "--------------------------------------------";
extern string note7 = "Arrow Type";
extern string note8 = "0=Thick, 1=Thin, 2=Hollow, 3=Round";
extern string note9 = "4=Fractal, 5=Diagonal Thin";
extern string note10 = "6=Diagonal Thick, 7=Diagonal Hollow";
extern string note11 = "8=Thumb, 9=Finger";
extern int ArrowType=0;
extern string note12 = "--------------------------------------------";
extern string note13 = "turn on Alert = true; turn off = false";
extern bool AlertOn = false;
extern string note14 = "--------------------------------------------";
extern string note15 = "send Email Alert = true; turn off = false";
extern bool SendAnEmail=false;
double CrossUp[];
double CrossDown[];
string AlertPrefix, MA1short_name, MA2short_name;
string GetTimeFrameStr() {
switch(Period())
{
case 1 : string TimeFrameStr="M1"; break;
case 5 : TimeFrameStr="M5"; break;
case 15 : TimeFrameStr="M15"; break;
case 30 : TimeFrameStr="M30"; break;
case 60 : TimeFrameStr="H1"; break;
case 240 : TimeFrameStr="H4"; break;
case 1440 : TimeFrameStr="D1"; break;
case 10080 : TimeFrameStr="W1"; break;
case 43200 : TimeFrameStr="MN1"; break;
default : TimeFrameStr=Period();
}
return (TimeFrameStr);
}
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
if (ArrowType == 0) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 233);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 234);
}
else if (ArrowType == 1) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 225);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 226);
}
else if (ArrowType == 2) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 241);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 242);
}
else if (ArrowType == 3) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 221);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 222);
}
else if (ArrowType == 4) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 217);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 218);
}
else if (ArrowType == 5) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 228);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 230);
}
else if (ArrowType == 6) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 236);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 238);
}
else if (ArrowType == 7) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 246);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 248);
}
else if (ArrowType == 8) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 67);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 68);
}
else if (ArrowType == 9) {
SetIndexStyle(0,DRAW_ARROW,3,4);
SetIndexArrow(0, 71);
SetIndexStyle(1,DRAW_ARROW,3,4);
SetIndexArrow(1, 72);
}
SetIndexBuffer(0, CrossUp);
SetIndexBuffer(1, CrossDown);
//---- indicator short name
switch(MA1Mode)
{
case 1 : MA1short_name="EMA"; break;
case 2 : MA1short_name="SMMA"; break;
case 3 : MA1short_name="LWMA"; break;
default :
MA1Mode=0;
MA1short_name="SMA";
}
switch(MA2Mode)
{
case 1 : MA2short_name="EMA"; break;
case 2 : MA2short_name="SMMA"; break;
case 3 : MA2short_name="LWMA"; break;
default :
MA2Mode=0;
MA2short_name="SMA";
}
AlertPrefix=Symbol()+" ("+GetTimeFrameStr()+"): ";
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
//----
return(0);
}
//+------------------------------------------------------------------+
bool NewBar()
{
static datetime lastbar;
datetime curbar = Time[0];
if(lastbar!=curbar)
{
lastbar=curbar;
return (true);
}
else
{
return(false);
}
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start() {
int limit, i, counter;
double MA1now, MA2now, MA1previous, MA2previous, MA1after, MA2after;
double Range, AvgRange;
int counted_bars=IndicatorCounted();
//---- check for possible errors
if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars;
for(i = 0; i <= limit; i++) {
counter=i;
Range=0;
AvgRange=0;
for (counter=i ;counter<=i+9;counter++)
{
AvgRange=AvgRange+MathAbs(High[counter]-Low[counter]);
}
Range=AvgRange/10;
MA1now = iMA(NULL, 0, MA1, 0, MA1Mode, PRICE_CLOSE, i);
MA1previous = iMA(NULL, 0, MA1, 0, MA1Mode, PRICE_CLOSE, i+1);
MA1after = iMA(NULL, 0, MA1, 0, MA1Mode, PRICE_CLOSE, i-1);
MA2now = iMA(NULL, 0, MA2, 0, MA2Mode, PRICE_OPEN, i);
MA2previous = iMA(NULL, 0, MA2, 0, MA2Mode, PRICE_OPEN, i+1);
MA2after = iMA(NULL, 0, MA2, 0, MA2Mode, PRICE_OPEN, i-1);
if ((MA1now > MA2now) && (MA1previous < MA2previous) && (MA1after > MA2after)) {
CrossUp[i] = Low[i] - Range*1.5;
if (AlertOn && NewBar()) {
Alert(AlertPrefix+MA1short_name+" ("+MA1+") "+"crosses UP " + MA2short_name+" ("+MA2+")");
}
if (SendAnEmail && NewBar()) {
SendMail(AlertPrefix,MA1short_name+" ("+MA1+") "+"crosses UP " + MA2short_name+" ("+MA2+")");
}
}
else if ((MA1now < MA2now) && (MA1previous > MA2previous) && (MA1after < MA2after)) {
CrossDown[i] = High[i] + Range*1.5;
if (AlertOn && NewBar()) {
Alert(AlertPrefix+MA1short_name+" ("+MA1+") "+"crosses DOWN " + MA2short_name+" ("+MA2+")");
}
if (SendAnEmail && NewBar()) {
SendMail(AlertPrefix,MA1short_name+" ("+MA1+") "+"crosses DOWN " + MA2short_name+" ("+MA2+")");
}
}
}
return(0);
}
