2MA Crossover

Download script
Author: Copyright � 2005-07, Jason Robinson (jnrtrading)
2MA Crossover

This script is designed for traders using the MetaTrader platform who want to identify specific moments when two moving averages intersect. By automating this detection, it provides a clear visual and auditory signal for potential trend changes or momentum shifts without requiring the trader to manually watch every price movement.

Core Functionality

The primary purpose of this tool is to monitor two different moving average lines on a price chart. When one line crosses over the other, the script identifies that specific point in time and marks it clearly. This is particularly helpful during fast-moving markets or when using short timeframes where small movements can be easily missed by the human eye.

Key Features

  • Customizable Moving Averages: Users can define two separate moving averages. You have the flexibility to choose different periods (lengths) and calculation types (such as Simple, Exponential, Smoothed, or Linear Weighted) for each line.

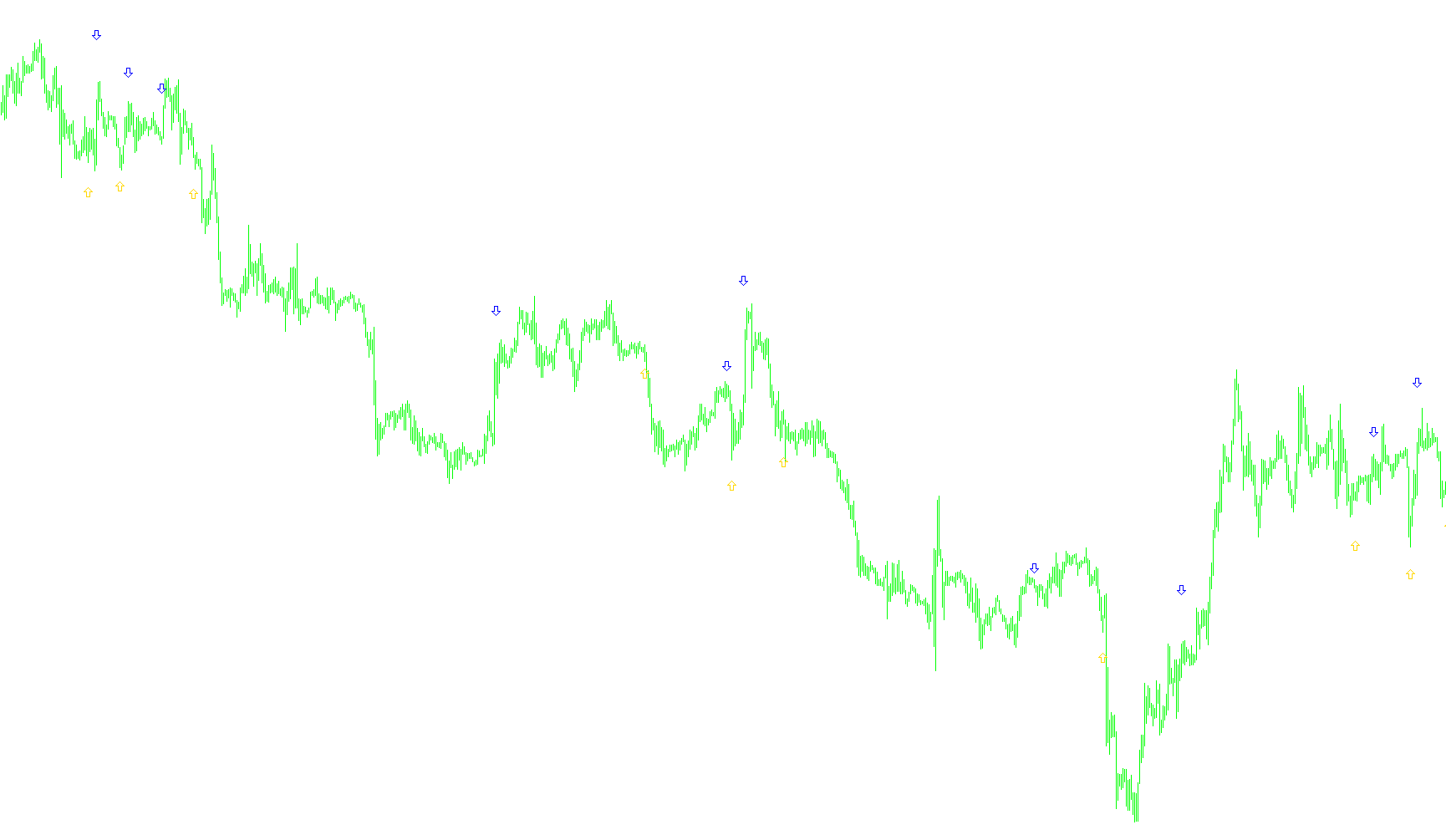

  • Visual Signals: Instead of just watching lines touch, the script places distinct visual markers (arrows) on the chart at the exact moment a crossover occurs. You can customize the style of these arrows to suit your preference.
  • Dynamic Positioning: The tool calculates the "range" of the current price candles to ensure that the arrows are placed at an appropriate distance from the bars. This prevents the signals from overlapping with the actual price action, keeping the chart clean and readable.
  • Real-Time Notifications: The script can be configured to proactively notify you when a crossover happens. It supports:
    • Pop-up Alerts: On-screen notifications within the trading platform.
    • Email Alerts: Sending an email directly to your inbox (if configured).
  • Smart Filtering: To avoid "false" alarms caused by lines merely touching each other, the script checks the previous and subsequent data points to confirm a definitive crossover has actually taken place before triggering a signal.

How it Benefits the Trader

This tool removes the guesswork from trend identification. By converting the visual intersection of two lines into a concrete signal (an arrow and an alert), it allows for more disciplined trading. It helps you stay informed of market shifts instantly, whether you are actively staring at the screen or managing multiple charts at once.

Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt sends emails
13 Views
0 Downloads
0 Favorites
2MA Crossover
//+------------------------------------------------------------------+
//|                                  2MA Crossover.mq4 modified from |
//|                                         EMA-Crossover_Signal.mq4 |
//|         Copyright © 2005-07, Jason Robinson (jnrtrading)         |
//|                   http://www.jnrtading.co.uk                     |
//+------------------------------------------------------------------+

/*
  +------------------------------------------------------------------+
  | Allows you to enter two ema periods and it will then show you at |
  | Which point they crossed over. It is more usful on the shorter   |
  | periods that get obscured by the bars / candlesticks and when    |
  | the zoom level is out. Also allows you then to remove the emas   |
  | from the chart. (emas are initially set at 5 and 6)              |
  +------------------------------------------------------------------+
*/
#property copyright "Copyright © 2005-07, Jason Robinson (jnrtrading)"
#property link      "http://www.jnrtrading.co.uk"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 DodgerBlue
#property indicator_width1 3
#property indicator_color2 Magenta
#property indicator_width2 3

extern string note1 = "First Moving Average";
extern int MA1 =   4;
extern string note2 = "0=sma, 1=ema, 2=smma, 3=lwma";
extern int MA1Mode = 1; //0=sma, 1=ema, 2=smma, 3=lwma
extern string note3 = "--------------------------------------------";
extern string note4 = "Second Moving Average";
extern int MA2 =   8;
extern string note5 = "0=sma, 1=ema, 2=smma, 3=lwma";
extern int MA2Mode = 1; //0=sma, 1=ema, 2=smma, 3=lwma
extern string note6 = "--------------------------------------------";
extern string note7 = "Arrow Type";
extern string note8 = "0=Thick, 1=Thin, 2=Hollow, 3=Round";
extern string note9 = "4=Fractal, 5=Diagonal Thin";
extern string note10 = "6=Diagonal Thick, 7=Diagonal Hollow";
extern string note11 = "8=Thumb, 9=Finger";
extern int ArrowType=2;
extern string note12 = "--------------------------------------------";
extern string note13 = "turn on Alert = true; turn off = false";
extern bool AlertOn = true;
extern string note14 = "--------------------------------------------";
extern string note15 = "send Email Alert = true; turn off = false";
extern bool SendAnEmail=false;

double CrossUp[];
double CrossDown[];
string AlertPrefix, MA1short_name, MA2short_name;
string GetTimeFrameStr() {
   switch(Period())
   {
      case 1 : string TimeFrameStr="M1"; break;
      case 5 : TimeFrameStr="M5"; break;
      case 15 : TimeFrameStr="M15"; break;
      case 30 : TimeFrameStr="M30"; break;
      case 60 : TimeFrameStr="H1"; break;
      case 240 : TimeFrameStr="H4"; break;
      case 1440 : TimeFrameStr="D1"; break;
      case 10080 : TimeFrameStr="W1"; break;
      case 43200 : TimeFrameStr="MN1"; break;
      default : TimeFrameStr=Period();
   }
   return (TimeFrameStr);
   }

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   if (ArrowType == 0) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 233);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 234);
   }
   else if (ArrowType == 1) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 225);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 226);
   }
   else if (ArrowType == 2) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 241);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 242);
   }
   else if (ArrowType == 3) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 221);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 222);
   }
   else if (ArrowType == 4) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 217);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 218);
   }
   else if (ArrowType == 5) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 228);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 230);
   }
   else if (ArrowType == 6) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 236);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 238);
   }
   else if (ArrowType == 7) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 246);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 248);
   }
   else if (ArrowType == 8) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 67);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 68);
   }
   else if (ArrowType == 9) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 71);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 72);
   }

   SetIndexBuffer(0, CrossUp);
   SetIndexBuffer(1, CrossDown);

//---- indicator short name
   switch(MA1Mode)
     {
      case 1 : MA1short_name="EMA";  break;
      case 2 : MA1short_name="SMMA"; break;
      case 3 : MA1short_name="LWMA"; break;
      default :
         MA1Mode=0;
         MA1short_name="SMA";
     }
   switch(MA2Mode)
     {
      case 1 : MA2short_name="EMA";  break;
      case 2 : MA2short_name="SMMA"; break;
      case 3 : MA2short_name="LWMA"; break;
      default :
         MA2Mode=0;
         MA2short_name="SMA";
     }

   AlertPrefix=Symbol()+" ("+GetTimeFrameStr()+"):  ";
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
bool NewBar()
{
   static datetime lastbar;
   datetime curbar = Time[0];
   if(lastbar!=curbar)
   {
      lastbar=curbar;
      return (true);
   }
   else
   {
      return(false);
   }
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start() {
   int limit, i, counter;
   double MA1now, MA2now, MA1previous, MA2previous, MA1after, MA2after;
   double Range, AvgRange;
   int counted_bars=IndicatorCounted();
//---- check for possible errors
   if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;

   limit=Bars-counted_bars;

   for(i = 0; i <= limit; i++) {

      counter=i;
      Range=0;
      AvgRange=0;
      for (counter=i ;counter<=i+9;counter++)
      {
         AvgRange=AvgRange+MathAbs(High[counter]-Low[counter]);
      }
      Range=AvgRange/10;

      MA1now = iMA(NULL, 0, MA1, 0, MA1Mode, PRICE_CLOSE, i);
      MA1previous = iMA(NULL, 0, MA1, 0, MA1Mode, PRICE_CLOSE, i+1);
      MA1after = iMA(NULL, 0, MA1, 0, MA1Mode, PRICE_CLOSE, i-1);

      MA2now = iMA(NULL, 0, MA2, 0, MA2Mode, PRICE_CLOSE, i);
      MA2previous = iMA(NULL, 0, MA2, 0, MA2Mode, PRICE_CLOSE, i+1);
      MA2after = iMA(NULL, 0, MA2, 0, MA2Mode, PRICE_CLOSE, i-1);

      if ((MA1now > MA2now) && (MA1previous < MA2previous) && (MA1after > MA2after)) {
                   CrossUp[i] = Low[i] - Range*1.5;
                   if (AlertOn && NewBar()) {
                      Alert(AlertPrefix+MA1short_name+" ("+MA1+") "+"crosses UP " + MA2short_name+" ("+MA2+")");
                   }
              	    if (SendAnEmail && NewBar()) {
                      SendMail(AlertPrefix,MA1short_name+" ("+MA1+") "+"crosses UP " + MA2short_name+" ("+MA2+")");
              	    }
      }
      else if ((MA1now < MA2now) && (MA1previous > MA2previous) && (MA1after < MA2after)) {
                   CrossDown[i] = High[i] + Range*1.5;
                   if (AlertOn && NewBar()) {
                      Alert(AlertPrefix+MA1short_name+" ("+MA1+") "+"crosses DOWN " + MA2short_name+" ("+MA2+")");
                   }
              	    if (SendAnEmail && NewBar()) {
                      SendMail(AlertPrefix,MA1short_name+" ("+MA1+") "+"crosses DOWN " + MA2short_name+" ("+MA2+")");
              	    }
      }
   }
   return(0);
}
