pricehistgram_onclick

Download script
Author: Copyright 2015, fxborg
pricehistgram_onclick

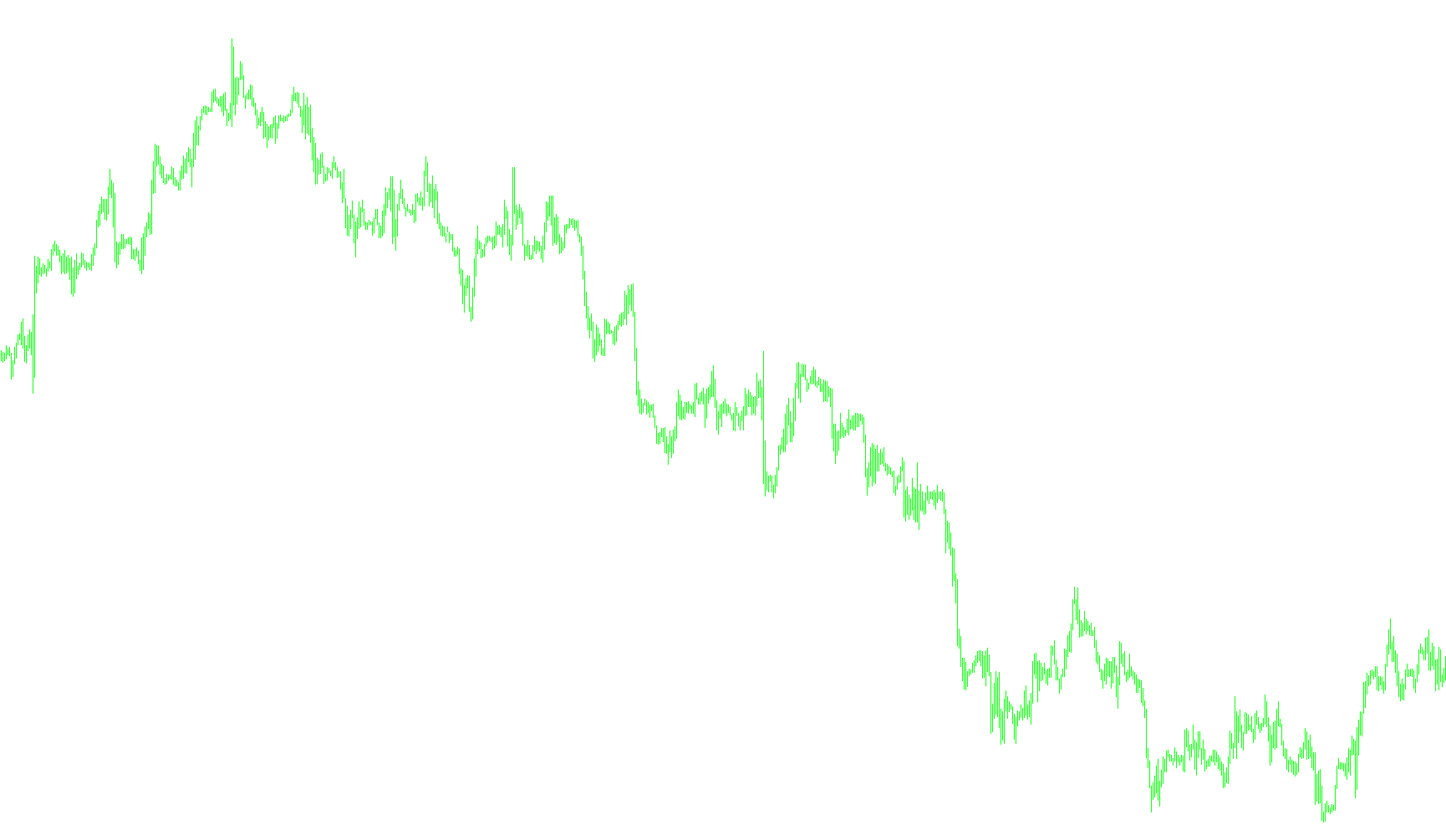

This script is a specialized visual tool designed for MetaTrader 4 users who want to analyze historical price activity and volume distribution at a specific point in time. Rather than showing a standard live chart, it allows you to "click" on any past moment to generate a comprehensive visual summary of market behavior surrounding that date.

Core Logic and Functionality

The script operates based on the following logical steps:

1. Interactive Selection The tool is event-driven, meaning it waits for user interaction. When you click anywhere on your trading chart, the script identifies the exact time and price coordinate of that click. It then uses this information as an anchor point to perform a deep dive into the historical data for that specific period.

2. Multi-Timeframe Data Gathering Once a point in time is selected, the script automatically gathers data from multiple different timeframes simultaneously (specifically 5-minute and 30-minute intervals). It looks at various "look-back" windows to capture different market sentiments:

  • Short Term: Captures very recent fluctuations.
  • Medium Term: Provides a broader view of the surrounding price action.
  • Long Term: Shows the macro trend.
  • Daily Perspective: Integrates 24-hour price cycles into the visual.

3. Volume Weighting & Binning The script processes "Tick Volume" (how many times the price changed). If the volume weighting option is enabled, it uses a mathematical calculation to ensure that periods of extreme activity are represented accurately without distorting the overall scale.

It then takes all this data and organizes it into a "Histogram." Imagine taking all the price movements from those timeframes and sorting them into vertical bins; the script counts how often prices occupied certain price levels, creating a profile of where the "action" actually happened.

4. Visual Construction (The Histogram) After calculating the distribution of price and volume, the script draws several colored rectangles on your chart to represent these different time horizons:

  • It calculates the "peaks" for each timeframe.
  • It draws distinct shapes (rectangles) extending backwards and forwards from your clicked point.
  • Different colors are assigned to different periods (e.g., Gold for Short Term, Blue for Long Term) so you can visually distinguish between immediate volatility and long-term trends.

5. Dynamic Cleaning To keep your chart clean, the script includes a management system. Every time you click a new point, it automatically identifies and removes the previous drawings, ensuring that only the histogram for your current selection is visible at any given time.

Summary of User Experience

Instead of manually looking at multiple charts to guess how much volume occurred at a certain price over several days, this tool allows you to click once. It instantly builds a multi-layered visual "footprint" of price history, showing you exactly where the most significant market activity took place across various time scales simultaneously.

9 Views
0 Downloads
0 Favorites
pricehistgram_onclick
//+------------------------------------------------------------------+
//|                                        PriceHistgram_OnClick.mq4 |
//|        PriceHistgram_OnClick              Copyright 2015, fxborg |
//|                                  http://blog.livedoor.jp/fxborg/ |
//+------------------------------------------------------------------+
#property copyright "Copyright 2015, fxborg"
#property link      "http://blog.livedoor.jp/fxborg/"
#property version   "1.02"
#property indicator_chart_window
//--- input parameters
input double InpBinRange=2.5;       // Bin range of price histogram
input  int InpCalcTime=4;           // Calculation Time(hour)
input  int InpShortTermPeriod =3;   // Short term period(day)
input  int InpMediumTermPeriod=7;   // Medium term period(day)
input  int InpLongTermPeriod =26;   // Long term period(day)
input bool InpUsingVolumeWeight=true;   // Using TickVolume
input double InpDrawScale=0.5;

input  color Inp1DayColor=Red;
input  color InpShortTermColor=Gold;
input  color InpMediumTermColor=DeepPink;
input  color InpLongTermColor=Blue;

int BinRangeScale=4;
double LtBinRange=InpBinRange*BinRangeScale;       // Bin range of price histogram

//---
int PivotHour=4;                    // Pivot period (hour)
//---
int d1_period=24*12;   // for 5min
int st_period = InpShortTermPeriod*24*12;   // for 5min
int mt_period = InpMediumTermPeriod*48;     // for 30
int lt_period = InpLongTermPeriod*48;       // for 1h
//---
int zoom_out_factor=8;
string prefix="PRICE_HISTGRAM_";
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int OnInit()
  {
//--- indicator buffers mapping
//---
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int deinit()
  {
   ObjectDelete(0,"V Line");
   cleaningObj(prefix);
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
  {
//---
//--- return value of prev_calculated for next call
   return(rates_total);
  }
//+------------------------------------------------------------------+
//| ChartEvent function                                              |
//+------------------------------------------------------------------+
void OnChartEvent(const int id,
                  const long &lparam,
                  const double &dparam,
                  const string &sparam)
  {
//---
//--- the mouse has been clicked on the graphic object
   if(id==CHARTEVENT_CLICK)
     {  //--- Prepare variables
      int      x     =(int)lparam;
      int      y     =(int)dparam;
      datetime dt    =0;
      double   price =0;
      int      window=0;
      //--- Convert the X and Y coordinates in terms of date/time
      if(ChartXYToTimePrice(0,x,y,window,dt,price))
        {
         //--- Perform reverse conversion: (X,Y) => (Time,Price)
         if(!ChartTimePriceToXY(0,window,dt,price,x,y))
            return;
         // if(dtreturn;
         if(dt>TimeLocal()) return;
         //--- delete lines
         ObjectDelete(0,"V Line");
         //--- create horizontal and vertical lines of the crosshair
         MqlDateTime tm;
         TimeToStruct(dt,tm);
         string datestr=StringFormat("%04d.%02d.%02d %02d:00",tm.year,tm.mon,tm.day,InpCalcTime);
         datetime t=StringToTime(datestr);

         generate_histgram(window,t);
         ObjectCreate(0,"V Line",OBJ_VLINE,window,t,price);

         ChartRedraw(0);
        }
      else
         return;
     }
  }
//+------------------------------------------------------------------+
//| Short term peak line                                             |
//+------------------------------------------------------------------+
void draw_histgram(int window,datetime t,int offset,const int  &d1_vh[],const int &st_vh[],const int &mt_vh[],const int &lt_vh[])
  {
   int len=MathMin(ArraySize(d1_vh),ArraySize(st_vh));
   if(len<1)return;
   cleaningObj(prefix);
   int i;

   int max=0;
   for(i=0;i<len;i++)
     {
      if(st_vh[i]+d1_vh[i]>max)
         max=st_vh[i]+d1_vh[i];
     }
   int vline=iBarShift(NULL,Period(),t,false);
   int pos=vline+MathRound(max*InpDrawScale);
//int pos=iBarShift(NULL,Period(),Time[zero],false);
   double p1,p2;
   for(i=0;i<len;i++)
     {
      int st=MathRound(st_vh[i]*InpDrawScale);
      datetime st_to=Time[MathMax(0,pos-st)];
      p1 = (offset+i*InpBinRange)*Point;
      p2 = p1+InpBinRange*Point;
      ObjectCreate(prefix+"ST_"+IntegerToString(i),OBJ_RECTANGLE,window,Time[pos],p1,st_to,p2);
      ObjectSet(prefix+"ST_"+IntegerToString(i),OBJPROP_STYLE,STYLE_SOLID);
      ObjectSet(prefix+"ST_"+IntegerToString(i),OBJPROP_COLOR,InpShortTermColor);

      int d1=MathRound(d1_vh[i]*InpDrawScale);
      datetime d1_to=Time[MathMax(0,pos-st-d1)];
      ObjectCreate(prefix+"D1_"+IntegerToString(i),OBJ_RECTANGLE,window,st_to,p1,d1_to,p2);
      ObjectSet(prefix+"D1_"+IntegerToString(i),OBJPROP_STYLE,STYLE_SOLID);
      ObjectSet(prefix+"D1_"+IntegerToString(i),OBJPROP_COLOR,Inp1DayColor);
     }
   len=MathMin(ArraySize(mt_vh),ArraySize(lt_vh));
   if(len<1)return;

   for(i=0;i<len;i++)
     {
      int mt=MathRound(mt_vh[i]*InpDrawScale);
      datetime mt_from=Time[MathMax(0,pos+mt)];
      p1 = (offset + i * LtBinRange) * Point;
      p2 = p1 + LtBinRange * Point;
      ObjectCreate(prefix+"MT_"+IntegerToString(i),OBJ_RECTANGLE,window,mt_from,p1,Time[pos],p2);
      ObjectSet(prefix+"MT_"+IntegerToString(i),OBJPROP_STYLE,STYLE_SOLID);
      ObjectSet(prefix+"MT_"+IntegerToString(i),OBJPROP_COLOR,InpMediumTermColor);

      int lt=MathRound(lt_vh[i]*InpDrawScale);
      datetime lt_from=Time[MathMax(0,pos+mt+lt)];
      ObjectCreate(prefix+"LT_"+IntegerToString(i),OBJ_RECTANGLE,window,lt_from,p1,mt_from,p2);
      ObjectSet(prefix+"LT_"+IntegerToString(i),OBJPROP_STYLE,STYLE_SOLID);
      ObjectSet(prefix+"LT_"+IntegerToString(i),OBJPROP_COLOR,InpLongTermColor);
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
bool generate_histgram(int window,datetime t)
  {
   double m5high[];
   double m5low[];
   long m5vol[];
   ArraySetAsSeries(m5high,true);
   ArraySetAsSeries(m5low,true);
   ArraySetAsSeries(m5vol,true);
   int m5_len1=CopyTickVolume(Symbol(),PERIOD_M5,t,st_period,m5vol);
   int m5_len2=CopyHigh(Symbol(),PERIOD_M5,t,st_period,m5high);
   int m5_len3=CopyLow (Symbol(),PERIOD_M5,t,st_period,m5low);
   bool m5_ok = (st_period==m5_len1 && m5_len1==m5_len2 && m5_len2==m5_len3);
   if(!m5_ok)return (false);
   double m30high[];
   double m30low[];
   long   m30vol[];
   ArraySetAsSeries(m30high,true);
   ArraySetAsSeries(m30low,true);
   ArraySetAsSeries(m30vol,true);
//---
   int m30_len1=CopyTickVolume(Symbol(),PERIOD_M30,t,lt_period,m30vol);
   int m30_len2=CopyHigh(Symbol(),PERIOD_M30,t,lt_period,m30high);
   int m30_len3=CopyLow (Symbol(),PERIOD_M30,t,lt_period,m30low);
   bool m30_ok = (lt_period==m30_len1 && m30_len1==m30_len2 && m30_len2==m30_len3);
   if(!m30_ok)return (false);

   int st_offset=(int)MathRound(m5low[ArrayMinimum(m5low)]/_Point);
   int st_limit=(int)MathRound(m5high[ArrayMaximum(m5high)]/_Point);

//--- 1Day peak line
   int d1_offset=(int)MathRound(m5low[ArrayMinimum(m5low,d1_period,0)]/_Point);
   int d1_limit=(int)MathRound(m5high[ArrayMaximum(m5high,d1_period,0)]/_Point);
//
   int lt_offset=(int)MathRound(m30low[ArrayMinimum(m30low)]/_Point);
   int lt_limit=(int)MathRound(m30high[ArrayMaximum(m30high)]/_Point);
//--- Middle term peak line
   int mt_offset=(int)MathRound(m30low[ArrayMinimum(m30low,mt_period,0)]/_Point);
   int mt_limit=(int)MathRound(m30high[ArrayMaximum(m30high,mt_period,0)]/_Point);

   int offset = MathMin(MathMin(MathMin(d1_offset,st_offset),mt_offset),lt_offset);
   int limit  = MathMax(MathMax(MathMax(d1_limit,st_limit),mt_limit),lt_limit);
   int lt_vh[];
   int mt_vh[];
   int st_vh[];
   int d1_vh[];
   int lt_vhZO[];
   int mt_vhZO[];
   int st_vhZO[];
   int d1_vhZO[];

   calc_histgram(lt_vh,lt_vhZO,m30high,m30low,m30vol,offset,limit,InpBinRange*BinRangeScale,lt_period);
   calc_histgram(mt_vh,mt_vhZO,m30high,m30low,m30vol,offset,limit,InpBinRange*BinRangeScale,mt_period);
   calc_histgram(st_vh,st_vhZO,m5high,m5low,m5vol,offset,limit,InpBinRange,st_period);
   calc_histgram(d1_vh,d1_vhZO,m5high,m5low,m5vol,offset,limit,InpBinRange,d1_period);

   draw_histgram(window,t,offset,d1_vh,st_vh,mt_vh,lt_vh);
   return (true);
  }
//+------------------------------------------------------------------+
//| calc histgram                                                    |
//+------------------------------------------------------------------+
bool calc_histgram(int &vh[],int &vhZO[],const double  &hi[],const double  &lo[],const long  &vol[],int offset,int limit,double binRange,int barcount=NULL)
  {
//---
   int j,k;
   int factor=zoom_out_factor;  // zoom out factor
//---
//--- for calcuration
   int work[][2];
//--- binrange zoom out
   double binRangeZO=binRange*factor;
//--- histgram bin steps
   int steps=(int)MathRound((limit-offset)/binRange)+1;
//--- histgram bin*zoomout steps
   int stepsZO=(int)MathRound((limit-offset)/binRangeZO)+1;
//--- init
   ArrayResize(vh,steps);
   ArrayInitialize(vh,0);
   ArrayResize(vhZO,stepsZO);
   ArrayInitialize(vhZO,0);
//--- histgram loop
   for(j=barcount-1;j>=0;j--)
     {
      int l =(int)MathRound(lo[j]/_Point);
      int h =(int)MathRound(hi[j]/_Point);
      int v=1;
      if(InpUsingVolumeWeight)
        {
         v=(int)MathRound(MathSqrt(MathMin(vol[j],1)));
        }
      int min = (int)MathRound((l-offset)/binRange);
      int max = (int)MathRound((h-offset)/binRange);
      int minZO = (int)MathRound((l-offset)/binRangeZO);
      int maxZO = (int)MathRound((h-offset)/binRangeZO);
      //--- for normal
      for(k=min;k<=max;k++)vh[k]+=v;
      //--- for zoomout
      for(k=minZO;k<=maxZO;k++)vhZO[k]+=v;
     }
   return(true);
  }
//+------------------------------------------------------------------+
//| Delete all objects with given prefix                             |
//+------------------------------------------------------------------+
void cleaningObj(string Prefix)
  {
   int L = StringLen(Prefix);
   int i = 0;
   while(i<ObjectsTotal())
     {
      string ObjName=ObjectName(i);
      if(StringSubstr(ObjName,0,L)!=Prefix)
        {
         i++;
         continue;
        }
      ObjectDelete(ObjName);
     }
  }
//+------------------------------------------------------------------+
