priceaction

This tool is designed to automatically identify specific price action patterns on a trading chart. Instead of requiring a trader to manually analyze every candle, the script scans the market history to detect three distinct types of formations: Pin Bars, Inside Bars, and Engulfing Bars.

Core Logic Overview

The script evaluates each individual candle by comparing its physical dimensions—such as the "body" (the distance between open and close prices), the "wick" (the thin line showing high/low reach), and the "nose" (the distance from the open to the high/low)—against the candles that preceded it.

The logic is divided into three primary detection modules:

1. Pin Bar Detection

This module looks for candles with long "wicks" and small bodies, which often signify a sharp rejection of price.

  • Upward Rejections (Hammer): The script identifies candles where the bottom wick is significantly longer than the body and the top portion. It also checks if these wicks are lower than the previous several candles.
  • Downward Rejections (Hangman): Conversely, it looks for candles with long top wicks that exceed the body and bottom wick sizes, specifically when they reach higher than previous price points.
  • Strength Scoring: The script assigns different values based on how many consecutive candles back the current high/low is being broken, allowing for a tiered representation of the pattern's strength.

2. Inside Bar Detection

This module identifies "consolidation" or "quiet" periods in the market where price movement remains within a narrow range.

  • The Logic: It checks if the current candle's high and low prices are completely contained within the high and low boundaries of previous candles.
  • Scope: Just like the Pin Bar logic, it evaluates this over varying depths (comparing the current bar against 1, 2, 3, or 4 previous bars) to determine how established the consolidation is.

3. Engulfing Bar Detection

This module detects "breakout" behavior where a new candle completely wraps around the price action of the previous one.

  • The Logic: It measures if the current candle's high and low boundaries are wider than those of the preceding candles.
  • Upward vs. Downward: It distinguishes between bullish engulfing (where the current candle is larger and covers previous movement) and bearish engulfing.
  • Strength Scoring: The script provides a higher priority or value if the current candle manages to "engulf" multiple candles in a row rather than just one.

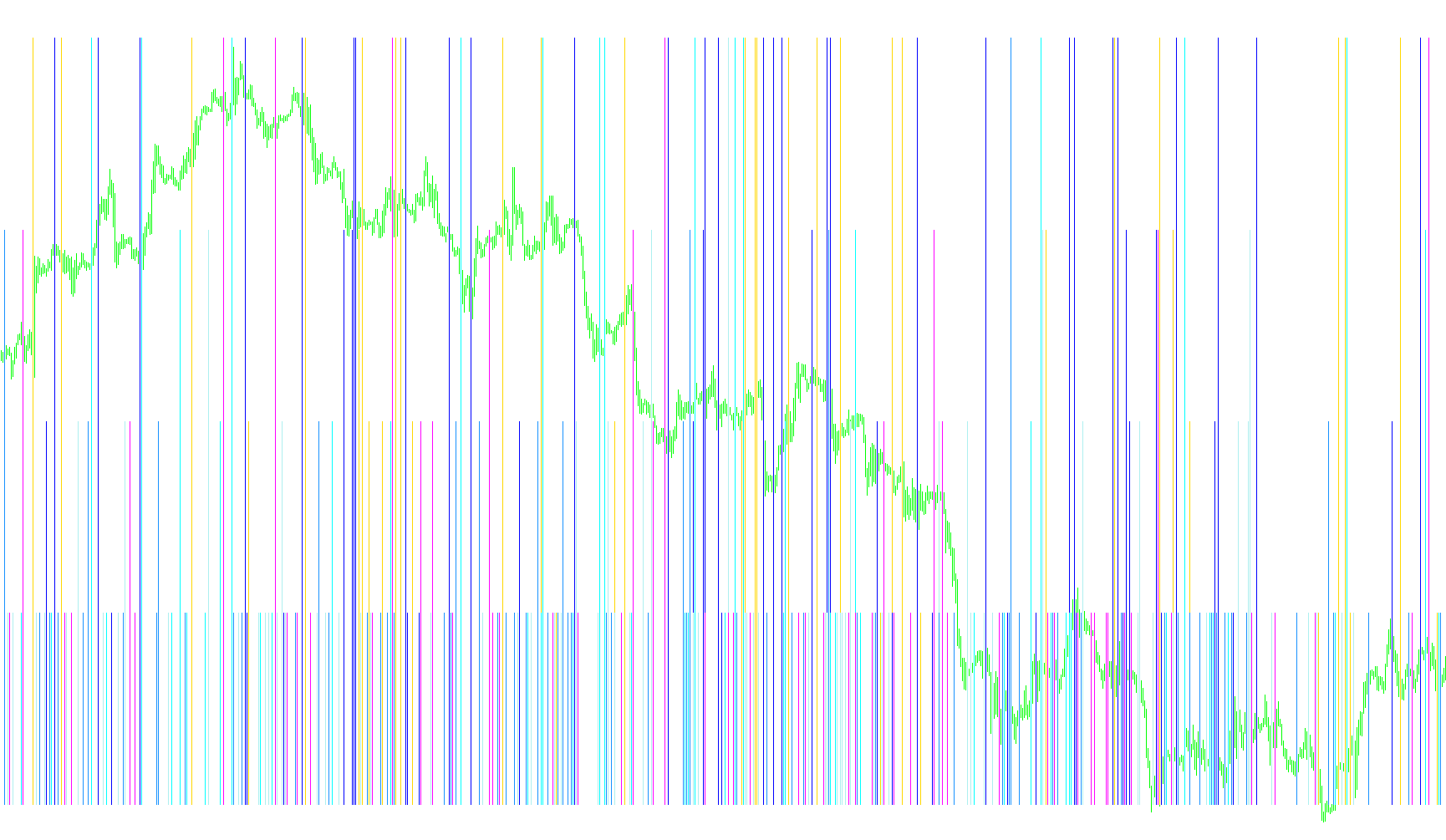

Visual Output

The script processes these calculations in real-time and maps them to a separate indicator window. It uses a histogram style to display these signals, with distinct colors assigned to different types of movements:

  • Green/Lime shades: Generally represent upward pressure or bullish patterns.
  • Red/Coral shades: Generally represent downward pressure or bearish patterns.
  • Blue/Orange shades: Used to differentiate between the specific sub-types of these price actions.
Price Data Components
Series array that contains the highest prices of each barSeries array that contains the highest prices of each barSeries array that contains the lowest prices of each barSeries array that contains the lowest prices of each bar
Miscellaneous
Implements a curve of type %1
12 Views
0 Downloads
0 Favorites
priceaction
//+------------------------------------------------------------------+
//|                                                  PriceAction.mq4 |
//|                        Copyright 2016, MetaQuotes Software Corp. |
//|                                   https://M2P_Design@hotmail.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2016, MetaQuotes Software Corp."
#property link      "https://M2P_Design@hotmail.com"
#property version   "1.00"
#property strict
#property indicator_separate_window
#property indicator_minimum 1
#property indicator_maximum 5
#property indicator_buffers 6
#property indicator_color1 clrLime
#property indicator_color2 clrRed
#property indicator_color3 clrBlue
#property indicator_color4 clrOrange
#property indicator_color5 clrDarkGreen
#property indicator_color6 clrLightCoral
#property indicator_width1 2
#property indicator_width2 2
#property indicator_width3 2
#property indicator_width4 2
#property indicator_width5 2
#property indicator_width6 2

double PinBarU[];
double PinBarD[];
double InBarU[];
double InBarD[];
double EnBarU[];
double EnBarD[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int OnInit()
  {
//--- indicator buffers mapping
   SetIndexBuffer(0,PinBarU);
   SetIndexBuffer(1,PinBarD);
   SetIndexBuffer(2,InBarU);
   SetIndexBuffer(3,InBarD);
   SetIndexBuffer(4,EnBarU);
   SetIndexBuffer(5,EnBarD);
   SetIndexStyle(0,DRAW_HISTOGRAM);
   SetIndexStyle(1,DRAW_HISTOGRAM);
   SetIndexStyle(2,DRAW_HISTOGRAM);
   SetIndexStyle(3,DRAW_HISTOGRAM);
   SetIndexStyle(4,DRAW_HISTOGRAM);
   SetIndexStyle(5,DRAW_HISTOGRAM);
   SetIndexLabel(0,"PinBar UP");
   SetIndexLabel(1,"PinBar Down");
   SetIndexLabel(2,"Inside Bar UP");
   SetIndexLabel(3,"Inside Bar Down");
   SetIndexLabel(4,"Engulfing Bar UP");
   SetIndexLabel(5,"Engulfing Bar Down");
   IndicatorShortName("BOLA-PriceAction");

//---
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
  {
   int limit=rates_total-prev_calculated;
//---- main loop
   for(int i=0; i<limit; i++)
     {
      switch(PinBar(i))
        {
         case 2:PinBarU[i]= 1;continue;
         case 4:PinBarU[i]= 2;continue;
         case 6:PinBarU[i]= 3;continue;
         case 8:PinBarU[i]= 4;continue;
         case 1:PinBarD[i]= 1;continue;
         case 3:PinBarD[i]= 2;continue;
         case 5:PinBarD[i]= 3;continue;
         case 7:PinBarD[i]= 4;continue;
         case -1:PinBarU[i]=0;PinBarD[i]=0;
        }

      switch(InBar(i))
        {
         case 2:InBarU[i]= 1;continue;
         case 4:InBarU[i]= 2;continue;
         case 6:InBarU[i]= 3;continue;
         case 8:InBarU[i]= 4;continue;
         case 1:InBarD[i]= 1;continue;
         case 3:InBarD[i]= 2;continue;
         case 5:InBarD[i]= 3;continue;
         case 7:InBarD[i]= 4;continue;
         case -1:InBarU[i]=0;InBarD[i]=0;
        }

      switch(EnBar(i))
        {
         case 2:EnBarU[i]= 1;continue;
         case 4:EnBarU[i]= 2;continue;
         case 6:EnBarU[i]= 3;continue;
         case 8:EnBarU[i]= 4;continue;
         case 1:EnBarD[i]= 1;continue;
         case 3:EnBarD[i]= 2;continue;
         case 5:EnBarD[i]= 3;continue;
         case 7:EnBarD[i]= 4;continue;
         case -1:EnBarU[i]=0;EnBarD[i]=0;
        }
      //---
     }
//--- return value of prev_calculated for next call
   return(rates_total);
  }
//+------------------------------------------------------------------+
//+------------------------------------------------------------------+
//| PinBar function                                                  |
//+------------------------------------------------------------------+
int PinBar(int i)
  {
   double Nose,Body,Wick;
   double High1=iHigh(NULL,0,i+1);
   double High2=iHigh(NULL,0,i+2);
   double High3=iHigh(NULL,0,i+3);
   double High4=iHigh(NULL,0,i+4);
   double Low1=iLow(NULL,0,i+1);
   double Low2=iLow(NULL,0,i+2);
   double Low3=iLow(NULL,0,i+3);
   double Low4=iLow(NULL,0,i+4);

//-------------
// UpCandle
//-------------
   if((High[i]-Open[i])>(High[i]-Close[i]))
     {
      Nose = High[i]-Close[i];
      Body = Close[i]-Open[i];
      Wick = Open[i]-Low[i];

      // HangMan
      if(Nose>(Wick*2) && Nose>(Body*2)
         && High[i]>High1 && High[i]>High2
         && High[i]>High3 && High[i]>High4)  return(8);

      else if(Nose>(Wick*2) && Nose>(Body*2)
         && High[i]>High1 && High[i]>High2
         && High[i]>High3)                      return(6);

      else if(Nose>(Wick*2) && Nose>(Body*2)
         && High[i]>High1 && High[i]>High2) return(4);

      else if(Nose>(Wick*2) && Nose>(Body*2)
         && High[i]>High1)                      return(2);


      // Hammer
      else if(Wick>(Nose*2) && Wick>(Body*2)
         && Low[i]<Low1 && Low[i]<Low2
         && Low[i]<Low3 && Low[i]<Low4)    return(8);

      else if(Wick>(Nose*2) && Wick>(Body*2)
         && Low[i]<Low1 && Low[i]<Low2
         && Low[i]<Low3)                       return(6);

      else if(Wick>(Nose*2) && Wick>(Body*2)
         && Low[i]<Low1 && Low[i]<Low2)    return(4);

      else if(Wick>(Nose*2) && Wick>(Body*2)
         && Low[i]<Low1)                       return(2);

      else return(-1);
     }

//-------------
// DownCandle
//-------------
   else if((High[i]-Open[i])<(High[i]-Close[i]))
     {
      Nose = High[i]-Open[i];
      Body = Open[i]-Close[i];
      Wick = Close[i]-Low[i];

      // HangMan
      if(Nose>(Wick*2) && Nose>(Body*2)
         && High[i]>High1 && High[i]>High2
         && High[i]>High3 && High[i]>High4)  return(7);

      else if(Nose>(Wick*2) && Nose>(Body*2)
         && High[i]>High1 && High[i]>High2
         && High[i]>High3)                      return(5);

      else if(Nose>(Wick*2) && Nose>(Body*2)
         && High[i]>High1 && High[i]>High2) return(3);

      else if(Nose>(Wick*2) && Nose>(Body*2)
         && High[i]>High1)                      return(1);


      // Hammer
      else if(Wick>(Nose*2) && Wick>(Body*2)
         && Low[i]<Low1 && Low[i]<Low2
         && Low[i]<Low3 && Low[i]<Low4)    return(7);

      else if(Wick>(Nose*2) && Wick>(Body*2)
         && Low[i]<Low1 && Low[i]<Low2
         && Low[i]<Low3)                       return(5);

      else if(Wick>(Nose*2) && Wick>(Body*2)
         && Low[i]<Low1 && Low[i]<Low2)    return(3);

      else if(Wick>(Nose*2) && Wick>(Body*2)
         && Low[i]<Low1)                       return(1);

      else return(-1);
     }
   else return(-1);
  }
//+------------------------------------------------------------------+
//| Inside Bar function                                              |
//+------------------------------------------------------------------+
int InBar(int i)
  {
   double High1=iHigh(NULL,0,i+1);
   double High2=iHigh(NULL,0,i+2);
   double High3=iHigh(NULL,0,i+3);
   double High4=iHigh(NULL,0,i+4);
   double Low1=iLow(NULL,0,i+1);
   double Low2=iLow(NULL,0,i+2);
   double Low3=iLow(NULL,0,i+3);
   double Low4=iLow(NULL,0,i+4);

//-------------
// UpCandle
//-------------
   if((High[i]-Open[i])>(High[i]-Close[i]))
     {
      if(High[i]<=High1 && Low[i]>=Low1
         && High[i]<=High2 && Low[i]>=Low2
         && High[i]<=High3 && Low[i]>=Low3
         && High[i]<=High4 && Low[i]>=Low4) return(8);

      else if(High[i]<=High1 &&  Low[i]>=Low1
         &&  High[i]<=High2&& Low[i]>=Low2
                      && High[i]<=High3 && Low[i]>=Low3) return(6);

      else if(High[i]<=High1 && Low[i]>=Low1
         && High[i]<=High2 && Low[i]>=Low2) return(4);

      else if(High[i]<=High1 && Low[i]>=Low1) return(2);

      else return(-1);
     }

//-------------
// DownCandle
//-------------
   else if((High[i]-Open[i])<(High[i]-Close[i]))
     {
      if(High[i]<=High1 && Low[i]>=Low1
         && High[i]<=High2 && Low[i]>=Low2
         && High[i]<=High3 && Low[i]>=Low3
         && High[i]<=High4 && Low[i]>=Low4) return(7);

      else if(High[i]<=High1 &&  Low[i]>=Low1
         &&  High[i]<=High2&& Low[i]>=Low2
                      && High[i]<=High3 && Low[i]>=Low3) return(5);

      else if(High[i]<=High1 && Low[i]>=Low1
         && High[i]<=High2 && Low[i]>=Low2) return(3);

      else if(High[i]<=High1 && Low[i]>=Low1) return(1);

      else return(-1);
     }

   else return(-1);
  }
//+------------------------------------------------------------------+
//| Engulfing Bar function                                           |
//+------------------------------------------------------------------+
int EnBar(int i)
  {
   double High1=iHigh(NULL,0,i+1);
   double High2=iHigh(NULL,0,i+2);
   double High3=iHigh(NULL,0,i+3);
   double High4=iHigh(NULL,0,i+4);
   double Low1=iLow(NULL,0,i+1);
   double Low2=iLow(NULL,0,i+2);
   double Low3=iLow(NULL,0,i+3);
   double Low4=iLow(NULL,0,i+4);

//-------------
// UpCandle
//-------------
   if((High[i]-Open[i])>(High[i]-Close[i]))
     {
      if(High[i]>=High1 && Low[i]<=Low1
         && High[i]>=High2 && Low[i]<=Low2
         && High[i]>=High3 && Low[i]<=Low3
         && High[i]>=High4 && Low[i]<=Low4) return(8);

      else if(High[i]>=High1 &&  Low[i]<=Low1
         &&  High[i]>=High2&& Low[i]<=Low2
                      && High[i]>=High3 && Low[i]<=Low3) return(6);

      else if(High[i]>=High1 && Low[i]<=Low1
         && High[i]>=High2 && Low[i]<=Low2) return(4);

      else if(High[i]>=High1 && Low[i]<=Low1) return(2);

      else return(-1);
     }

//-------------
// DownCandle
//-------------
   else if((High[i]-Open[i])<(High[i]-Close[i]))
     {
      if(High[i]>=High1 && Low[i]<=Low1
         && High[i]>=High2 && Low[i]<=Low2
         && High[i]>=High3 && Low[i]<=Low3
         && High[i]>=High4 && Low[i]<=Low4) return(7);

      else if(High[i]>=High1 && Low[i]<=Low1
         && High[i]>=High2 && Low[i]<=Low2
                     && High[i]>=High3 && Low[i]<=Low3) return(5);

      else if(High[i]>=High1 && Low[i]<=Low1
         && High[i]>=High2 && Low[i]<=Low2) return(3);

      else if(High[i]>=High1 && Low[i]<=Low1) return(1);

      else return(-1);
     }

   else return(-1);
  }
//+------------------------------------------------------------------+
